SUNSHADE MOTOR ASSEMBLY

SUNSHADE MOTOR ASSEMBLY

Reference Value

INFOID:0000000003812869

TERMINAL LAYOUT

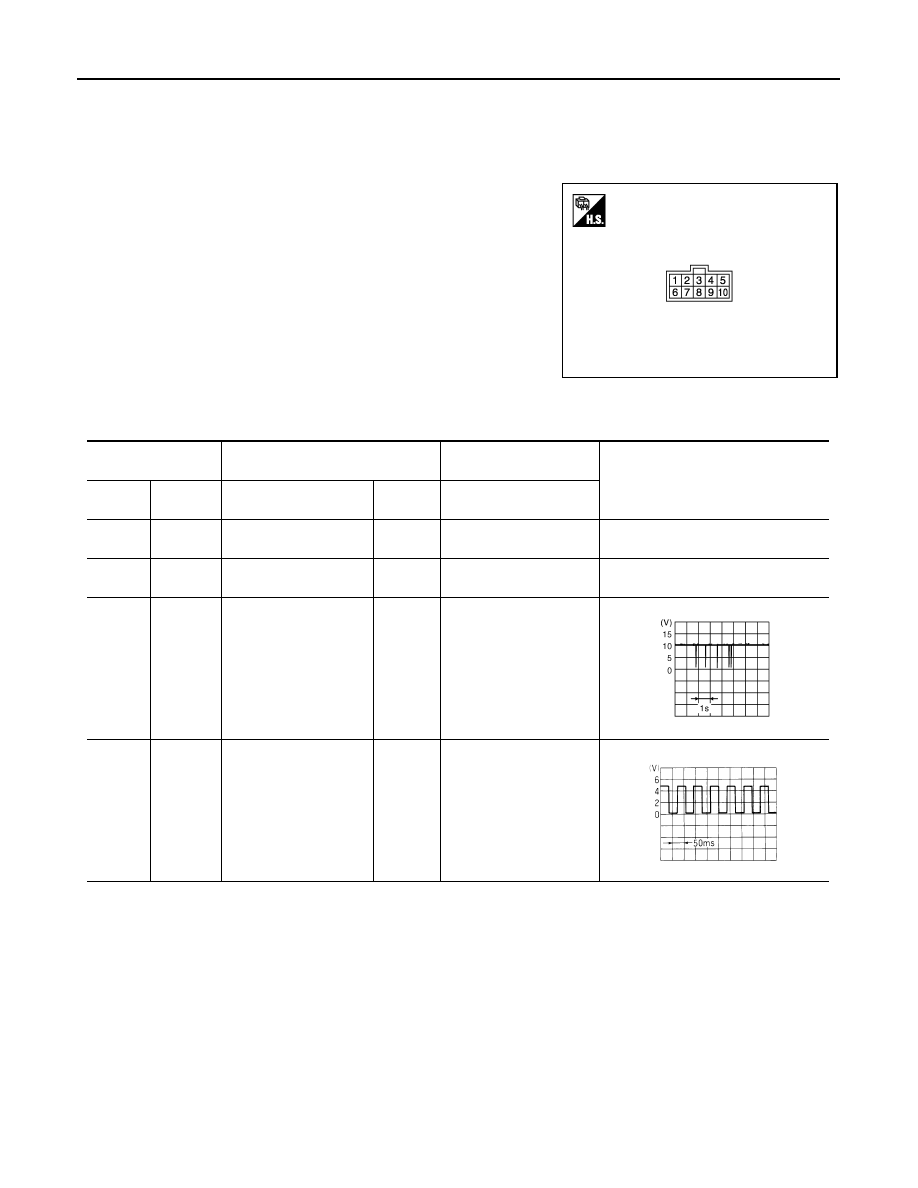

PHYSICAL VALUES

JMKIA2225ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

1

(B)

Ground

Ground

—

—

0

6

(R)

Ground

Battery voltage

—

—

Battery voltage

7

(P)

Ground

Communication line

Input/

Output

Ignition switch ON

8

(L)

Ground

Vehicle speed signal (2-
pulse)

Input

Speed meter operated
[When vehicle speed is
approx. 40km/h (25MPH)]

JMKIA1869ZZ

ELF1080D

SUNSHADE MOTOR ASSEMBLY

RF-61

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

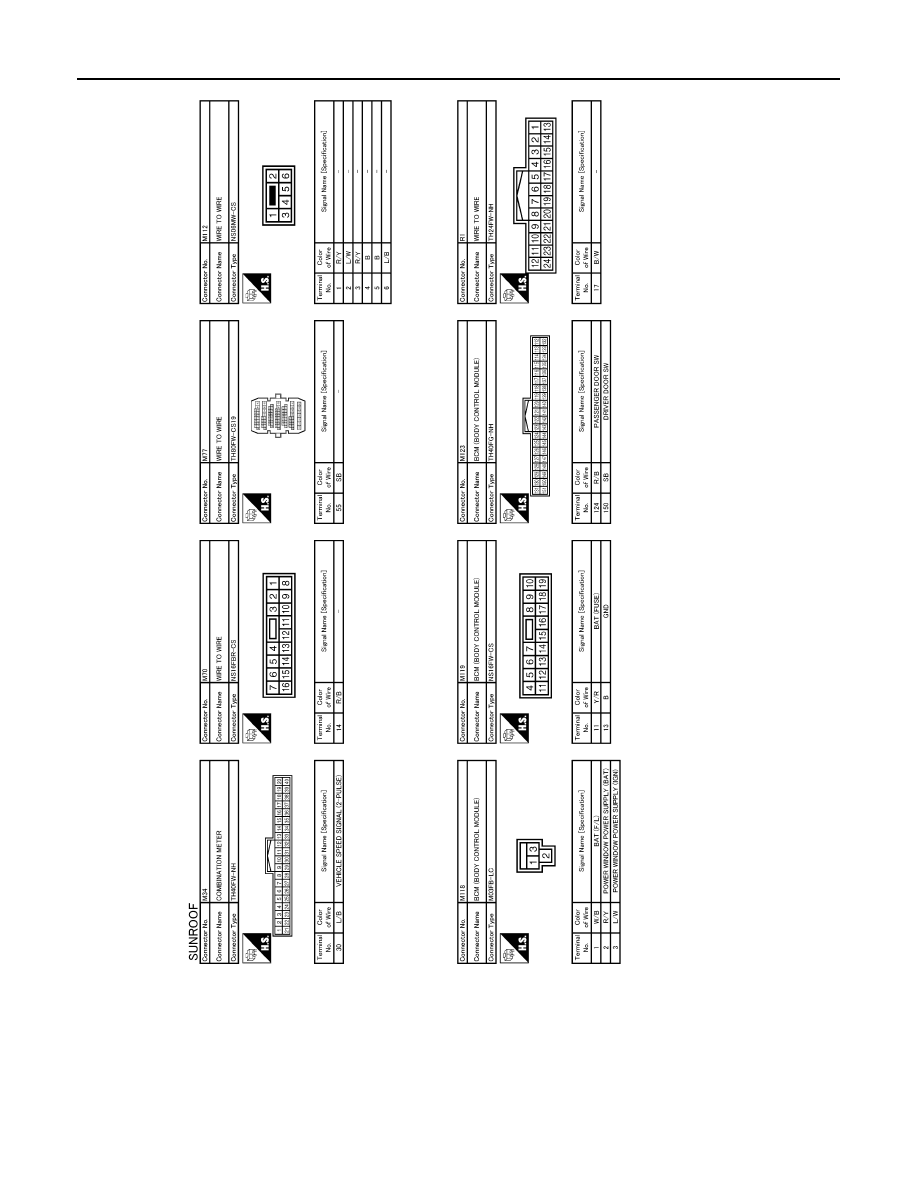

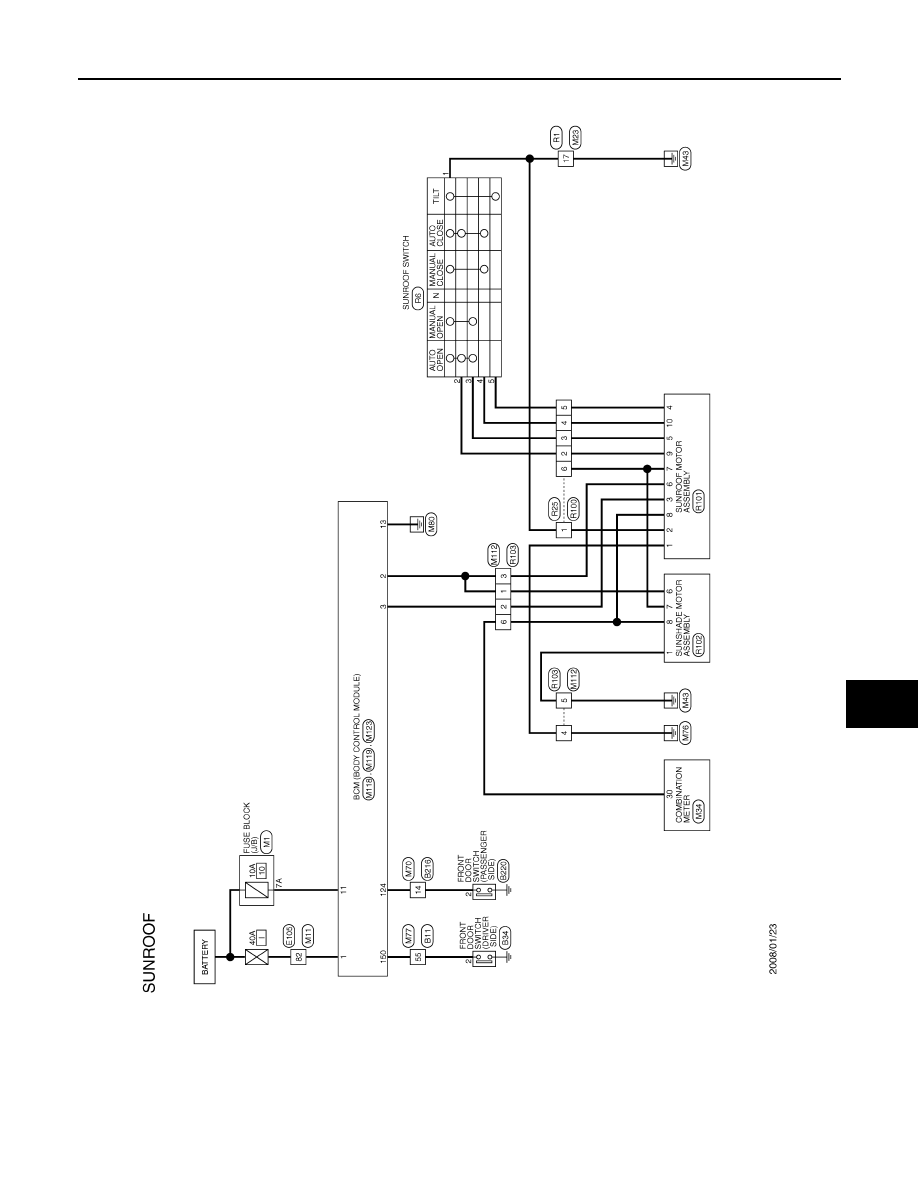

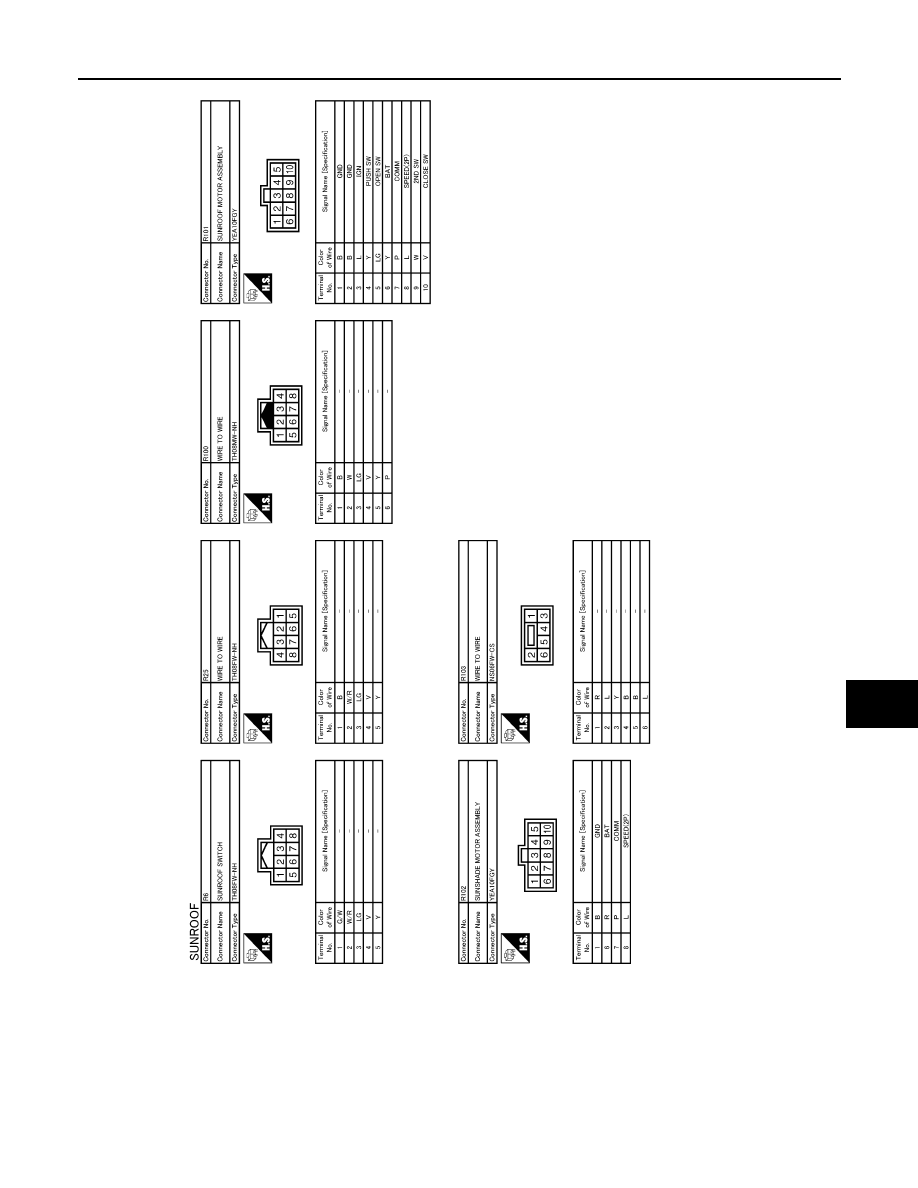

Wiring Diagram - SUNROOF CONTROL SYSTEM -

INFOID:0000000003812870

JCKWM1232GB
