STANDARDIZED RELAY

Description

INFOID:0000000003792683

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

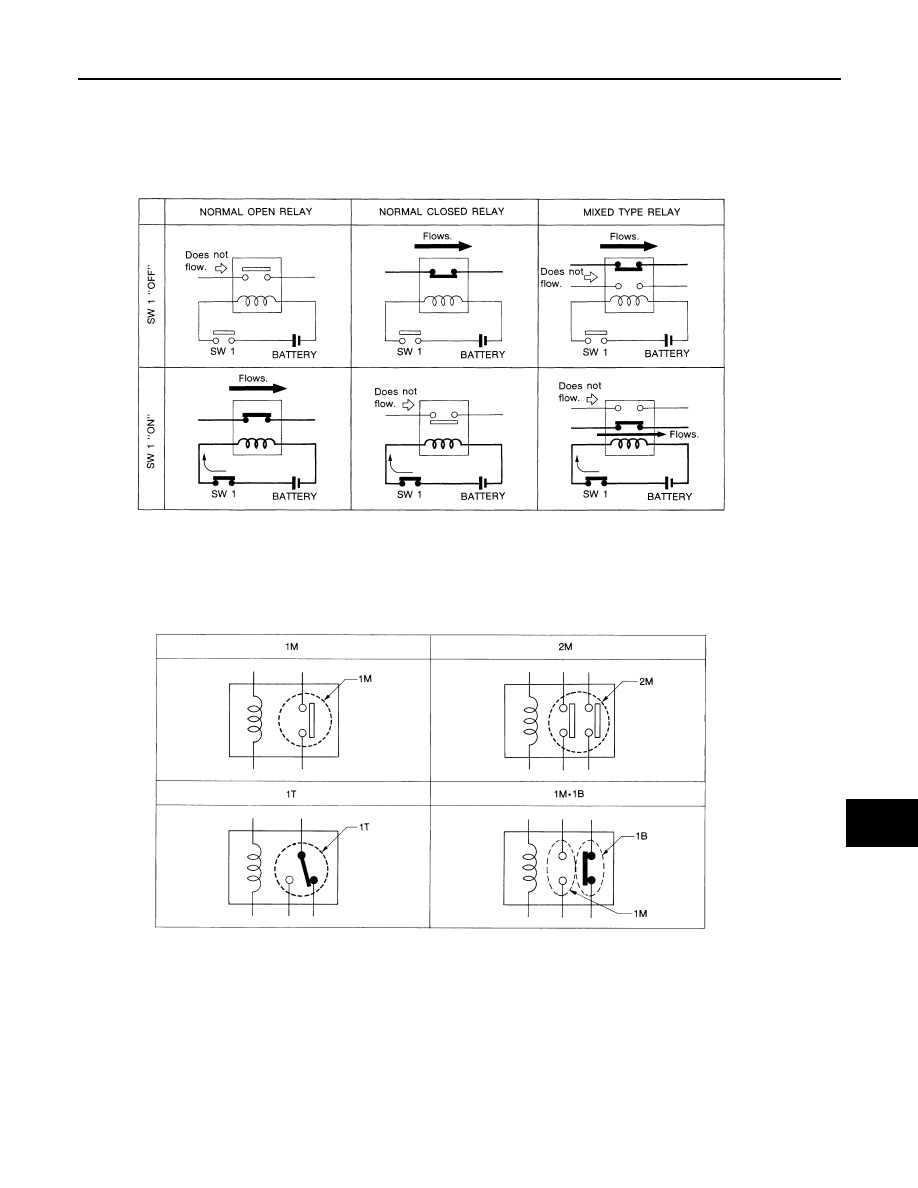

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

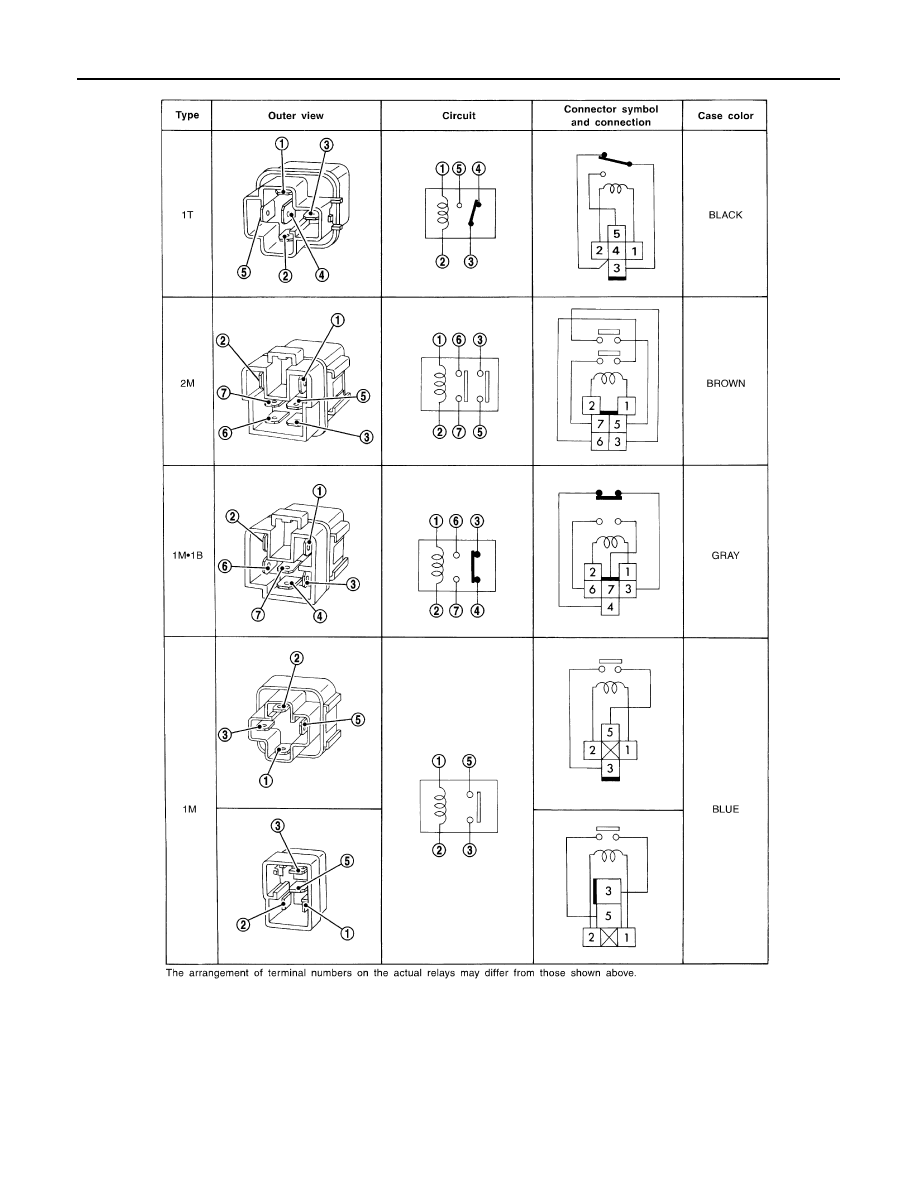

TYPE OF STANDARDIZED RELAYS

SEL881H

1M ···················· 1 Make

2M      ···················· 2 Make

1T ···················· 1 Transfer

1M·1B ···················· 1 Make 1 Break

SEL882H

PG-100

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

STANDARDIZED RELAY

SEL188W

PG

FUSE BLOCK - JUNCTION BOX (J/B)

PG-101

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUSE BLOCK - JUNCTION BOX (J/B)

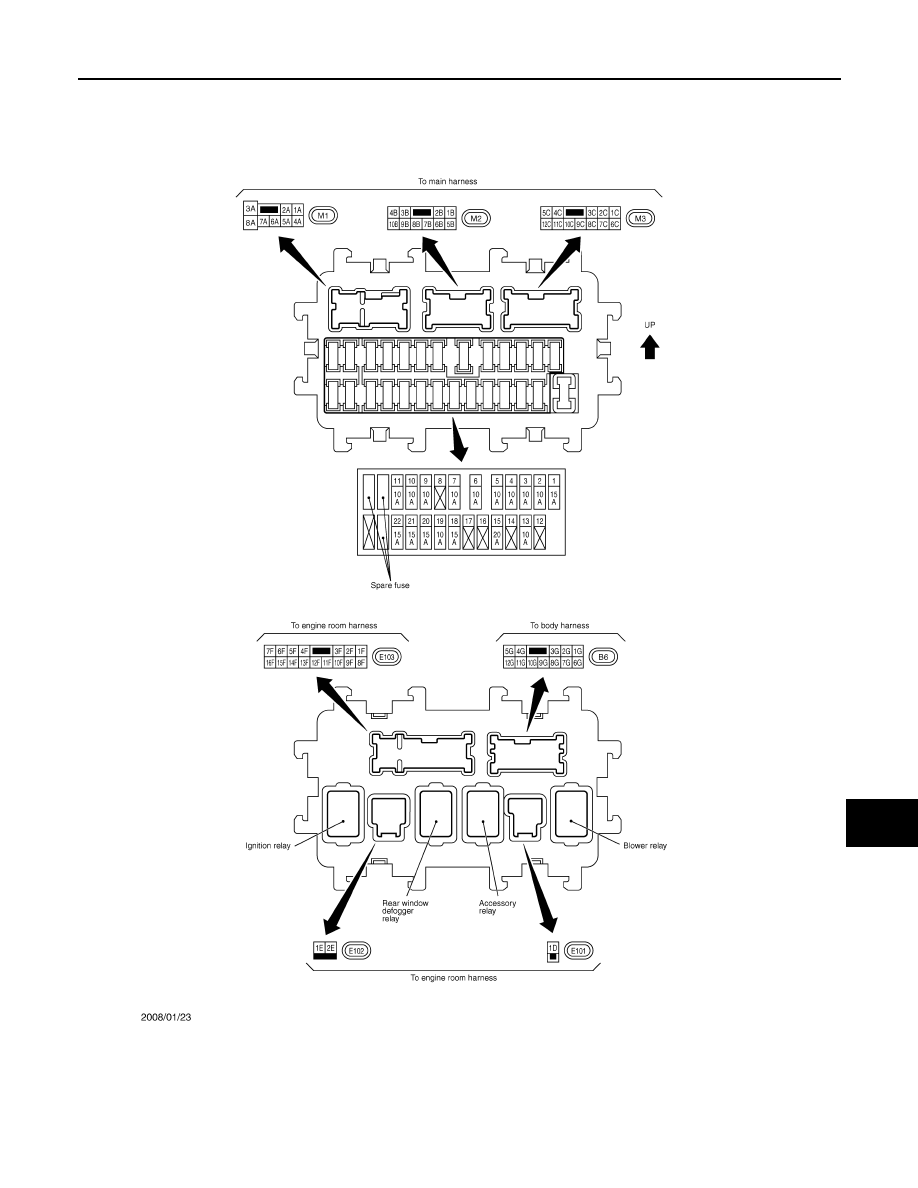

Fuse, Connector and Terminal Arrangement

INFOID:0000000003792684

JCMWM1766GB

PG-102

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

FUSE, FUSIBLE LINK AND RELAY BOX

FUSE, FUSIBLE LINK AND RELAY BOX

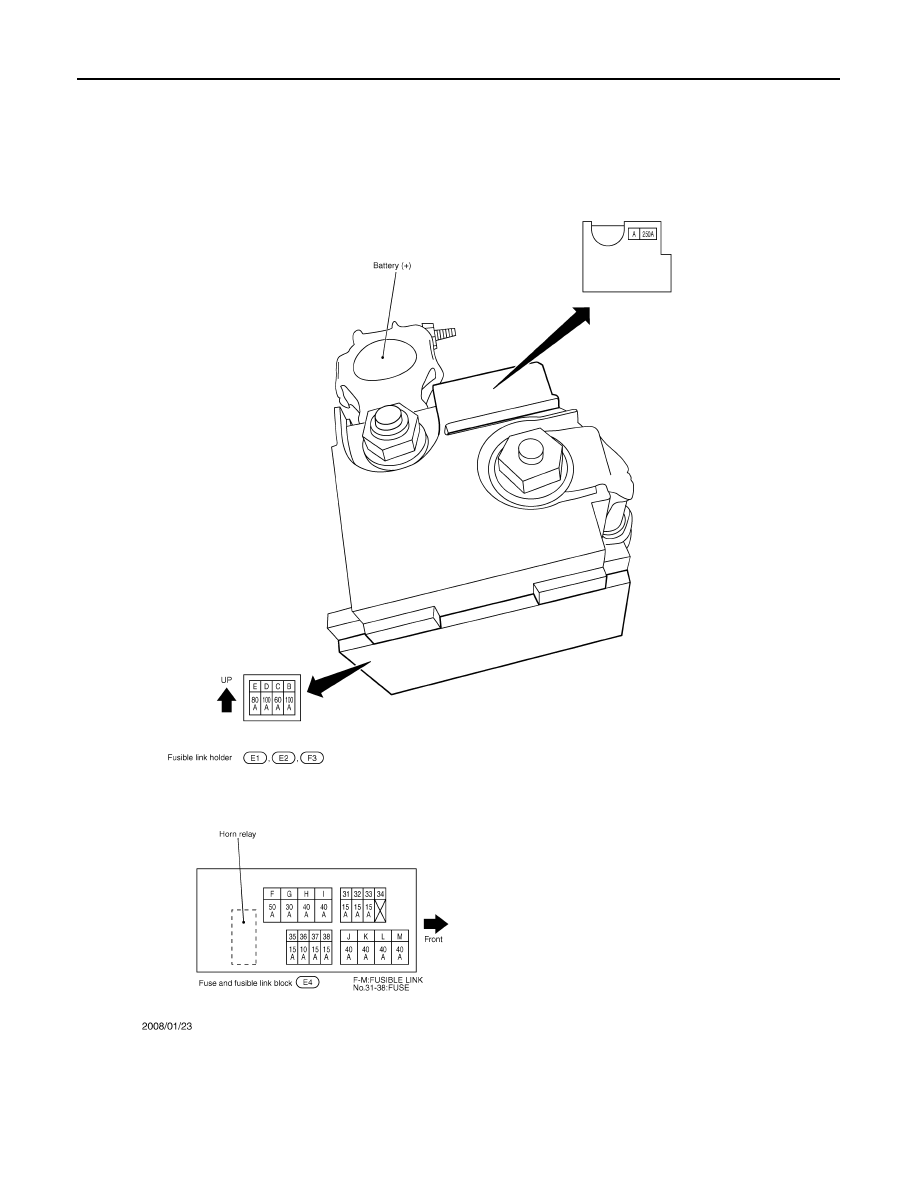

Fuse and Fusible Link Arrangement

INFOID:0000000003792685

JCMWM1767GB
