POWER SUPPLY ROUTING CIRCUIT

PG-47

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1731GB

PG-48

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

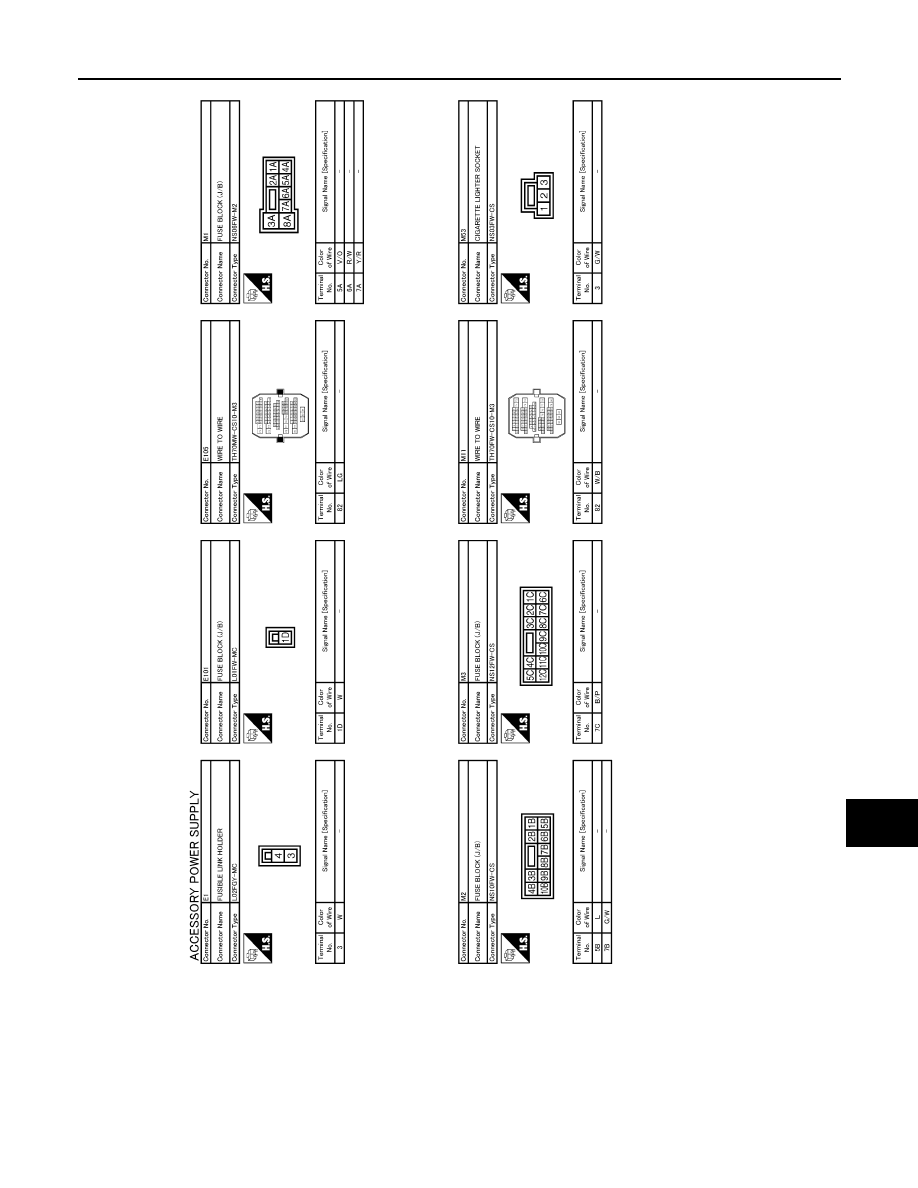

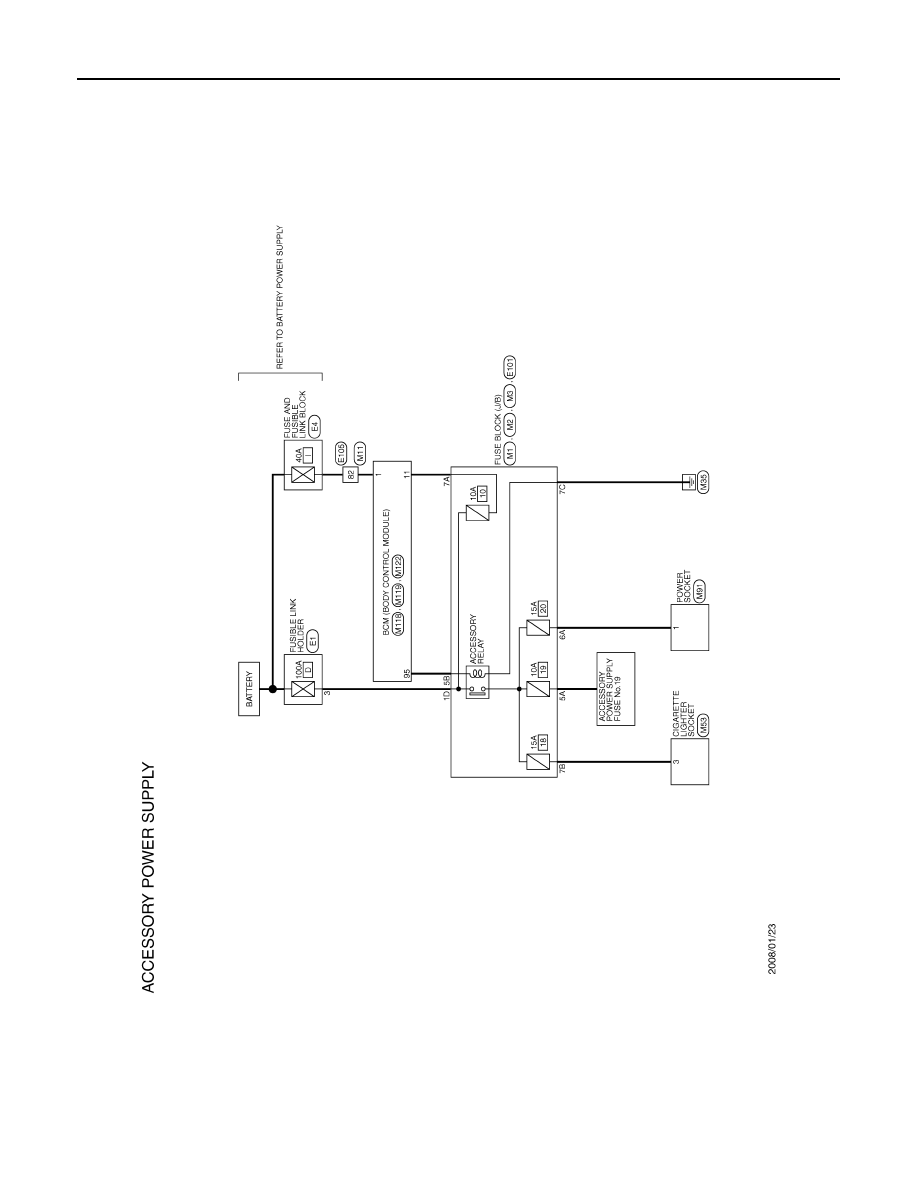

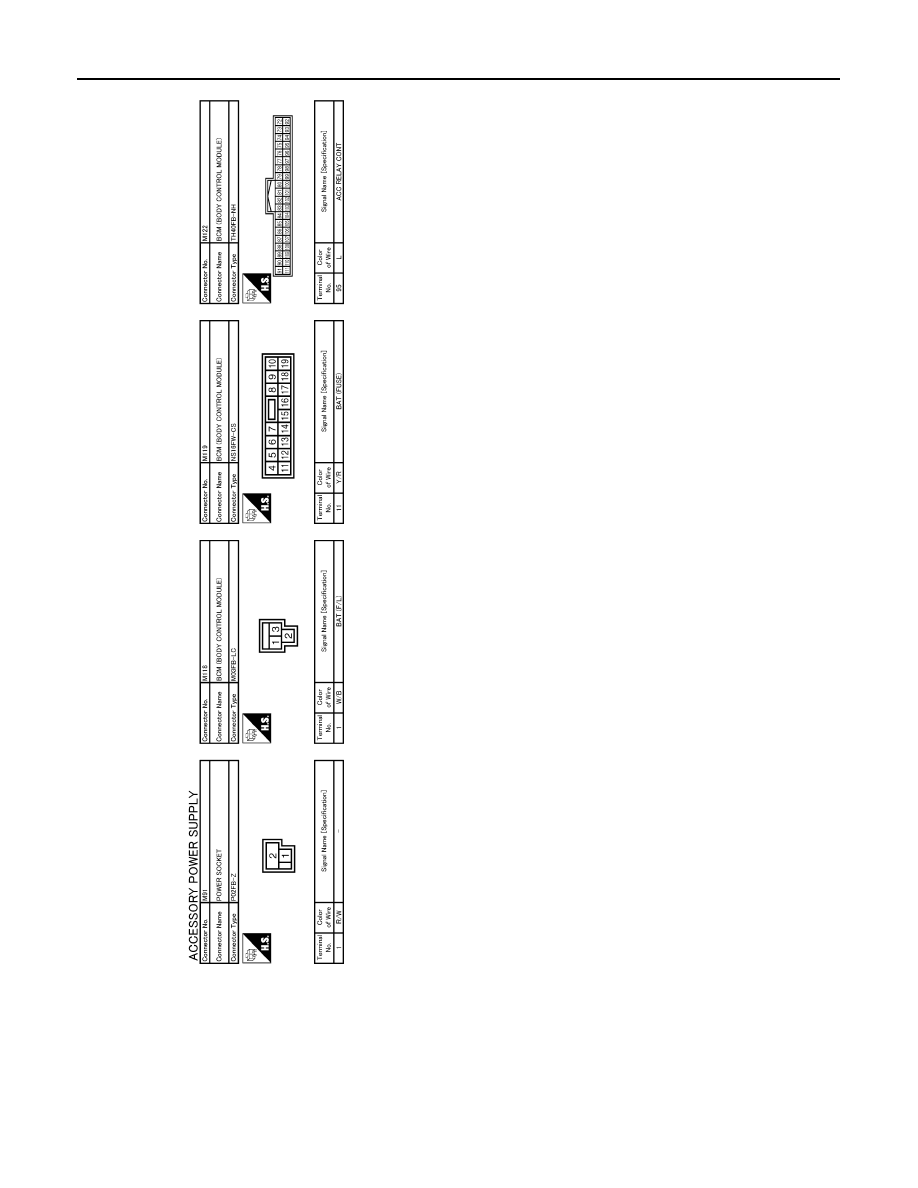

Wiring Diagram - ACCESSORY POWER SUPPLY -

INFOID:0000000003792660

JCMWM1732GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-49

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1733GB

PG-50

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

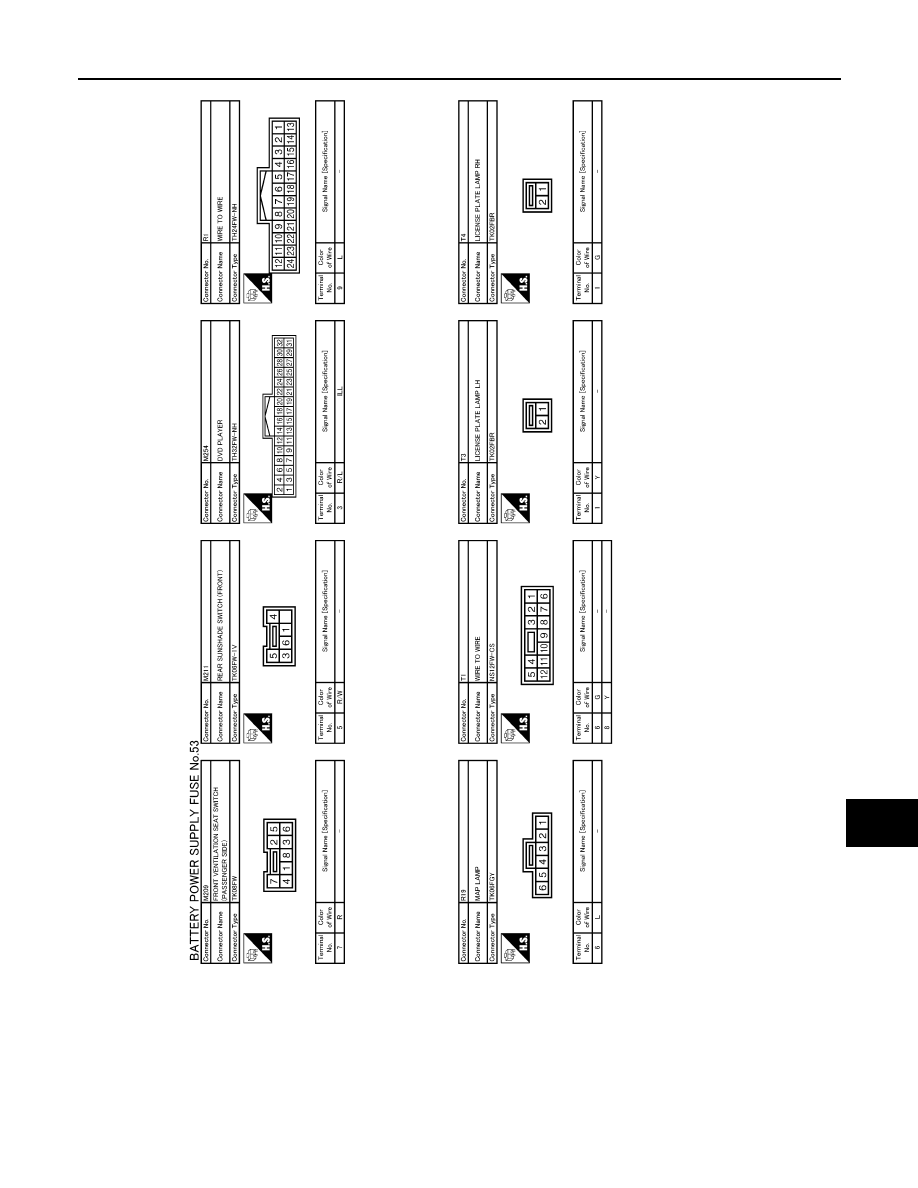

POWER SUPPLY ROUTING CIRCUIT

JCMWM1734GB
