POWER SUPPLY ROUTING CIRCUIT

PG-35

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1719GB

PG-36

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

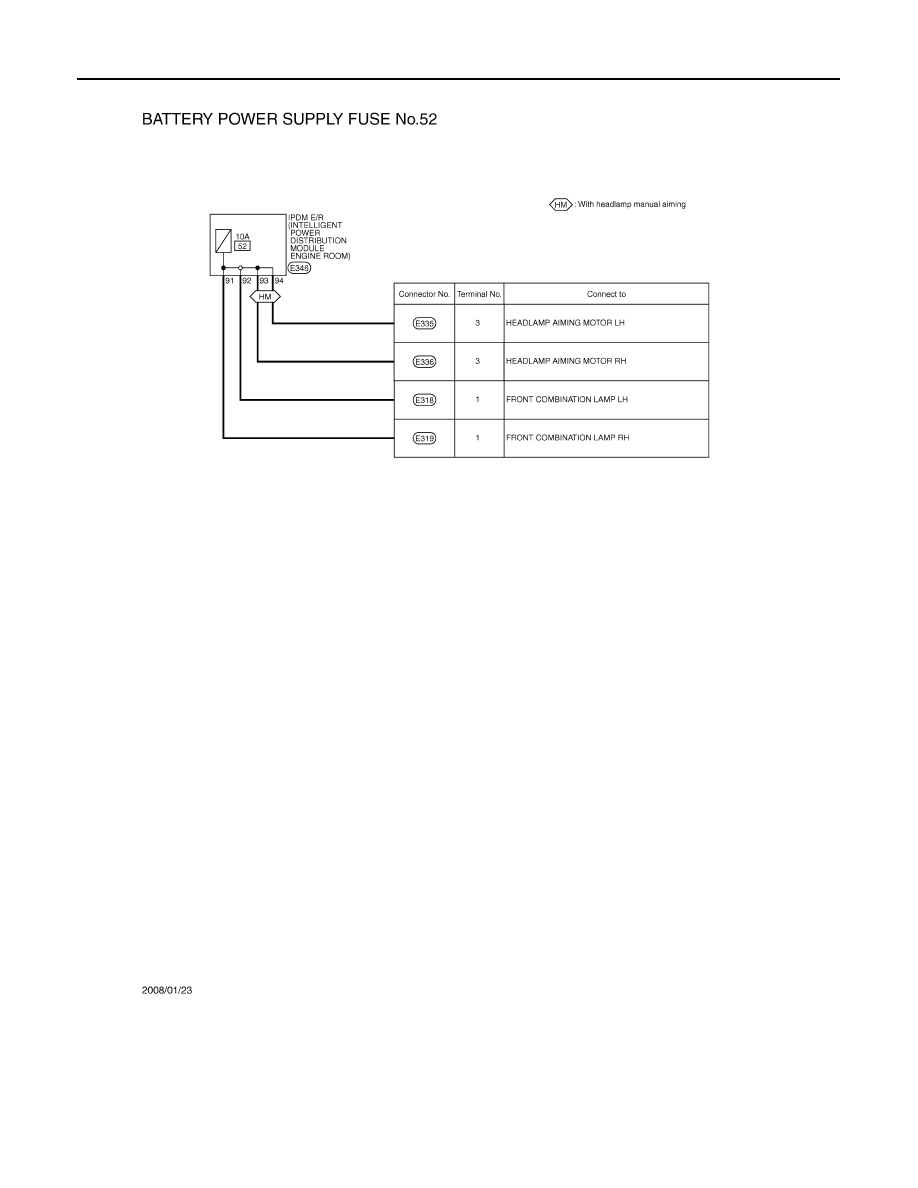

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 52 -

INFOID:0000000003792658

JCMWM1720GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-37

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1721GB

PG-38

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

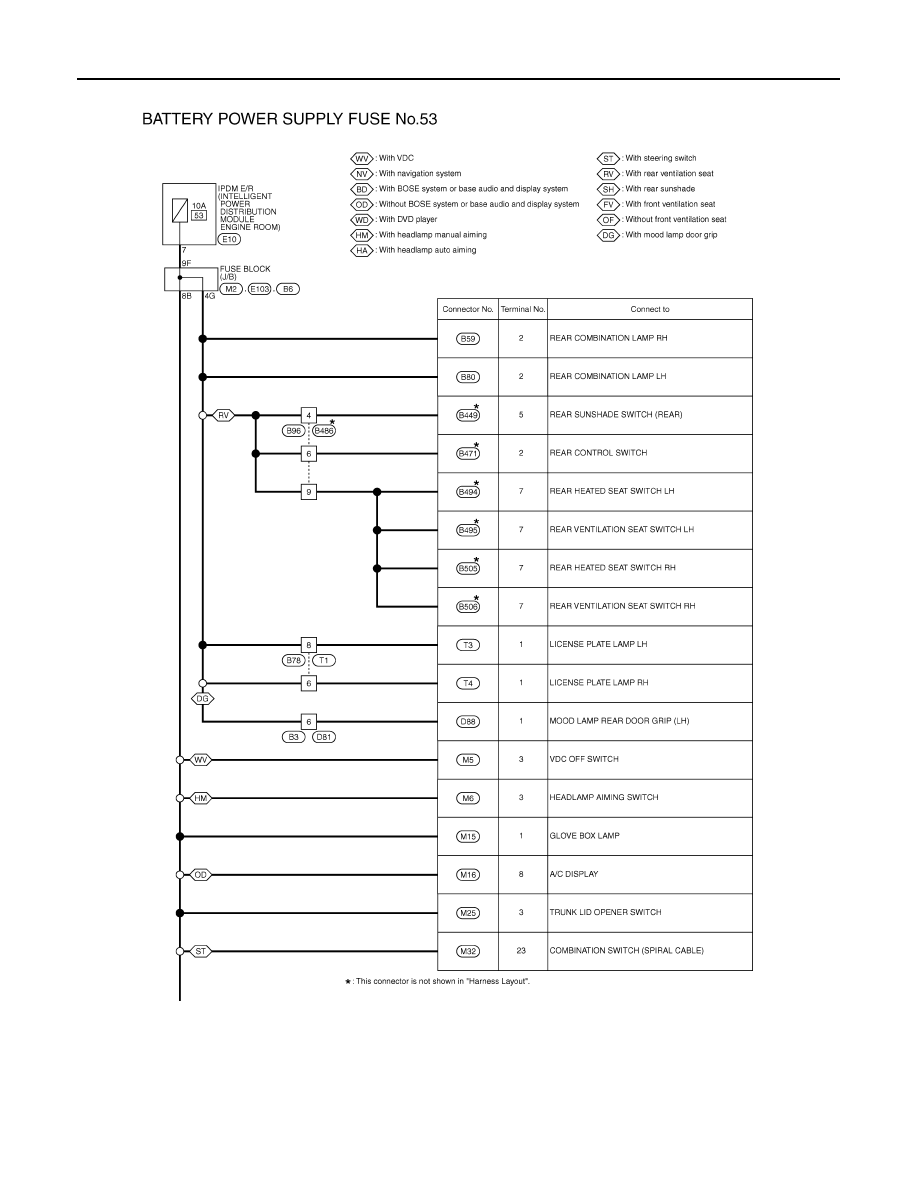

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 53 -

INFOID:0000000003792659

JCMWM1722GB
