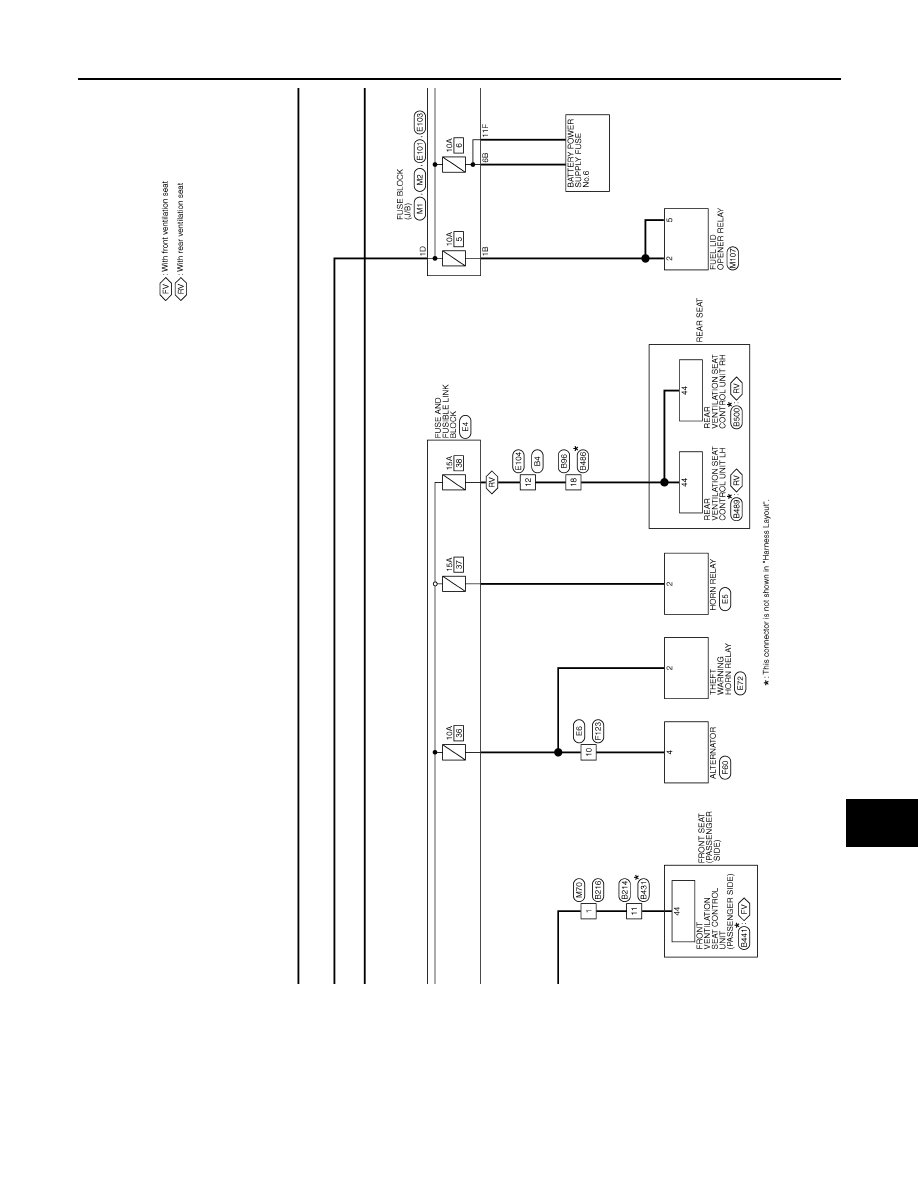

POWER SUPPLY ROUTING CIRCUIT

PG-11

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1695GB

PG-12

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

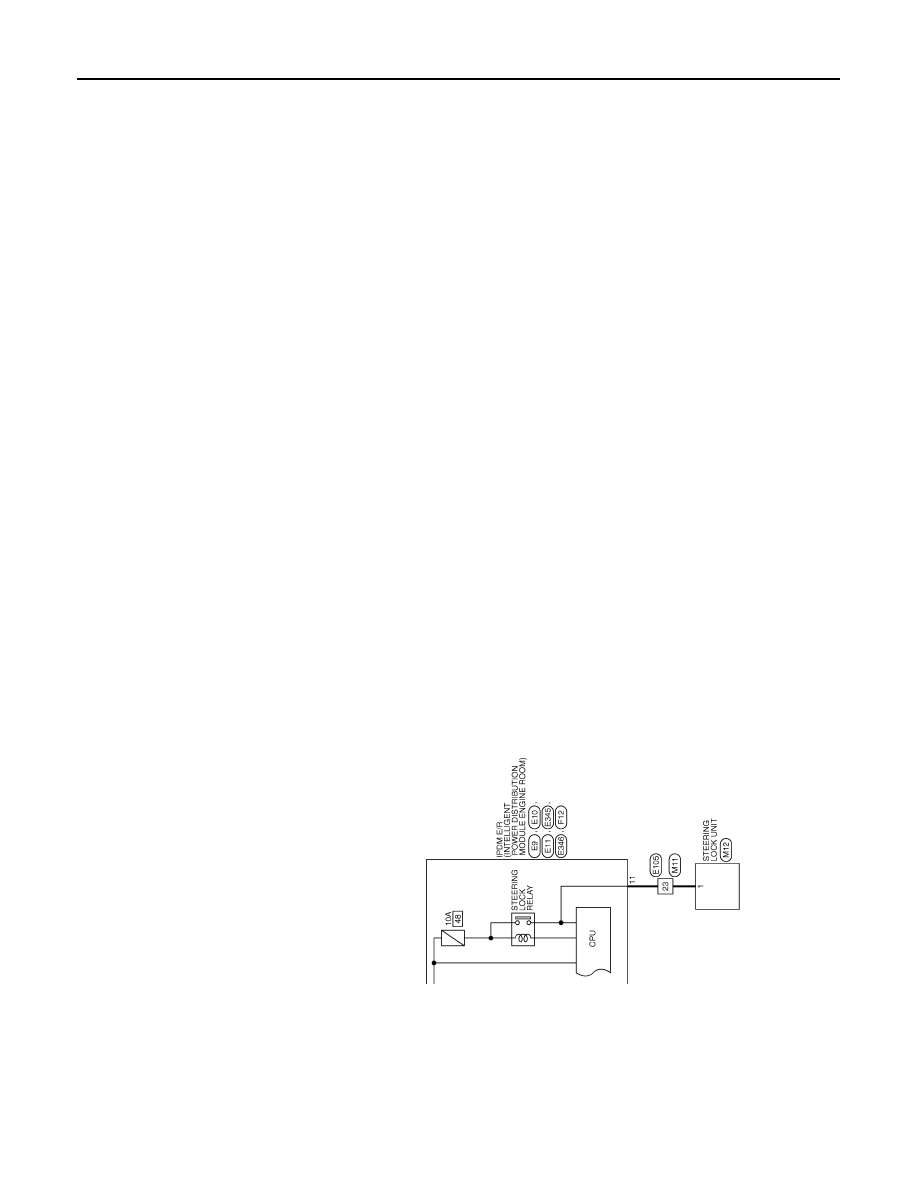

POWER SUPPLY ROUTING CIRCUIT

JCMWM1696GB

PG

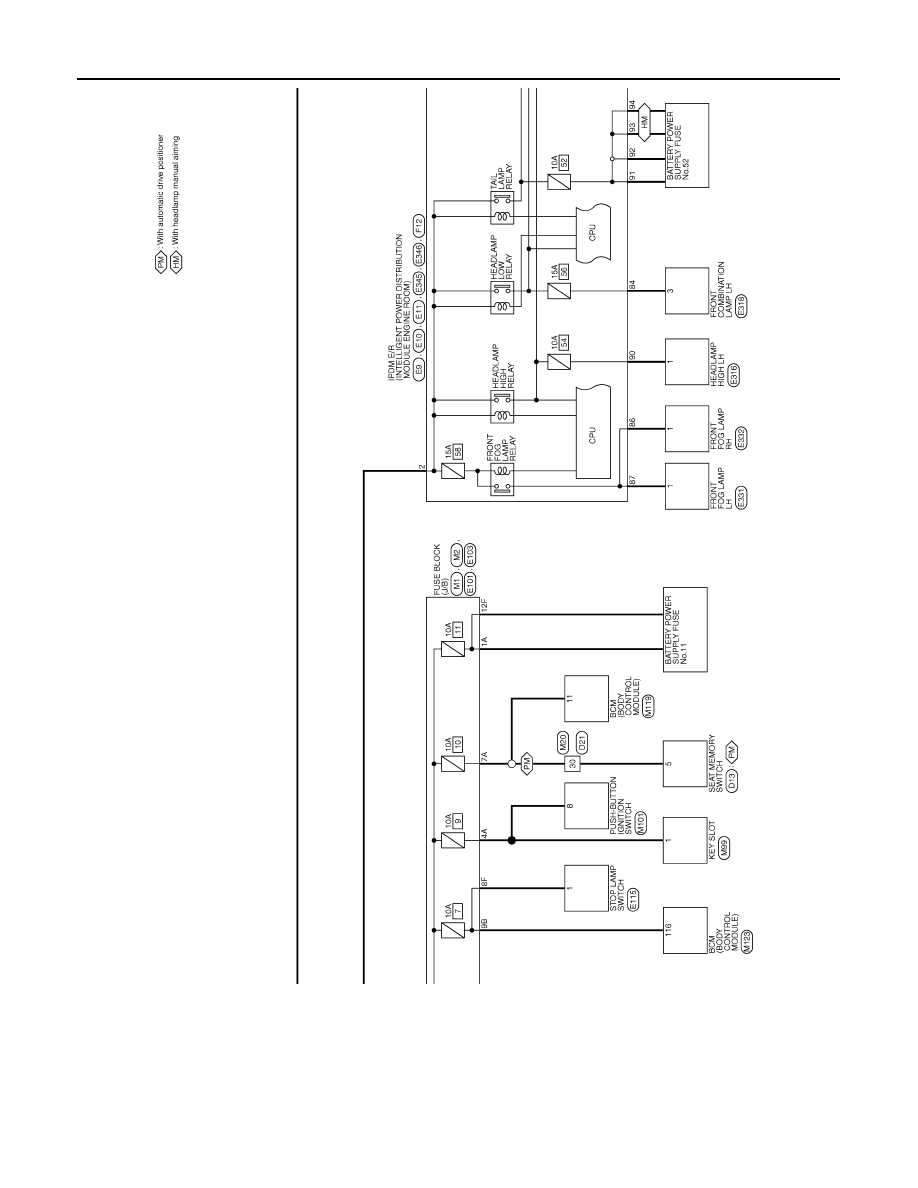

POWER SUPPLY ROUTING CIRCUIT

PG-13

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1697GB

PG-14

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

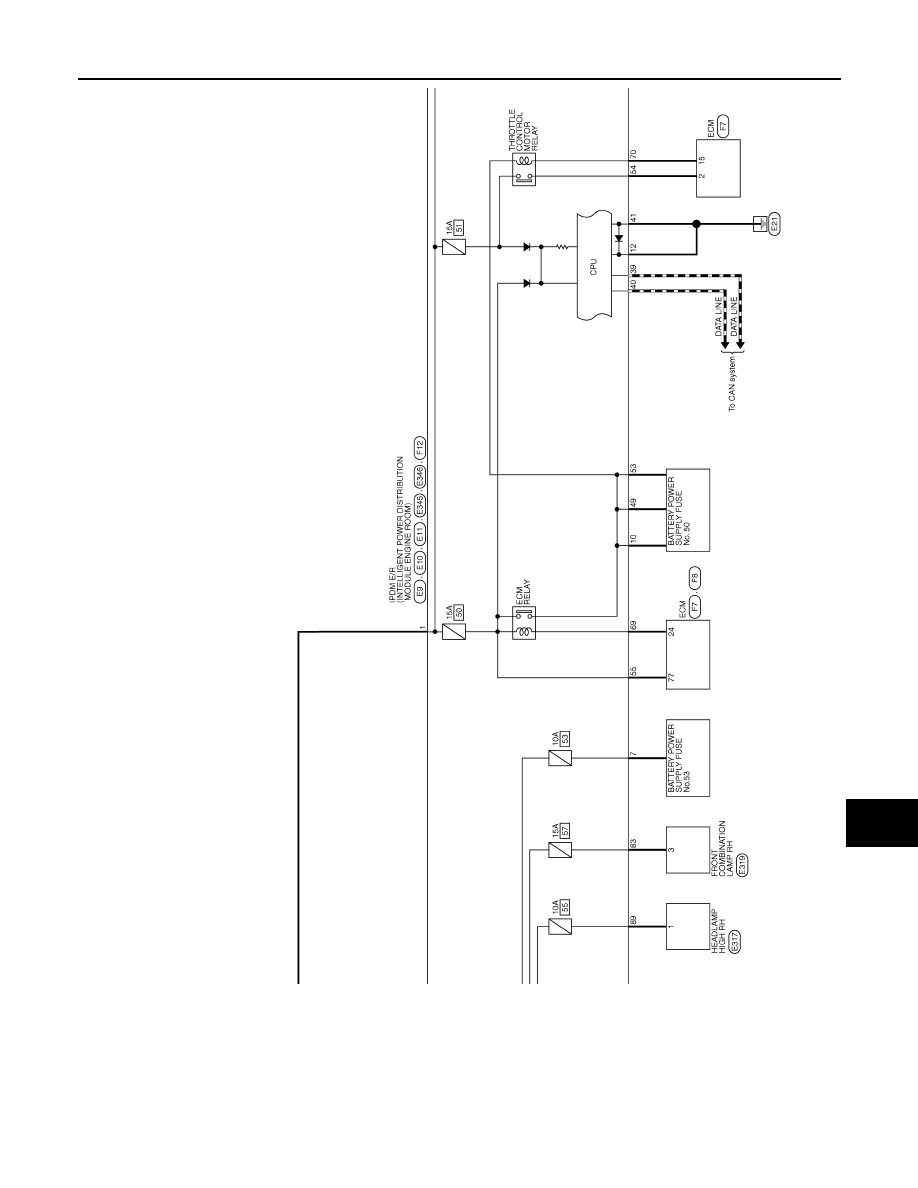

POWER SUPPLY ROUTING CIRCUIT

JCMWM1698GB
