B2616 IGNITION RELAY CIRCUIT

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-78, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK IGNITION RELAY GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between ignition relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair ignition relay ground circuit.

4.

CHECK IGNITION RELAY

Refer to

PCS-58, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace ignition relay.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000003805751

1.

CHECK IGNITION RELAY

1.

Turn ignition switch OFF.

2.

Remove ignition relay.

3.

Check the continuity between ignition relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace Ignition relay

Ignition relay

Ground

Continuity

Terminal

1

Not existed

Ignition relay

Ground

Continuity

Terminal

2

Existed

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

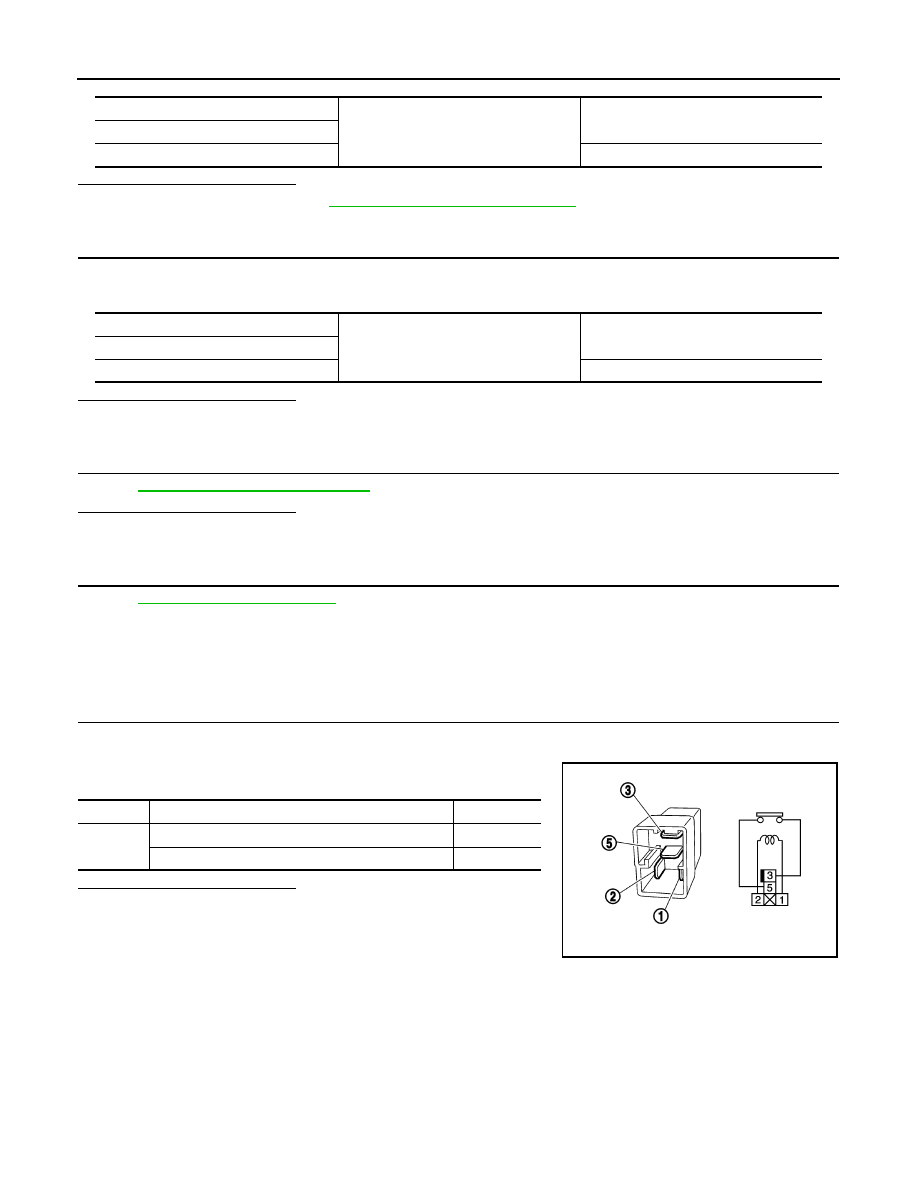

PBIB0098E

PCS

B2618 BCM

PCS-59

< COMPONENT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2618 BCM

Description

INFOID:0000000003805752

BCM controls the various electrical components and simultaneously supplies power according to the power
supply position.
BCM checks the power supply position internally.

DTC Logic

INFOID:0000000003805753

DTC DETECTION LOGIC

NOTE:
• If DTC B2618 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

PCS-46, "BCM : DTC Logic"

.

• If DTC B2618 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

PCS-48, "BCM : DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON under the following conditions, and wait for at least 1 second.

-

Selector lever is in the P or N position.

-

Do not depress brake pedal.

2.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Go to

PCS-59, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003805754

1.

INSPECTION START

1.

Turn ignition switch ON.

2.

Select “Self diagnostic result” mode with CONSULT-III.

3.

Touch “ERASE”.

4.

Perform DTC Confirmation Procedure.
See

PCS-59, "DTC Logic"

.

Is the 1st trip DTC B2618 displayed again?

YES

>> Replace BCM. Refer to

BCS-78, "Removal and Installation"

NO

>> INSPECTION END

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2618

BCM

An immediate operation of ignition relay (IPDM E/
R) is requested by BCM, but there is no response
for more than 1 second

BCM

PCS-60

< COMPONENT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B261A PUSH-BUTTON IGNITION SWITCH

B261A PUSH-BUTTON IGNITION SWITCH

Description

INFOID:0000000003805755

BCM transmits the change in the power supply position with the push-button ignition switch to IPDM E/R via
the CAN communication line. IPDM E/R transmits the power supply position status via CAN communication
line to BCM.

DTC Logic

INFOID:0000000003805756

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Press the push-button ignition switch under the following conditions, and wait for at least 1 second.

-

Selector lever is in the P or N position.

-

Do not depress brake pedal.

2.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Go to

PCS-60, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003805757

1.

CHECK PUSH-BUTTON IGNITION SWITCH OPERATION

Press push-button ignition switch and check if it turns ON.

Does ignition switch turn ON?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK IGNITION SWITCH OUTPUT SIGNAL (IPDM E/R)

1.

Disconnect push-button ignition switch connector and BCM connector.

2.

Check voltage between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace IPDM E/R. Refer to

PCS-34, "Removal and Installation"

.

3.

CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT (IPDM E/R)

1.

Disconnect IPDM E/R connector.

2.

Check continuity between IPDM E/R harness connector and push-button ignition switch harness connec-
tor.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B261A

PUSH-BUTTON IG-
NITION SWITCH

 BCM detects a difference of signal for 1 second or
more between the following information.
• Power supply position by push-button ignition

switch

• Power supply position from IPDM E/R (CAN)

• Harness or connectors

(Push-button ignition switch circuit
is open or shorted.)

(+)

(–)

Voltage (V)

(Approx.)

IPDM E/R

Connector

Terminal

E10

28

Ground

Battery voltage

PCS

B261A PUSH-BUTTON IGNITION SWITCH

PCS-61

< COMPONENT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

3.

Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

4.

CHECK IGNITION SWITCH OUTPUT SIGNAL (BCM)

1.

Connect BCM connector.

2.

Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace BCM. Refer to

BCS-78, "Removal and Installation"

.

5.

CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT (BCM)

1.

Disconnect BCM connector and IPDM E/R connector.

2.

Check continuity between BCM harness connector and push-button ignition switch harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

IPDM E/R

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

E10

28

M101

4

Existed

IPDM E/R

Ground

Continuity

Connector

Terminal

E10

28

Not existed

(+)

(–)

Voltage (V)

(Approx.)

BCM

Connector

Terminal

M122

89

Ground

Battery voltage

BCM

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

M122

89

M101

4

Existed

BCM

Ground

Continuity

Connector

Terminal

M122

89

Not existed
