Nissan Teana J32. Manual - part 813

MIR-16

< ON-VEHICLE REPAIR >

OUTSIDE MIRROR

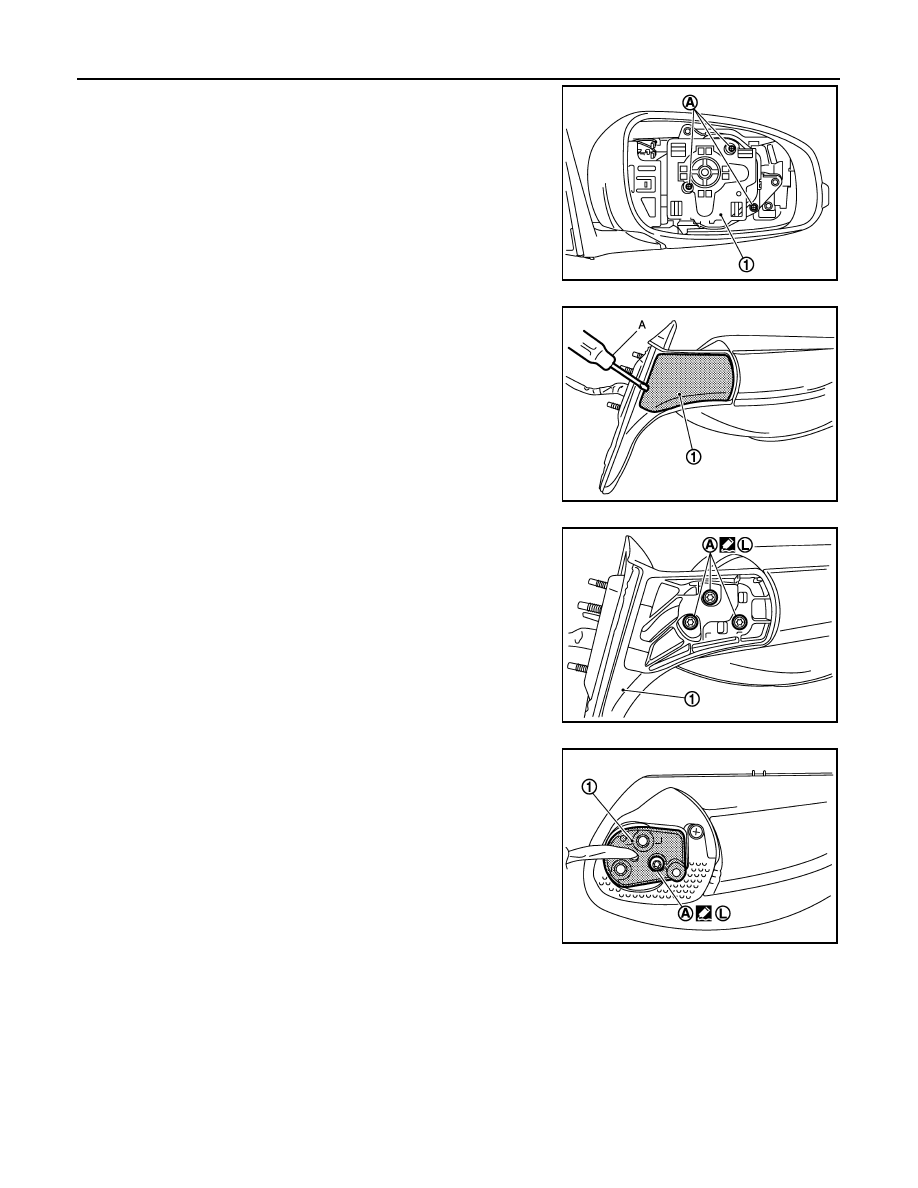

4.

Remove screws (A) and connectors, and then remove actuator
(1).

5.

Using a flat-bladed screwdriver (A) and remove lower cover (1).

6.

Remove TORX bolts (A) and remove base assembly (1).

7.

Remove TORX bolts (A) and remove base bracket (1).

JMLIA0160ZZ

JMLIA0161ZZ

JMLIA0162ZZ

JMLIA0163ZZ

OUTSIDE MIRROR

MIR-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

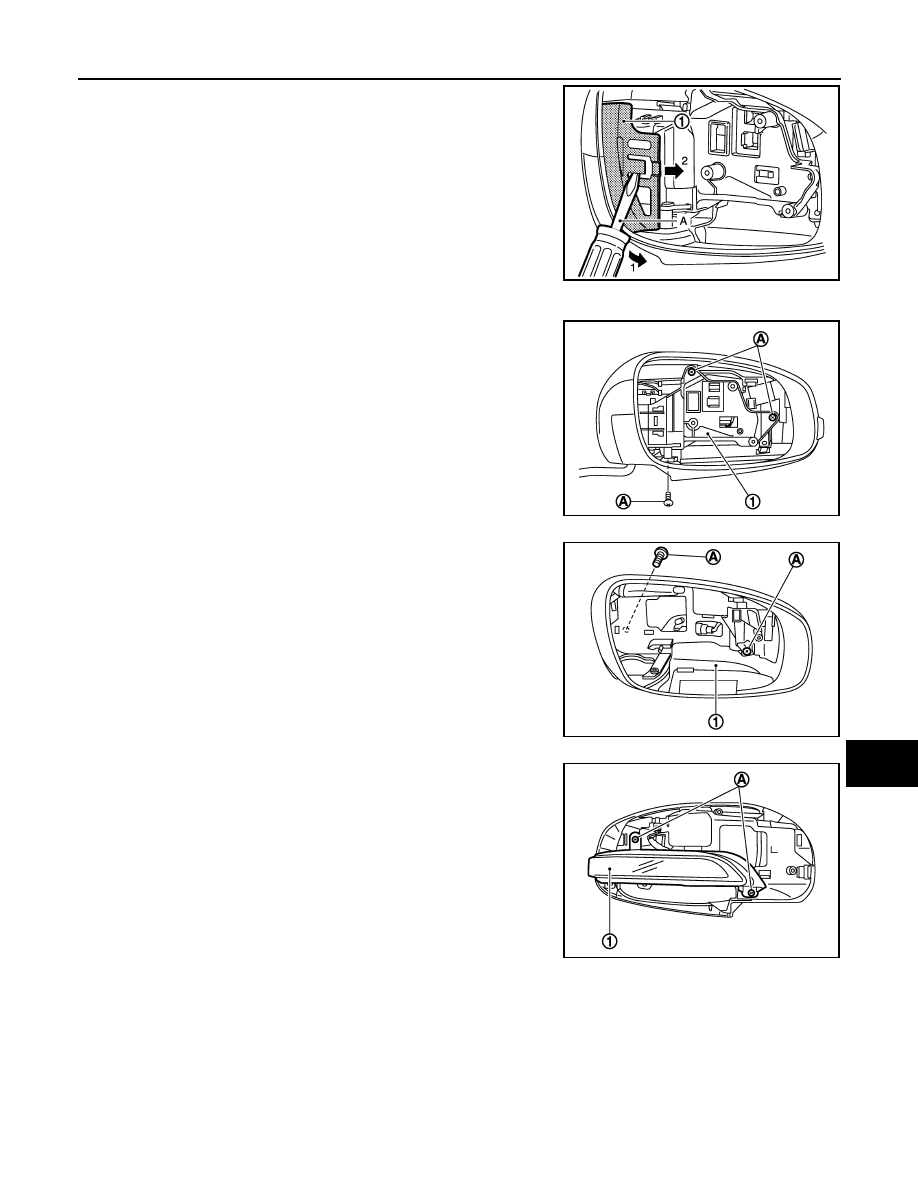

8.

Using a flat-bladed screwdriver (A) and remove bracket cover
(1).

9.

Disconnect connector of side turn signal lamp assembly.

10. Remove screws (A) and remove bracket assembly (1).

11. Remove screws (A) and remove under body (1).

12. Remove screws (A) and remove side turn signal lamp assembly

(1).

ASSEMBLY

Assemble in the reverse order of disassembly.

GLASS MIRROR

JMLIA0164ZZ

JMLIA0165ZZ

JMLIA0166ZZ

JMLIA0167ZZ

MIR-18

< ON-VEHICLE REPAIR >

OUTSIDE MIRROR

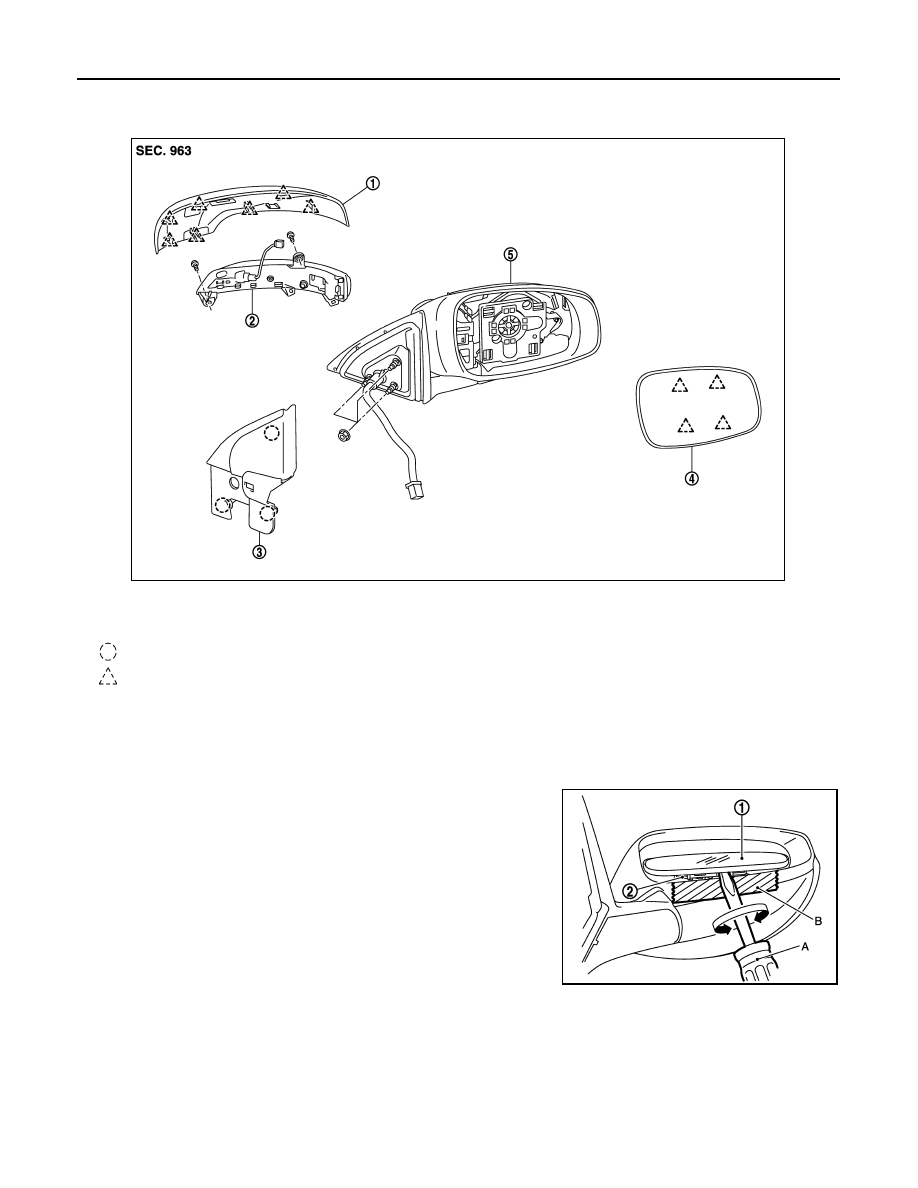

GLASS MIRROR : Exploded View

INFOID:0000000003815765

GLASS MIRROR : Disassembly and Assembly

INFOID:0000000003815749

DISASSEMBLY

1.

Place the glass mirror upward.

2.

Put a strip of protective tape (B) on housing assembly.

3.

As shown in the figure, insert a small flat-bladed screwdriver (A)
between glass mirror (1) and actuator (2). Push up both pawls
simultaneously to remove glass mirror lower half side.
NOTE:
Insert screwdriver, and push up while rotating (twisting) to make
work easier.

4.

Remove two terminals of mirror heater attachment.

5.

Lightly lift up lower side of glass mirror, and detach both pawls of upper side as if pulling it out. Disassem-
ble glass mirror from actuator.
NOTE:
Be careful not to allow grease on sealing agent in center of mirror or back side of glass mirror.

ASSEMBLY

Assemble in the reverse order of disassembly.

1.

Door mirror cover

2.

Side turn signal lamp assembly

3.

Corner cover

4.

Glass mirror

5.

Mirror assembly

: Clip

: Pawl

JMLIA0157ZZ

JMLIA0158ZZ

OUTSIDE MIRROR

MIR-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER

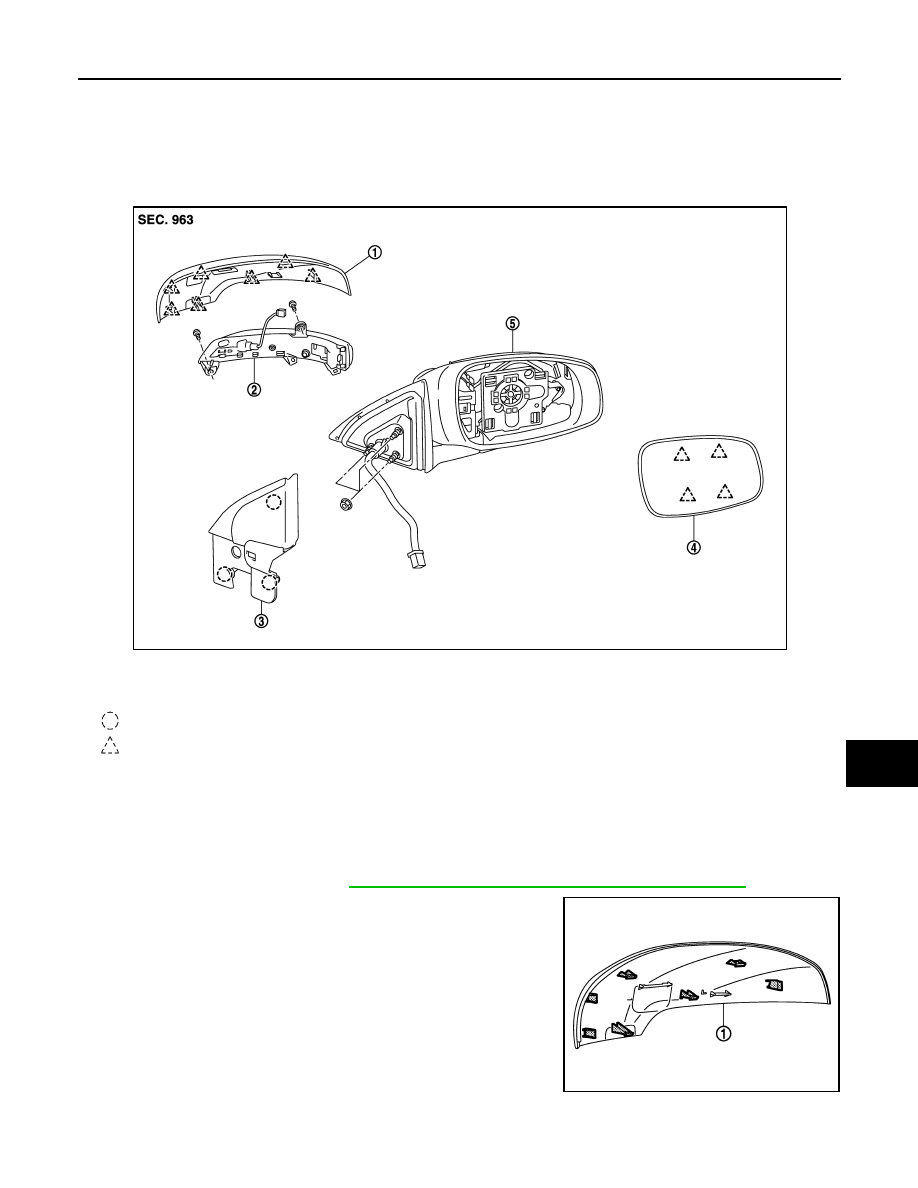

DOOR MIRROR COVER : Exploded View

INFOID:0000000003815766

DOOR MIRROR COVER : Disassembly and Assembly

INFOID:0000000003815751

CAUTION:

Never damage the mirror bodies.

DISASSEMBLY

1.

Remove the glass mirror. Refer to

MIR-18, "GLASS MIRROR : Disassembly and Assembly"

.

2.

Remove the pawls, and disassemble the door mirror cover from
the mirror assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

1.

Door mirror cover

2.

Side turn signal lamp assembly

3.

Corner cover

4.

Glass mirror

5.

Mirror assembly

: Clip

: Pawl

JMLIA0157ZZ

JMLIA0159ZZ
