ENGINE OIL

LU-9

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

4.

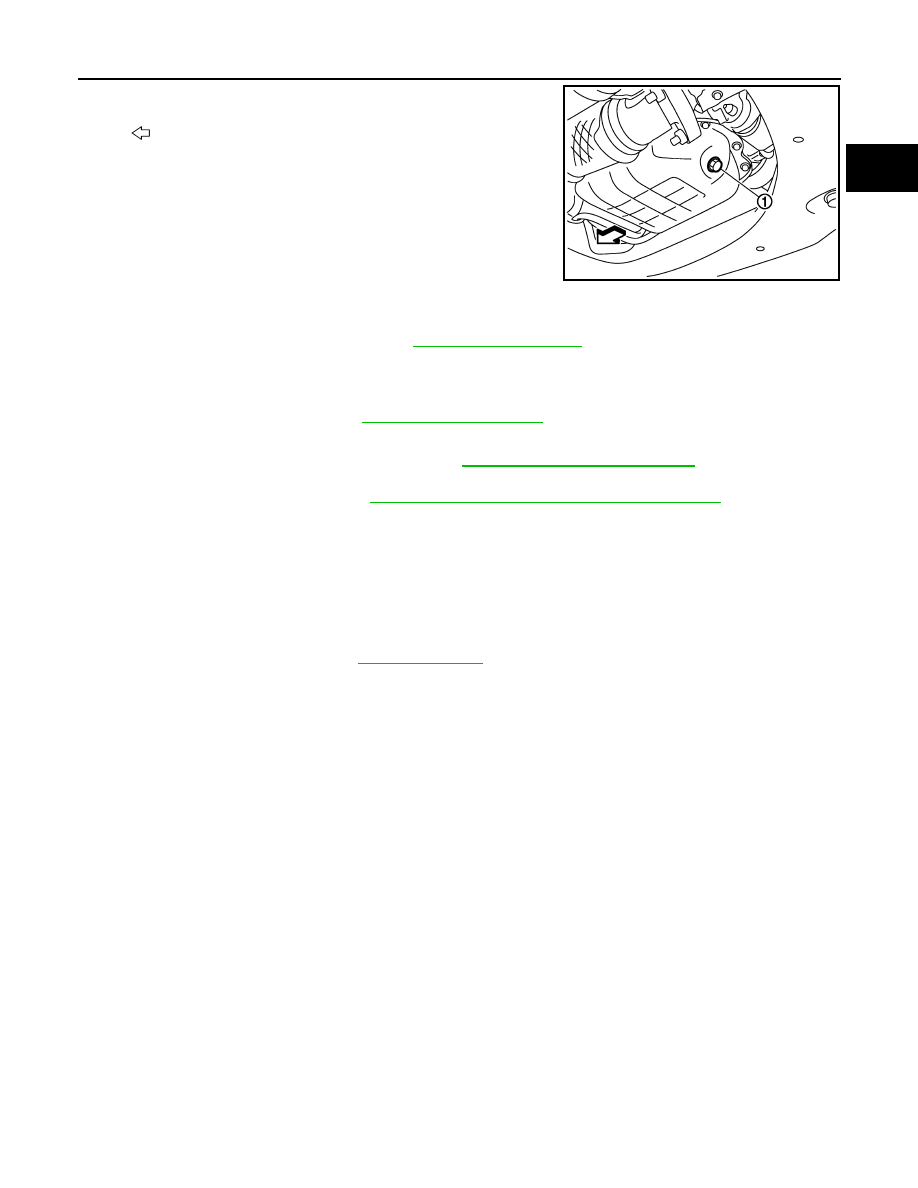

Remove drain plug (1) and then drain engine oil.

Refilling

INFOID:0000000003793123

1.

Install drain plug with new washer. Refer to

EM-38, "Exploded View"

.

CAUTION:

Be sure to clean drain plug and install with new washer.

2.

Refill with new engine oil.
Engine oil specification and viscosity: Refer to

MA-11, "Fluids and Lubricants"

.

CAUTION:

• When filling engine oil, never pull out oil level gauge.
• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in engine.

3.

Warm up the engine and check area around drain plug and oil filter for engine oil leakage.

4.

Stop the engine and wait for 10 minutes.

5.

Check the engine oil level. Refer to

LU-7, "Inspection"

.

: Vehicle front

JPBIA1676ZZ

Tightening torque

: Refer to

EM-38, "Exploded View"

.

Engine oil capacity

: Refer to

LU-16, "Periodical Maintenance Specification"

.

LU-10

< ON-VEHICLE MAINTENANCE >

OIL FILTER

OIL FILTER

Removal and Installation

INFOID:0000000003793124

REMOVAL

CAUTION:

• Oil filter is provided with relief valve. Use genuine NISSAN oil filter or equivalent.
• Be careful not to get burned when engine and engine oil may be hot.
• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Never allow engine oil to adhere to drive belt.
• Completely wipe off any engine oil that adheres to engine and vehicle.

1.

Remove splash guard (RH). Refer to

EXT-22, "FENDER PROTECTOR : Exploded View"

.

2.

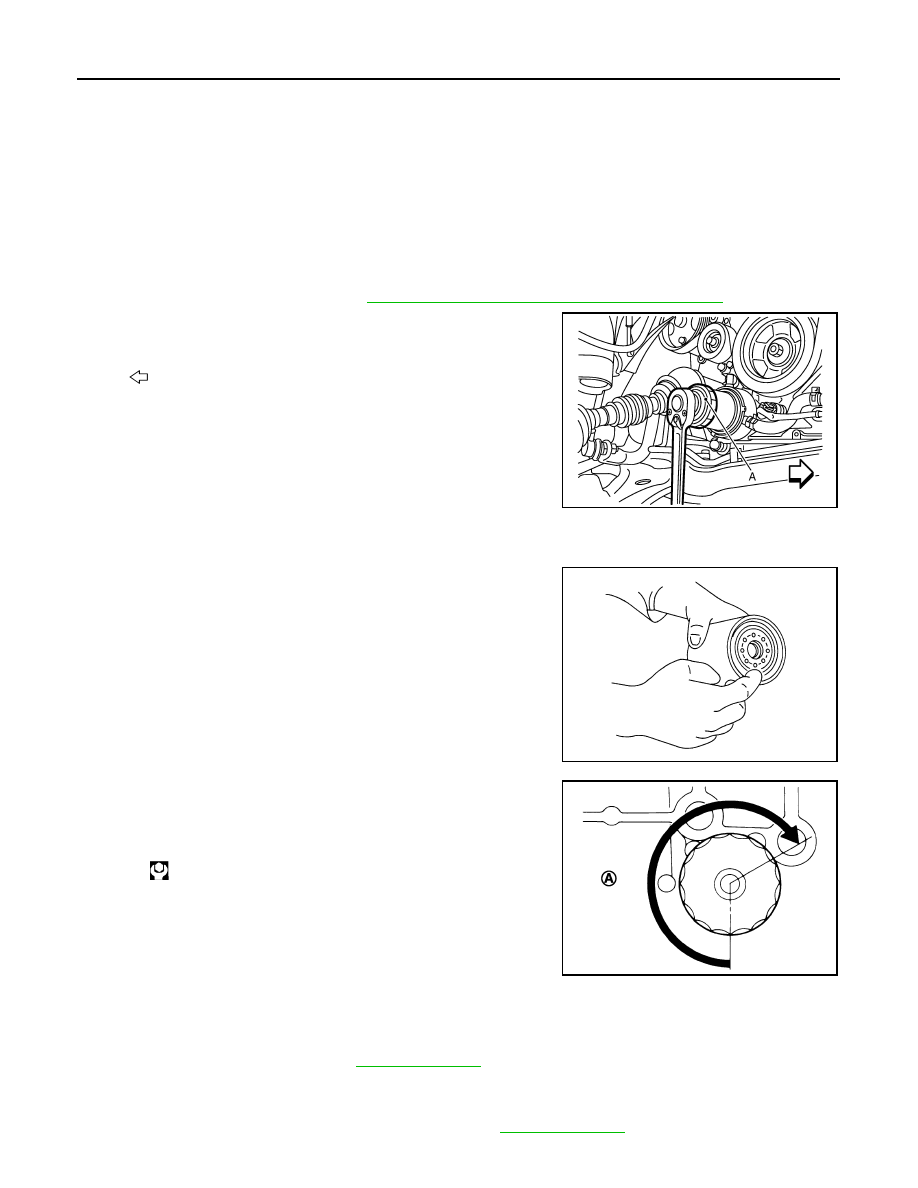

Using oil filter wrench [SST: KV10115801 (J38956)] (A), remove
oil filter.

INSTALLATION

1.

Remove foreign materials adhering to oil filter installation surface.

2.

Apply engine oil to the oil seal contact surface of new oil filter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn (A). Or tighten to the specification.

Inspection

INFOID:0000000003793125

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-7, "Inspection"

.

2.

Start the engine, and check there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-7, "Inspection"

.

: Vehicle front

JPBIA1678ZZ

SMA010

Oil filter:

: 17.6 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ

OIL COOLER

LU-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

ON-VEHICLE REPAIR

OIL COOLER

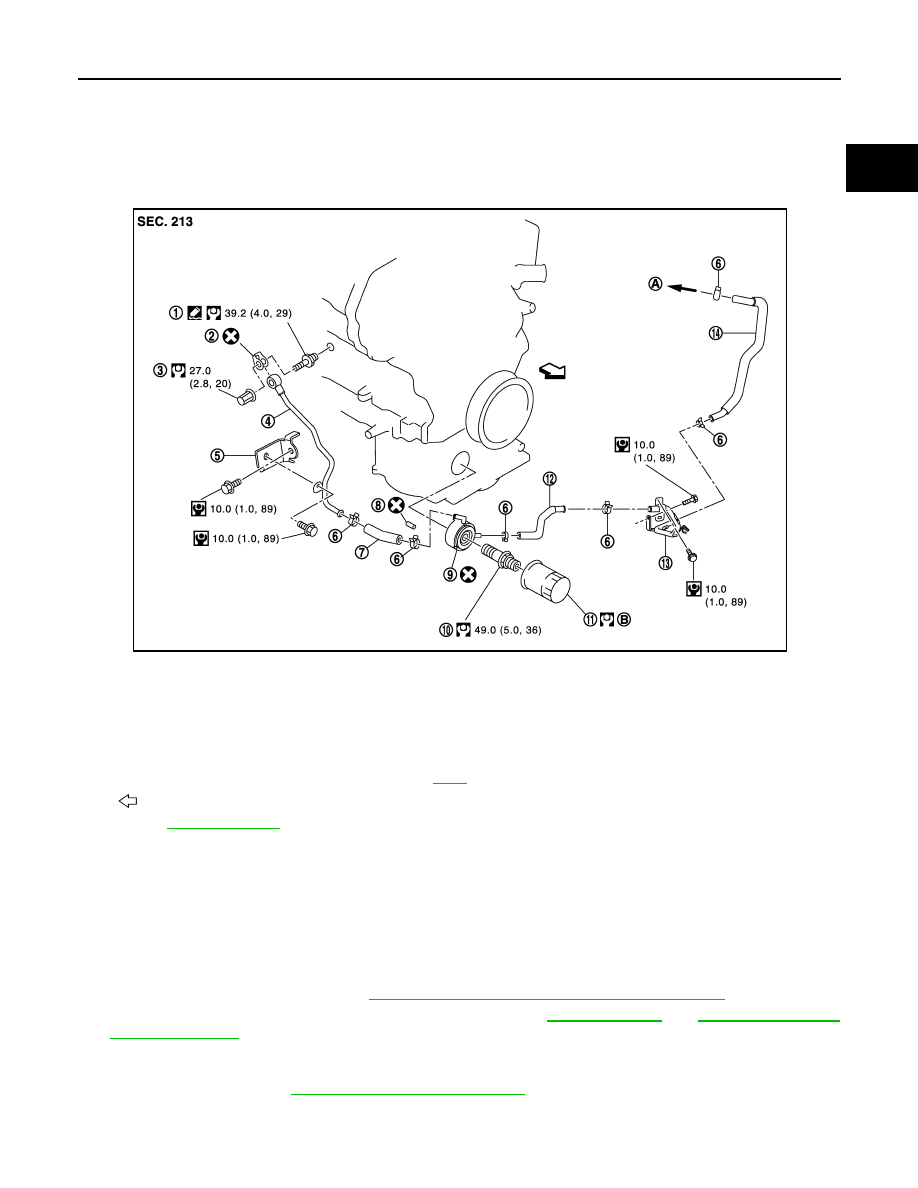

Exploded View

INFOID:0000000003793127

Removal and Installation

INFOID:0000000003793128

REMOVAL

WARNING:

Be careful not to get burn yourself, as engine oil and engine coolant may be hot.
NOTE:
When remove oil cooler only, step 2 is unnecessary.
1.

Remove splash guard (RH). Refer to

EXT-22, "FENDER PROTECTOR : Exploded View"

.

2.

Drain engine coolant from radiator and cylinder block. Refer to

CO-8, "Draining"

 and

EM-110, "Disassem-

bly and Assembly"

.

NOTE:
Perform this step when removing water pipes.

3.

Remove oil filter. Refer to

LU-10, "Removal and Installation"

.

CAUTION:

Never spill engine oil on drive belt.

1.

Connector bolt

2.

Copper gasket

3.

Water drain plug

4.

Water pipe

5.

Bracket

6.

Clamp

7.

Water hose

8.

Relief valve

9.

Oil cooler

10.

Connector bolt

11.

Oil filter

12.

Water hose

13.

Water pipe

14.

Water hose

A.

To water connector

B.

Refer to

LU-10

: Engine front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1679GB

LU-12

< ON-VEHICLE REPAIR >

OIL COOLER

4.

Disconnect water hoses from oil cooler.
• When removing oil cooler only, pinching water hoses near oil cooler to prevent engine coolant from spill-

ing out.

• Remaining engine coolant in piping will come out. Use a tray to collect it.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belt.

5.

Remove connector bolt, and remove oil cooler.

CAUTION:

Never spill engine oil to rubber parts such as drive belt.

6.

Remove water pipes, as necessary.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Check that no foreign objects are adhering to the installation surfaces of oil cooler and oil pan (upper).

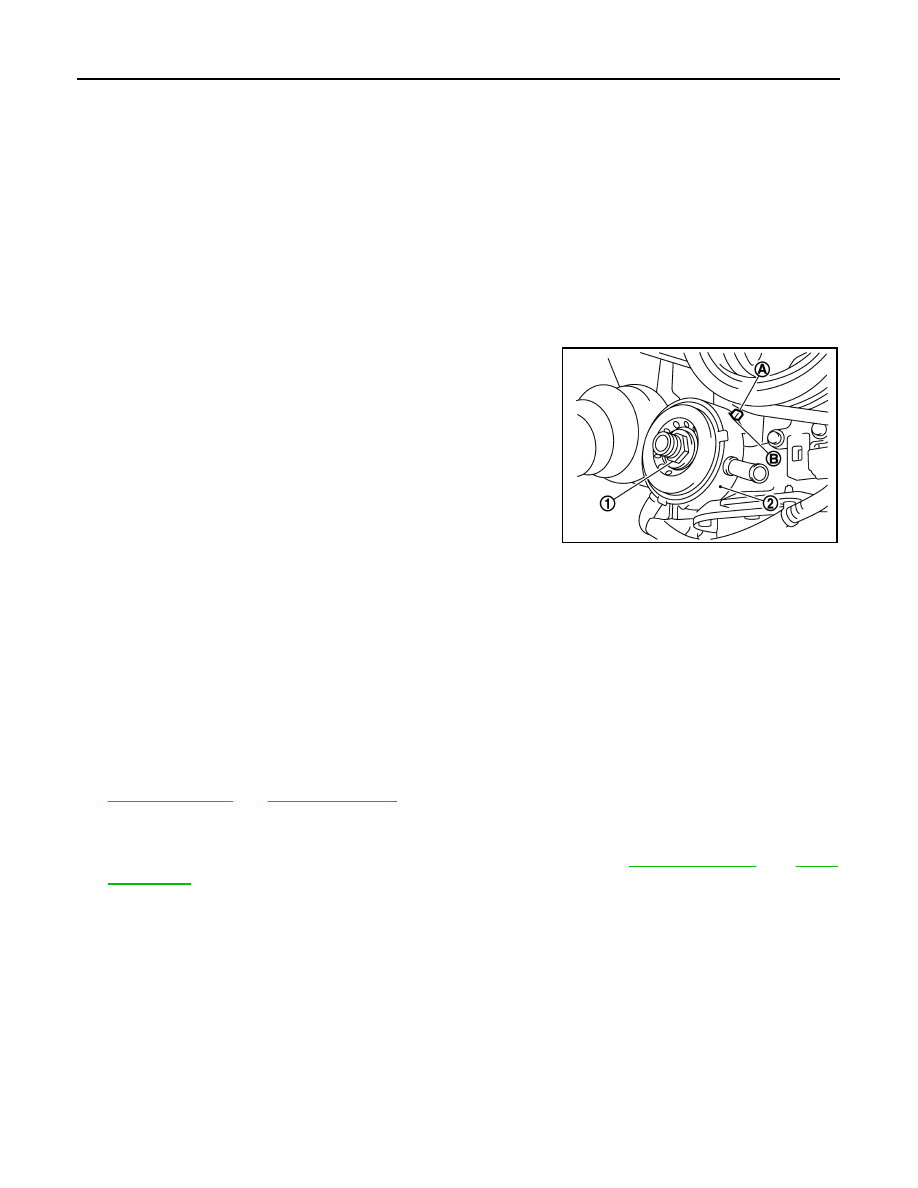

• Align cutout (B) on oil cooler (2) with protrusion (A) on oil pan

(upper) side, and tighten connector bolt (1).

Inspection

INFOID:0000000003793129

INSPECTION AFTER REMOVAL

Oil Cooler

Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler.

Relief Valve

Inspect relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove
relief valve by prying it out with a suitable tool. Install a new relief valve in place by tapping it.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to

LU-7, "Inspection"

 and

CO-8, "Inspection"

.

2.

Start the engine, and check there is no leakage of engine oil or engine coolant.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and the engine coolant level again. Refer to

LU-7, "Inspection"

 and

CO-8,

"Inspection"

.

JPBIA1680ZZ
