INSTRUMENT PANEL ASSEMBLY

IP-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

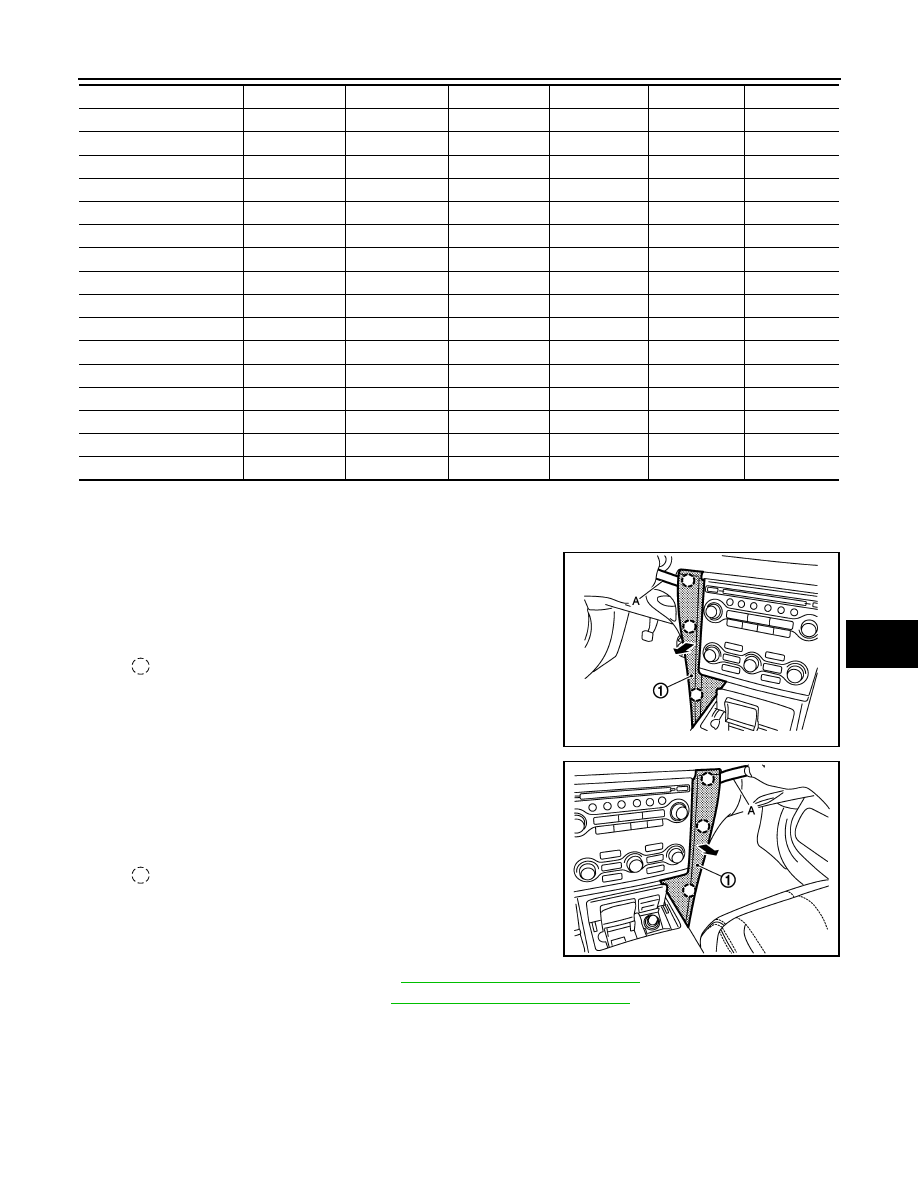

[ ]: Number indicates step in removal procedures.

REMOVAL

1.

Remove instrument finisher D.
• Remove instrument finisher D (1) fixing clips with remover tool

(A).

• Pull back instrument finisher D, and then remove instrument

finisher D.

2.

Remove instrument finisher E.
• Remove instrument finisher E (1) fixing clips with remover tool

(A).

• Pull back instrument finisher E, and then remove instrument

finisher E.

3.

Remove front body side welt LH. Refer to

INT-39, "Removal and Installation"

.

4.

Remove front pillar garnish LH. Refer to

INT-39, "Removal and Installation"

.

Steering wheel

[26]

Steering column cover

[27]

[6]

[9]

Combination switch

[28]

[7]

[10]

Spiral cable

[29]

Instrument finisher A

[30]

[8]

[5]

[11]

Cluster lid A

[31]

[9]

[12]

Combination meter

[32]

[10]

Cluster lid D

[33]

Push button ignition switch

[34]

[13]

Cluster lid lower finisher

[35]

[14]

Cluster lid C

[36]

[15]

Instrument finisher B

[16]

AV C/U (audio unit)

[37]

[3]

Display unit

[38]

Center speaker grille

[39]

Center speaker

[40]

Instrument panel assembly

[41]

: Clip

JMJIA1892ZZ

: Clip

JMJIA1893ZZ

IP-14

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

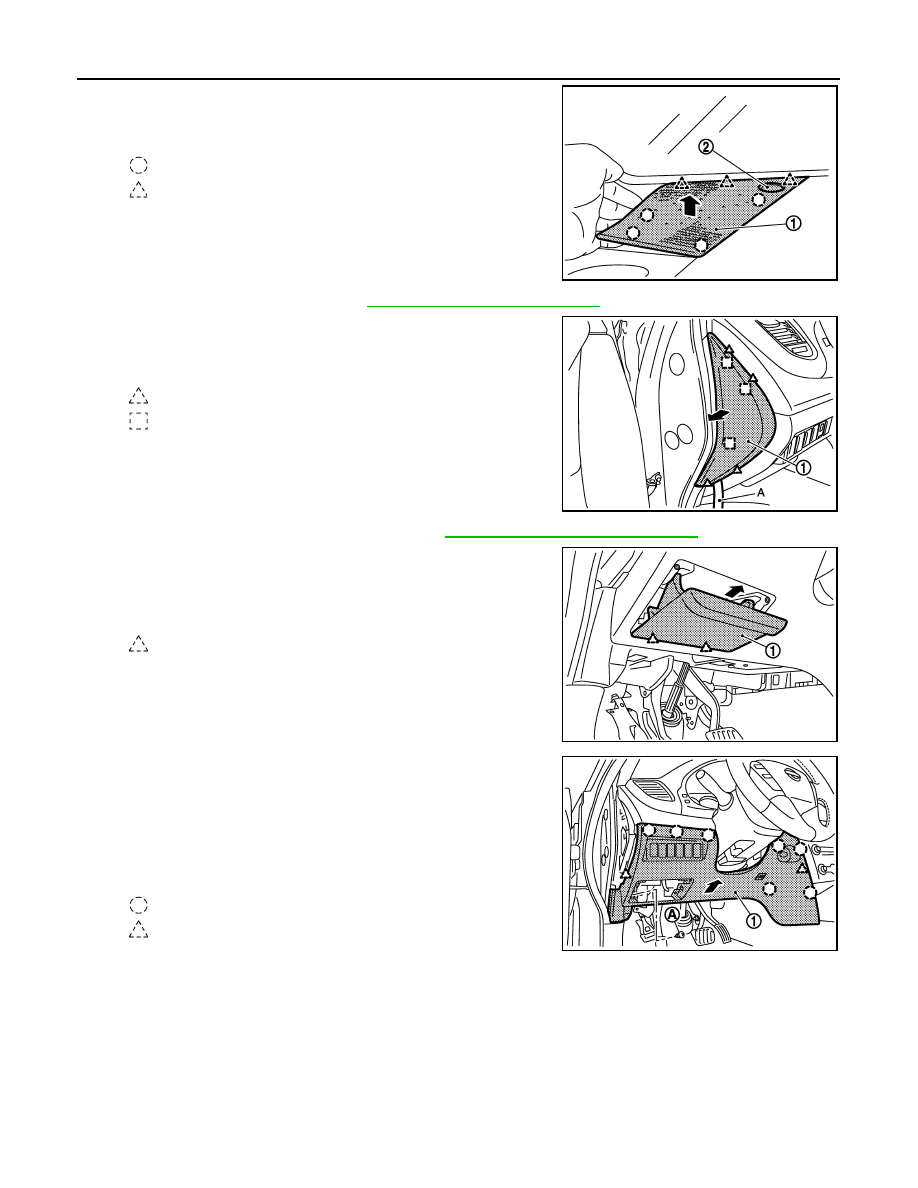

5.

Remove speaker grille LH.
• Pull up and back speaker grille LH (1).
• Disconnect sunload sensor (2) harness connector.

6.

Remove front squawker LH. Refer to

AV-41, "Removal and Installation"

.

7.

Remove instrument side finisher LH.
• Insert a remover tool (A) into lower space.
• Pull the instrument side finisher LH (1) crosswise.

8.

Remove hood opener lever fixing bolts. Refer to

DLK-220, "Removal and Installation"

.

9.

Remove fuse block lid.
• Open the fuse block lid (1).
• Pull fuse block lid, backward to disengage from instrument

lower panel LH.

10. Remove instrument lower panel LH.

• Remove instrument lower panel LH (1) fixing screw (A).
• Pull instrument lower panel LH, backward to disengage from

instrument panel assembly.

• Release data link connector (pawl) then remove it from instru-

ment lower panel LH.

• Disconnect harness connectors and aspirator duct.

: Clip

: Pawl

JMJIA1894ZZ

: Pawl

: Metal clip

JMJIA1895ZZ

: Pawl

JMJIA1896ZZ

: Clip

: Pawl

JMJIA1897ZZ

INSTRUMENT PANEL ASSEMBLY

IP-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

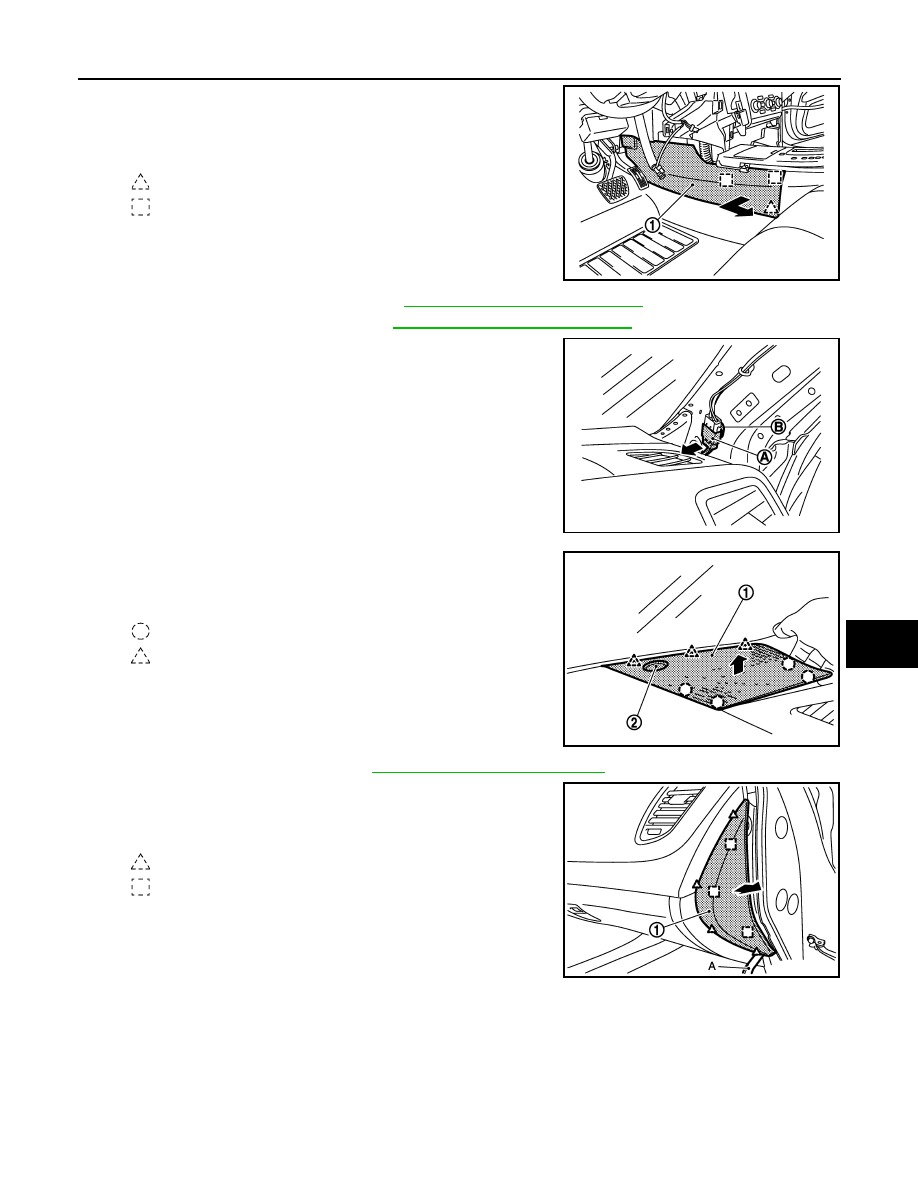

11. Remove instrument lower cover LH.

• Disengage instrument lower cover LH (1) fixing pawl and

metal clips.

• Pull back instrument lower cover LH.

12. Remove front body side welt RH. Refer to

INT-39, "Removal and Installation"

.

13. Remove front pillar garnish RH. Refer to

INT-39, "Removal and Installation"

.

14. Disconnect antenna connector (A).
15. Remove harness clip (B).

16. Remove speaker grille RH.

• Pull up and back speaker grille RH (1).
• Disconnect optical sensor (2) harness connector.

17. Remove front squawker RH. Refer to

AV-41, "Removal and Installation"

.

18. Remove instrument side finisher RH.

• Insert a remover tool (A) into lower space.
• Pull the instrument side finisher RH (1) crosswise.

: Pawl

: Metal clip

JMJIA1898ZZ

JMJIA1922ZZ

: Clip

: Pawl

JMJIA1899ZZ

: Pawl

: Metal clip

JMJIA1900ZZ

IP-16

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

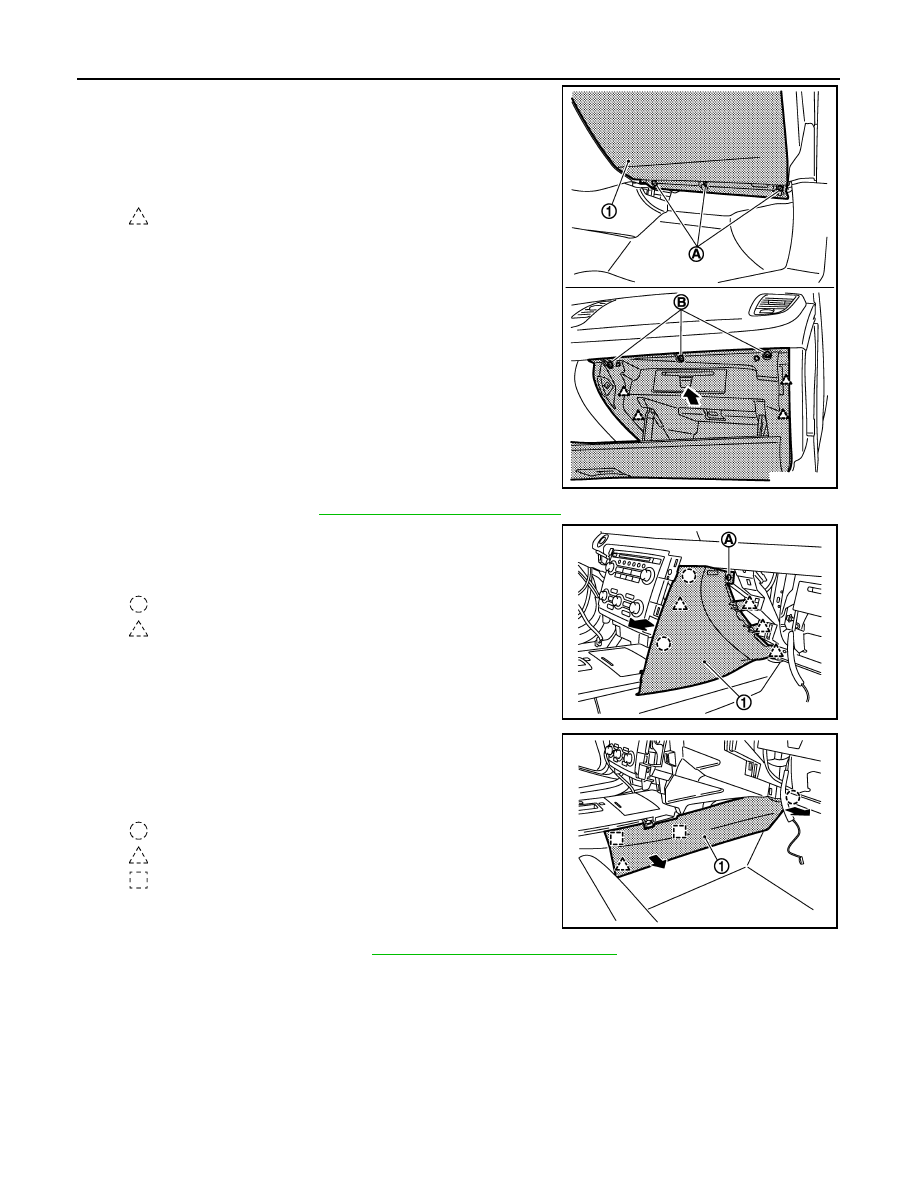

19. Remove glove box assembly.

• Remove glove box assembly (1) fixing screws (A).
• Open the glove box lid.
• Remove glove box assembly fixing screws (B).
• Pull back glove box assembly.
• Disconnect harness connector.

20. Remove DVD player. Refer to

AV-650, "Removal and Installation"

.

21. Remove instrument side panel RH.

• Remove instrument side panel RH (1) fixing screw (A).
• Pull toward the direction the arrow is pointing.

22. Remove instrument lower cover RH.

• Disengage instrument lower cover RH (1) fixing clip, pawl and

metal clips.

• Pull the instrument lower cover RH crosswise.

23. Remove selector lever knob. Refer to

TM-155, "Removal and Installation"

.

: Pawl

JMJIA1901ZZ

: Clip

: Pawl

JMJIA1902ZZ

: Clip

: Pawl

: Metal clip

JMJIA1903ZZ
