GLOVE BOX LAMP

GLOVE BOX LAMP

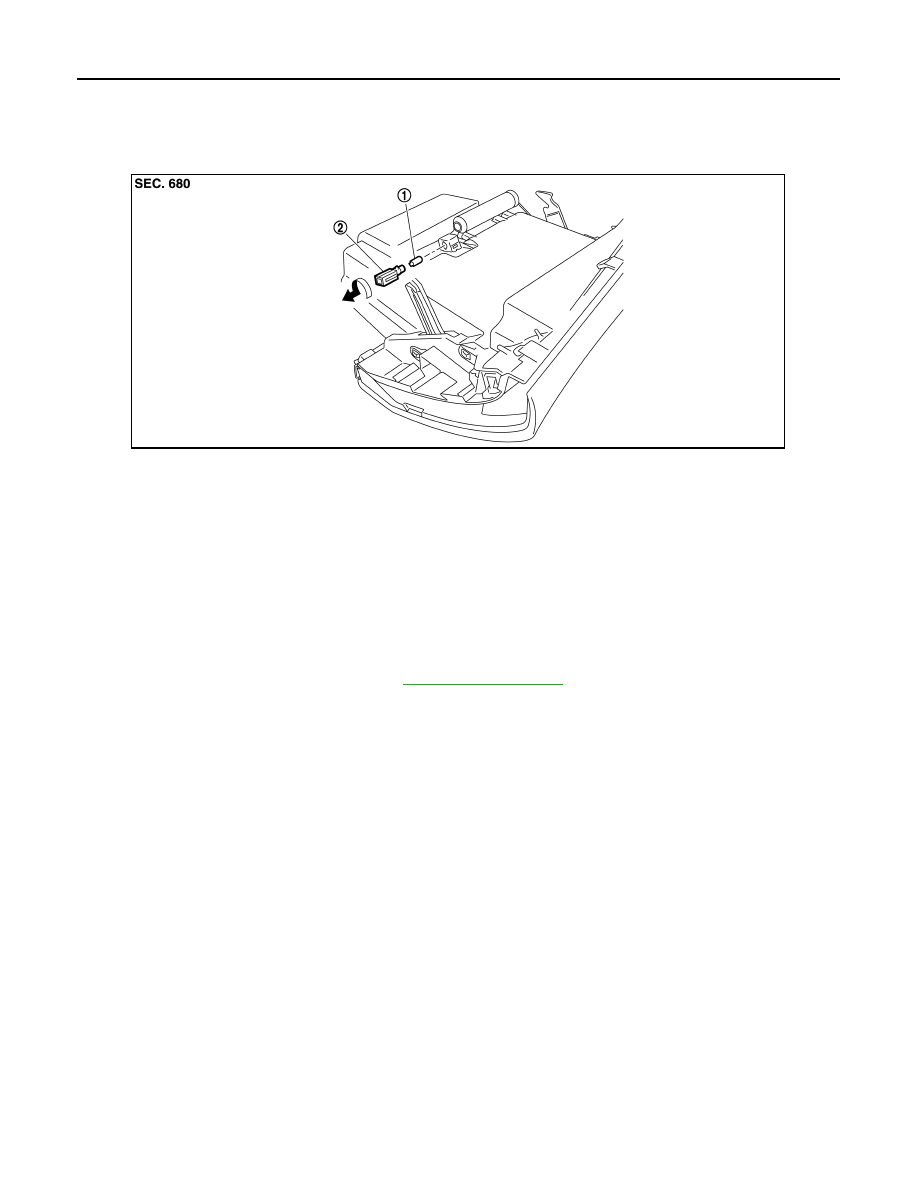

Exploded View

INFOID:0000000003774593

Replacement

INFOID:0000000003774594

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

GLOVE BOX LAMP BULB

1.

Remove the glove box assembly. Refer to

IP-11, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb

2.

Bulb socket

JPLIA1110ZZ

STEP LAMP

INL-95

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

STEP LAMP

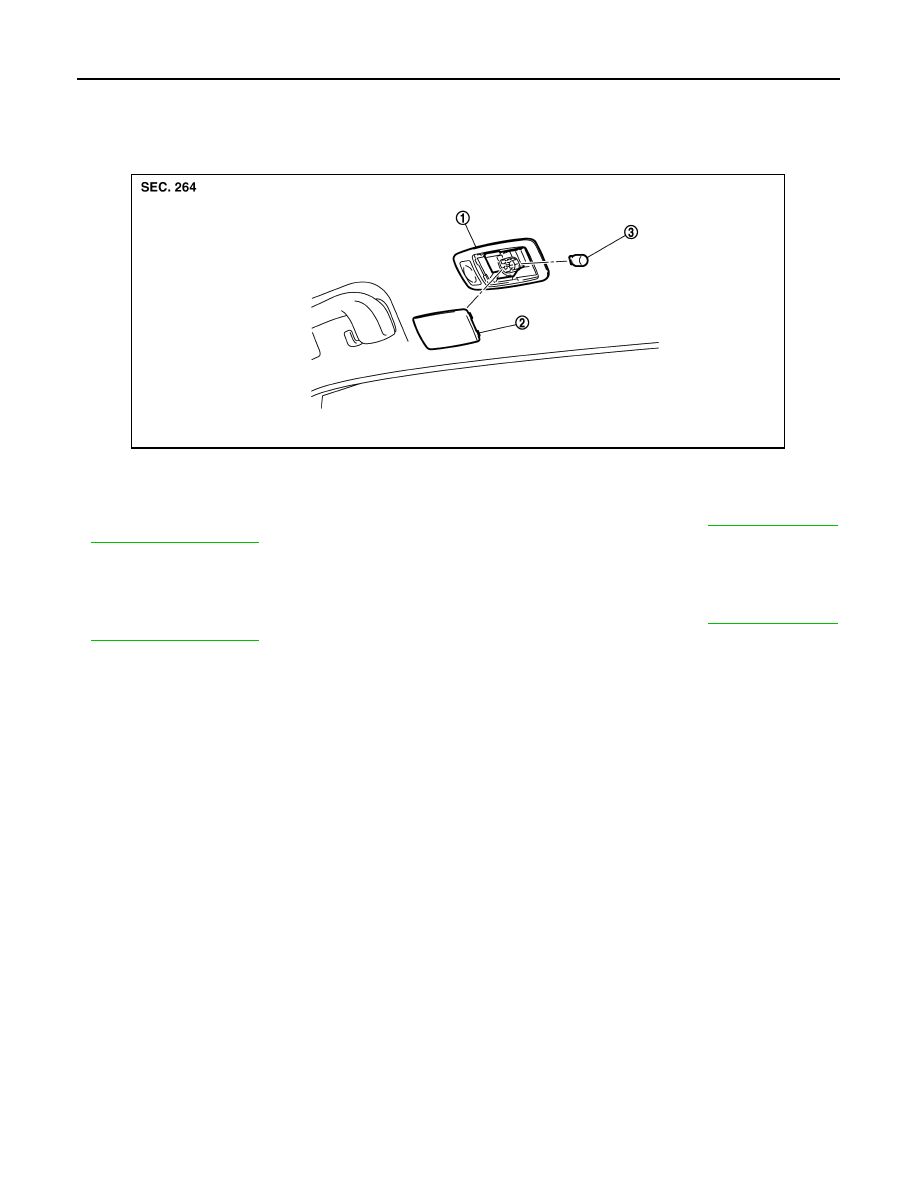

Exploded View

INFOID:0000000003774595

Removal and Installation

INFOID:0000000003774596

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the step lamp and the door trim. Remove the step lamp.

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000003774597

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STEP LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Step lamp case

2.

Bulb

3.

Lens

A

Metal clip

JPLIA1111ZZ

INL-96

< ON-VEHICLE REPAIR >

PERSONAL LAMP

PERSONAL LAMP

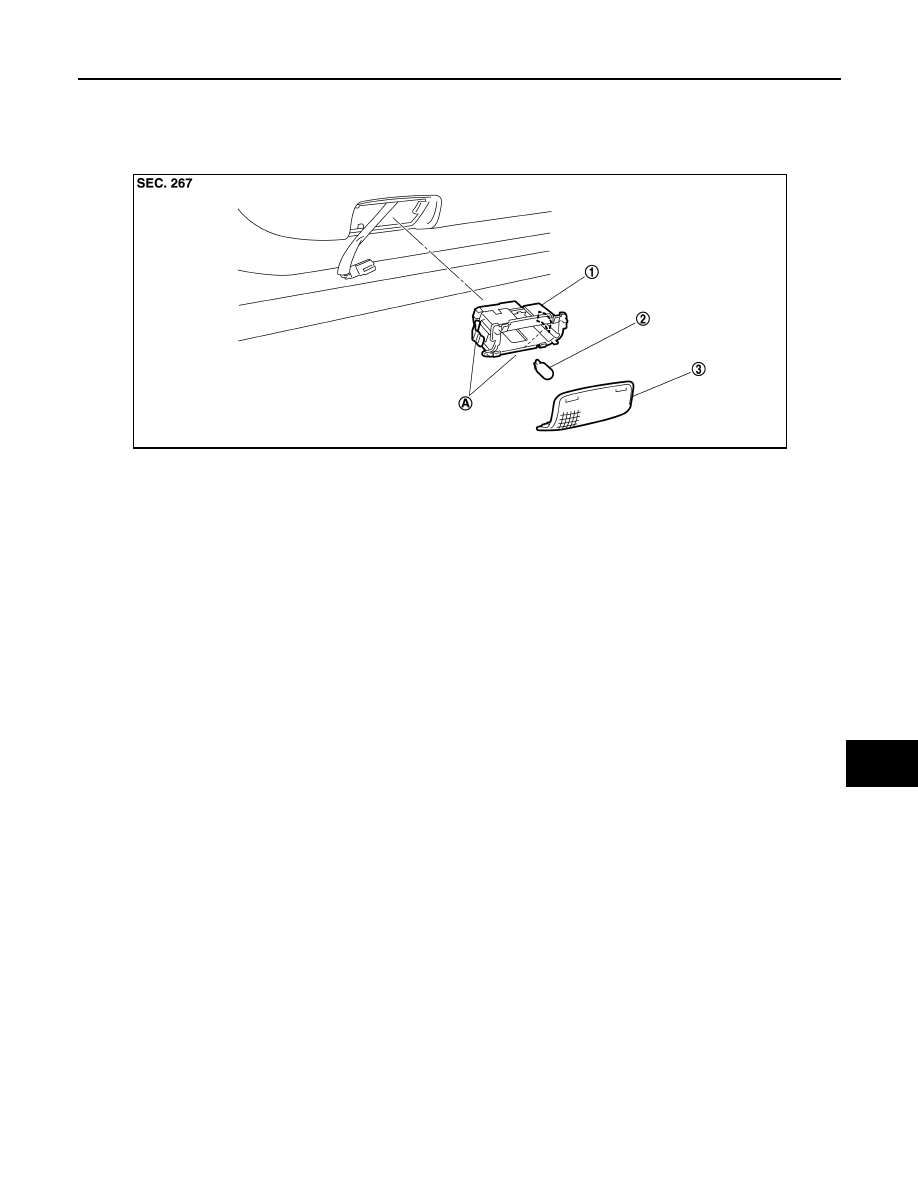

Exploded View

INFOID:0000000003774598

NOTE:
• After removing the headlining assembly, remove the personal lamp assembly. Refer to

INT-49, "NORMAL

ROOF : Exploded View"

.

• Replace the personal lamp assembly as a set (right and left).

Removal and Installation

INFOID:0000000003774599

• After removing the headlining assembly, remove the personal lamp assembly. Refer to

INT-49, "NORMAL

ROOF : Exploded View"

.

• Replace the personal lamp assembly as a set (right and left).

Replacement

INFOID:0000000003774600

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

PERSONAL LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Personal lamp assembly

2.

Lens

3.

Bulb

JPLIA1254ZZ

TRUNK ROOM LAMP

INL-97

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

TRUNK ROOM LAMP

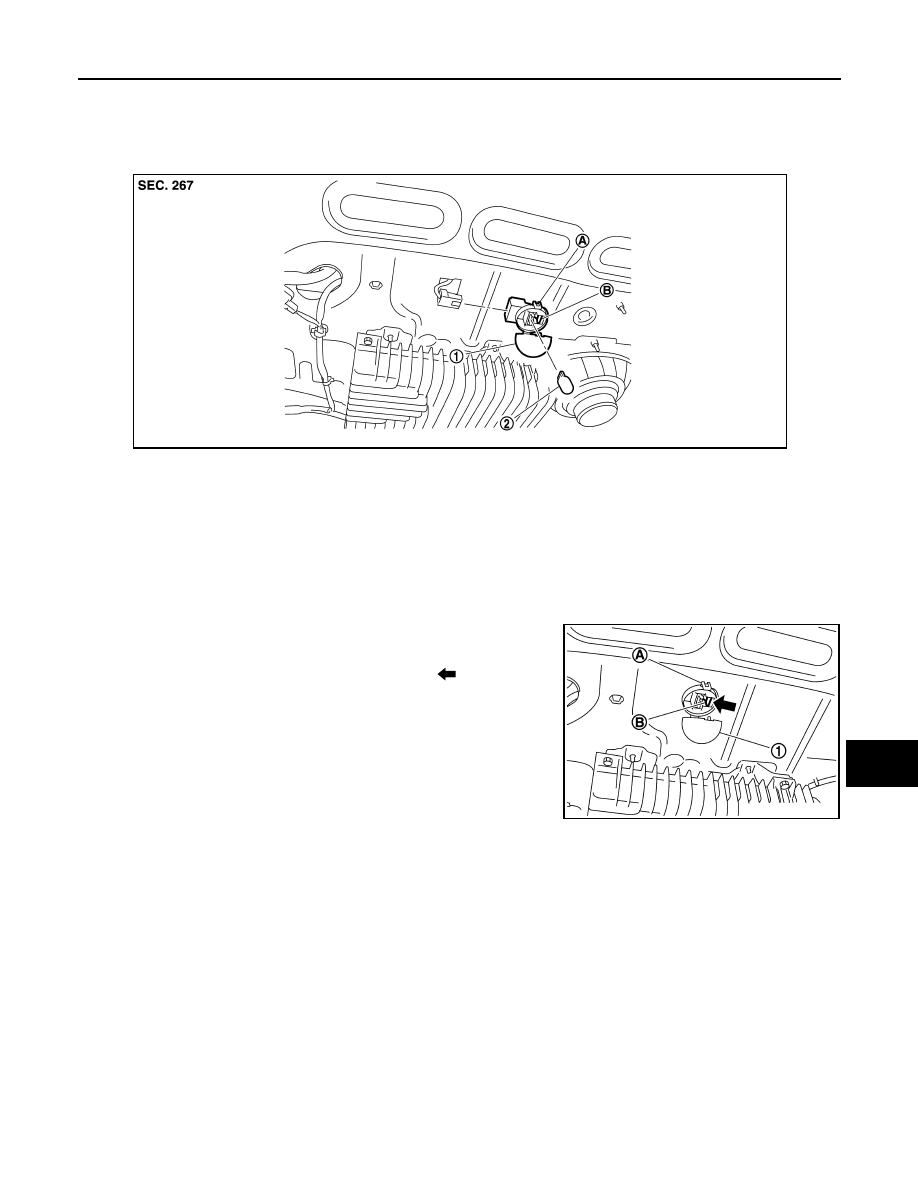

Exploded View

INFOID:0000000003812235

Removal and Installation

INFOID:0000000003812236

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Widen the pawl (A). Open the lens (1).

2.

Remove the bulb.

3.

Pressing the pawl (B) to the arrow direction (

). Pull out the

trunk room lamp.

4.

Disconnect the connector.

5.

Remove the trunk room lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000003812237

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

TRUNK ROOM LAMP BULB

1.

Widen the lens pawl. Open the lens.

2.

Remove the bulb.

1.

Trunk room lamp

2.

Bulb

A

Pawl (for lens fixing)

B.

Pawl (for case installation)

JPLIA1116ZZ

JPLIA1117ZZ
