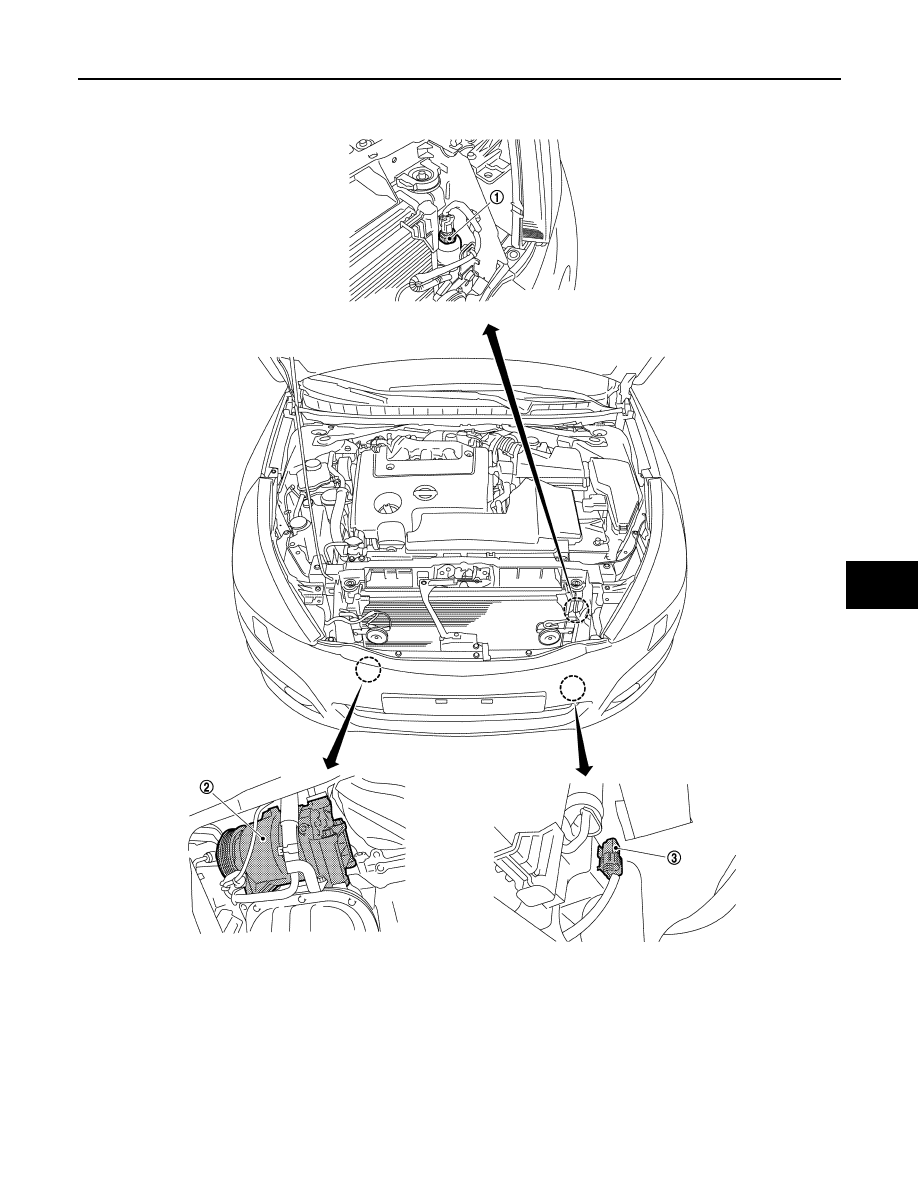

PASSENGER COMPARTMENT

1.

Refrigerant pressure sensor

2.

Compressor (magnet clutch)

3.

Ambient sensor

JPIIA0992ZZ

HAC-26

< FUNCTION DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

AUTOMATIC AIR CONDITIONER SYSTEM

Component Description

INFOID:0000000003846304

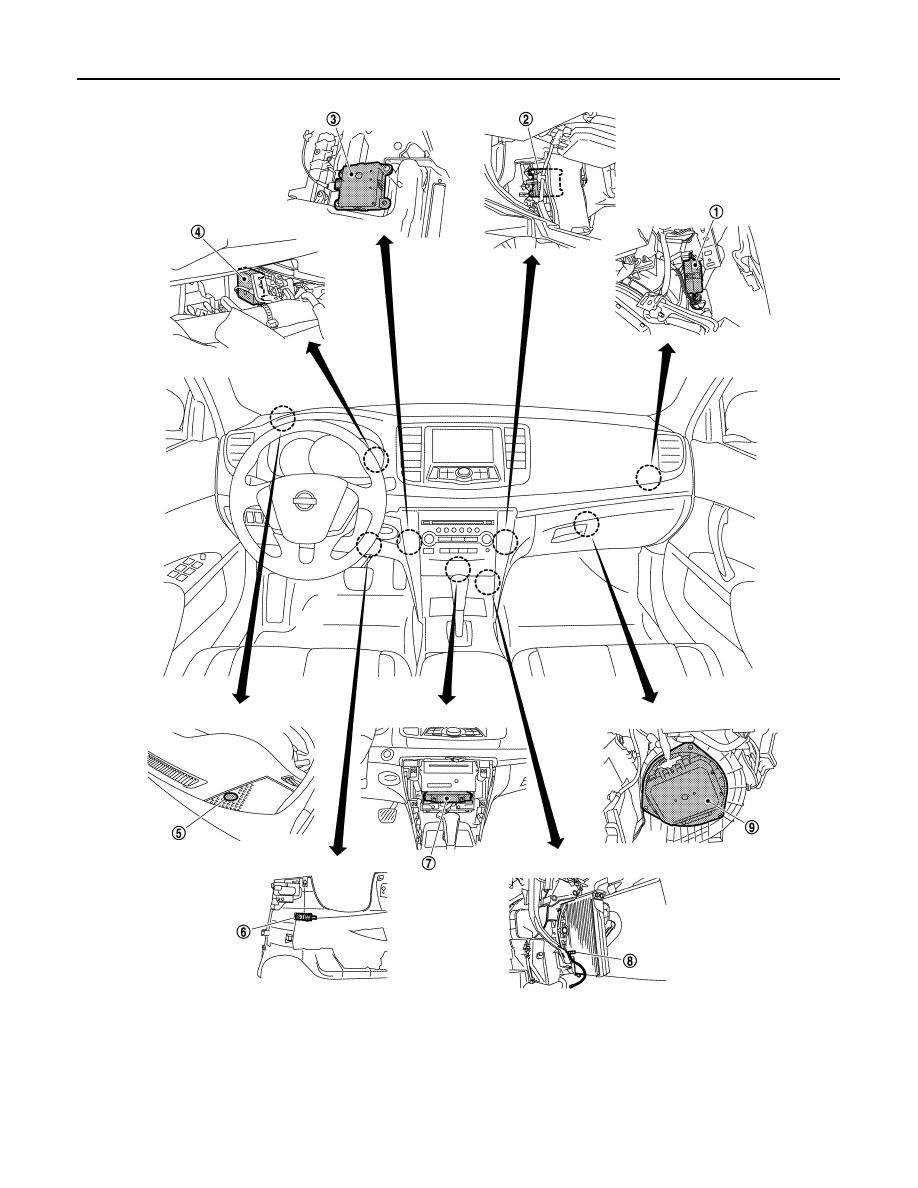

1.

Intake door motor

2.

Air mix door motor (passenger side)

3.

Air mix door motor (driver side)

4.

Mode door motor

5.

Sunload sensor

6.

In-vehicle sensor

7.

A/C auto amp.

8.

Intake sensor

9.

Blower motor

JPIIA0997ZZ

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-27

< FUNCTION DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component

Description

Refrigerant pressure sensor

EC-348, "Description"

Compressor

HAC-72, "Description"

Ambient sensor

HAC-44, "Description"

Intake door motor

HAC-63, "Description"

Air mix door motor (driver side)

HAC-56, "Description"

Air mix door motor (passenger side)

HAC-58, "Description"

Mode door motor

HAC-60, "Description"

Sunload sensor

HAC-53, "Description"

In-vehicle sensor

HAC-47, "Description"

A/C auto amp.

HAC-67, "Description"

Intake sensor

HAC-50, "Description"

Blower motor

HAC-68, "Description"

HAC-28

< FUNCTION DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

MODE DOOR CONTROL SYSTEM

MODE DOOR CONTROL SYSTEM

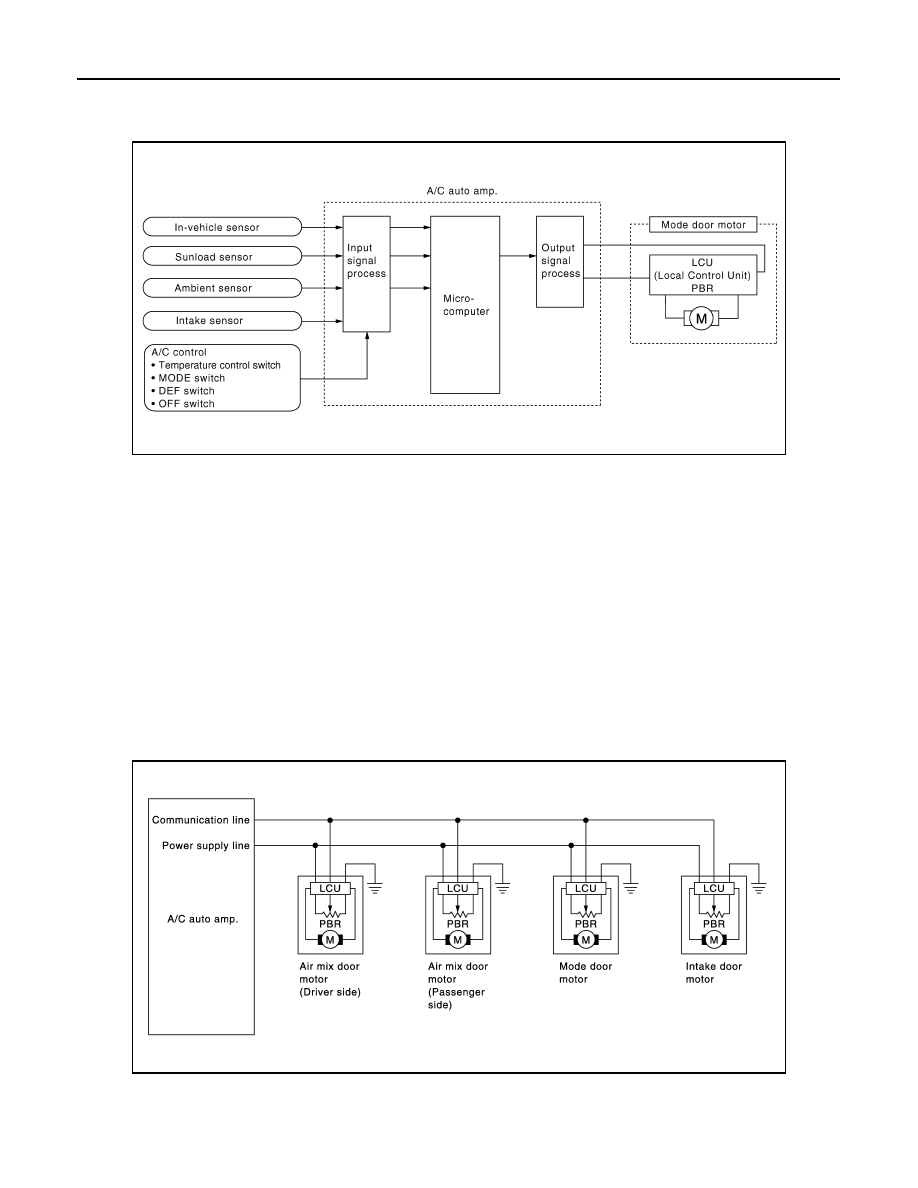

System Diagram

INFOID:0000000003846309

System Description

INFOID:0000000003846310

The mode door is automatically controlled by the temperature setting, ambient temperature, in-vehicle temper-
ature, intake temperature and amount of sunload.

SYSTEM OPERATION

• The A/C auto amp. receives data from each of the sensors.
• The A/C auto amp. sends the air mix door, the mode door and the intake door opening angle data to the air

mix door motor LCUs, the mode door motor LCU and the intake door motor LCU.

• The air mix door motors, the mode door motor and the intake door motor read their respective signals

according to the address signal. Opening angle indication signals received from the A/C auto amp. and each
of the motor position sensors are compared by the LCUs in each door motor with the existing decision and
opening angles.

• Next, HOT/COLD, DEF/VENT, OPEN/SHUT or FRE/REC operations is selected. The newly selected data is

returned to the A/C auto amp.

Door Motor Circuit

Mode Door Control Specification

JPIIA0493GB
