HA-48

< ON-VEHICLE REPAIR >

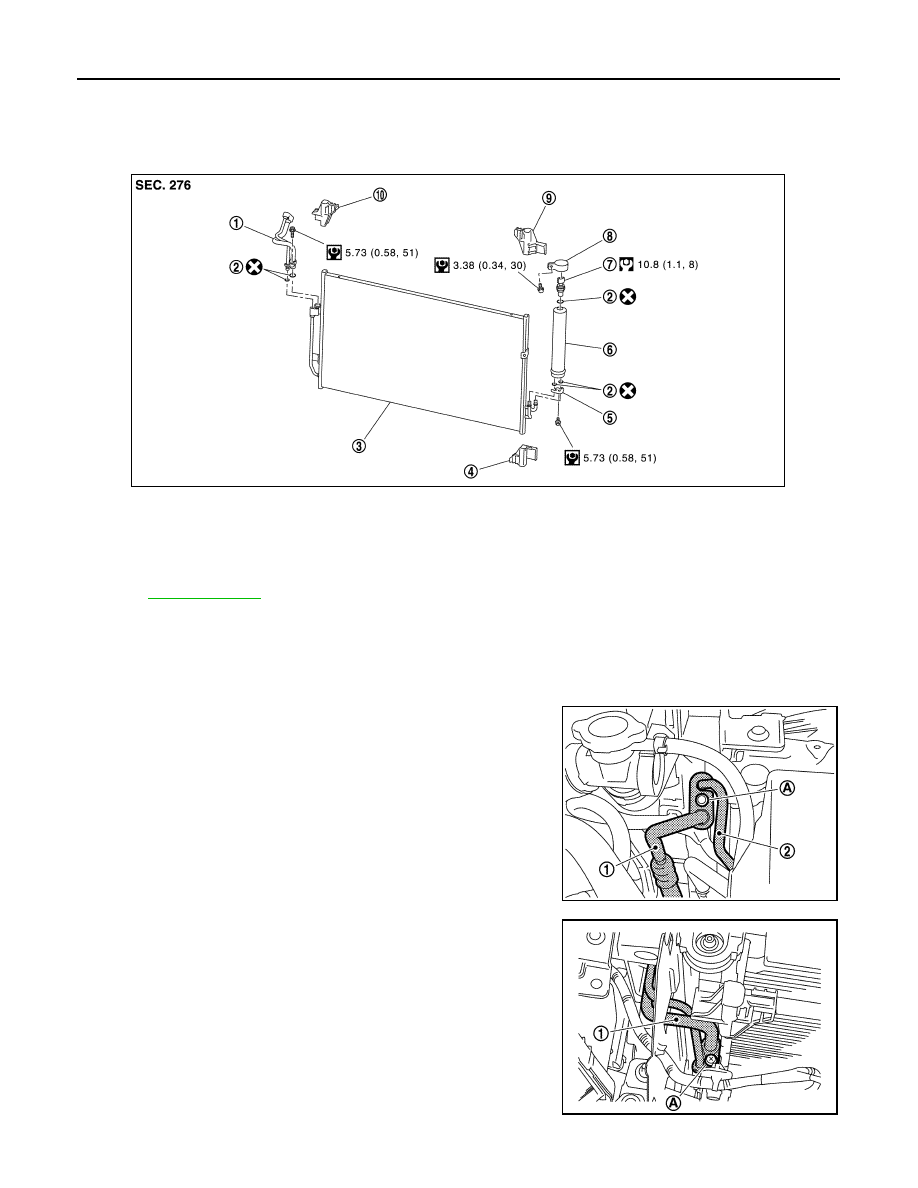

CONDENSER PIPE ASSEMBLY

CONDENSER PIPE ASSEMBLY

Exploded View

INFOID:0000000003795844

Removal and Installation

INFOID:0000000003795845

REMOVAL

1.

Use refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove mounting bolt (A), and then disconnect high-pressure
flexible hose (1) and high-pressure pipe (2) from condenser pipe
assembly.

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

3.

Remove mounting bolt (A), and then remove condenser pipe
assembly (1) from condenser.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with
suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION

1.

Condenser pipe assembly

2.

O-ring

3.

Condenser

4.

Condenser lower bracket LH

5.

Bracket

6.

Liquid tank

7.

Refrigerant pressure sensor

8.

Liquid tank bracket

9.

Condenser upper bracket LH

10. Condenser upper bracket RH

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0978GB

JPIIA0979ZZ

JPIIA0980ZZ

CONDENSER PIPE ASSEMBLY

HA-49

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

HA-50

< ON-VEHICLE REPAIR >

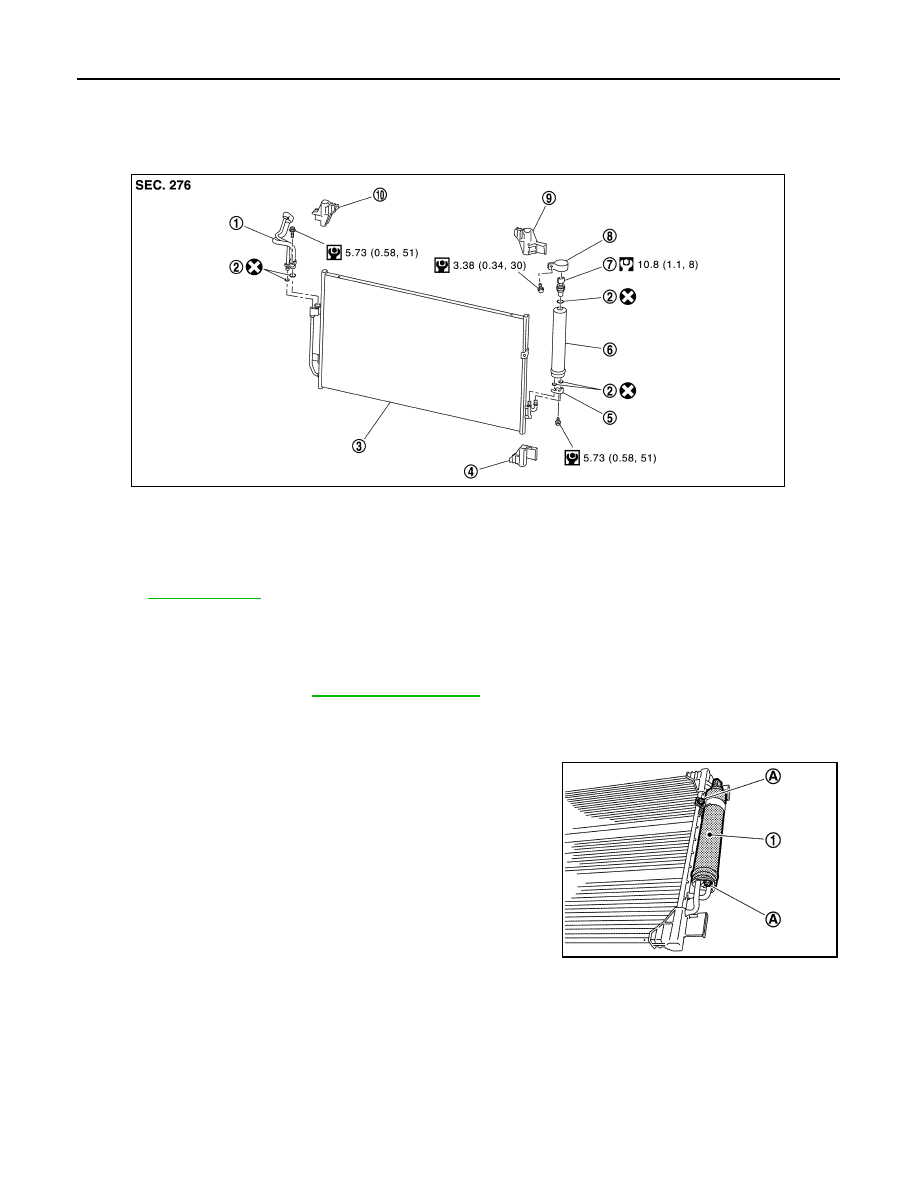

LIQUID TANK

LIQUID TANK

Exploded View

INFOID:0000000003795848

Removal and Installation

INFOID:0000000003795849

REMOVAL

1.

Remove condenser. Refer to

HA-46, "Exploded View"

.

2.

Clean liquid tank and its surrounding area. Then remove dust and rust from liquid tank.

CAUTION:

Be sure to clean carefully.

3.

Remove mounting bolts (A), and then remove liquid tank (1).

CAUTION:

Cap or wrap the joint of the A/C piping and liquid tank with
suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

1.

Condenser pipe assembly

2.

O-ring

3.

Condenser

4.

Condenser lower bracket LH

5.

Bracket

6.

Liquid tank

7.

Refrigerant pressure sensor

8.

Liquid tank bracket

9.

Condenser upper bracket LH

10. Condenser upper bracket RH

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0978GB

JPIIA0984ZZ

REFRIGERANT PRESSURE SENSOR

HA-51

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

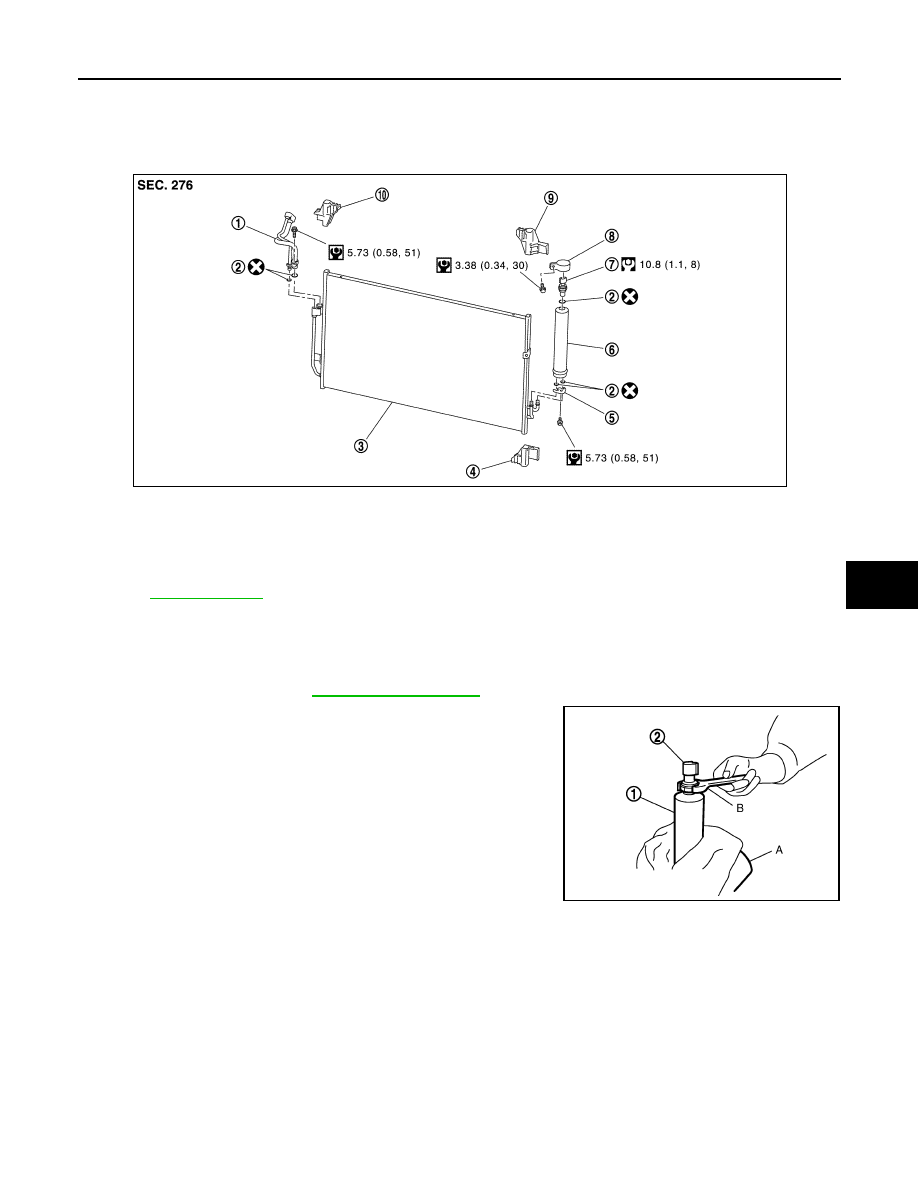

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000003795850

Removal and Installation

INFOID:0000000003795851

REMOVAL

1.

Remove liquid tank. Refer to

HA-50, "Exploded View"

.

2.

Fix the liquid tank (1) with a vise (A). Remove the refrigerant
pressure sensor (2) with a wrench (B).

CAUTION:

Be careful not to damage liquid tank.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

1.

Condenser pipe assembly

2.

O-ring

3.

Condenser

4.

Condenser lower bracket LH

5.

Bracket

6.

Liquid tank

7.

Refrigerant pressure sensor

8.

Liquid tank bracket

9.

Condenser upper bracket LH

10. Condenser upper bracket RH

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0978GB
