EXT-22

< ON-VEHICLE REPAIR >

FENDER PROTECTOR

FENDER PROTECTOR

FENDER PROTECTOR

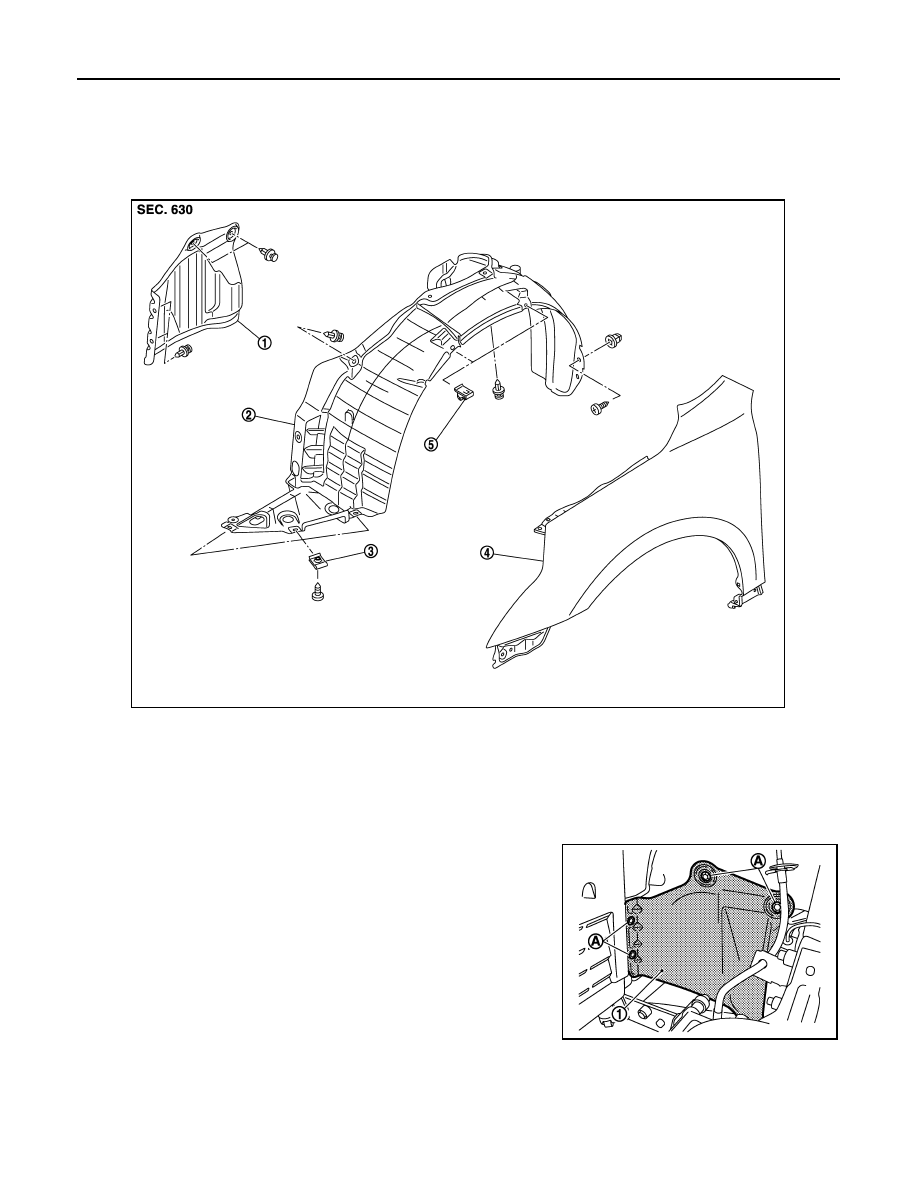

FENDER PROTECTOR : Exploded View

INFOID:0000000003819537

FENDER PROTECTOR : Removal and Installation

INFOID:0000000003819538

REMOVAL

1.

Remove splash guard fixing clips (A), and then remove splash
guard (1).

1.

Front splash guard

2.

Fender protector

3.

U-nut

4.

Front fender

5.

Fender clip

JMKIA2530ZZ

JMKIA2531ZZ

FENDER PROTECTOR

EXT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

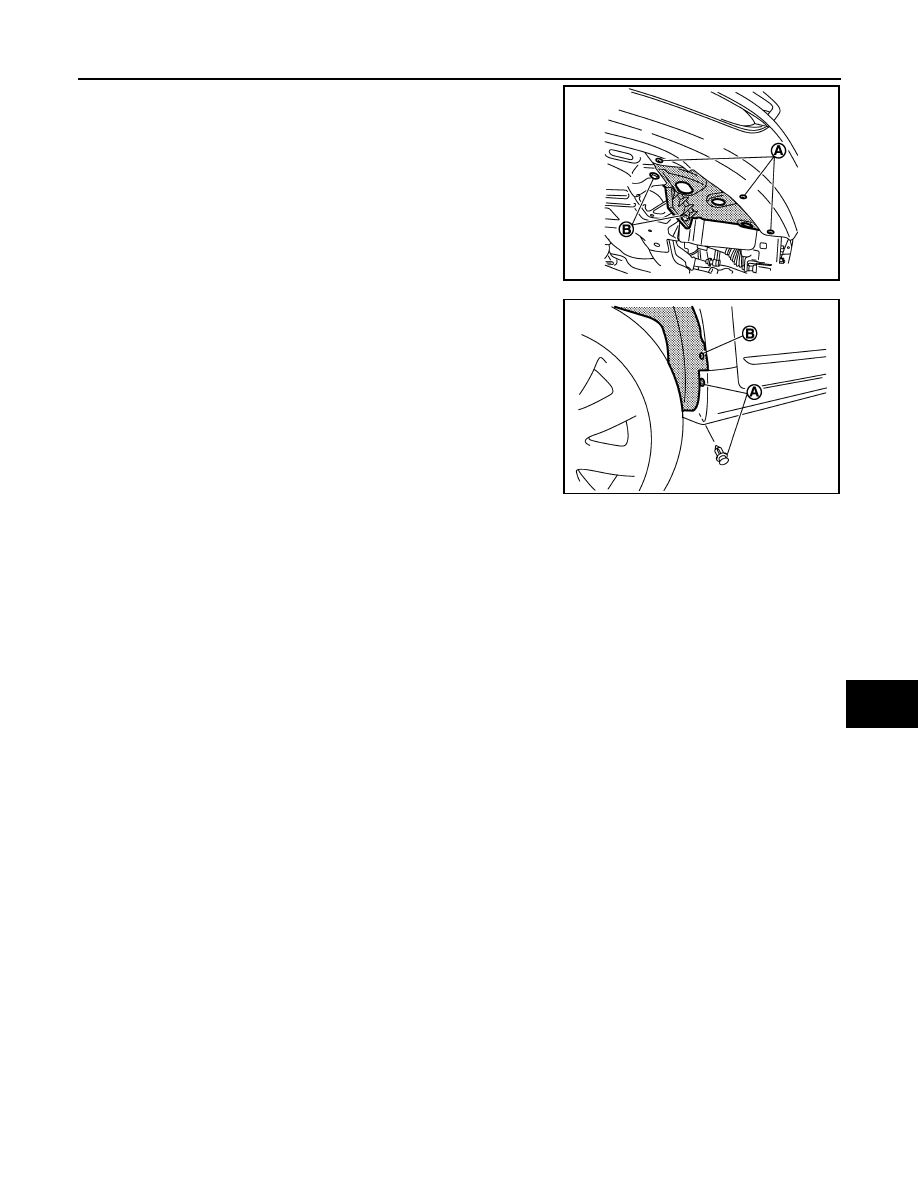

2.

Remove front fender protector fixing screws (A) and clips (B)
from underside.

3.

Remove front fender rear part fixing clips (A) and screw (B).

4.

Remove front fender protector upper fixing clips.

5.

Remove front fender clips from fender arch, and then remove the front fender protector.

INSTALLATION

Install in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

JMKIA2532ZZ

JMKIA2533ZZ

EXT-24

< ON-VEHICLE REPAIR >

FENDER PROTECTOR

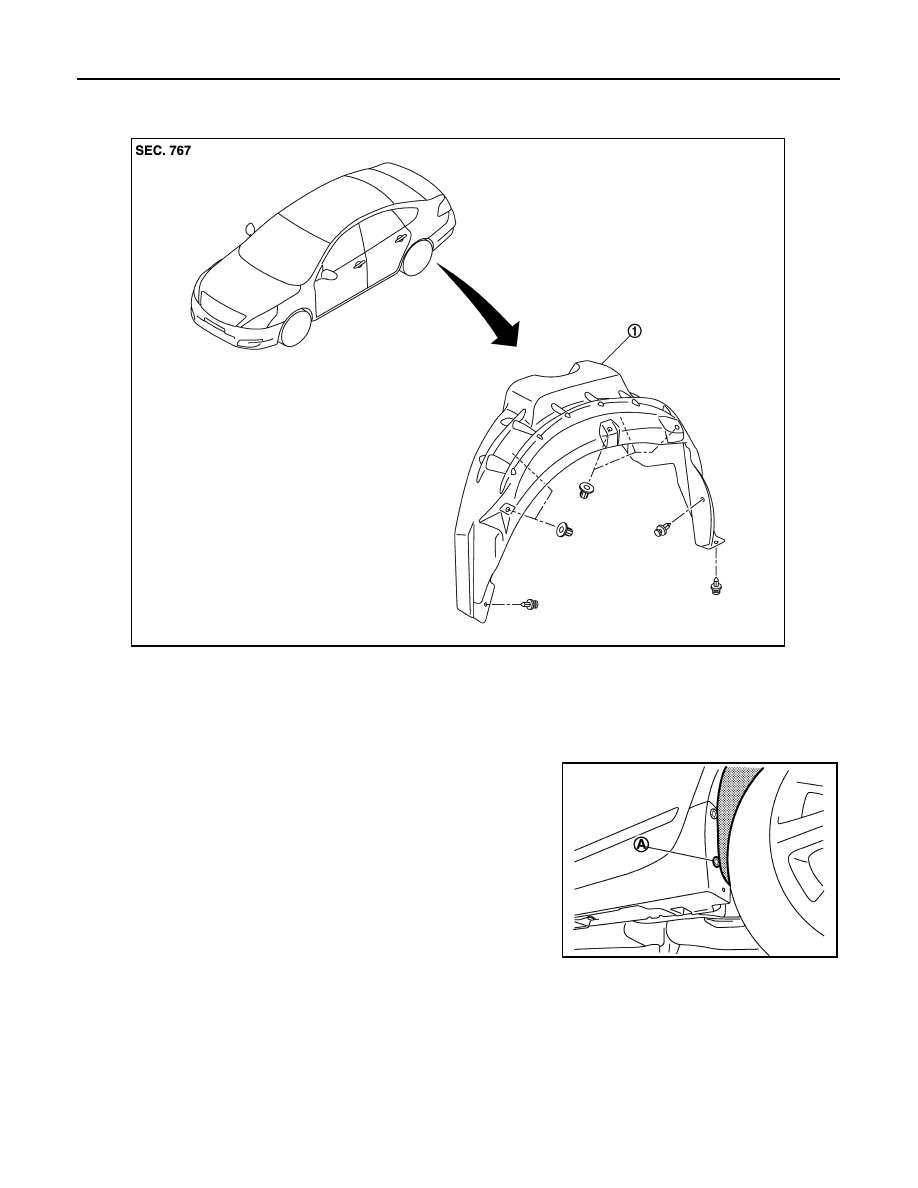

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000003819539

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000003819540

REMOVAL

1.

Remove clip (A) of rear wheel house protector front end.

2.

Remove tires with power tool.

1.

Rear wheel house protector

JMKIA2534ZZ

JMKIA2535ZZ

FENDER PROTECTOR

EXT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

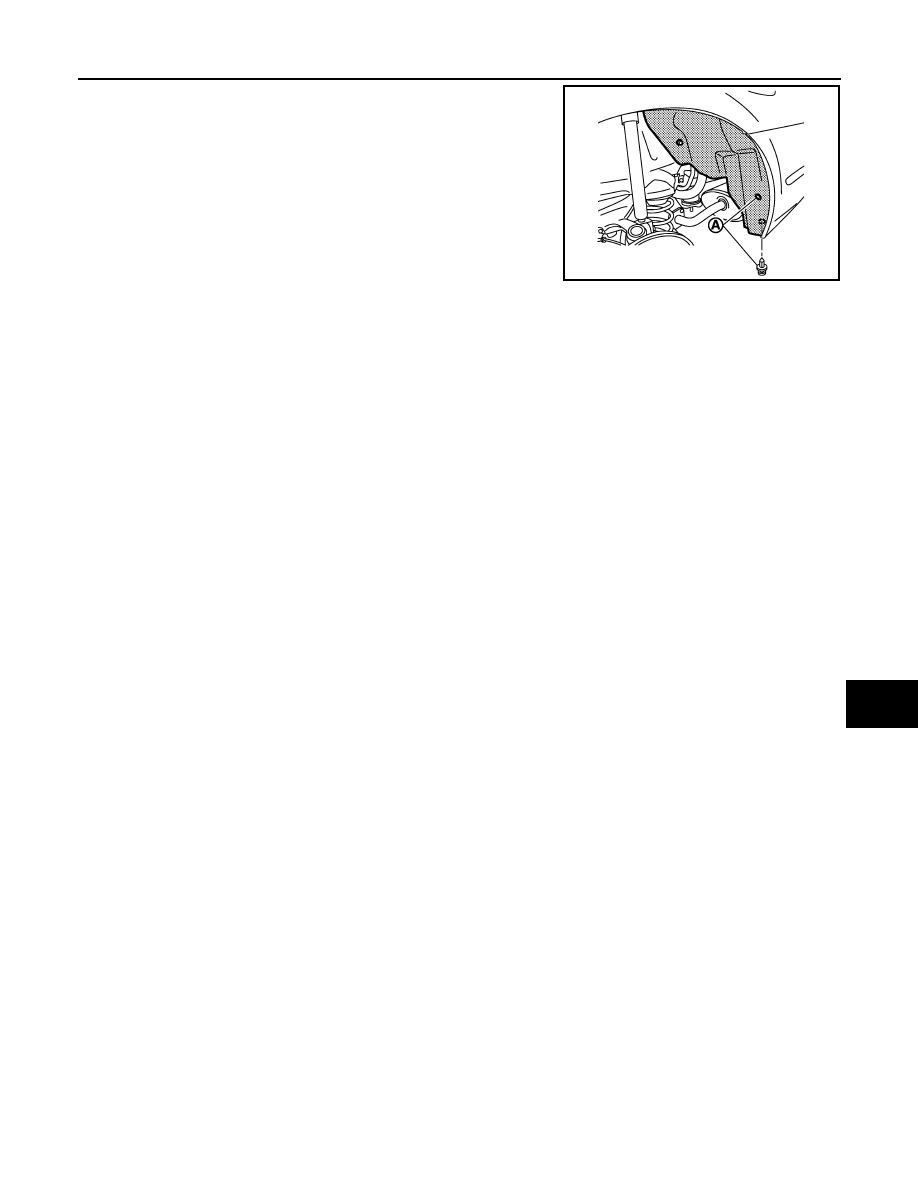

3.

Remove clips (A) of rear wheel house protector rear end.

4.

Remove rear wheel house protector fixing clips, and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.
