HEADLAMP AIMING CONTROL SYSTEM (MANUAL)

HEADLAMP AIMING CONTROL SYSTEM (MANUAL)

Description

INFOID:0000000003773585

The headlamp levelizer adjusts the headlamp light axis upward and downward with the aiming motor inte-
grated in the front combination lamp.

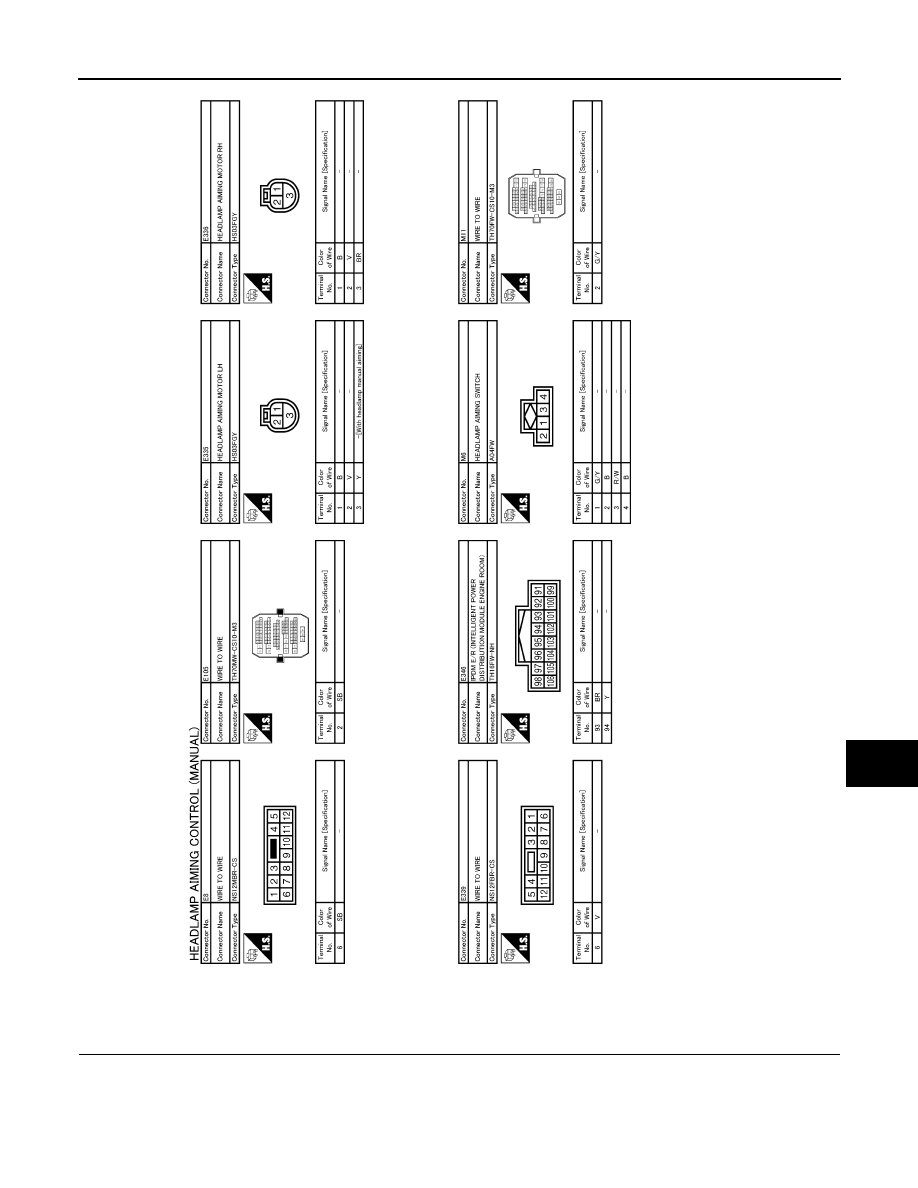

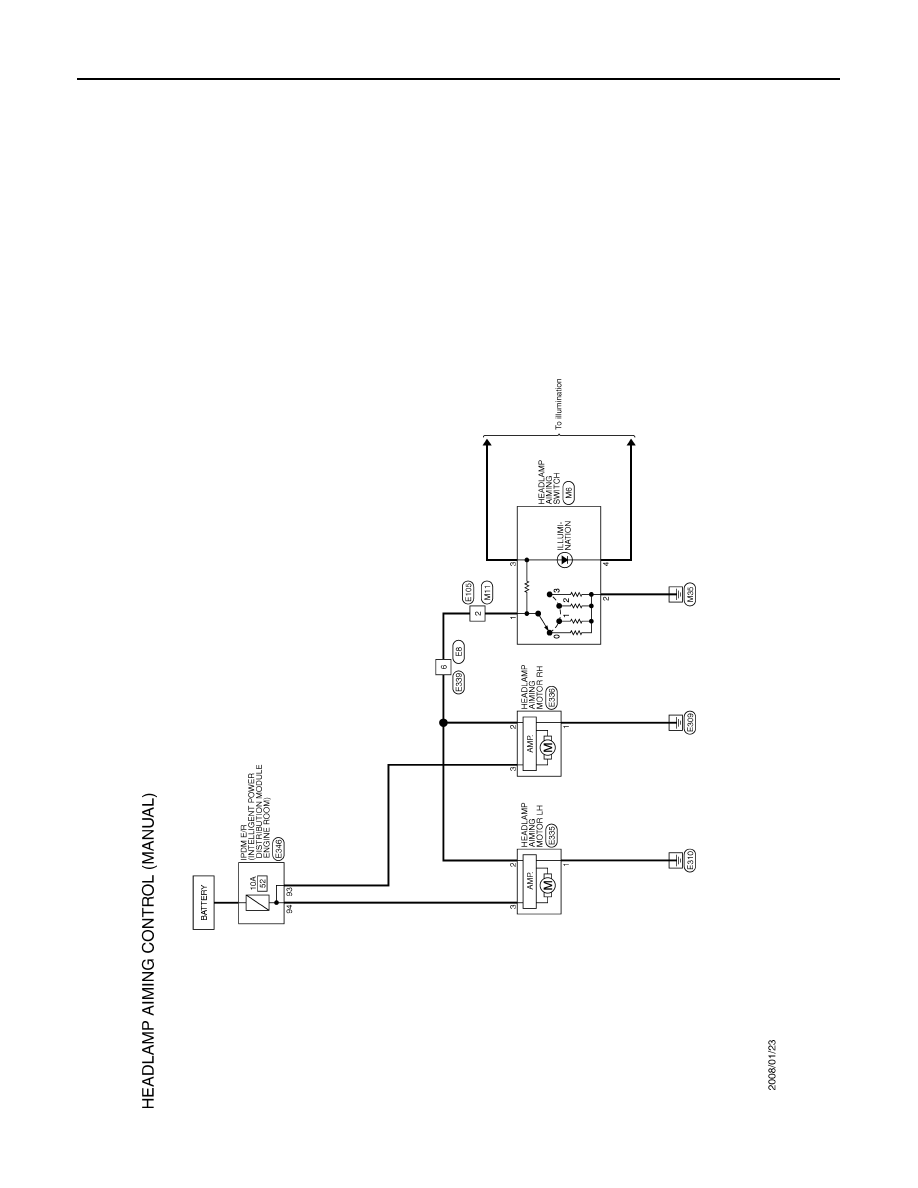

Wiring Diagram - HEADLAMP AIMING CONTROL SYSTEM (MANUAL) -

INFOID:0000000003773586

JCLWM1449GB

HEADLAMP AIMING CONTROL SYSTEM (MANUAL)

EXL-257

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Component Inspection

INFOID:0000000003773587

1.

CHECK HEADLAMP AIMING SWITCH

1.

Remove the headlamp aiming switch.

JCLWM1450GB
