Nissan Teana J32. Manual - part 463

EC-390

< ECU DIAGNOSIS >

[VQ25DE, VQ35DE]

ECM

IAT SEN/CIRCUIT-B1

P0112

0112

—

2

×

EC-154

IAT SEN/CIRCUIT-B1

P0113

0113

—

2

×

EC-154

ECT SEN/CIRC

P0117

0117

—

1

×

EC-157

ECT SEN/CIRC

P0118

0118

—

1

×

EC-157

TP SEN 2/CIRC-B1

P0122

0122

—

1

×

EC-160

TP SEN 2/CIRC-B1

P0123

0123

—

1

×

EC-160

A/F SENSOR1 (B1)

P0130

0130

—

2

×

EC-163

A/F SENSOR1 (B1)

P0131

0131

—

2

×

EC-167

A/F SENSOR1 (B1)

P0132

0132

—

2

×

EC-170

A/F SENSOR1 (B1)

P0133

0133

×

2

×

EC-173

HO2S2 (B1)

P0137

0137

×

2

×

EC-178

HO2S2 (B1)

P0138

0138

×

2

×

EC-184

HO2S2 (B1)

P0139

0139

×

2

×

EC-192

A/F SENSOR1 (B2)

P0150

0150

—

2

×

EC-163

A/F SENSOR1 (B2)

P0151

0151

—

2

×

EC-167

A/F SENSOR1 (B2)

P0152

0152

—

2

×

EC-170

A/F SENSOR1 (B2)

P0153

0153

×

2

×

EC-173

HO2S2 (B2)

P0157

0157

×

2

×

EC-178

HO2S2 (B2)

P0158

0158

×

2

×

EC-184

HO2S2 (B2)

P0159

0159

×

2

×

EC-192

FUEL SYS-LEAN-B1

P0171

0171

—

2

×

EC-198

FUEL SYS-RICH-B1

P0172

0172

—

2

×

EC-202

FUEL SYS-LEAN-B2

P0174

0174

—

2

×

EC-198

FUEL SYS-RICH-B2

P0175

0175

—

2

×

EC-202

TP SEN 1/CIRC-B1

P0222

0222

—

1

×

EC-206

TP SEN 1/CIRC-B1

P0223

0223

—

1

×

EC-206

MULTI CYL MISFIRE

P0300

0300

—

2

×

EC-209

CYL 1 MISFIRE

P0301

0301

—

2

×

EC-209

CYL 2 MISFIRE

P0302

0302

—

2

×

EC-209

CYL 3 MISFIRE

P0303

0303

—

2

×

EC-209

CYL 4 MISFIRE

P0304

0304

—

2

×

EC-209

CYL 5 MISFIRE

P0305

0305

—

2

×

EC-209

CYL 6 MISFIRE

P0306

0306

—

2

×

EC-209

KNOCK SEN/CIRC-B1

P0327

0327

—

2

—

EC-215

KNOCK SEN/CIRC-B1

P0328

0328

—

2

—

EC-215

KNOCK SEN/CIRC-B2

P0332

0332

—

2

—

EC-215

KNOCK SEN/CIRC-B2

P0333

0333

—

2

—

EC-215

CKP SEN/CIRCUIT

P0335

0335

—

2

×

EC-218

CMP SEN/CIRC-B1

P0340

0340

—

2

×

EC-222

CMP SEN/CIRC-B2

P0345

0345

—

2

×

EC-222

TW CATALYST SYS-B1

P0420

0420

×

2

×

EC-226

TW CATALYST SYS-B2

P0430

0430

×

2

×

EC-226

Items

 (CONSULT-III screen terms)

DTC*

1

SRT code

Trip

MI

Reference

page

CONSULT-III

GST*

2

ECM*

3

ECM

EC-391

< ECU DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PURG VOLUME CONT/V

P0444

0444

—

2

×

EC-231

VEH SPEED SEN/CIRC*

5

P0500

0500

—

2

×

EC-234

PW ST P SEN/CIRC

P0550

0550

—

2

—

EC-236

ECM BACK UP/CIRCUIT

P0603

0603

—

2

×

EC-238

ECM

P0605

0605

—

1 or 2

×

 or —

EC-240

ECM

P0607

0607

—

1

×

EC-242

SENSOR POWER/CIRC

P0643

0643

—

1

×

EC-243

PNP SW/CIRC

P0705

0705

—

2

×

TM-47

ATF TEMP SEN/CIRC

P0710

0710

—

1

×

TM-50

INPUT SPD SEN/CIRC

P0715

0715

—

2

×

TM-52

VEH SPD SEN/CIR AT*

5

P0720

0720

—

2

×

TM-55

TCC SOLENOID/CIRC

P0740

0740

—

2

×

TM-62

A/T TCC S/V FNCTN

P0744

0744

—

2

×

TM-64

L/PRESS SOL/CIRC

P0745

0745

—

2

×

TM-66

PRS CNT SOL/A FCTN

P0746

0746

—

1

×

TM-68

PRS CNT SOL/B FCTN

P0776

0776

—

2

×

TM-70

PRS CNT SOL/B CIRC

P0778

0778

—

2

×

TM-72

TR PRS SENS/A CIRC

P0840

0840

—

2

×

TM-74

TR PRS SENS/B CIRC

P0845

0845

—

2

×

TM-80

P-N POS SW/CIRCUIT

P0850

0850

—

2

×

EC-245

TCS/CIRC

P1212

1212

—

2

—

EC-249

ENG OVER TEMP

P1217

1217

—

1

×

EC-250

CTP LEARNING-B1

P1225

1225

—

2

—

EC-254

CTP LEARNING-B1

P1226

1226

—

2

—

EC-256

BAT CURRENT SENSOR

P1550

1550

—

2

—

EC-258

BAT CURRENT SENSOR

P1551

1551

—

2

—

EC-261

BAT CURRENT SENSOR

P1552

1552

—

2

—

EC-261

BAT CURRENT SENSOR

P1553

1553

—

2

—

EC-264

BAT CURRENT SENSOR

P1554

1554

—

2

—

EC-267

ASCD SW

P1564

1564

—

1

—

EC-270

ASCD BRAKE SW

P1572

1572

—

1

—

EC-273

ASCD VHL SPD SEN

P1574

1574

—

1

—

EC-278

LOCK MODE

P1610

1610

—

2

—

SEC-31

ID DISCORD IMM-ECM

P1611

1611

—

2

—

SEC-32

CHAIN OF ECM-IMMU

P1612

1612

—

2

—

SEC-34

CHAIN OF IMMU-KEY

P1614

1614

—

2

—

SEC-35

DIFFERENCE OF KEY

P1615

1615

—

2

—

SEC-38

CVT C/U FUNCT

P1700

1700

—

1

—

EC-280

IN PULY SPEED

P1715

1715

—

2

—

EC-281

V/SP SEN(A/T OUT)

P1720

1720

—

2

—

EC-283

LU-SLCT SOL/CIRC

P1740

1740

—

2

×

TM-94

STEP MOTR CIRC

P1777

1777

—

1

×

TM-97

Items

 (CONSULT-III screen terms)

DTC*

1

SRT code

Trip

MI

Reference

page

CONSULT-III

GST*

2

ECM*

3

EC-392

< ECU DIAGNOSIS >

[VQ25DE, VQ35DE]

ECM

*1: 1st trip DTC No. is the same as DTC No.

*2: This number is prescribed by ISO 15031-6.

*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.

*4: The troubleshooting for this DTC needs CONSULT-III.

*5: When the fail-safe operations for both self-diagnoses occur, the MI illuminates.

*6: When the ECM is in the mode that displays SRT status, MI may flash. For the details, refer to “How to Display SRT Status”.

How to Set SRT Code

INFOID:0000000003856873

To set all SRT codes, self-diagnosis for the items indicated above must be performed one or more times. Each
diagnosis may require a long period of actual driving under various conditions.

WITH CONSULT-III

Perform corresponding DTC Confirmation Procedure one by one based on Performance Priority in the table
on “SRT Item”.

WITHOUT CONSULT-III

The most efficient driving pattern in which SRT codes can be properly set is explained below. The driving pat-
tern should be performed one or more times to set all SRT codes.

STEP MOTR FNC

P1778

1778

—

2

×

TM-100

VIAS S/V-1

P1800

1800

—

2

—

EC-285

VIAS S/V-2

P1801

1801

—

2

—

EC-288

BRAKE SW/CIRCUIT

P1805

1805

—

2

—

EC-291

ETC MOT PWR-B1

P2100

2100

—

1

×

EC-294

ETC FNCTN/CIRC-B1

P2101

2101

—

1

×

EC-296

ETC MOT PWR

P2103

2103

—

1

×

EC-294

ETC MOT-B1

P2118

2118

—

1

×

EC-300

ETC ACTR-B1

P2119

2119

—

1

×

EC-302

APP SEN 1/CIRC

P2122

2122

—

1

×

EC-304

APP SEN 1/CIRC

P2123

2123

—

1

×

EC-304

APP SEN 2/CIRC

P2127

2127

—

1

×

EC-307

APP SEN 2/CIRC

P2128

2128

—

1

×

EC-307

TP SENSOR-B1

P2135

2135

—

1

×

EC-311

APP SENSOR

P2138

2138

—

1

×

EC-314

A/F SENSOR1 (B1)

P2A00

2A00

—

2

×

EC-318

A/F SENSOR1 (B2)

P2A03

2A03

—

2

×

EC-318

Items

 (CONSULT-III screen terms)

DTC*

1

SRT code

Trip

MI

Reference

page

CONSULT-III

GST*

2

ECM*

3

ECM

EC-393

< ECU DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

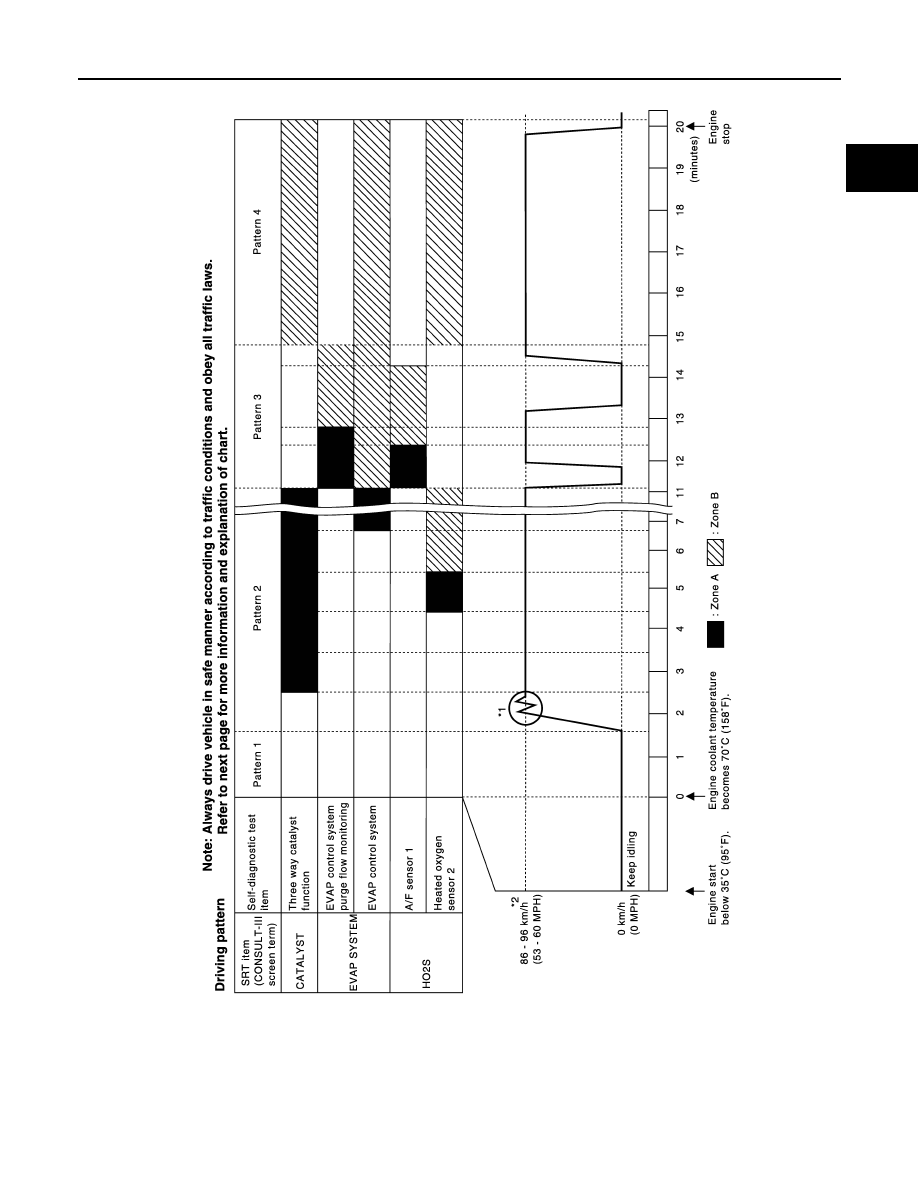

DRIVING PATTERN

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-
est.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within
zone A.

*: Normal conditions refer to the following:

PBIB3622E
