EC-78

< FUNCTION DIAGNOSIS >

[VQ25DE, VQ35DE]

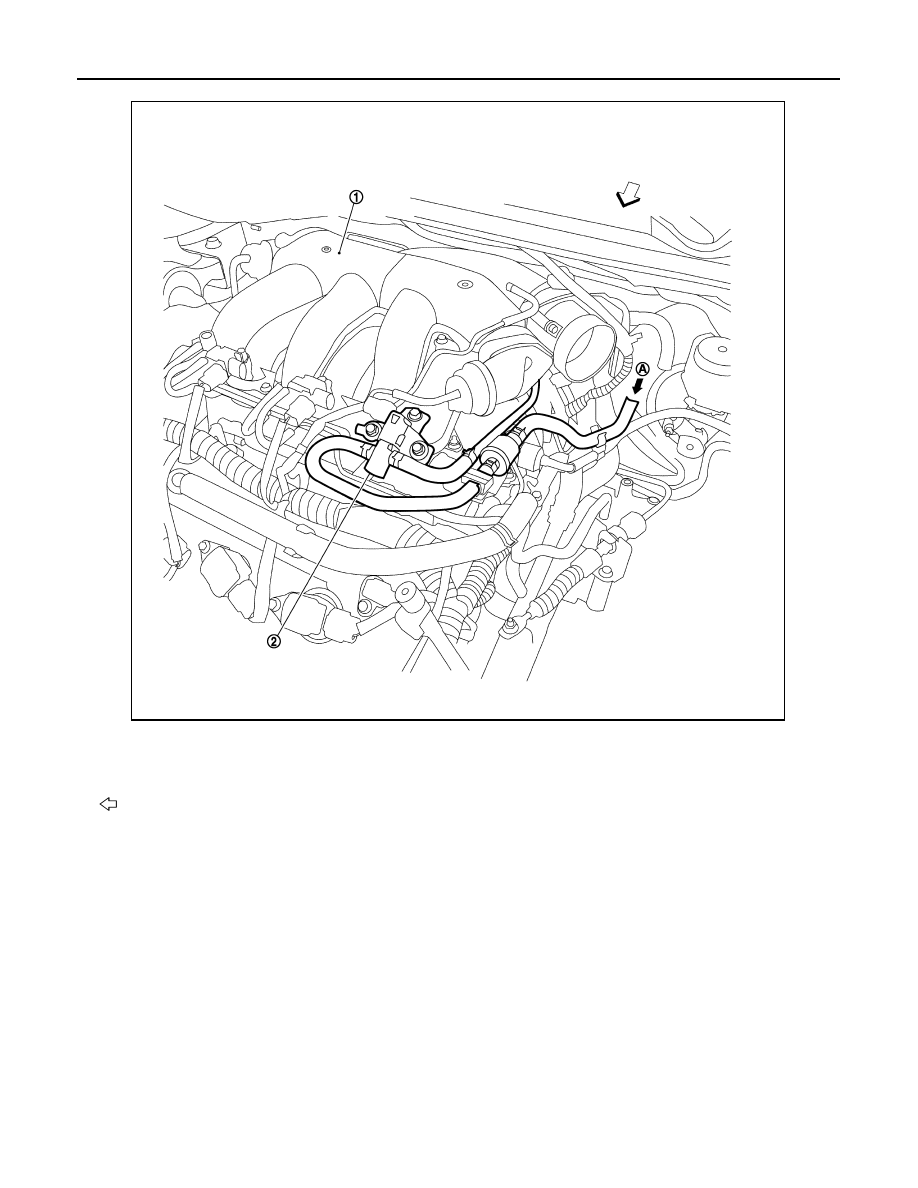

EVAPORATIVE EMISSION SYSTEM

1.

Intake manifold

2.

EVAP canister purge volume control
solenoid valve

A.

From EVAP canister

: Vehicle front

JMBIA1393ZZ

EVAPORATIVE EMISSION SYSTEM

EC-79

< FUNCTION DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

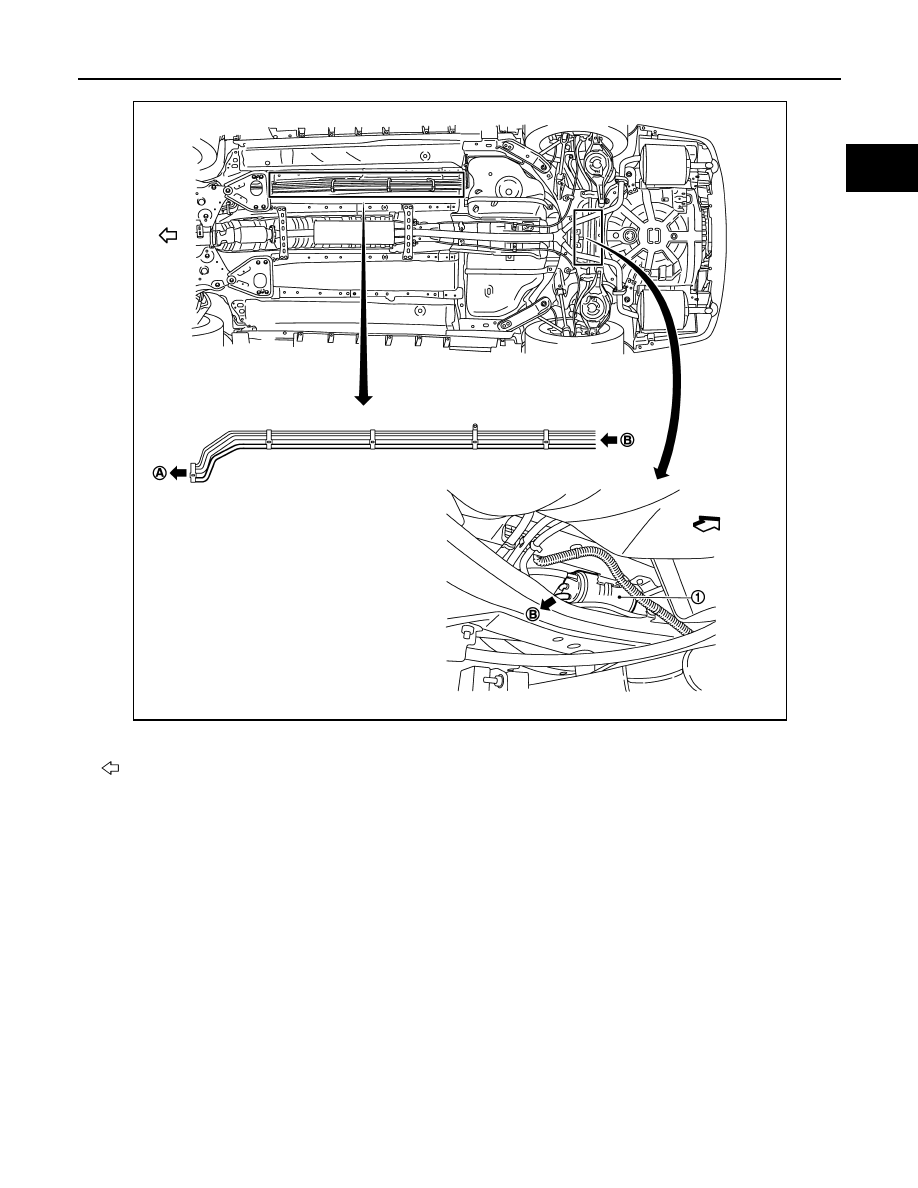

NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

1.

EVAP canister

A.

To previous figure

B.

To/From B in this figure

: Vehicle front

JMBIA1394ZZ

EC-80

< FUNCTION DIAGNOSIS >

[VQ25DE, VQ35DE]

EVAPORATIVE EMISSION SYSTEM

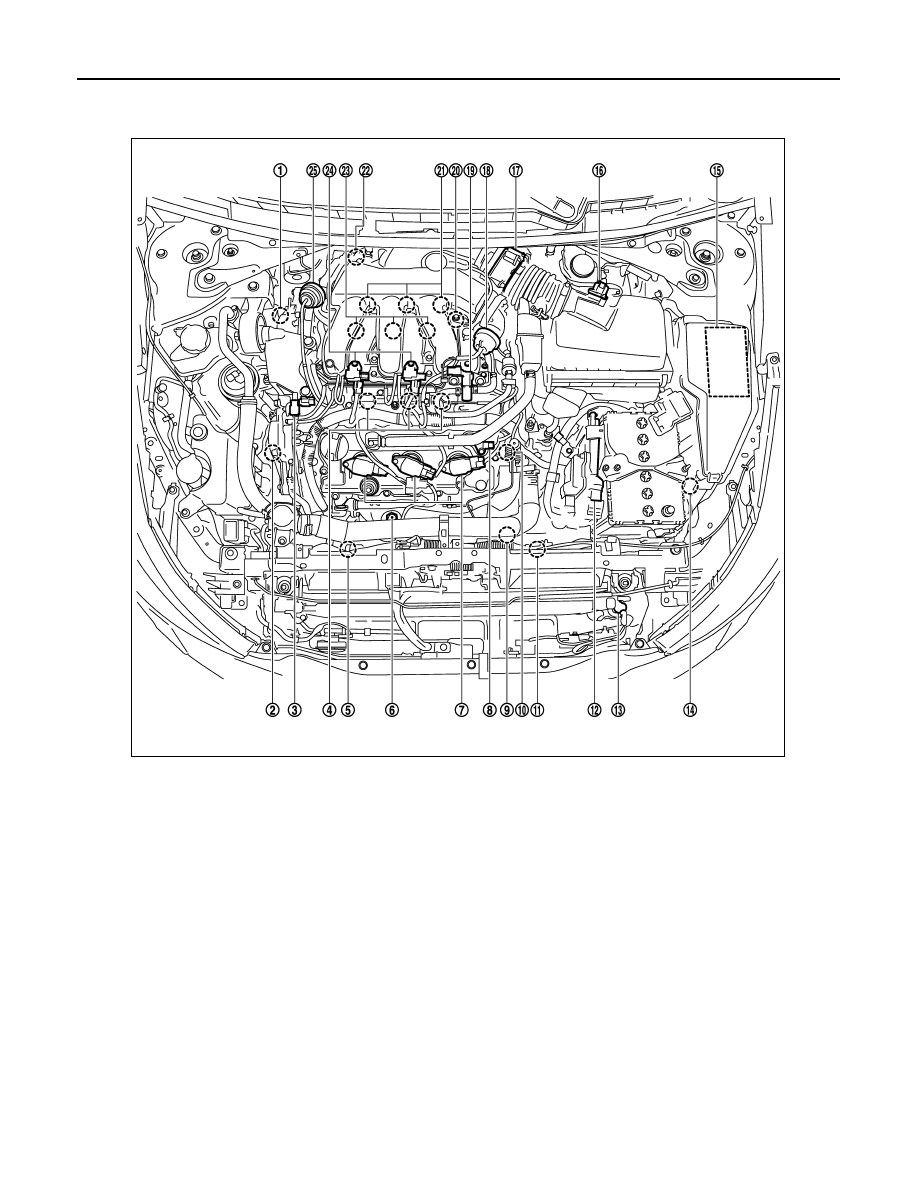

Component Parts Location

INFOID:0000000003857776

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Intake valve timing control solenoid
valve (bank 2)

3.

Electronic controlled engine mount
control solenoid valve

4.

Fuel injector (bank 2)

5.

Cooling fan motor-2

6.

A/F sensor 1 (bank 2)

7.

Ignition coil (with power transistor)
and spark plug (bank 2)

8.

Camshaft position sensor (PHASE)
(bank 2)

9.

Crankshaft position sensor (POS)

10. Engine coolant temperature sensor

11.

Cooling fan motor-1

12. ECM

13. Refrigerant pressure sensor

14. Battery current sensor

15. IPDM E/R

16. Mass air flow sensor (with intake air

temperature sensor)

17. Electric throttle control actuator

18. Power valve actuator 2 (VQ35DE

models)

19. EVAP canister purge volume control

solenoid valve

20. Camshaft position sensor (PHASE)

(bank 1)

21. Ignition coil (with power transistor)

and spark plug (bank 1)

22. A/F sensor 1 (bank 1)

23. Fuel injector (bank 1)

24. VIAS control solenoid valve 1 and 2

(VQ35DE models)

25. Power valve actuator 1

JMBIA1373ZZ

EVAPORATIVE EMISSION SYSTEM

EC-81

< FUNCTION DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

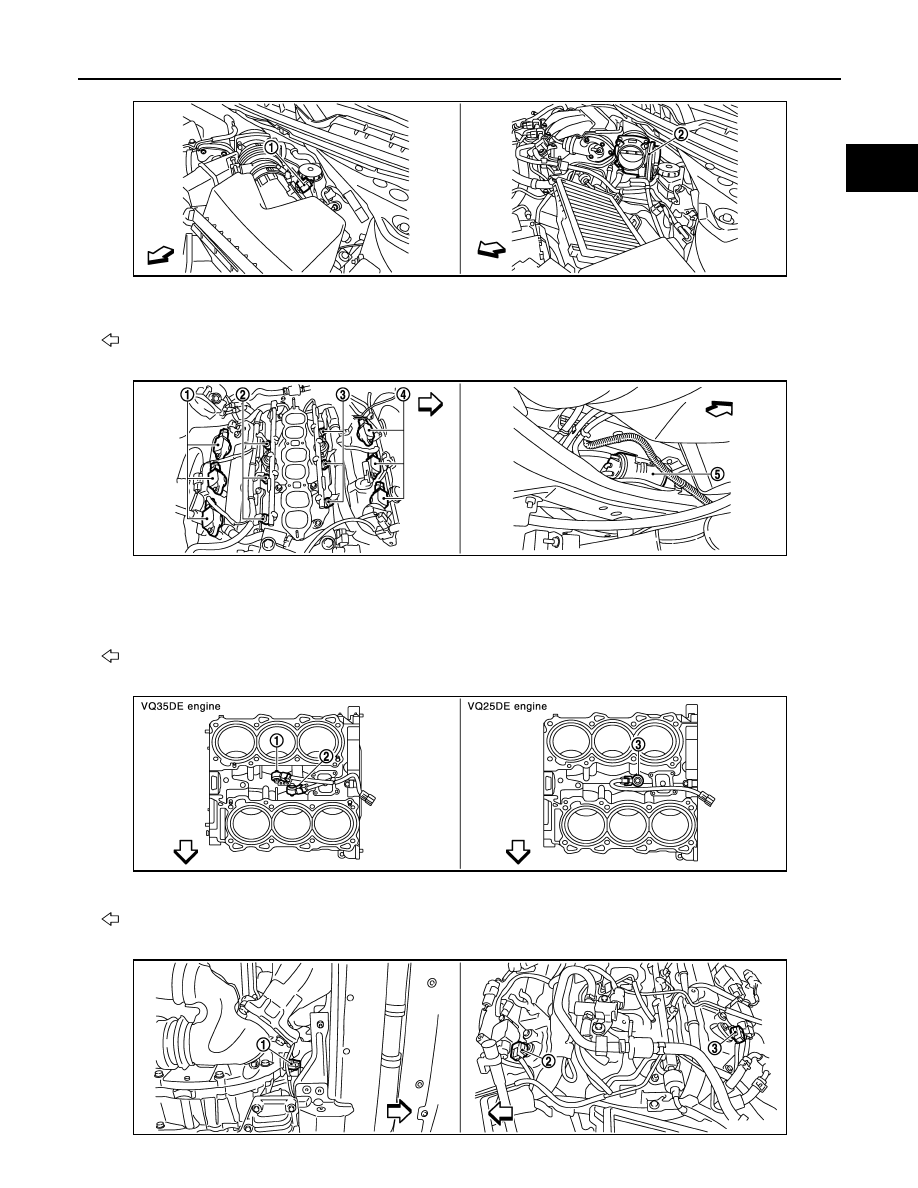

1.

Mass air flow sensor (with intake air
temperature sensor)

2.

Electric throttle control actuator

: Vehicle front

1.

Ignition coil (with power transistor)
and spark plug (bank 1)

2.

Fuel injector (bank 1)

3.

Fuel injector (bank 2)

4.

Ignition coil (with power transistor)
and spark plug (bank 2)

5.

EVAP canister

: Vehicle front

1.

Knock sensor (bank 1)

2.

Knock sensor (bank 2)

3.

Knock sensor

: Vehicle front

JMBIA1374ZZ

JMBIA1375ZZ

JMBIA1376GB

JMBIA1377ZZ
