TRUNK LID LOCK

DLK-231

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

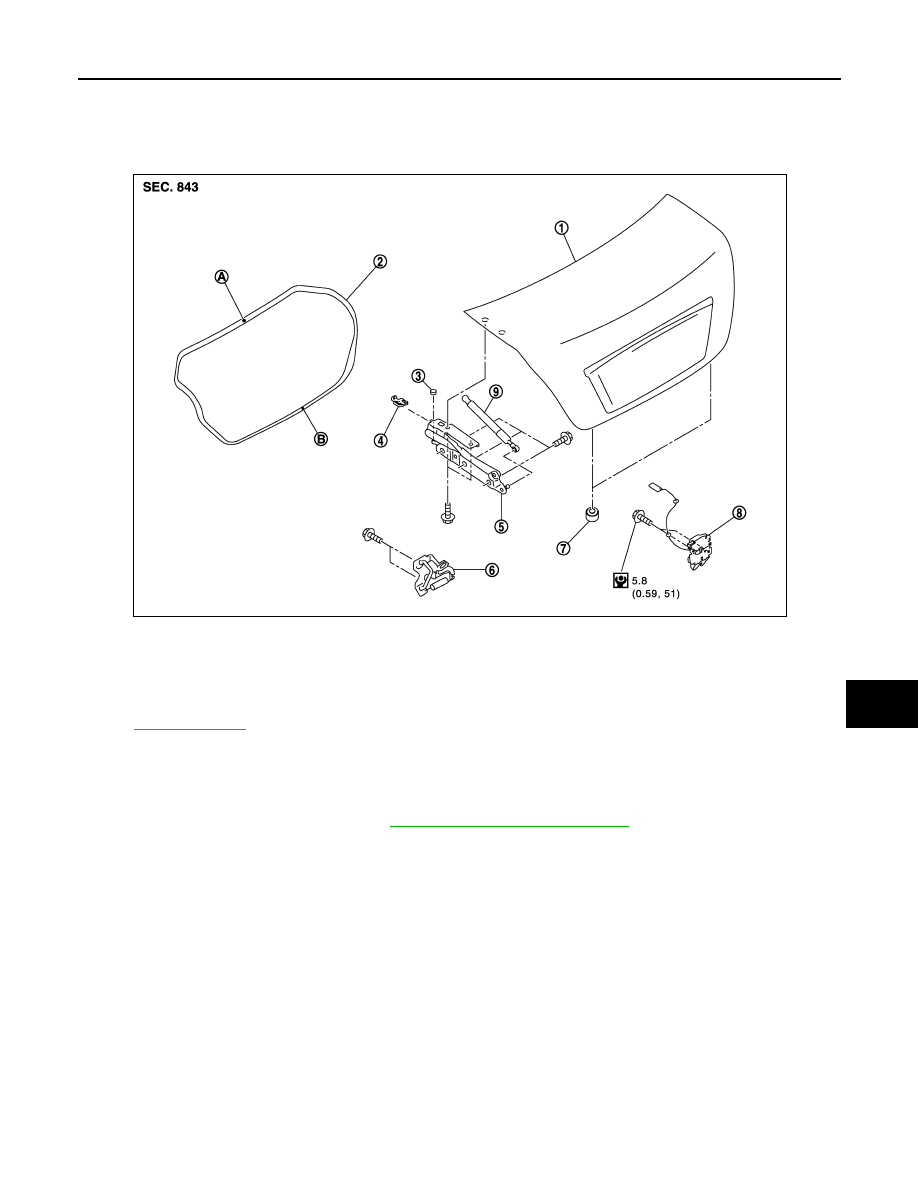

TRUNK LID LOCK

Exploded View

INFOID:0000000003819768

Removal and Installation

INFOID:0000000003813439

REMOVAL

1.

Remove trunk lid finisher inner. Refer to

INT-59, "Removal and Installation"

.

2.

Disconnect trunk lid opener cable.

3.

Disconnect trunk lid lock assembly and trunk lid opener switch connectors.

4.

Remove mounting bolts and remove trunk lid lock assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check trunk lid open/close, lock/unlock operation after installation.

1.

Trunk lid

2.

Trunk lid weather-strip

3.

Cap

4.

Stopper

5.

Trunk lid hinge

6.

Trunk lid striker

7.

Bumper rubber

8.

Trunk lid lock assembly

9.

Trunk lid stay

A

: Center mark (upper)

B.

: Center mark (lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2389GB

DLK-232

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

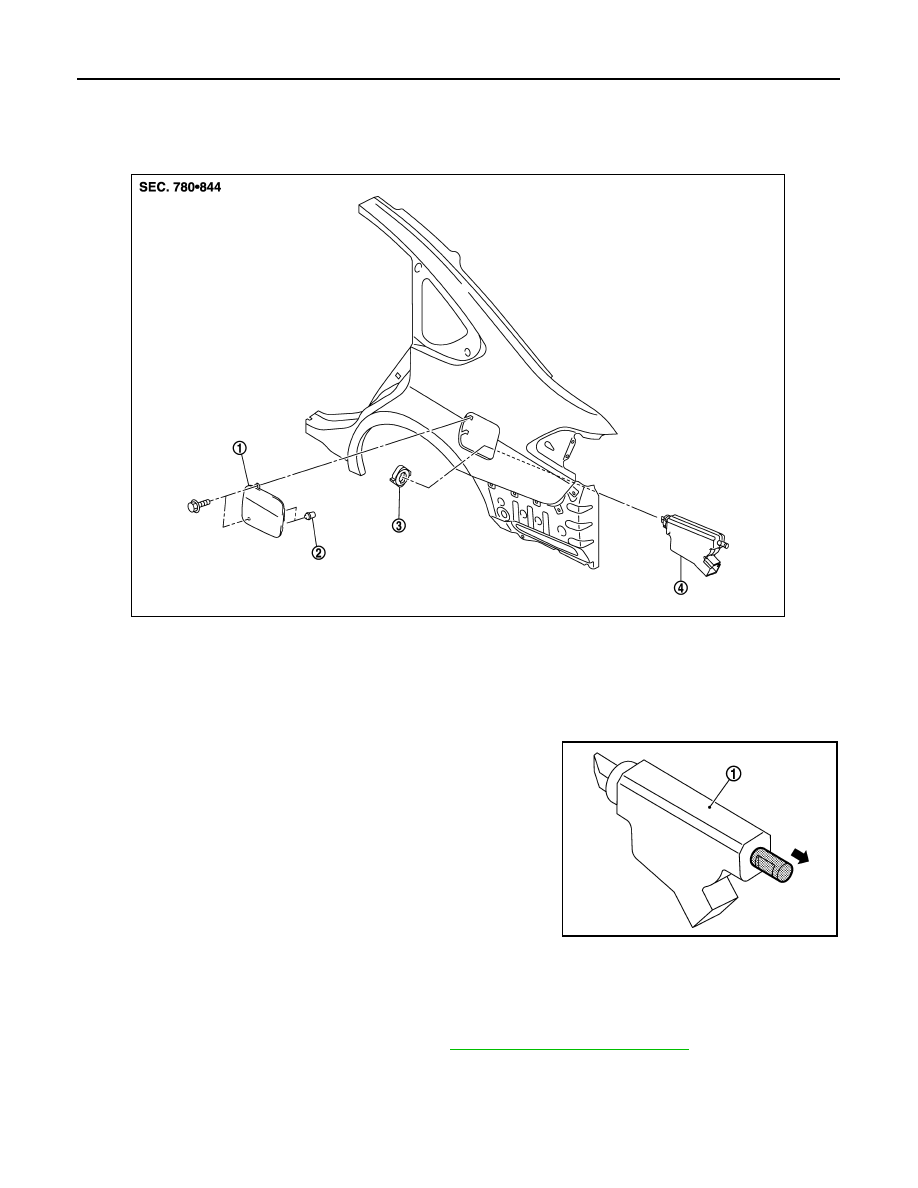

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

Exploded View

INFOID:0000000003813440

Removal and Installation

INFOID:0000000003813441

NOTE:
When fuel filler lid opener actuator (1) is malfunctioning, pull the rod
to open fuel filler lid.

REMOVAL

1.

Remove mounting screws, and then remove fuel filler lid.

2.

Rotate lock nut counterclockwise, and then remove lock nut.

3.

Push fuel filler lid opener actuator behind the vehicle, while pushing the pawl.

4.

Remove rear wheel house finisher (LH). Refer to

INT-57, "Removal and Installation"

.

5.

Disconnect harness connector and remove fuel filler lid opener actuator.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

1.

Fuel filler lid assembly

2.

Bumper rubber

3.

Lock nut

4.

Fuel filler lid opener actuator

JMKIA2390ZZ

JMKIA1960ZZ

FUEL FILLER LID OPENER

DLK-233

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.

DLK-234

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

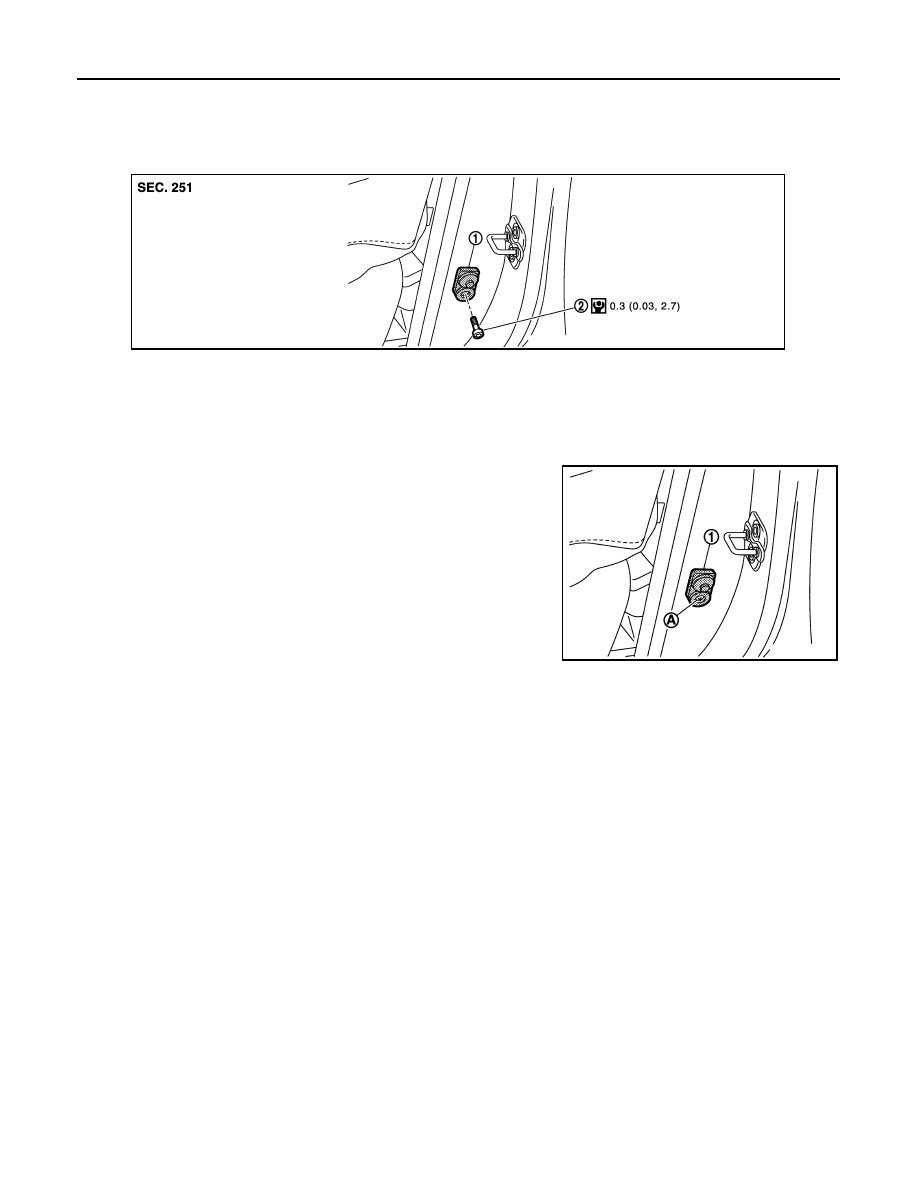

DOOR SWITCH

DOOR SWITCH

Exploded View

INFOID:0000000003795126

Removal and Installation

INFOID:0000000003795127

REMOVAL

1.

Remove the door switch trox bolt (A), and then remove door
switch (1).

INSTALLATION

Install in the reverse order of removal.

1.

Door switch

2.

Trox bolt

JMKIA2569GB

JMKIA2173ZZ
