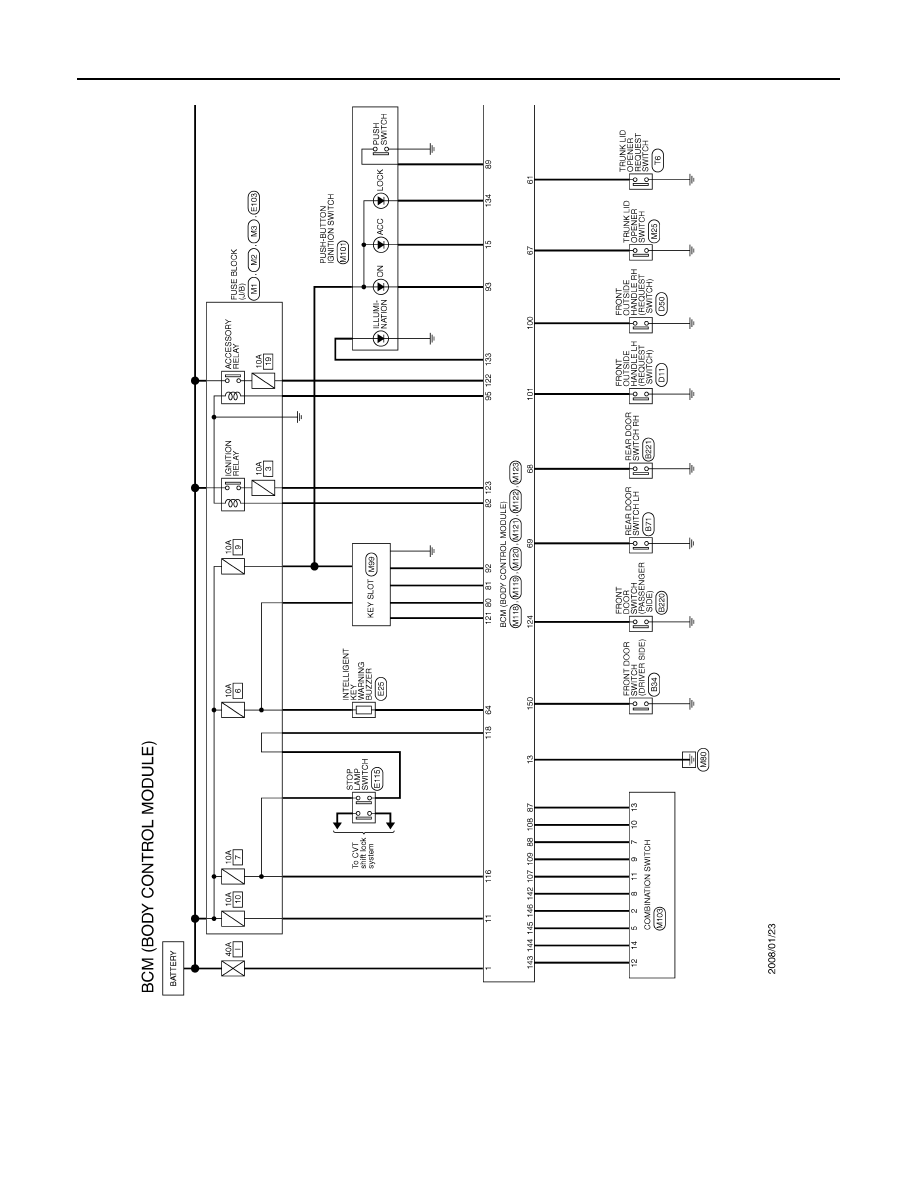

BCM (BODY CONTROL MODULE)
DLK-143
< ECU DIAGNOSIS >
[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
NOTE:
*: Without BOSE audio system
145
(LG/R)
Ground
Combination switch
OUTPUT 3
Output
Combination
switch
(Wiper intermit-
tent dial 4)
All switch OFF
0 V
Front wiper switch INT
10.7 V
Front wiper switch LO
Lighting switch AUTO
Rear fog lamp switch ON
146
(G/Y)
Ground
Combination switch
OUTPUT 4
Output
Combination
switch
(Wiper intermit-
tent dial 4)
All switch OFF
0 V
Front fog lamp switch ON
10.7 V
Lighting switch 2ND
Lighting switch PASS
Turn signal switch LH
150
(SB)
Ground
Driver door switch
Input
Driver door switch
OFF (When driver door
closes)
11.8 V
ON (When driver door
opens)
0 V
151
(G/R)
Ground
Rear window defog-
ger relay
Output
Rear window de-
fogger
Active
0 V
Not activated
Battery voltage
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
Signal name
Input/
Output
+
–
