Nissan Teana J32. Manual - part 269





BRC-134

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

RR LH IN SOL

Operation status of each solenoid
valve

Actuator (solenoid valve) is active (“AC-
TIVE TEST” with CONSULT-III)

On

When the actuator (solenoid valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

RR LH OUT SOL

Operation status of each solenoid
valve

Actuator (solenoid valve) is active (“AC-
TIVE TEST” with CONSULT-III)

On

When the actuator (solenoid valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

MOTOR RELAY

Motor and motor relay operation

When the motor relay and motor are op-
erating

On

When the motor relay and motor are not
operating

Off

ACTUATOR RLY
(Note 2)

Actuator relay operation

When the actuator relay is operating

On

When the actuator relay is not operating

Off

ABS WARN LAMP

ABS warning lamp
(Note 3)

When ABS warning lamp is ON

On

When ABS warning lamp is OFF

Off

EBD WARN LAMP

Brake warning lamp
(Note 3)

When brake warning lamp is ON

On

When brake warning lamp is OFF

Off

OFF LAMP

VDC OFF indicator lamp
(Note 3)

When VDC OFF indicator lamp is ON

On

When VDC OFF indicator lamp is OFF

Off

SLIP LAMP

SLIP indicator lamp
(Note 3)

When SLIP indicator lamp is ON

On

When SLIP indicator lamp is OFF

Off

EBD SIGNAL

EBD operation

EBD is active

On

EBD is inactive

Off

ABS SIGNAL

ABS operation

ABS is active

On

ABS is inactive

Off

TCS SIGNAL

TCS operation

TCS is active

On

TCS is inactive

Off

VDC SIGNAL

VDC operation

VDC is active

On

VDC is inactive

Off

EBD FAIL SIG

EBD fail-safe signal

In EBD fail-safe

On

EBD is normal

Off

ABS FAIL SIG

ABS fail-safe signal

In ABS fail-safe

On

ABS is normal

Off

TCS FAIL SIG

TCS fail-safe signal

In TCS fail-safe

On

TCS is normal

Off

VDC FAIL SIG

VDC fail-safe signal

In VDC fail-safe

On

VDC is normal

Off

CRANKING SIG

Crank operation

Crank is active

On

Crank is inactive

Off

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-135

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

NOTE:

• 1: Confirm tire pressure is normal.

• 2: A brief moment of On/Off condition occurs every 20 seconds after ignition switch turned ON. This is not malfunction because it is an

operation for checking.

• 3: On and off timing for warning lamp and indicator lamp.

- ABS warning lamp: Refer to

BRC-128, "Description"

.

- Brake warning lamp: Refer to

BRC-129, "Description"

.

- VDC OFF indicator lamp: Refer to

BRC-130, "Description"

.

- SLIP indicator lamp: Refer to

BRC-131, "Description"

.

USV [FL-RR]
(Note 2)

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)

On

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

USV [FR-RL]
(Note 2)

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)

On

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

HSV [FL-RR]
(Note 2)

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)

On

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

HSV [FR-RL]
(Note 2)

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)

On

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

V/R OUTPUT
(Note 2)

Solenoid valve relay activated

When the solenoid valve relay is active
(When ignition switch OFF)

On

When the solenoid valve relay is not ac-
tive (in the fail-safe mode)

Off

M/R OUTPUT

Actuator motor and motor relay activat-
ed

When the actuator motor and motor relay
are active
(“ACTIVE TEST” with CONSULT-III)

On

When the actuator motor and motor relay
are inactive

Off

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

BRC-136

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

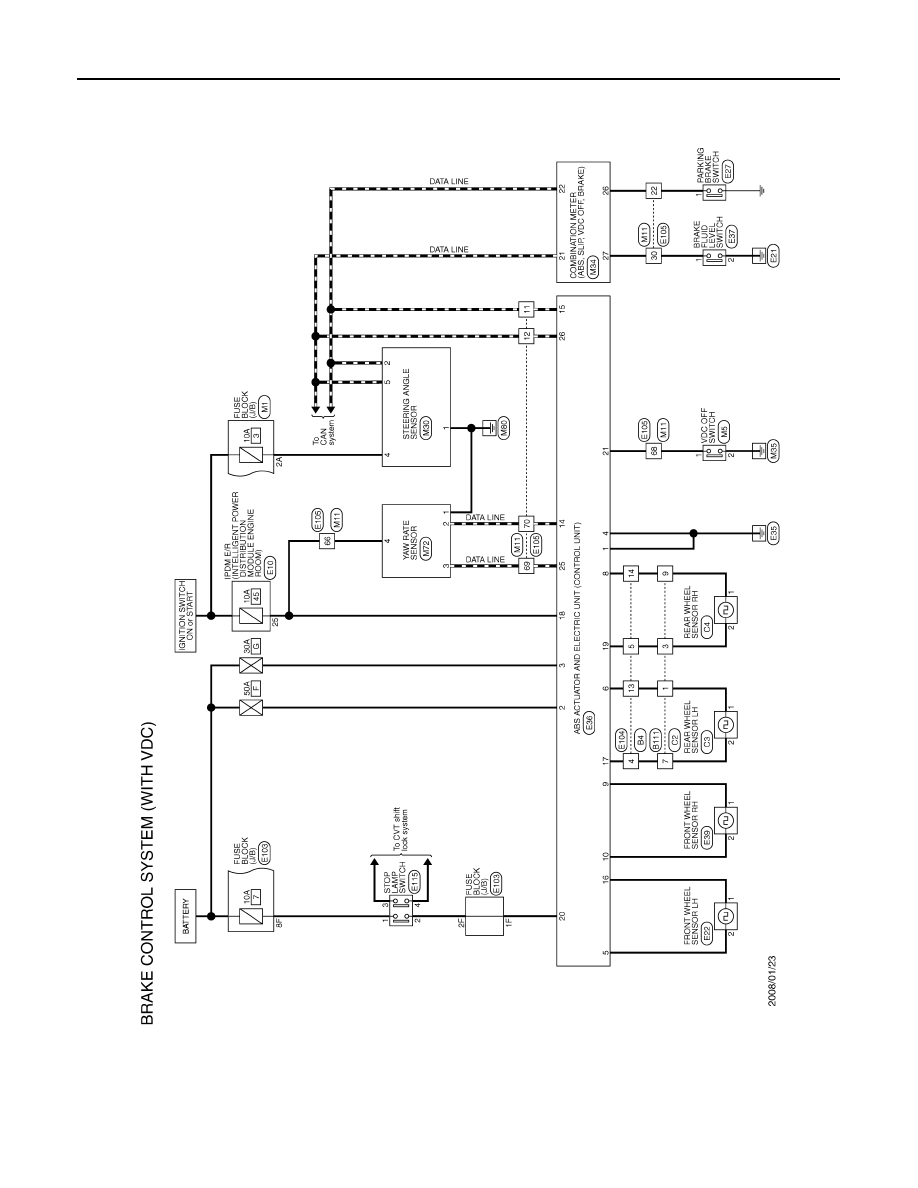

Wiring Diagram - BRAKE CONTROL SYSTEM -

INFOID:0000000003767020

JCFWM0150GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-137

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

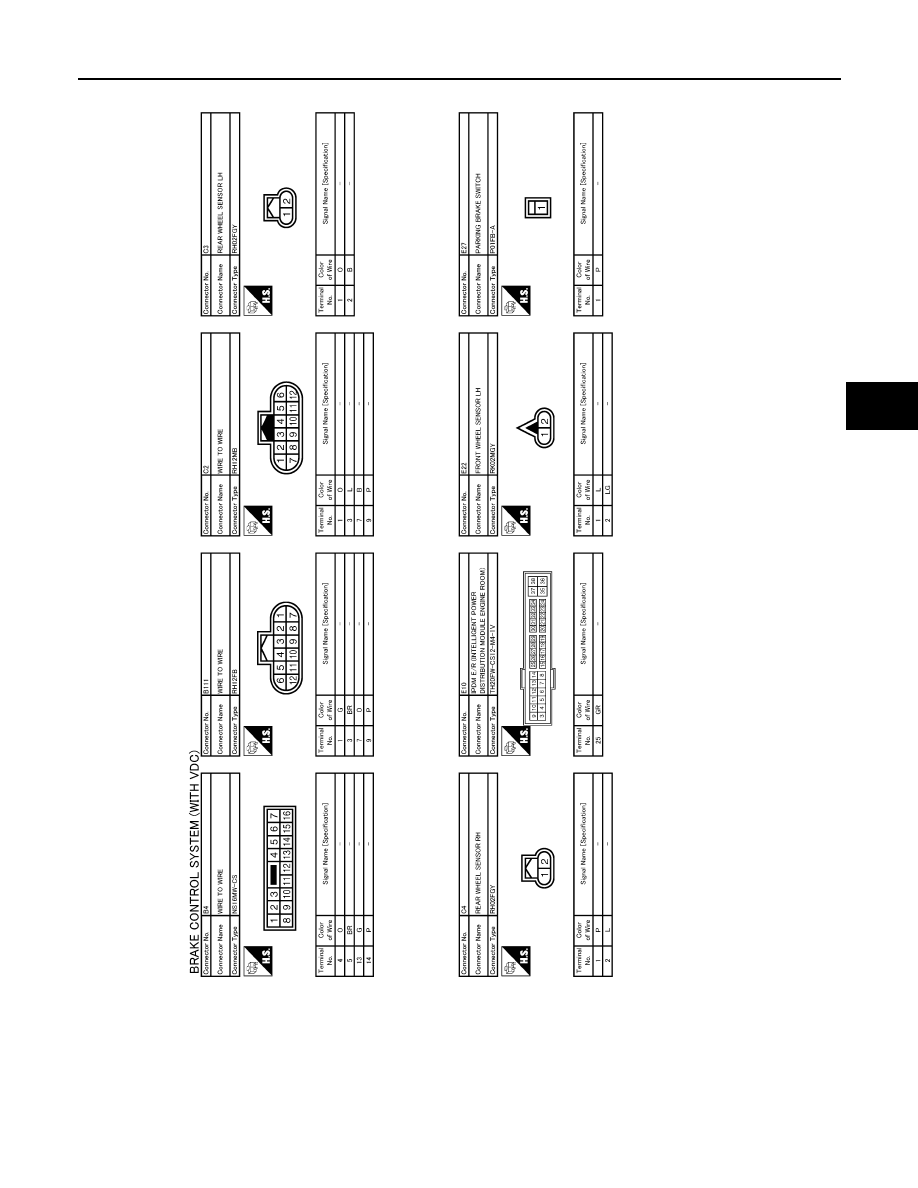

JCFWM0151GB
