Nissan Teana J32. Manual - part 228

REAR DISC BRAKE

BR-15

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REAR DISC BRAKE

BRAKE PAD

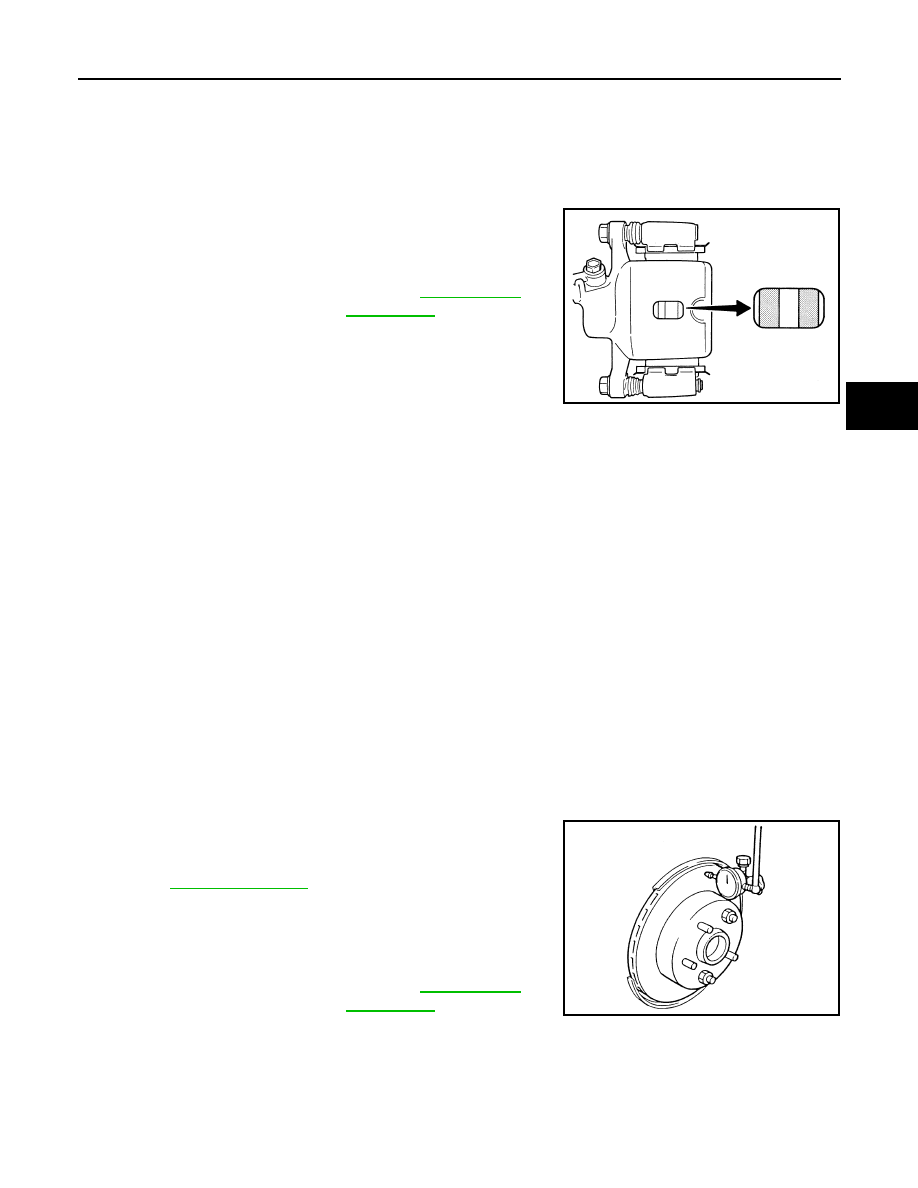

BRAKE PAD : Inspection and Adjustment

INFOID:0000000003811181

INSPECTION

Check brake pad wear thickness from an inspection hole on cylinder
body. Check using a scale if necessary.

ADJUSTMENT

CAUTION:

• Burnish contact surfaces between pads according to the following procedure after refinishing or

replacing pads, or if a soft pedal occurs at very low mileage.

• Be careful of vehicle speed because the brake does not operate firmly/securely until pads and disc

rotor are securely fitted.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1.

Drive vehicle on straight, flat road.

2.

Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

3.

Drive without depressing brake for a few minutes to cool the brake.

4.

Repeat steps 1 to 3 until pad and disc rotor are securely fitted.

DISC ROTOR

DISC ROTOR : Inspection and Adjustment

INFOID:0000000003811182

INSPECTION

Appearance

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are any abnormal
conditions.

Runout

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Check the wheel bearing axial end play before the inspection.
Refer to

RAX-3, "Inspection"

.

3.

Inspect the runout with a dial indicator to measured at 10 mm
(0.39 in) inside the disc edge.

4.

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

5.

Replace or refinish the disc rotor if the runout is outside the limit even after performing the above opera-
tion.

Thickness

Limit

Wear thickness

: Refer to

BR-45, "Rear

Disc Brake"

.

BRA0010D

Limit

Runout

: Refer to

BR-45, "Rear

Disc Brake"

.

SBR019B

BR-16

< ON-VEHICLE MAINTENANCE >

REAR DISC BRAKE

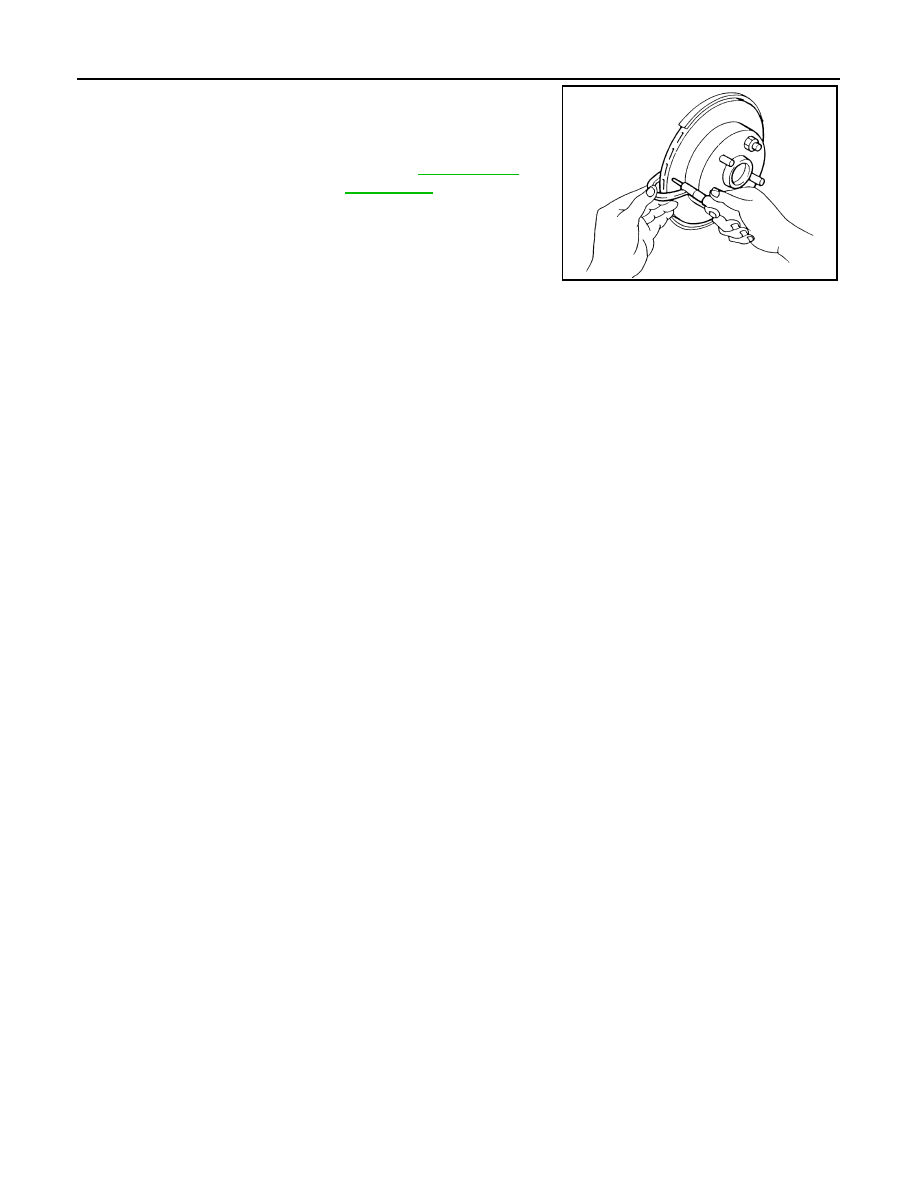

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

ADJUSTMENT

CAUTION:

• Burnish contact surfaces between pads according to the following procedure after refinishing or

replacing pads, or if a soft pedal occurs at very low mileage.

• Be careful of vehicle speed because the brake does not operate firmly/securely until pads and disc

rotor are securely fitted.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1.

Drive vehicle on straight, flat road.

2.

Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

3.

Drive without depressing brake for a few minutes to cool the brake.

4.

Repeat steps 1 to 3 until pad and disc rotor are securely fitted.

Limit

Wear thickness

: Refer to

BR-45, "Rear

Disc Brake"

.

SBR020B

BRAKE PEDAL

BR-17

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

ON-VEHICLE REPAIR

BRAKE PEDAL

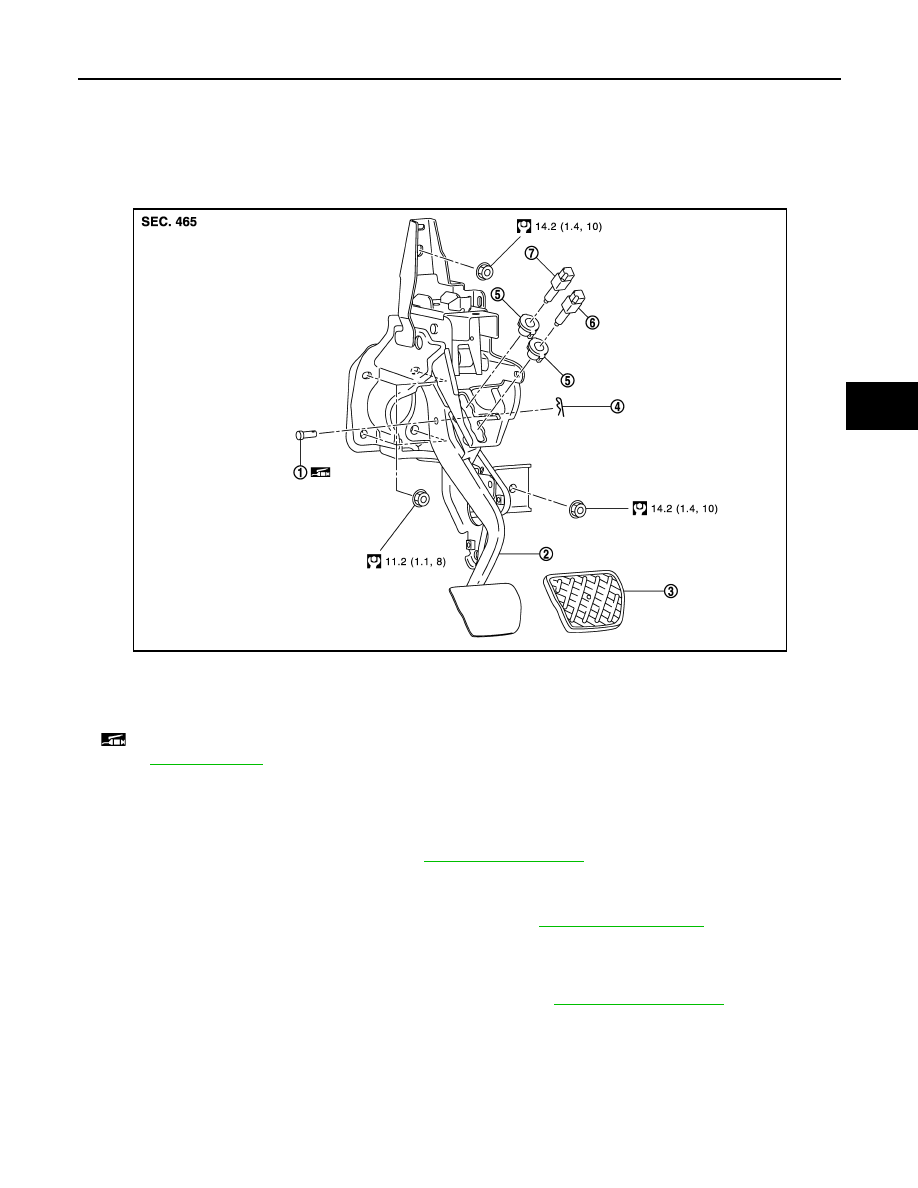

Exploded View

INFOID:0000000003811183

Removal and Installation

INFOID:0000000003811184

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-11, "Exploded View"

.

2.

Disconnect the stop lamp switch and ASCD brake switch harness connectors.

3.

Remove snap pin and clevis pin from clevis of brake booster.

4.

Separate steering column assembly and lower shaft. Refer to

ST-13, "Exploded View"

.

5.

Remove the brake pedal assembly.

CAUTION:

Hold the brake booster and master cylinder so as not to drop out or contact them to other parts.

6.

Remove accelerator pedal from brake pedal assembly. Refer to

ACC-3, "Exploded View"

.

INSTALLATION

Note the following, and install the reverse order of removal.
• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied.)

NOTE:
The clevis pin may be inserted in either direction.

1.

Clevis pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

Snap pin

5.

Clip

6.

ASCD brake switch

7.

Stop lamp switch

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0341GB

BR-18

< ON-VEHICLE REPAIR >

BRAKE PEDAL

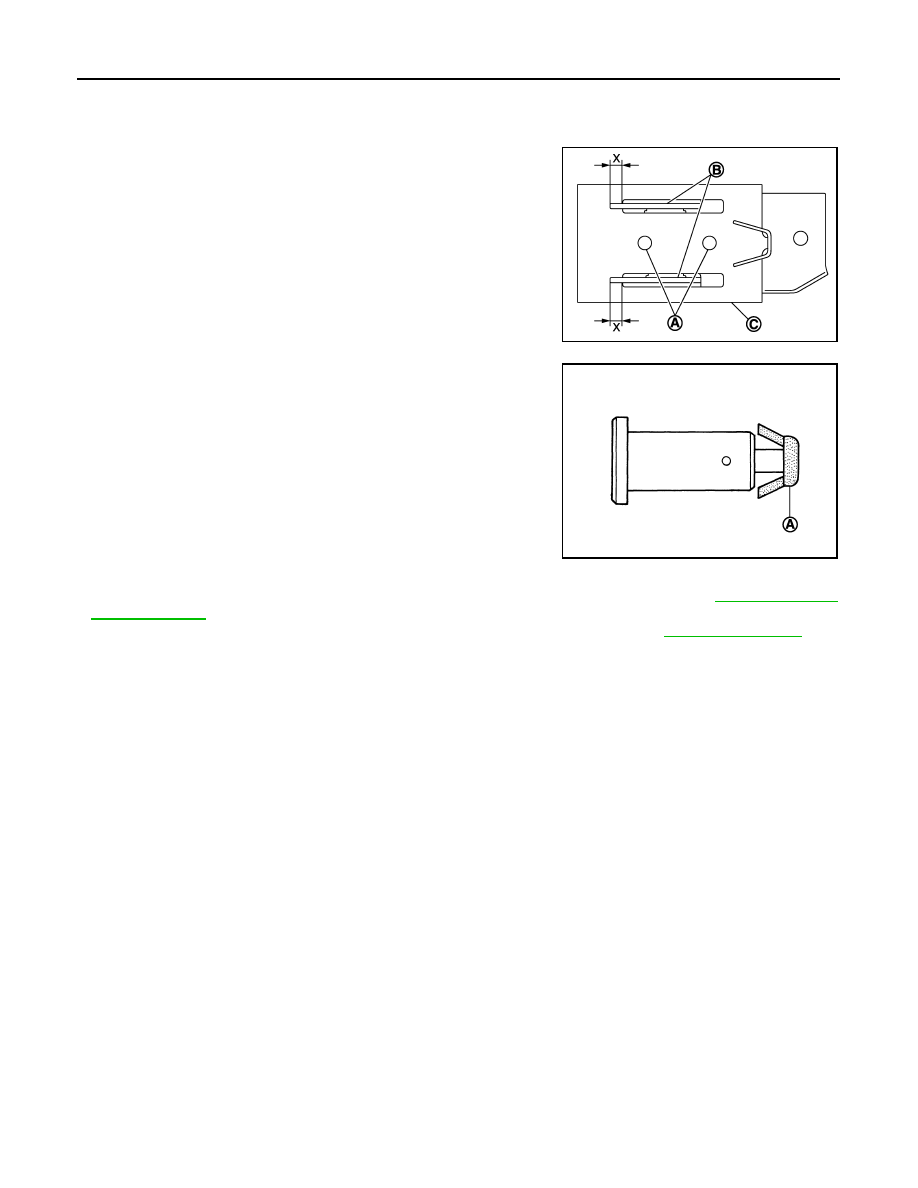

Inspection and Adjustment

INFOID:0000000003811185

INSPECTION AFTER REMOVAL

• Check the following items and replace the brake pedal assembly if

necessary.

- Check the brake pedal upper rivet (made by aluminum) (A) for

deformation.

- Check the brake pedal for bend, damage, and cracks on the

welded parts.

- Check the lapping length (X) of sub-bracket (B) and slide plate (C).

• Check clevis pin and plastic stopper (A) for damage and deforma-

tion. If any damage is found, replace clevis pin.

ADJUSTMENT AFTER INSTALLATION

• Perform the brake pedal adjustment after installing the brake pedal assembly. Refer to

BR-6, "Inspection

and Adjustment"

.

• Perform the accelerator pedal check after installing the accelerator pedal. Refer to

ACC-4, "Inspection"

.

Standard

X

: 5.0 mm (0.197 in) or more

JPFIA0342ZZ

PFIA0756J
