SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000003811166

Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

BR

-1

3

,

BR-15

BR

-1

3

,

BR-15

BR

-3

4

,

BR-40

BR

-1

3

,

BR-15

BR

-1

3

,

BR-15

BR

-1

3

,

BR-15

BR

-1

3

,

BR-15

BR

-1

3

,

BR-15

BR

-1

3

,

BR-15

BR

-1

3

,

BR-15

NVH in DLN

section

NHV in DLN

section

NVH in F

AX, RAX

, FSU

and RSU section

NVH in WT

 se

ct

io

n

NVH in WT

 se

ct

io

n

NVH in F

AX section

NVH in ST

section

Possible cause and
SUSPECTED PARTS

Pad

s

 - da

ma

ge

d

Pad

s

 - un

ev

en

 wea

r

Shi

m

s

 da

ma

ge

d

Ro

to

r im

ba

la

nc

e

Ro

to

r da

ma

ge

Rot

o

r runout

Ro

to

r de

fo

rm

a

tio

n

Ro

to

r de

fl

e

c

ti

o

n

Rot

o

r rust

Ro

to

r th

ic

kn

es

s va

ri

ati

o

n

PROPELLER SHAFT

DIFF

ERENTIAL

AXLE AND S

U

SPENSION

TI

RE

ROAD WHEE

L

DRIVE SHAFT

STE

E

RING

Symptom

BRAKE

Noise

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

Shimmy, Judder

×

×

×

×

×

×

×

×

×

×

×

BR-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003890160

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000003890161

NOTE:
• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

PRECAUTIONS

BR-5

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Precaution for Procedure without Cowl Top Cover

INFOID:0000000003890162

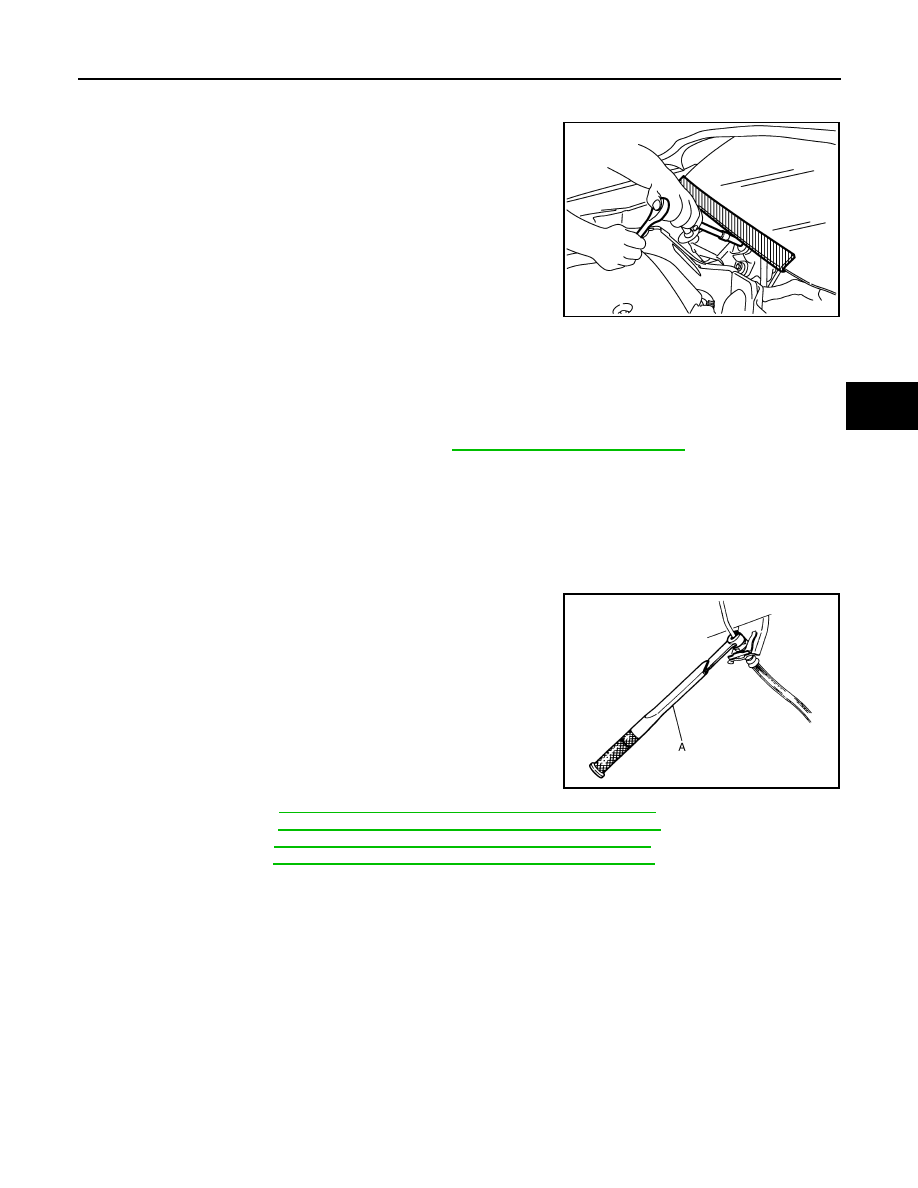

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precaution for Brake System

INFOID:0000000003811170

WARNING:

Clean any dust from the front brake and rear brake with a vacuum dust collector. Never blow with com-
pressed air.

CAUTION:

• Only use “DOT 3 or DOT 4” brake fluid. Refer to

MA-11, "Fluids and Lubricants"

.

• Never reuse drained brake fluid.
• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface.

• Always clean with new brake fluid when cleaning the master cylinder, brake caliper and other com-

ponents.

• Never use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and

cause improper operation.

• Always loosen the brake tube flare nut with a flare nut wrench.
• Tighten the brake tube flare nut to the specified torque with

torque wrench (A).

• Always confirm the specified tightening torque when install-

ing the brake pipes.

• Turn the ignition switch OFF and disconnect the ABS actuator

and electric unit (control unit) connector or the battery nega-
tive terminal before performing the work.

• Check that no brake fluid leakage is present after replacing

the parts.

• Burnish the brake contact surfaces after refinishing or replac-

ing rotors, after replacing pads, or if a soft pedal occurs at
very low mileage.

- Front brake pad: refer to

BR-13, "BRAKE PAD : Inspection and Adjustment"

.

- Front disc rotor: refer to

BR-13, "DISC ROTOR : Inspection and Adjustment"

.

- Rear brake pad: refer to

BR-15, "BRAKE PAD : Inspection and Adjustment"

.

- Rear disc rotor: refer to

BR-15, "DISC ROTOR : Inspection and Adjustment"

.

PIIB3706J

JPFIA0061ZZ

BR-6

< ON-VEHICLE MAINTENANCE >

BRAKE PEDAL

ON-VEHICLE MAINTENANCE

BRAKE PEDAL

Inspection and Adjustment

INFOID:0000000003811172

INSPECTION

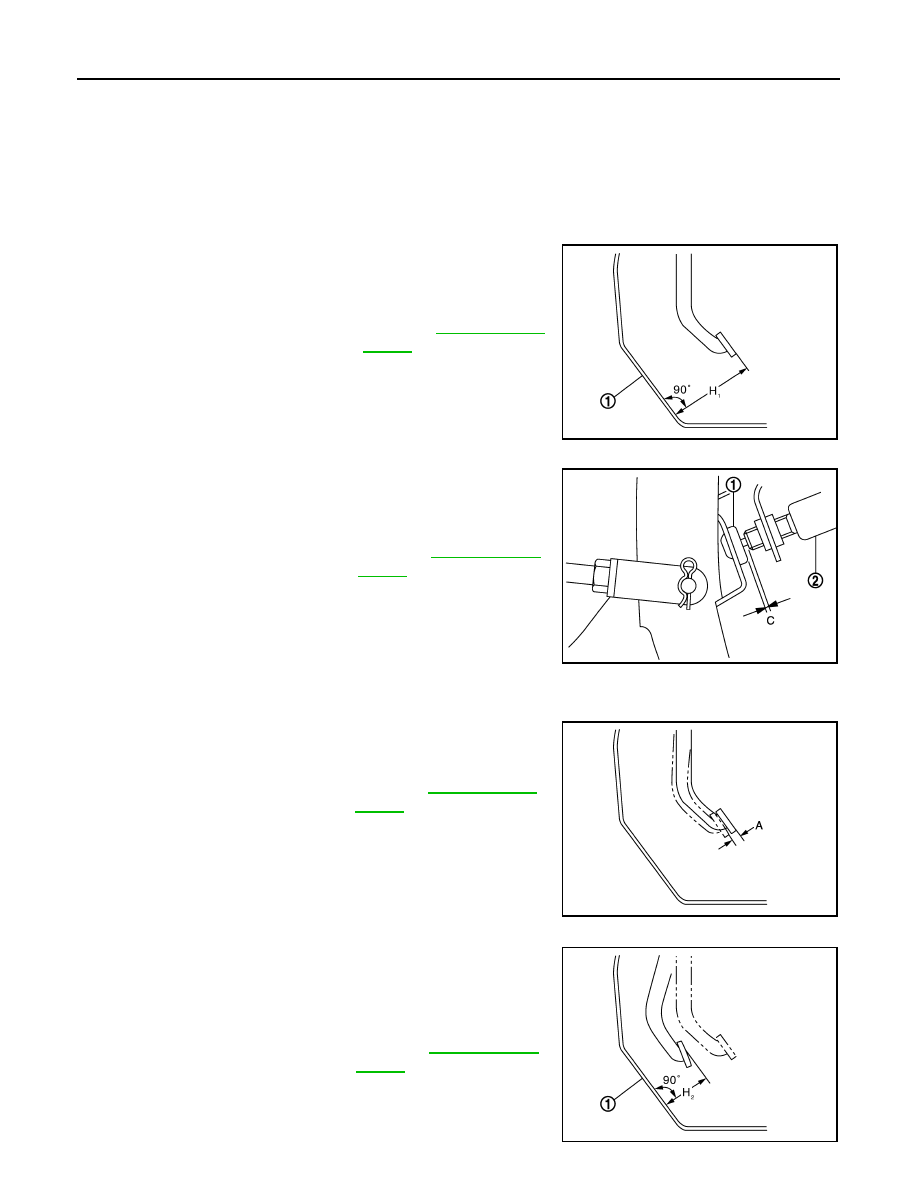

Brake Pedal Height

Check the brake pedal height (H

1

) between the dash lower panel (1)

and the brake pedal upper surface.

CAUTION:

Remove the floor trim.

Stop Lamp Switch and ASCD Brake Switch

Check the clearance (C) between stopper rubber (1) and stop lamp
switch and ASCD brake switch (2) threaded end.

CAUTION:

The stop lamp must be turned off when the brake pedal is
released.
NOTE:
Pull the brake pedal pad to make the clearance between stopper
rubber and stop lamp switch and ASCD brake switch threaded end.

Brake Pedal Play

Press the brake pedal. Check the brake pedal play (A).

Depressed Brake Pedal Height

Check the brake pedal height (H

2

) between the dash lower panel (1)

and the brake pedal upper surface when depressing the brake pedal
at 490 N (50 kg, 110 lb) while turning engine ON.

CAUTION:

Remove the floor trim.

Standard

H

1

: Refer to

BR-45, "Brake

Pedal"

.

JPFIA0065ZZ

Standard

C

: Refer to

BR-45, "Brake

Pedal"

.

JPFIA0122ZZ

Standard

A

: Refer to

BR-45, "Brake

Pedal"

.

JPFIA0121ZZ

Standard

H

2

: Refer to

BR-45, "Brake

Pedal"

.

JPFIA0068ZZ
