MULTI AV SYSTEM

AV-403

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Operation can be performed with multifunction switch, steering switch and rear control switch. Multifunction

switch and rear control switch transmits operation signal to AV control unit by AV communication.

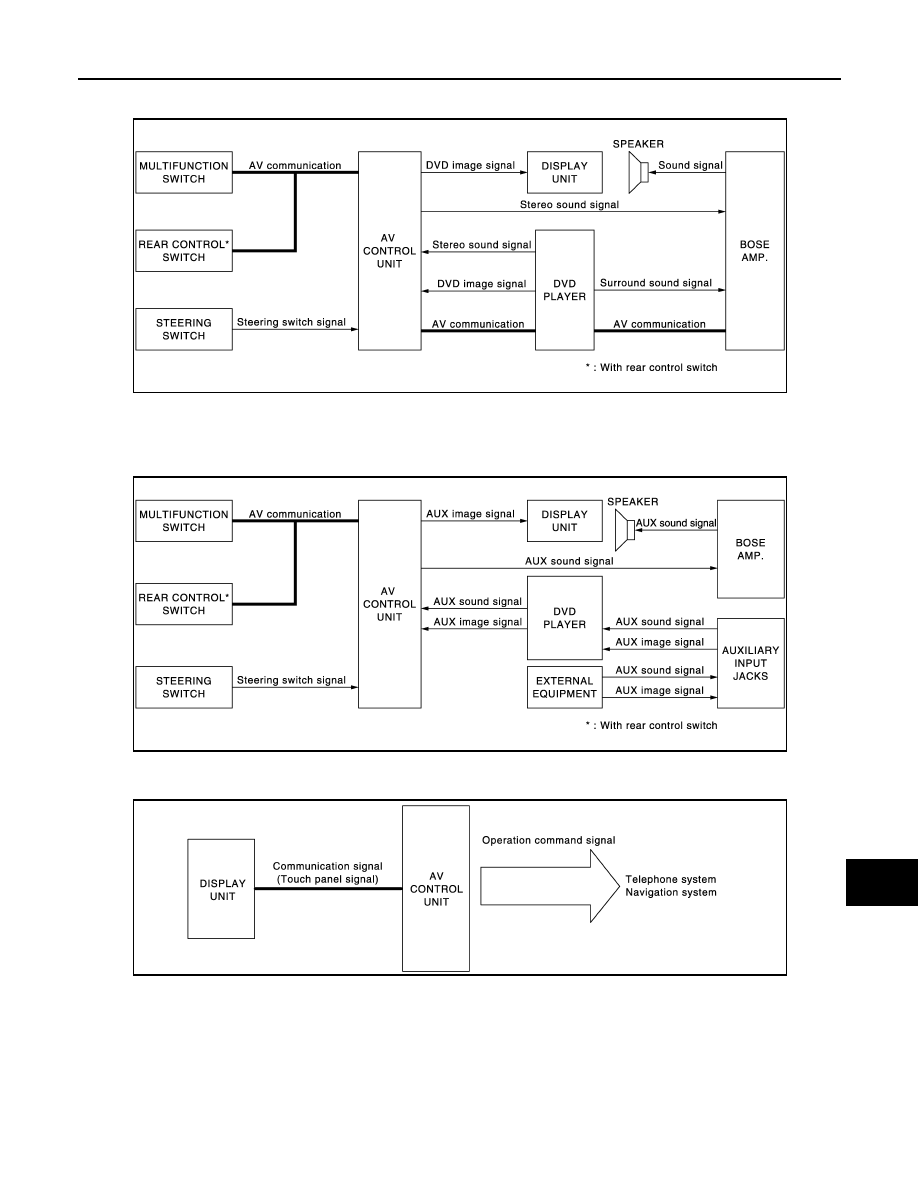

AUXILIARY INPUT SYSTEM

• Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
• Operation can be performed with multifunction switch, steering switch and rear control switch. Multifunction

switch and rear control switch transmits operation signal to AV control unit by AV communication.

TOUCH PANEL SYSTEM

Each operation of multi AV system can be performed by directly touching a display.

JSNIA1299GB

JSNIA1301GB

JSNIA1308GB

AV-404

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

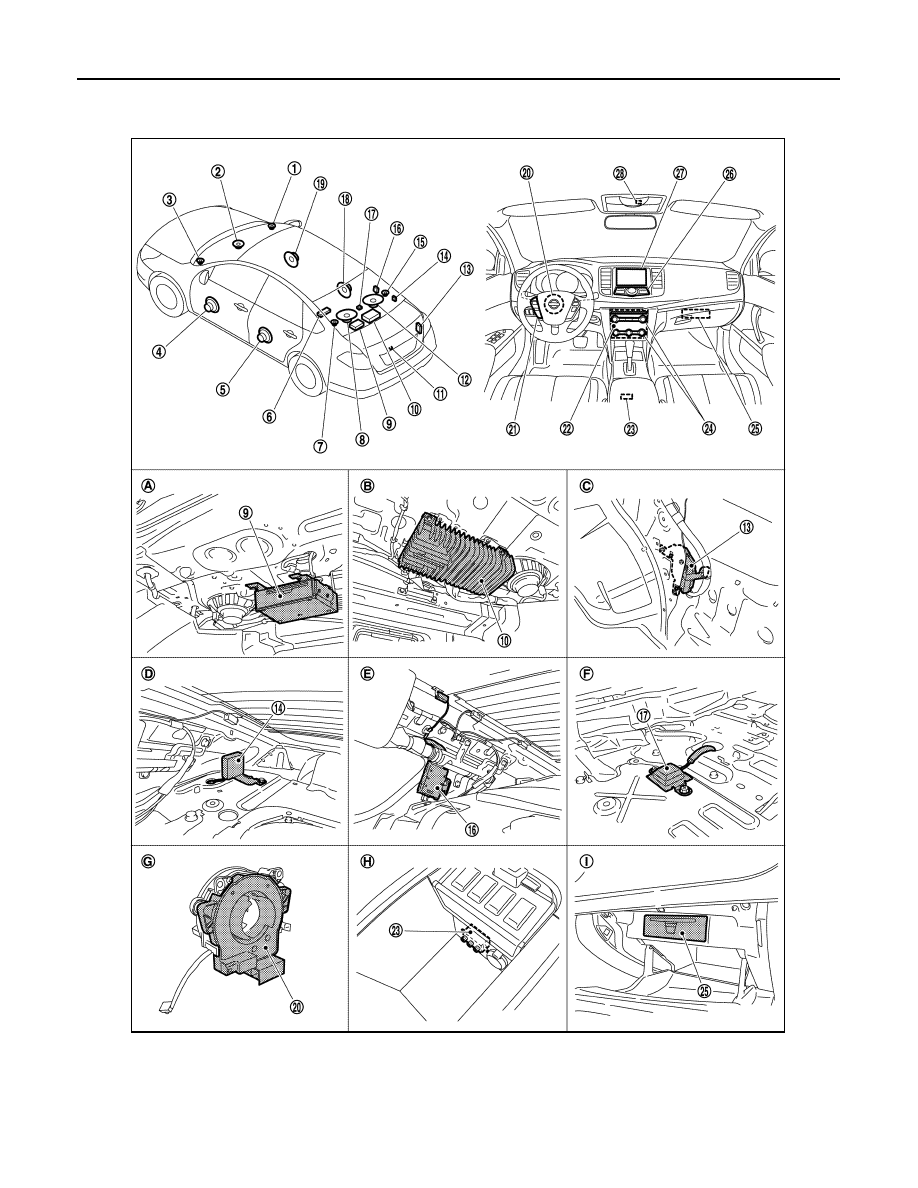

Component Parts Location

INFOID:0000000003765829

1.

Front squawker RH

2.

Center speaker

3.

Front squawker LH

4.

Front door speaker LH

5.

Rear door speaker LH

6.

Rear control switch

7.

Rear squawker LH

8.

Woofer LH

9.

NAVI control unit

10.

BOSE amp.

11. Rear view camera

12. Woofer RH

JPNIA1059ZZ

AV

MULTI AV SYSTEM

AV-405

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000003765830

13.

Camera control unit

14. TEL antenna

15. Rear squawker RH

16.

Antenna amp.

17. GPS antenna

18. Rear door speaker RH

19.

Front door speaker RH

20. Steering angle sensor

21. Steering switch

22.

AV control unit

23. Auxiliary input jacks

24. Preset switch

25.

DVD player

26. Multifunction switch

27. Display unit

28.

Microphone



 A.

Trunk room upper LH

B.

Trunk room upper RH

C.

Trunk room side RH

D.

Within rear pillar finisher RH

E.

Within rear pillar finisher RH

F.

Within rear parcel shelf finisher

G.

Spiral cable part

H.

In center console

I.

In grove box

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system, and it is connected to each control

unit by communication. It operates each system according to communication
signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and combination meter. via CAN communication to ob-

tain necessary information for the vehicle information function.

• It is connected to BCM via CAN communication transmitting/receiving for the

vehicle settings function.

• Composite image signal (AUX and DVD images) is input from DVD player.
• Camera image signal is input from camera control unit.
• Composite image (DVD, AUX and camera images) signal is output to display

unit.

• Sound signal (DVD and AUX sounds) is input from the DVD player.

NAVI CONTROL UNIT

• Map data can be read from the Map DVD-ROM by installing Map DVD-ROM.
• The NAVI control unit sends map data to the AV control unit.
• The NAVI control unit includes the hands-free phone and navigation functions.
• The NAVI control unit transmits navigation and hands-free phone related im-

ages to AV control unit.

• It includes the TEL adapter and Bluetooth

™

 function.

Map DVD-ROM

A collection of map data.

DISPLAY UNIT

• Display image is controlled by the serial communication from AV control unit.
• RGB image signal is input from AV control unit (RGB, RGB area and RGB syn-

chronizing).

• Composite image (DVD, AUX and camera images) signal is input from AV con-

trol unit.

• Synchronize signal (HP, VP) is output to AV control unit.
• Touch panel function can be operated for each system by touching a display

directly.

BOSE AMP.

Inputs sound signal from AV control unit and DVD player, and outputs sound sig-
nal to woofer and each speaker.

WOOFER

• Outputs sound signal from BOSE amp.
• Outputs low frequency sound.

FRONT SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (mid and low range).

REAR SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (mid and low range).

FRONT SQUAWKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

REAR SQUAWKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

CENTER SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

AV-406

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

MULTIFUNCTION SWITCH

• Operation panel is equipped with the centralized switch where camera, audio,

DVD and AUX input operations are integrated.

• The multifunction switch is connected to the preset switch by wiring harness,

and it transmits the operation signal to the preset switch.

PRESET SWITCH

• Operation panel is equipped with the centralized switch where audio and air

conditioner operations are integrated.

• The preset switch is connected via AV communication, and it transmits the op-

eration signals of the preset switch and multifunction switch.

• The disk ejection operating signal is performed by wiring harness.

CAMERA CONTROL UNIT

• Camera image signal is input from rear view camera. Camera image signal

output to AV control unit.

• Power supply is transmitted to rear view camera.
• AV control unit recognizes the presence of camera system with camera con-

nection recognition signal.

• Camera control unit is connected via AV communication.

REAR VIEW CAMERA

• The image of vehicle rear view is transmitted to camera control unit.
• It receives the power supply from the camera control unit and operates.

STEERING ANGLE SENSOR

Sensor signal (steering angle) is transmitted to camera control unit.

MICROPHONE

• Used for hands-free phone operation.
• Mic. signal is transmitted to NAVI control unit
• Power (Mic. VCC) is supplied from NAVI control unit.

STEERING SWITCH

• Enables audio operations, etc.
• Steering switch signal (operation signal) is output to AV control unit.

DVD PLAYER

It transmits the playback DVD image signal and DVD sound signal to the AV con-
trol unit.

AUXILIARY INPUT JACKS

• The image signal of the auxiliary input is output via the DVD player and AV con-

trol unit to the display unit.

• The sound signal of the auxiliary input is output via the DVD player and AV con-

trol unit to the BOSE amp.

• The image signal of the auxiliary input is output via the AV control unit to the

display, and it outputs the sound signal to the AV control unit.

REAR CONTROL SWITCH

• Enables audio operations, etc.
• The rear control switch is connected via AV communication, and it transmits

the operation signals of the rear control switch.

ANTENNA AMP.

• Radio signal received by glass antenna is amplified and transmitted to AV con-

trol unit.

• Power (antenna amp ON signal) is supplied from AV control unit.

GPS ANTENNA

GPS signal is received and transmitted to NAVI control unit.

TEL ANTENNA

TEL voice signal is received and transmitted to NAVI control unit.
