Nissan Teana J32. Manual - part 132

AV

REAR SQUAWKER

AV-383

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR SQUAWKER

Exploded View

INFOID:0000000003838337

Removal and Installation

INFOID:0000000003838338

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-43, "Removal and Installation"

.

2.

Remove rear squawker mounting screws.

3.

Remove rear squawker.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1040ZZ

1.

Rear squawker

AV-384

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

CENTER SPEAKER

CENTER SPEAKER

Exploded View

INFOID:0000000003838339

Removal and Installation

INFOID:0000000003838340

REMOVAL

1.

Remove center speaker grille. Refer to

IP-11, "Exploded View"

.

2.

Remove center speaker mounting screws, lift up the center speaker and disconnect center speaker con-
nector.

3.

Remove center speaker.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1039ZZ

1.

Center speaker

AV

WOOFER

AV-385

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

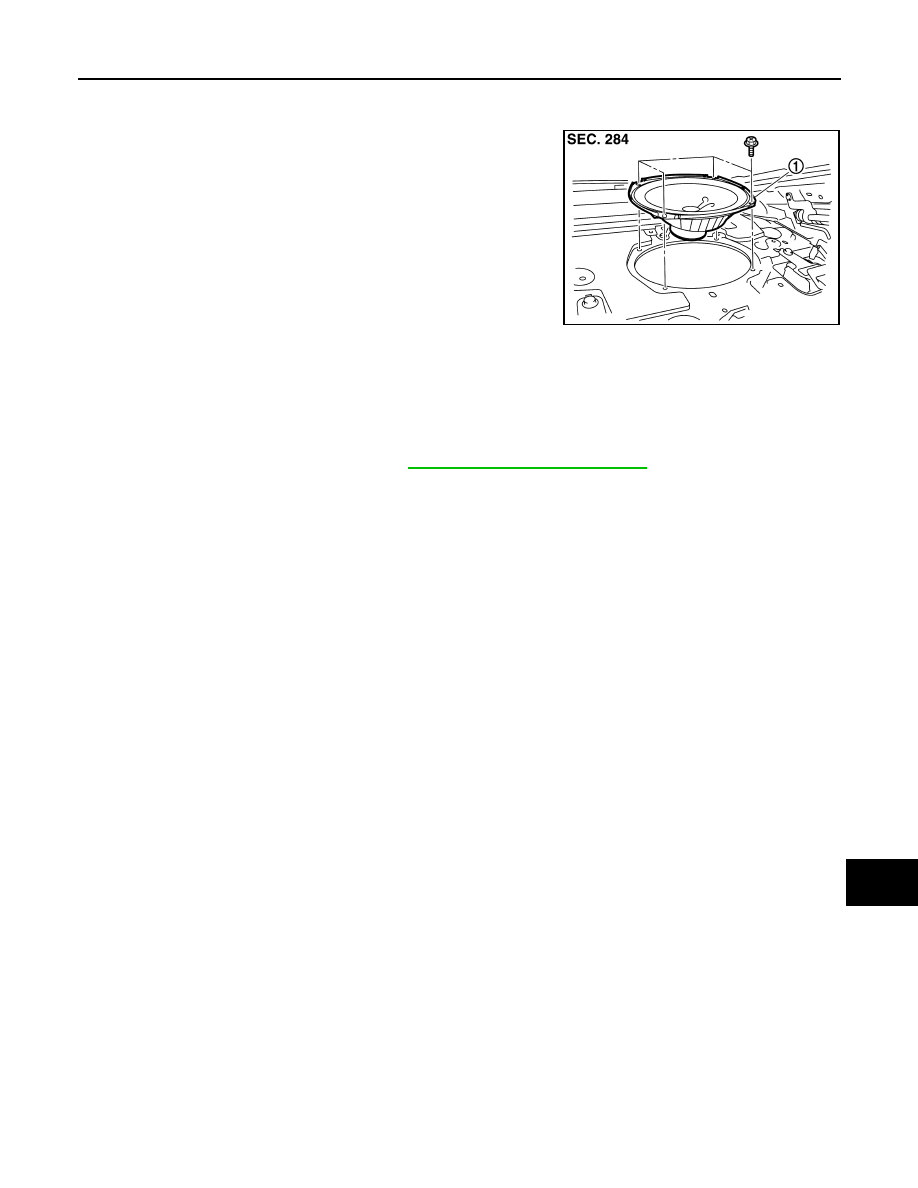

WOOFER

Exploded View

INFOID:0000000003838341

Removal and Installation

INFOID:0000000003838342

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-43, "Removal and Installation"

.

2.

Remove woofer mounting bolts, lift up the woofer and disconnect woofer connector.

3.

Remove woofer.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1041ZZ

1.

Woofer

AV-386

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

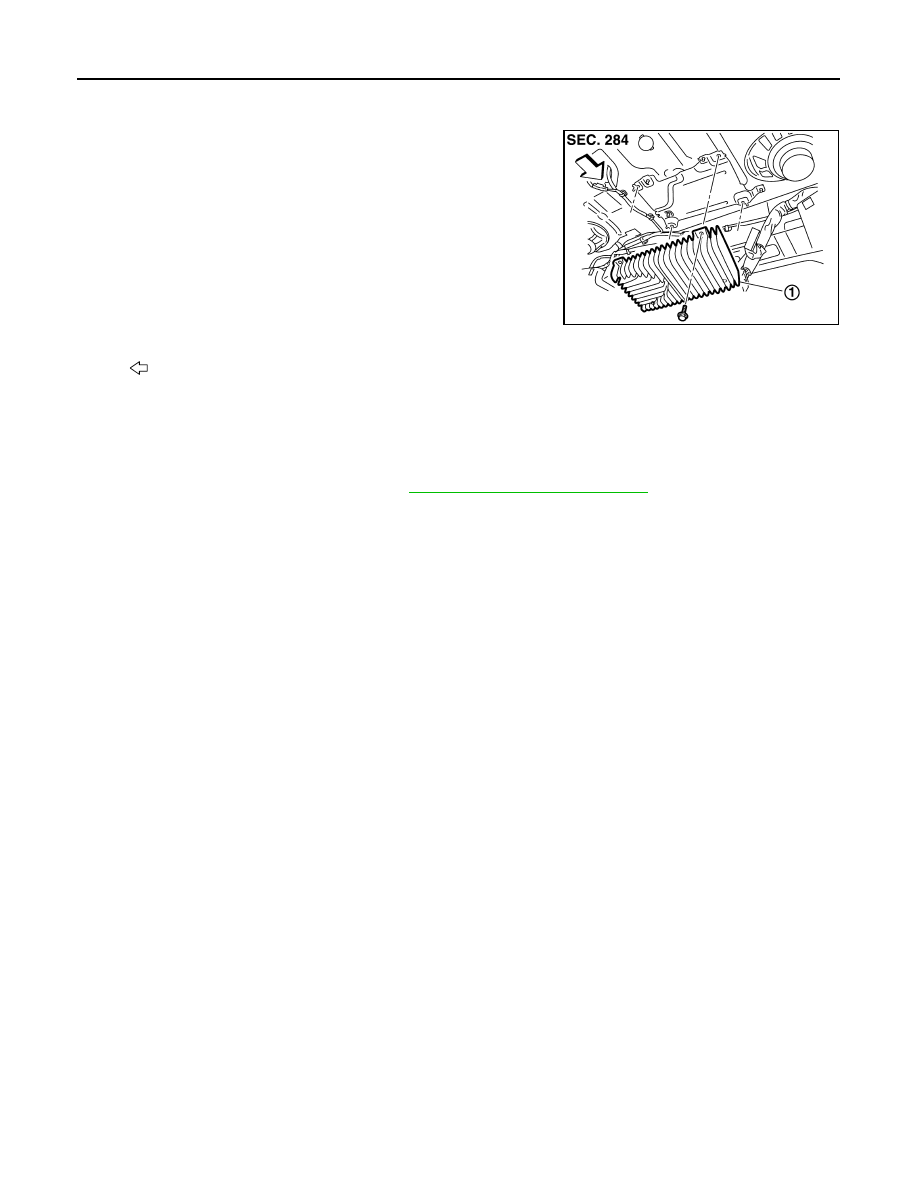

BOSE AMP.

BOSE AMP.

Exploded View

INFOID:0000000003838343

Removal and Installation

INFOID:0000000003838344

REMOVAL

1.

Remove trunk front finisher upper. Refer to

INT-57, "Removal and Installation"

.

2.

Remove BOSE amp. mounting bolts, disconnect the BOSE amp. connector.

3.

Remove BOSE amp.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1042ZZ

:

Vehicle front

1.

BOSE amp.
