Nissan Teana J32. Manual - part 1279

HEADLAMP WASHER PUMP

WW-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

HEADLAMP WASHER PUMP

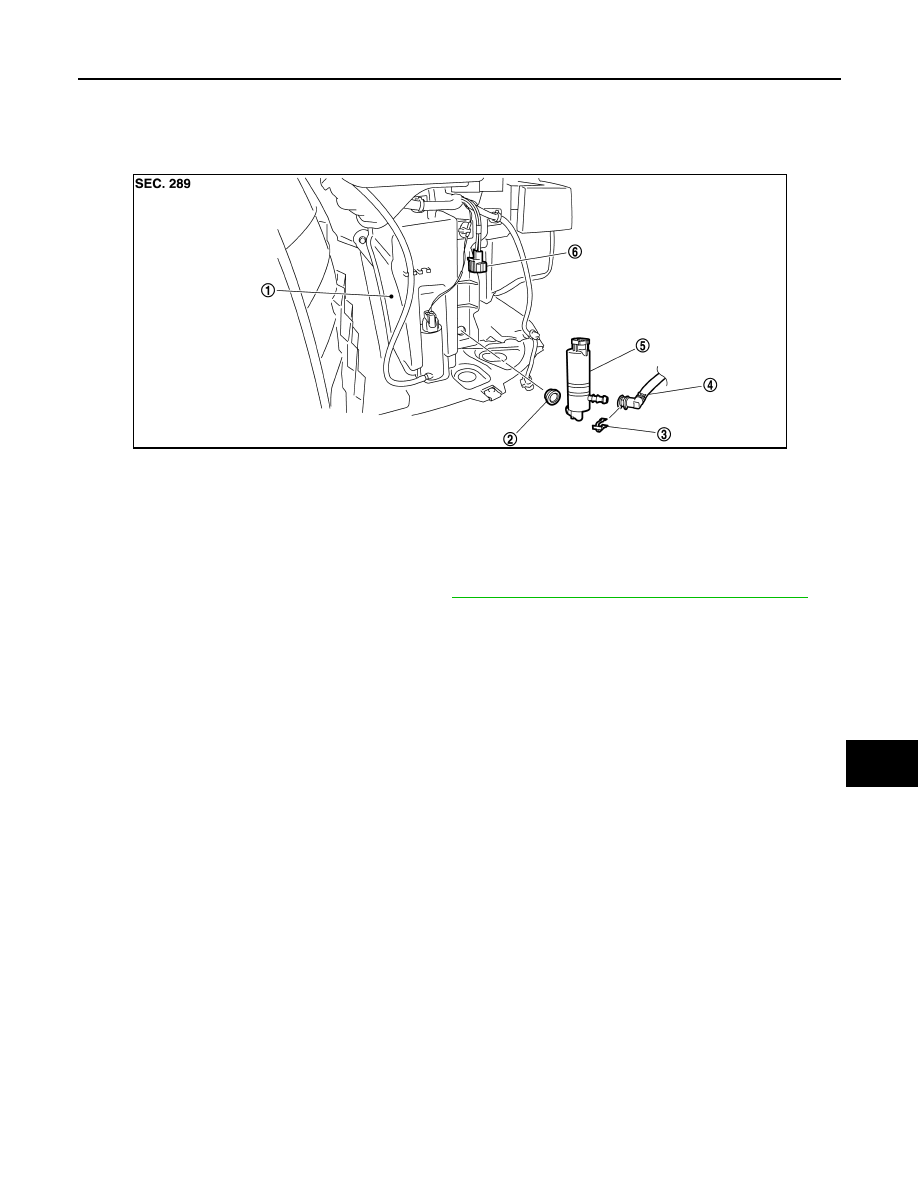

Exploded View

INFOID:0000000003761629

Removal and Installation

INFOID:0000000003761630

REMOVAL

1.

Remove the fender protector RH (front). Refer to

EXT-22, "FENDER PROTECTOR : Exploded View"

.

2.

Disconnect the headlamp washer pump connector.

3.

Disconnect the headlamp washer tube.

4.

Remove the headlamp washer pump from the washer tank.

5.

Remove the packing from the washer tank.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the headlamp washer pump.

1.

Washer tank

2.

Packing

3.

Clip

4.

Headlamp washer tube

5.

Headlamp washer pump

6.

Headlamp washer pump connector

JPLIA1136ZZ

WW-102

< ON-VEHICLE REPAIR >

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

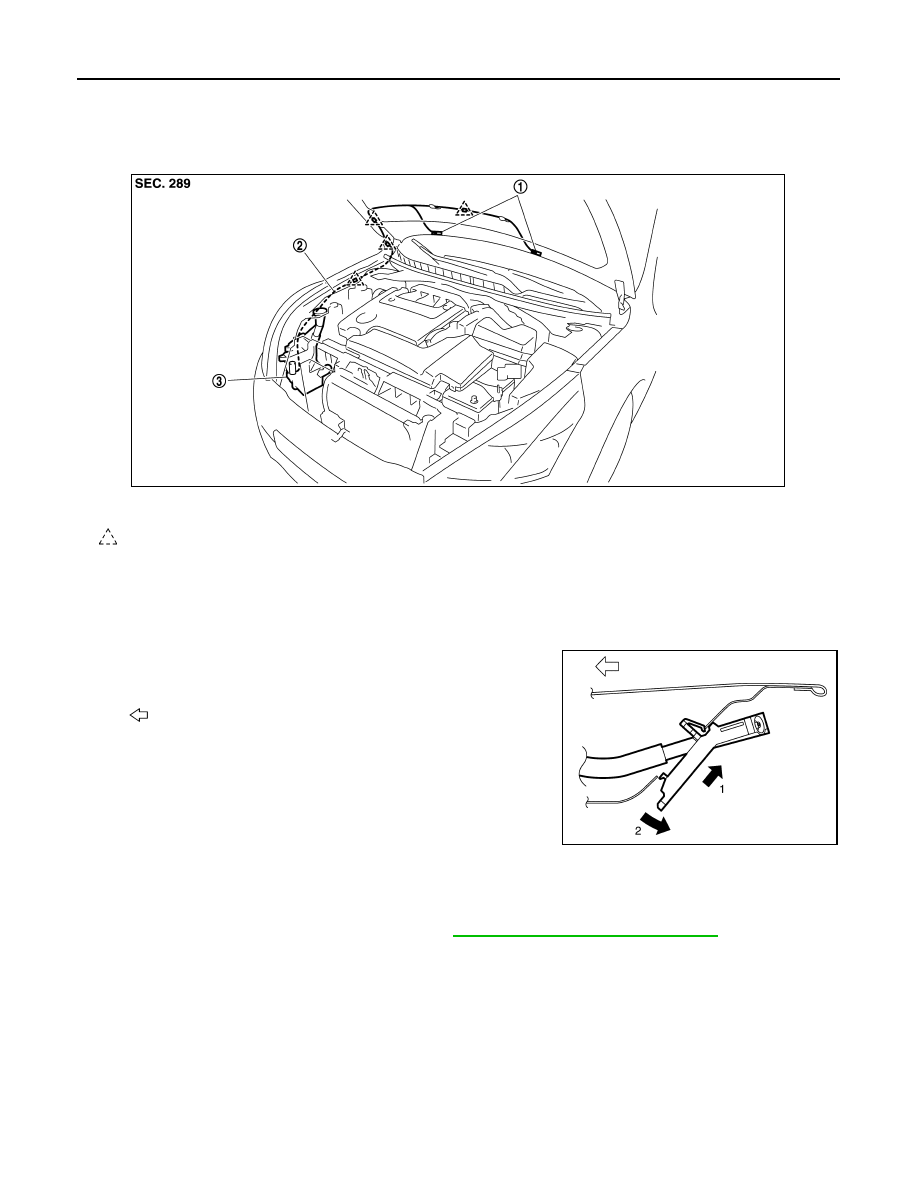

Hydraulic Layout

INFOID:0000000003761632

Removal and Installation

INFOID:0000000003761633

REMOVAL

1.

Open the hood.

2.

Remove the washer nozzle in numerical order shown in the fig-
ure.

3.

Disconnect the washer tube from the washer nozzle.

INSTALLATION

1.

Connect the washer tube into the washer nozzle.

2.

Fix the pawl-side behind the washer nozzle first, then push the resin clip-side.

3.

Adjust the washer nozzle spray position. Refer to

WW-102, "Inspection and Adjustment"

.

CAUTION:

The spray positions differ. Check that left and right nozzles are installed correctly.

Inspection and Adjustment

INFOID:0000000003761634

INSPECTION

Washer Nozzle Inspection

1.

Washer nozzle

2.

Washer tube

3.

Washer tank

: Clip

JPLIA1137ZZ

: Vehicle front

JPLIA1138ZZ

FRONT WASHER NOZZLE AND TUBE

WW-103

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

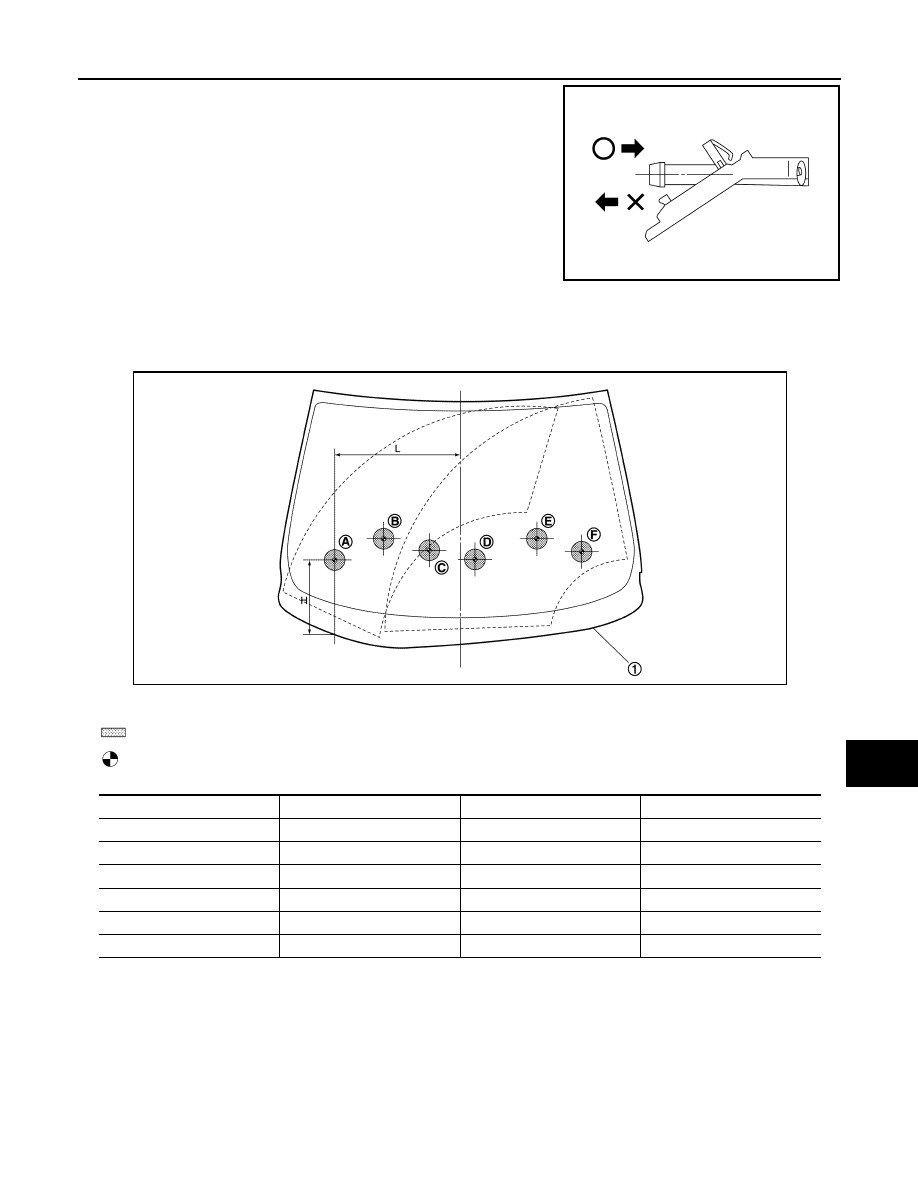

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

Unit: mm (in)

JPLIA1139ZZ

1.

End of cowl top cover

: Spray area

: Target spray position

Spray position

H (Height)

L (Width)

Spray area

A

293.2 (11.54)

490.7 (19.32)

φ

 80 (3.15)

B

422.0 (16.61)

298.6 (11.76)

φ

 80 (3.15)

C

376.2 (14.81)

121.5 (4.78)

φ

 80 (3.15)

D

327.9 (12.91)

56.3 (2.22)

φ

 80 (3.15)

E

383.1 (15.08)

300 (11.81)

φ

 80 (3.15)

F

305.7 (12.04)

475.1 (18.70)

φ

 80 (3.15)

JPLIA1140ZZ

WW-104

< ON-VEHICLE REPAIR >

FRONT WASHER NOZZLE AND TUBE

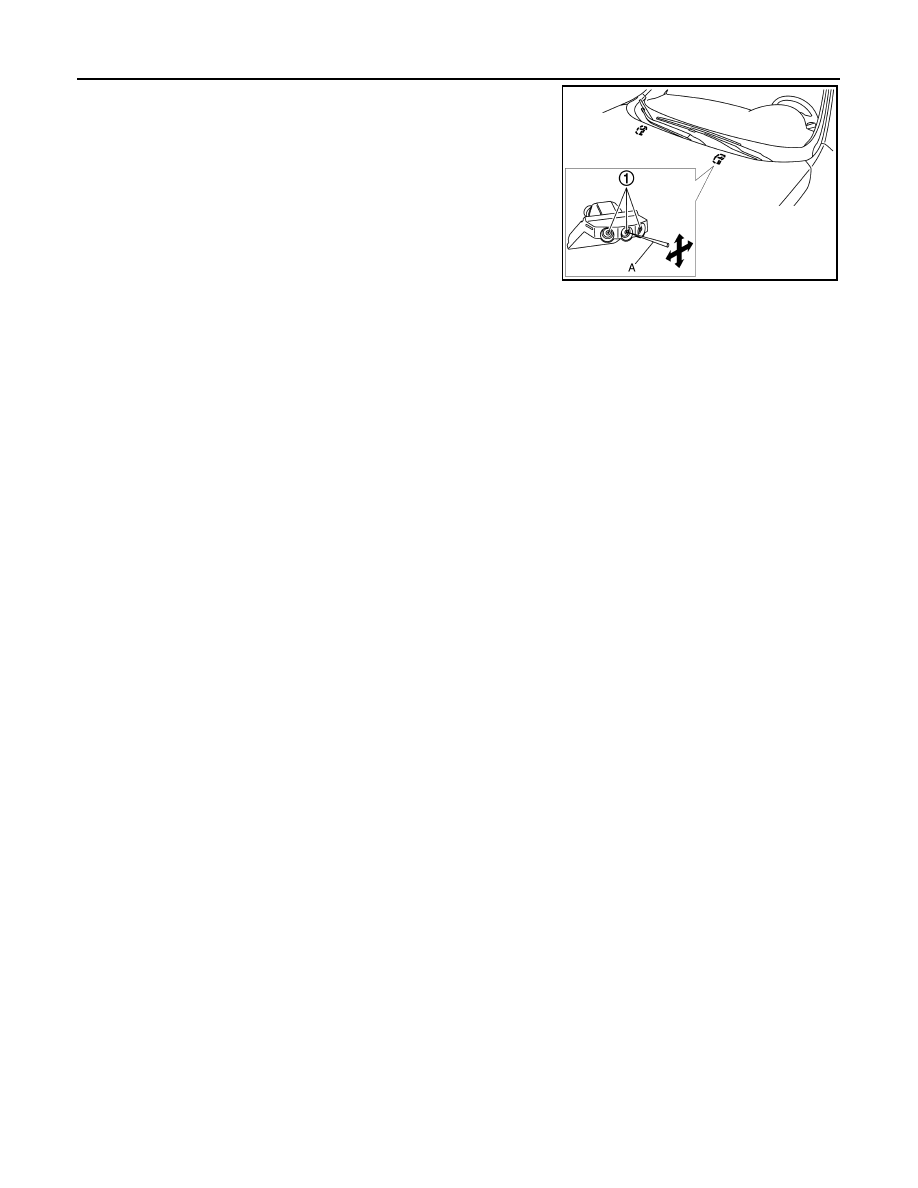

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

JPLIA1141ZZ
