Nissan Teana J32. Manual - part 1226

VTL-90

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

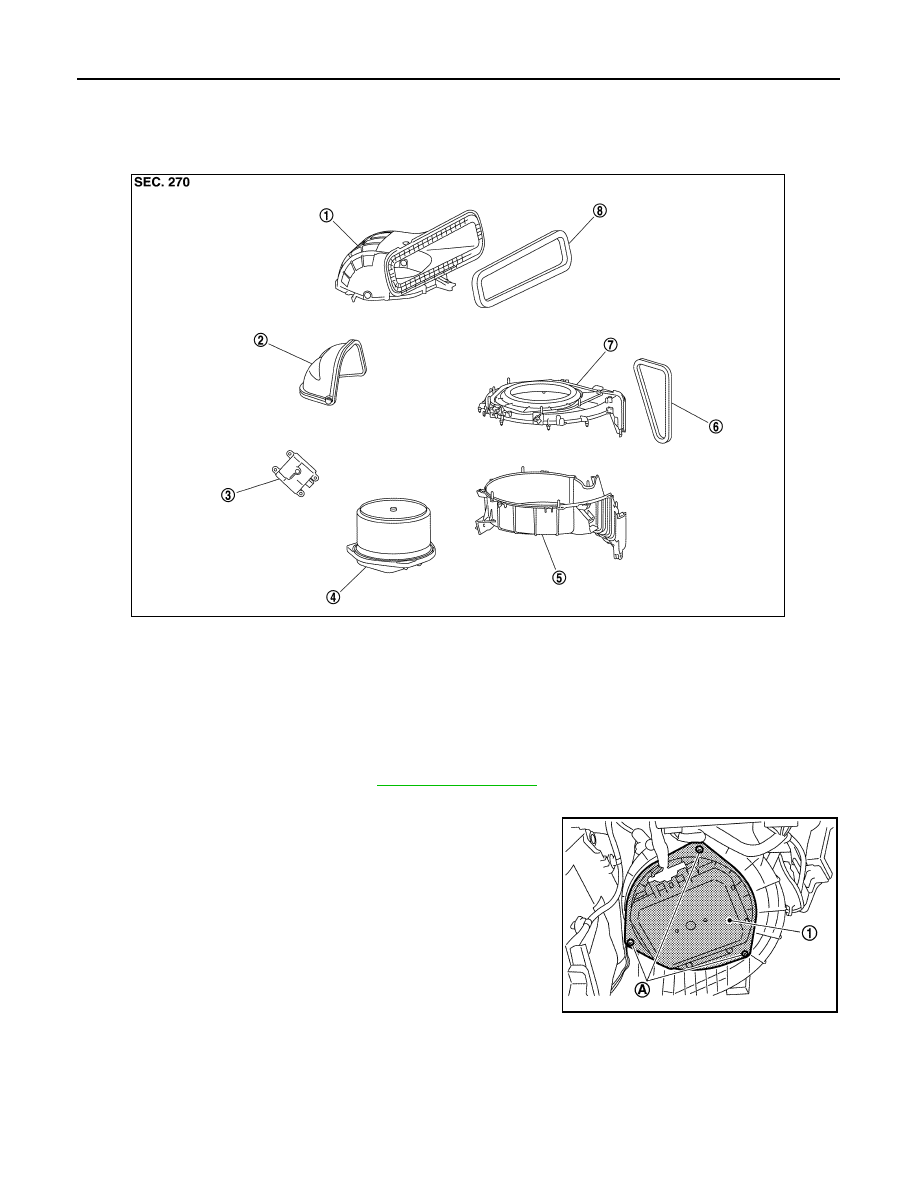

BLOWER MOTOR

BLOWER MOTOR

Exploded View

INFOID:0000000003894501

Removal and Installation

INFOID:0000000003894502

REMOVAL

1.

Remove globe box assembly. Refer to

IP-11, "Exploded View"

.

2.

Disconnect blower motor connector.

3.

Remove mounting screws (A), and then remove blower motor
(1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Shutter box case

2.

Intake door

3.

Intake door motor

4.

Blower motor

5.

Intake lower case

6.

Outlet seal

7.

Intake upper case

8.

Intake seal

JPIIA0908ZZ

JPIIA0911ZZ

INTAKE DOOR MOTOR

VTL-91

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

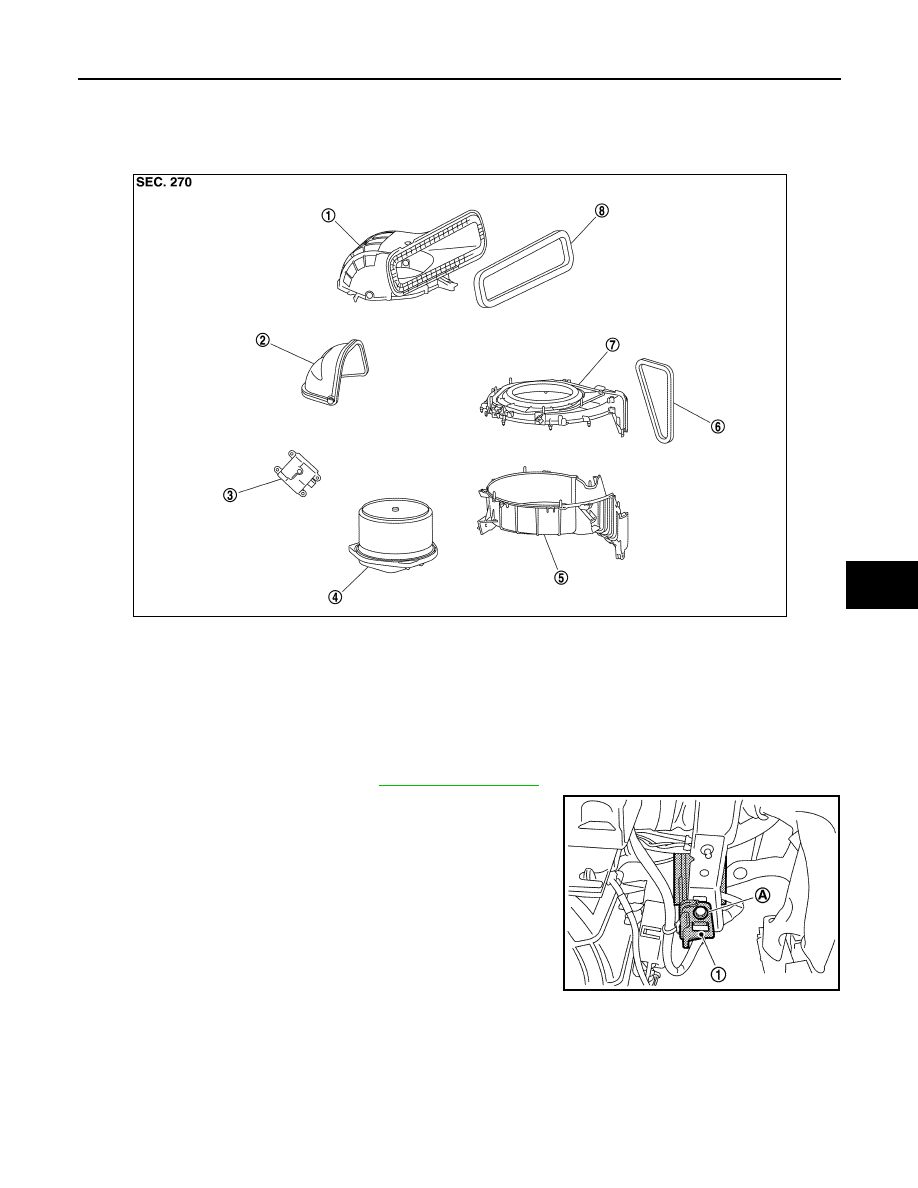

INTAKE DOOR MOTOR

Exploded View

INFOID:0000000003894503

Removal and Installation

INFOID:0000000003894504

REMOVAL

1.

Remove globe box assembly. Refer to

IP-11, "Exploded View"

.

2.

Remove mounting screw (A), and then move remote keyless
entry receiver (1) to a position where it does not inhibit work.

1.

Shutter box case

2.

Intake door

3.

Intake door motor

4.

Blower motor

5.

Intake lower case

6.

Outlet seal

7.

Intake upper case

8.

Intake seal

JPIIA0908ZZ

JPIIA0912ZZ

VTL-92

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

INTAKE DOOR MOTOR

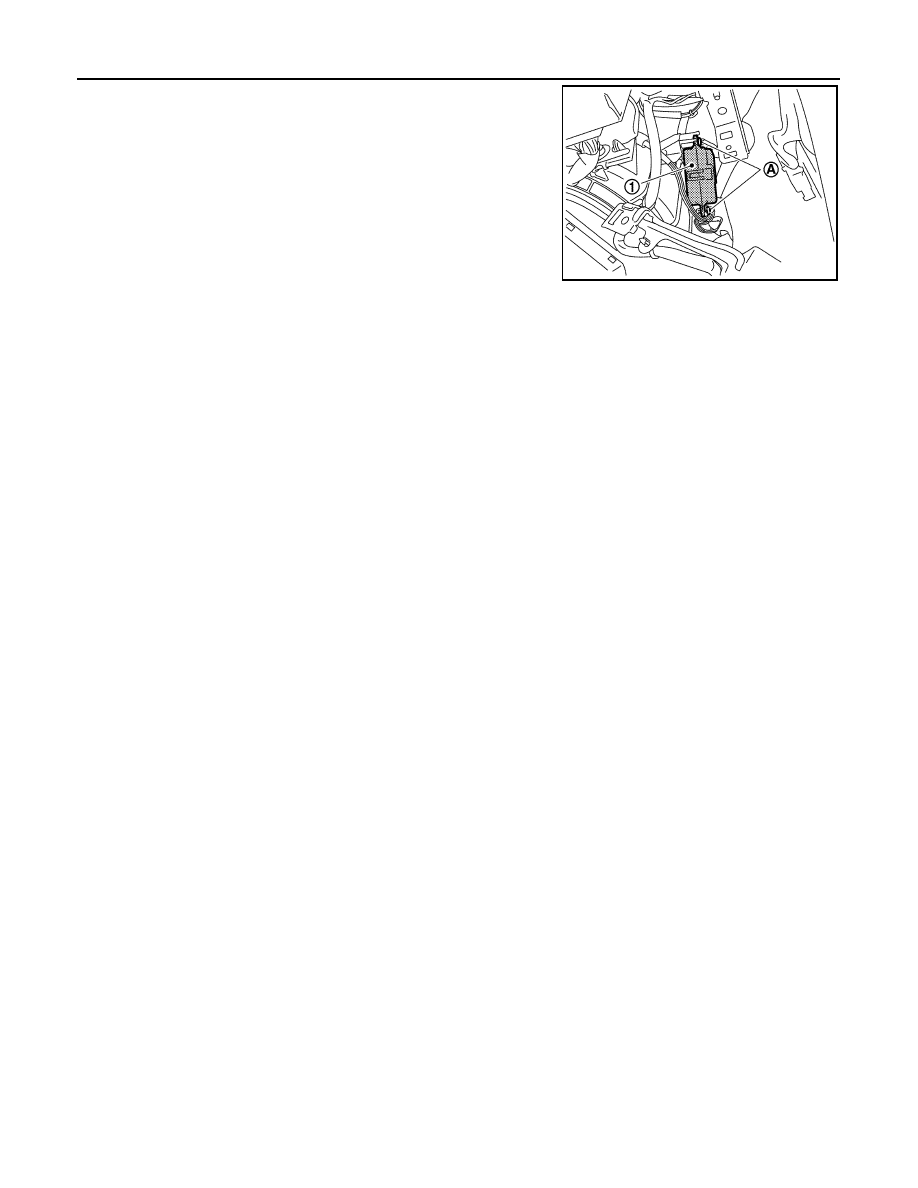

3.

Remove mounting screw (A), and then remove intake door
motor (1).

4.

Disconnect intake door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA0913ZZ

HEATER & COOLING UNIT ASSEMBLY

VTL-93

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

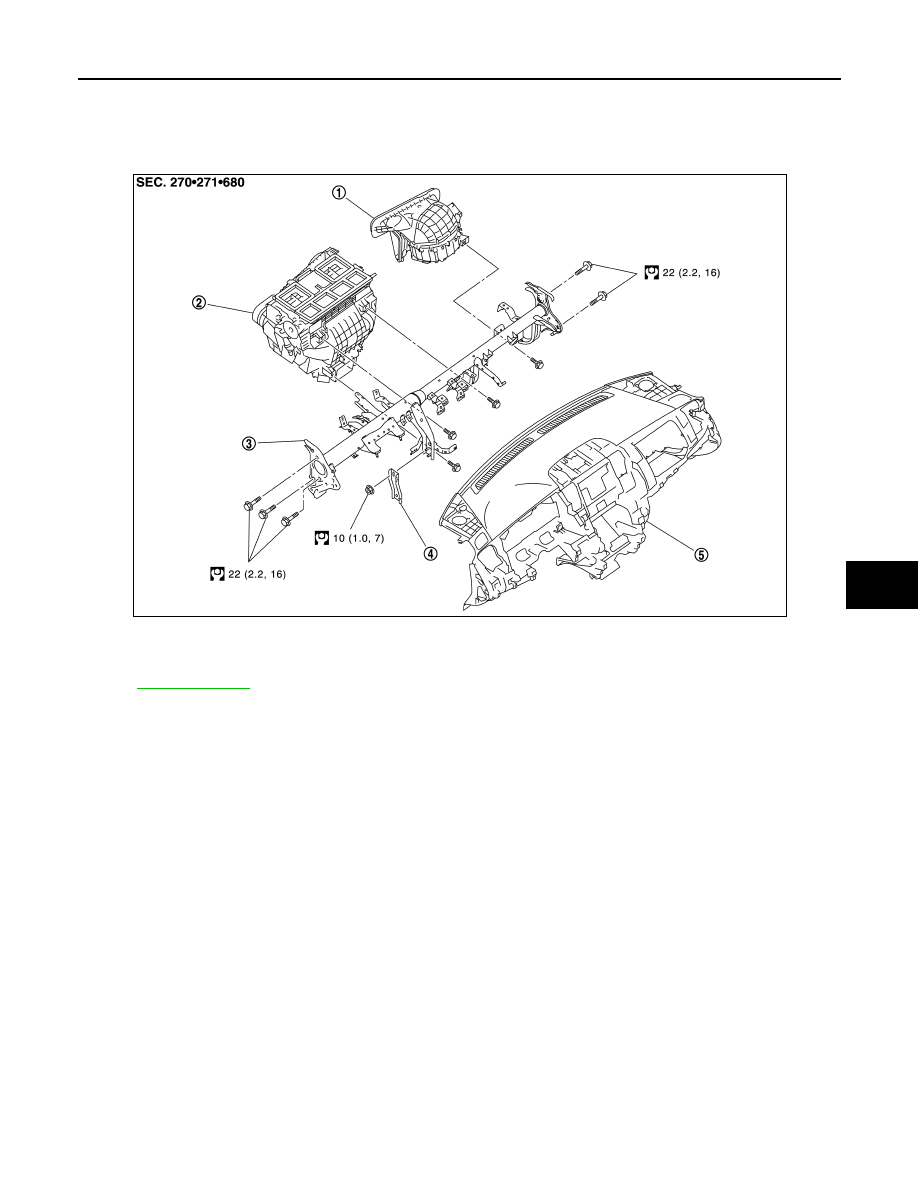

HEATER & COOLING UNIT ASSEMBLY

Exploded View

INFOID:0000000003894505

DISASSEMBLY

1.

Blower unit

2.

Heater & cooling unit assembly

3.

Steering member

4.

Instrument stay

5.

Instrument panel assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0914GB
