Nissan Teana J32. Manual - part 1195





TM-304

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

CVT FLUID

ON-VEHICLE MAINTENANCE

CVT FLUID

Inspection

INFOID:0000000003806504

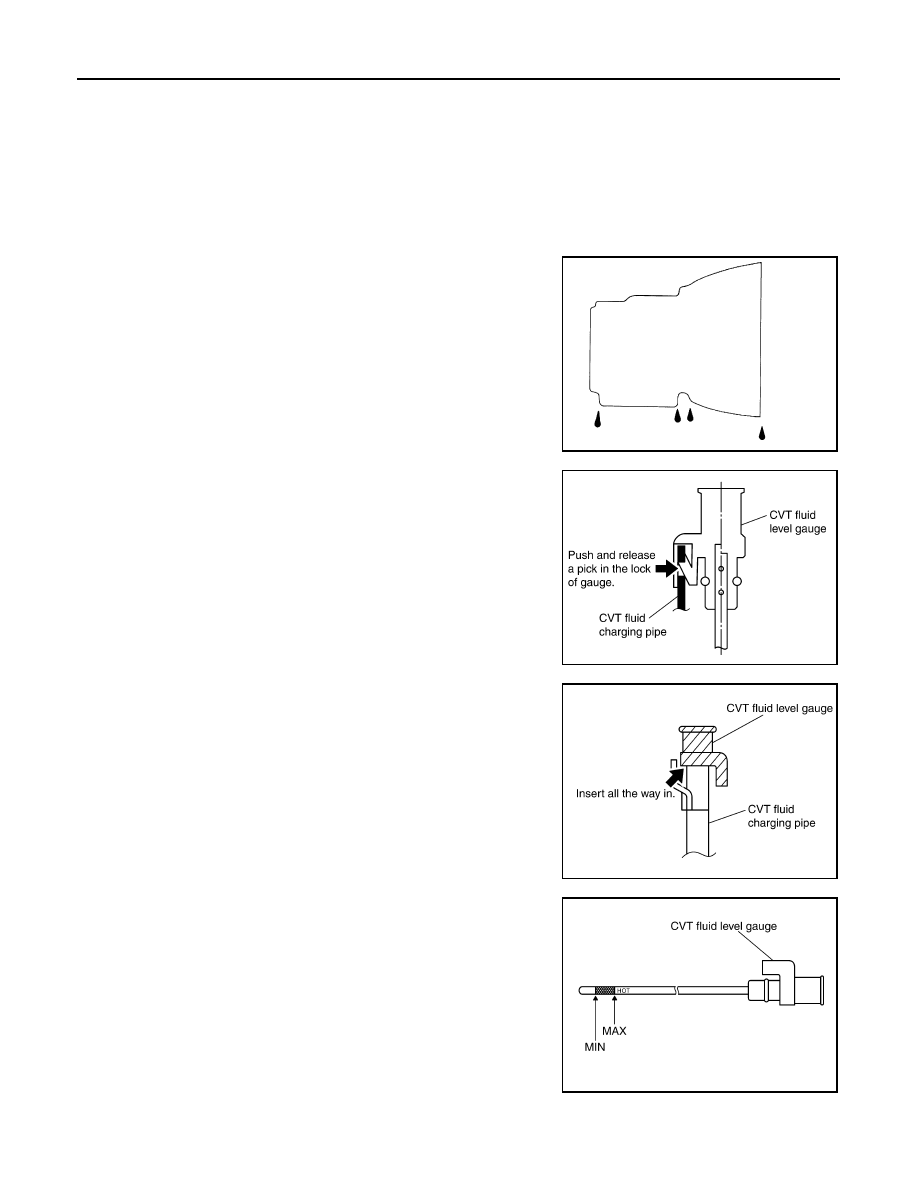

CHECKING CVT FLUID

The fluid level should be checked with the fluid warmed up to 50 to 80

°

C (122 to 176

°

F). The fluid level check

procedure is as follows:
1.

Check for fluid leakage.

2.

With the engine warmed up, drive the vehicle in an urban area.
When ambient temperature is 20

°

C (68

°

F), it takes about 10

minutes for the CVT fluid to warm up to 50 to 80

°

C (122 to

176

°

F).

3.

Park the vehicle on a level surface.

4.

Apply parking brake firmly.

5.

With engine at idle, while depressing brake pedal, move shift
selector throughout the entire shift range.

6.

Pull out the CVT fluid level gauge from the CVT fluid charging
pipe after pressing the tab on the CVT fluid level gauge to
release the lock.

7.

Wipe fluid off the CVT fluid level gauge. Insert the CVT fluid
level gauge rotating 180

°

 from the originally installed position,

then securely push the CVT fluid level gauge until it meets the
top end of the CVT fluid charging pipe.

CAUTION:

When wiping away the CVT fluid level gauge, always use
lint-free paper, not a cloth rag.

8.

Place the selector lever in “P” or “N” and check that the fluid
level is within the specified range.

CAUTION:

When reinstalling CVT fluid level gauge, insert it into the
CVT fluid charging pipe and rotate it to the original installa-
tion position until securely locked.

CVT FLUID CONDITION

SMA146B

SCIA1933E

SCIA1931E

SCIA1932E

CVT FLUID

TM-305

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Check CVT fluid condition.
• If CVT fluid is very dark or smells burned, check operation of CVT.

Flush cooling system after repair of CVT.

• If CVT fluid contains frictional material (clutches, brakes, etc.),

replace radiator and flush cooler line using cleaning solvent and
compressed air after repair of CVT. Refer to

CO-13, "Exploded

View"

.

Changing

INFOID:0000000003806505

CAUTION:

Replace O-ring with new ones at the final stage of the operation when installing.

1.

Remove drain plug from oil pan.

2.

Remove drain plug gasket from drain plug.

3.

Install drain plug gasket to drain plug.

CAUTION:

Never reuse drain plug gasket.

4.

Install drain plug to oil pan. Refer to

TM-321, "Exploded View"

.

5.

Fill CVT fluid from CVT fluid charging pipe to the specified level.

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and

CVT durability, and may damage the CVT, which is not covered by the warranty.

• When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.
• Sufficiently shake the container of CVT fluid before using.
• Delete CVT fluid deterioration date with CONSULT-III after changing CVT fluid.

6.

With the engine warmed up, drive the vehicle in an urban area.
NOTE:
When ambient temperature is 20

°

C (68

°

F), it takes about 10 minutes for the CVT fluid to warm up to 50 to

80

°

C (122 to 176

°

F).

7.

Check CVT fluid level and condition.

8.

Repeat steps 1 to 5 if CVT fluid has been contaminated.

Fluid status

Conceivable cause

Required operation

Varnished (viscous
varnish state)

CVT fluid become
degraded due to
high temperatures.

Replace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses, cool-
er pipes, etc.)

Milky white or
cloudy

Water in the fluid

Replace the CVT fluid and check for
places where water is getting in.

Large amount of
metal powder mixed
in

Unusual wear of
sliding parts within
CVT

Replace the CVT fluid and check for
improper operation of the CVT.

ATA0022D

CVT fluid

: Refer to

TM-337, "General Specifica-

tion"

.

Fluid capacity

: Refer to

TM-337, "General Specifica-

tion"

.

TM-306

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

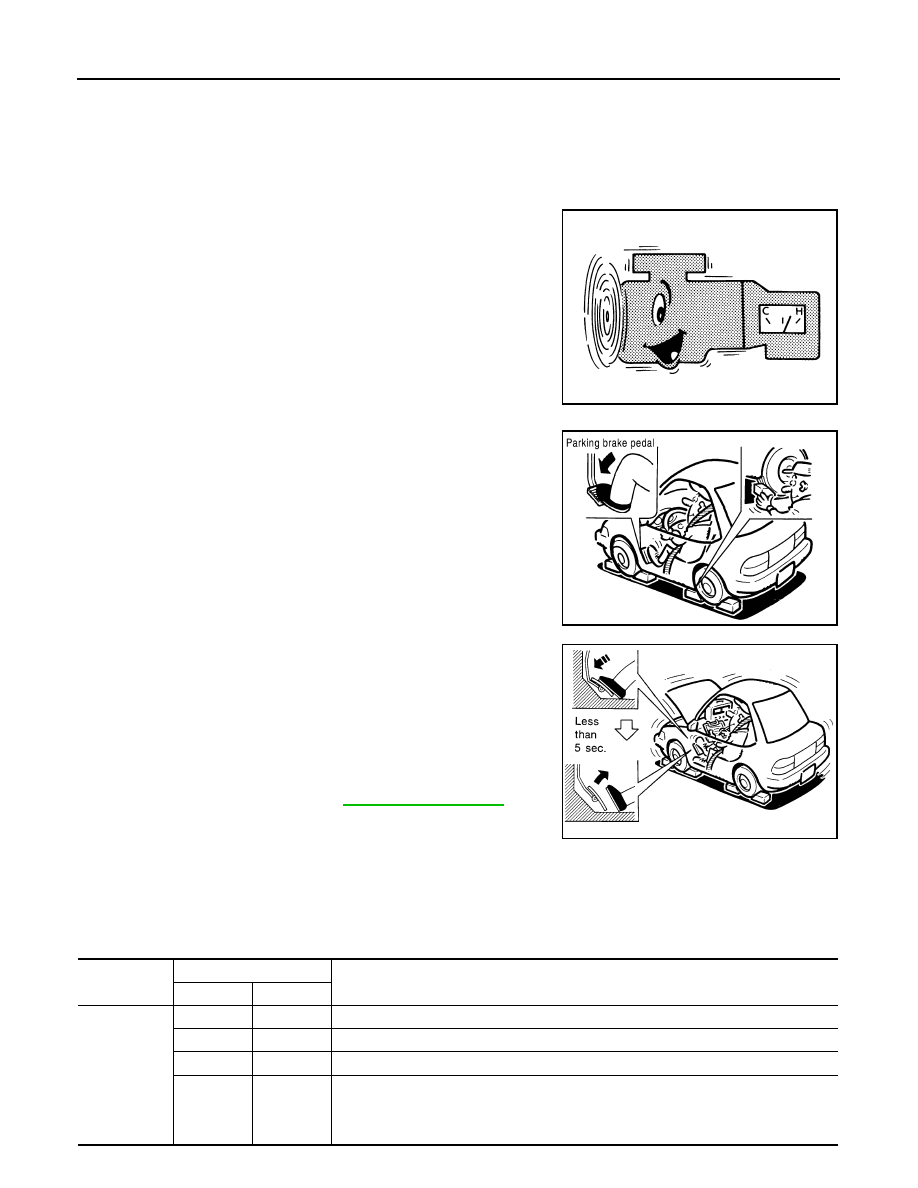

STALL TEST

STALL TEST

Inspection and Judgment

INFOID:0000000003806506

INSPECTION

1.

Inspect the amount of engine oil. Replenish the engine oil if necessary.

2.

Drive for about 10 minutes to warm up the vehicle so that the
CVT fluid temperature is 50 to 80

°

C (122 to 176

°

F). Inspect the

amount of CVT fluid. Replenish if necessary.

3.

Securely engage the parking brake so that the tires do not turn.

4.

Install a tachometer where it can be seen by driver during test.
NOTE:
It is good practice to mark the point of specified engine rpm on
indicator.

5.

Start engine, apply foot brake, and place selector lever in “D”
position.

6.

While holding down the foot brake, gradually press down the
accelerator pedal.

7.

Quickly read off the stall speed, and then quickly remove your
foot from the accelerator pedal.

CAUTION:

Never hold down the accelerator pedal for more than 5 sec-
onds during this test.

8.

Move the selector lever to the “N” position.

9.

Cool down the CVT fluid.

CAUTION:

Run the engine at idle for at least 1 minute.

10. Repeat steps 6 through 9 with selector lever in “R” position.

JUDGMENT

SAT647B

SCIA7463E

Stall speed

: Refer to

TM-337, "Stall Speed"

.

SAT514G

Selector lever position

Expected problem location

“D”

“R”

Stall rotation

H

O

• Forward  clutch

O

H

• Reverse brake

L

L

• Engine and torque converter one-way clutch

H

H

• Line pressure low
• Primary pulley
• Secondary pulley
• Steel belt

STALL TEST

TM-307

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

O: Stall speed within standard value position.

H: Stall speed is higher than standard value.

L: Stall speed is lower than standard value.
