TM-184

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

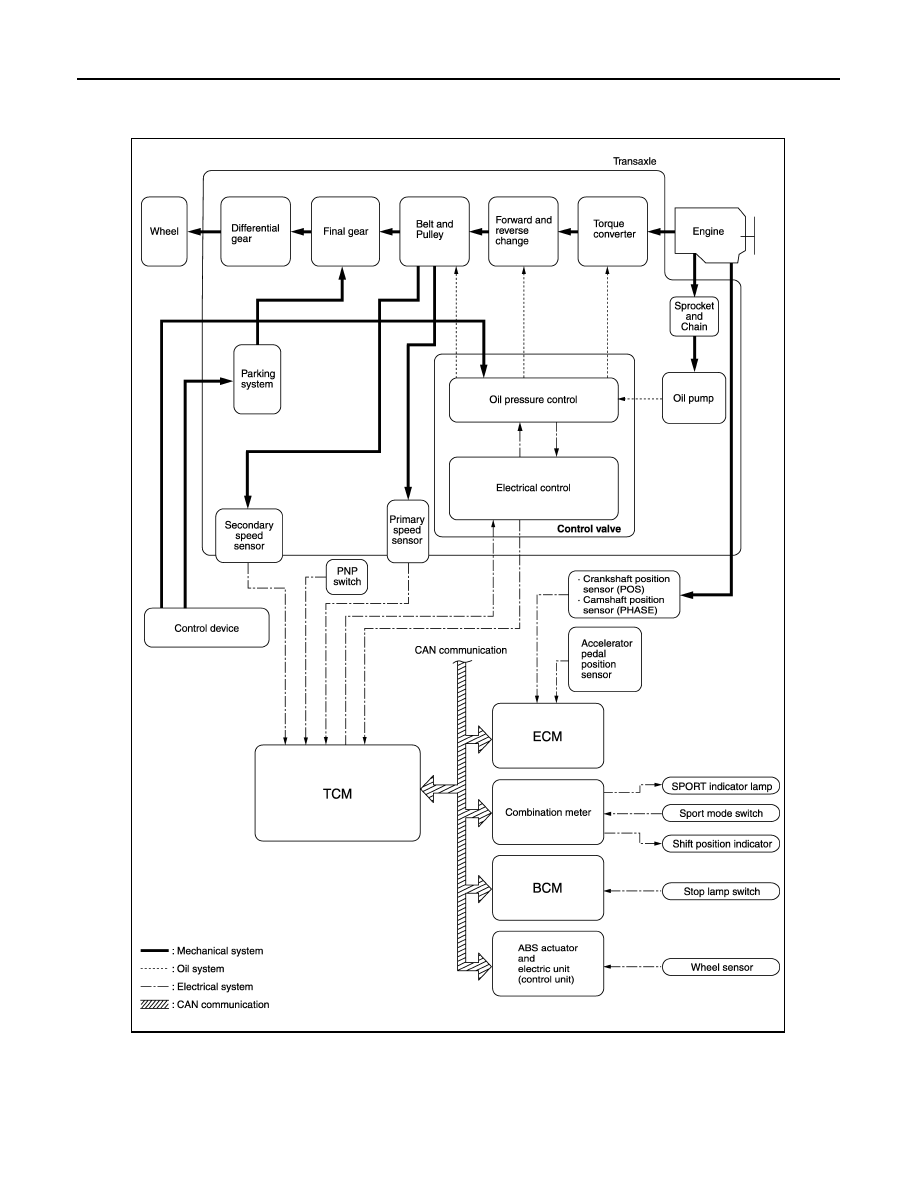

MECHANICAL SYSTEM

System Diagram

INFOID:0000000003806350

System Description

INFOID:0000000003806351

Transmits the power from the engine to the drive wheel.

JPDIA0743GB

MECHANICAL SYSTEM

TM-185

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

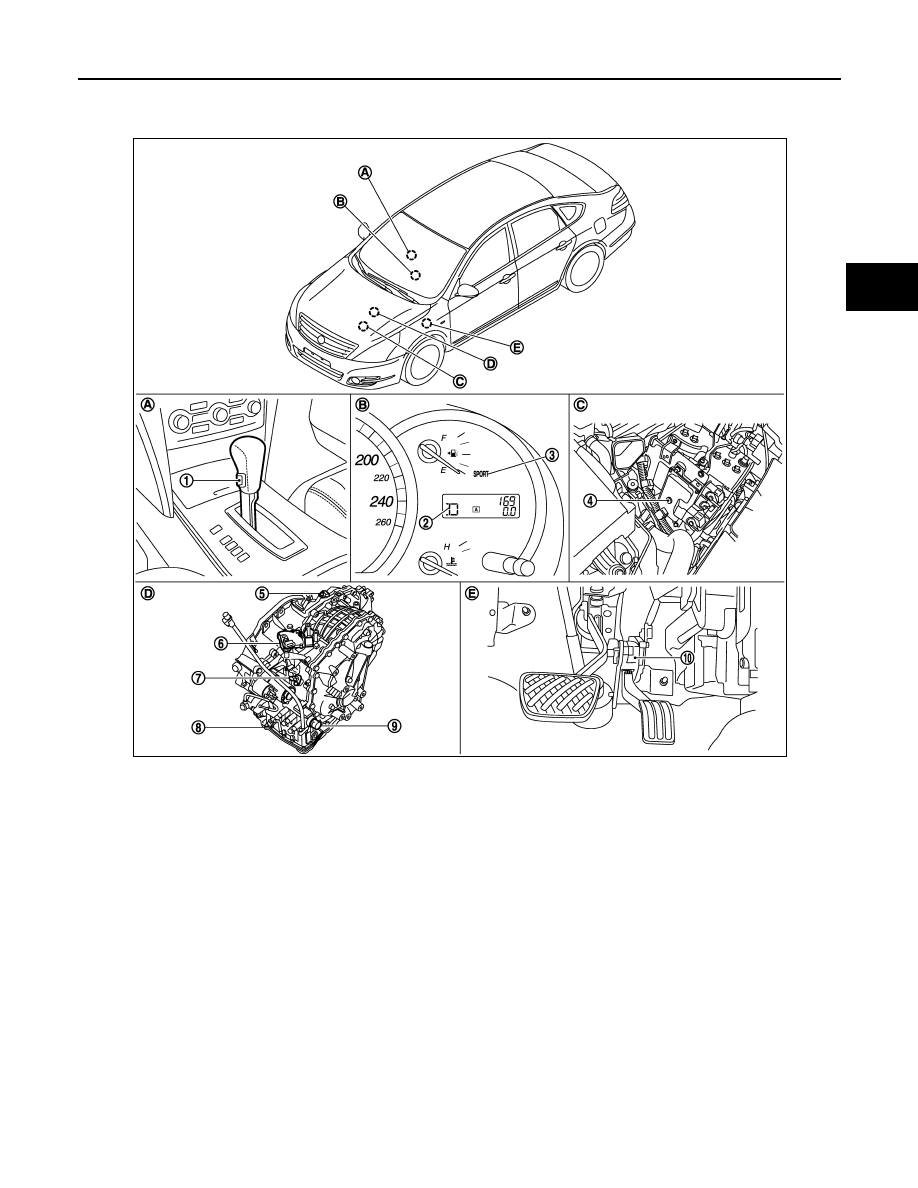

Component Parts Location

INFOID:0000000003809651

*: Control valve assembly is included in CVT assembly.

NOTE:
The following components are included in control valve assembly (8).
• CVT fluid temperature sensor
• Torque converter clutch solenoid valve
• Line pressure solenoid valve
• Step motor
• ROM assembly
• Secondary pressure sensor
• Secondary pressure solenoid valve
• Lock-up select solenoid valve

1.

Sport mode switch

2.

Shift position indicator

3.

SPORT indicator lamp

4.

TCM

5.

Secondary speed sensor

6.

PNP switch

7.

Primary speed sensor

8.

Control valve assembly

*

9.

CVT unit connector

10. Accelerator pedal position sensor

A.

Center console

B.

Combination meter

C.

Engine room LH

D.

CVT assembly

E.

Accelerator pedal, upper

JPDIA0746ZZ

TM-186

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

MECHANICAL SYSTEM

Component Description

INFOID:0000000003806353

Item

Function

Torque converter

The torque converter is the device that increases the engine torque as well as the conventional
CVT and transmits it to the transaxle.

Oil pump

The efficiency of pump discharge rate has been increased at low-rpm and optimized at high-rpm
by adopting a vane-type oil pump controlled by the engine. Discharged oil from oil pump is trans-
mitted to the control valve. It is used as the oil of primary and secondary pulley operation and the
oil of clutch operation and the lubricant for each part.

Planetary gear

Perform the transmission of drive power and the switching of forward/backward movement.

Forward clutch

Reverse brake

Primary pulley

It is composed of a pair of pulleys (the groove width is changed freely in the axial direction) and
the steel belt (the steel star wheels are placed continuously and the belt is guided with the mul-
tilayer steel rings on both sides). The groove width changes according to wrapping radius of steel
belt and pulley from low status to overdrive status continuously with non-step. It is controlled with
the oil pressures of primary pulley and secondary pulley.

Secondary pulley

Steel belt

Output gear

Reduction gear consists of primary deceleration (output gear and idler gear in pair) and second-
ary deceleration (reduction gear and final gear in pair). Each of them uses a helical gear.

Idler gear

Reduction gear

Final gear

Differential

Manual shaft

The parking rod rotates the parking pole and the parking pole engages with the parking gear
when the manual shaft is in P position. As a result the parking gear and the output axis are fixed.

Parking rod

Parking pawl

Parking gear

HYDRAULIC CONTROL SYSTEM

TM-187

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

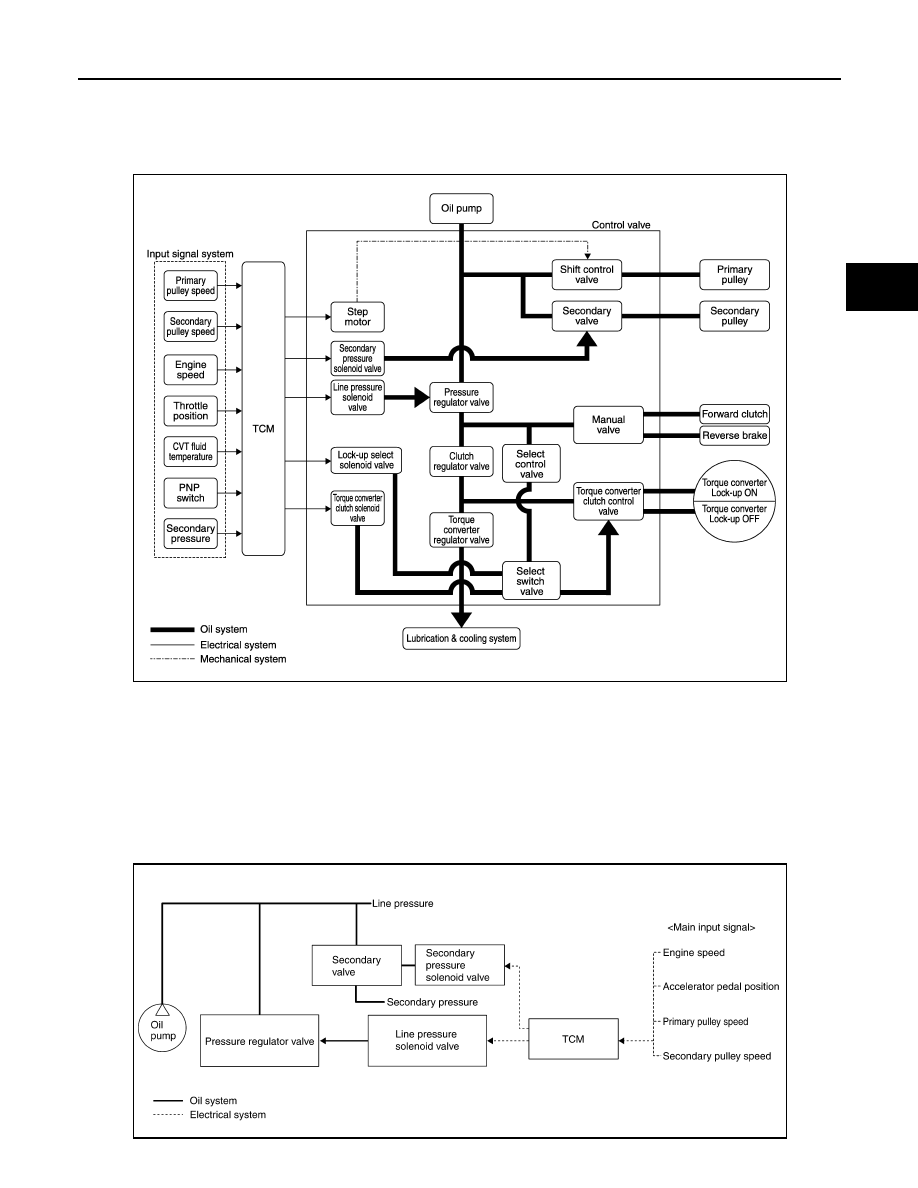

HYDRAULIC CONTROL SYSTEM

System Diagram

INFOID:0000000003806354

System Description

INFOID:0000000003806355

The hydraulic control mechanism consists of the oil pump directly driven by the engine, the hydraulic control
valve that controls line pressure and transmission, and the input signal line.

LINE PRESSURE AND SECONDARY PRESSURE CONTROL

• When an input torque signal equivalent to the engine driving force is transmitted from the ECM to the TCM,

the TCM controls the line pressure solenoid valve and secondary pressure solenoid valve.

• Line pressure solenoid valve activates pressure regulator valve, and line pressure from oil pump is adjusted

for the optimum driving condition. Secondary pressure is controlled by lowering line pressure.

JPDIA0733GB
