STARTER MOTOR

VQ25DE

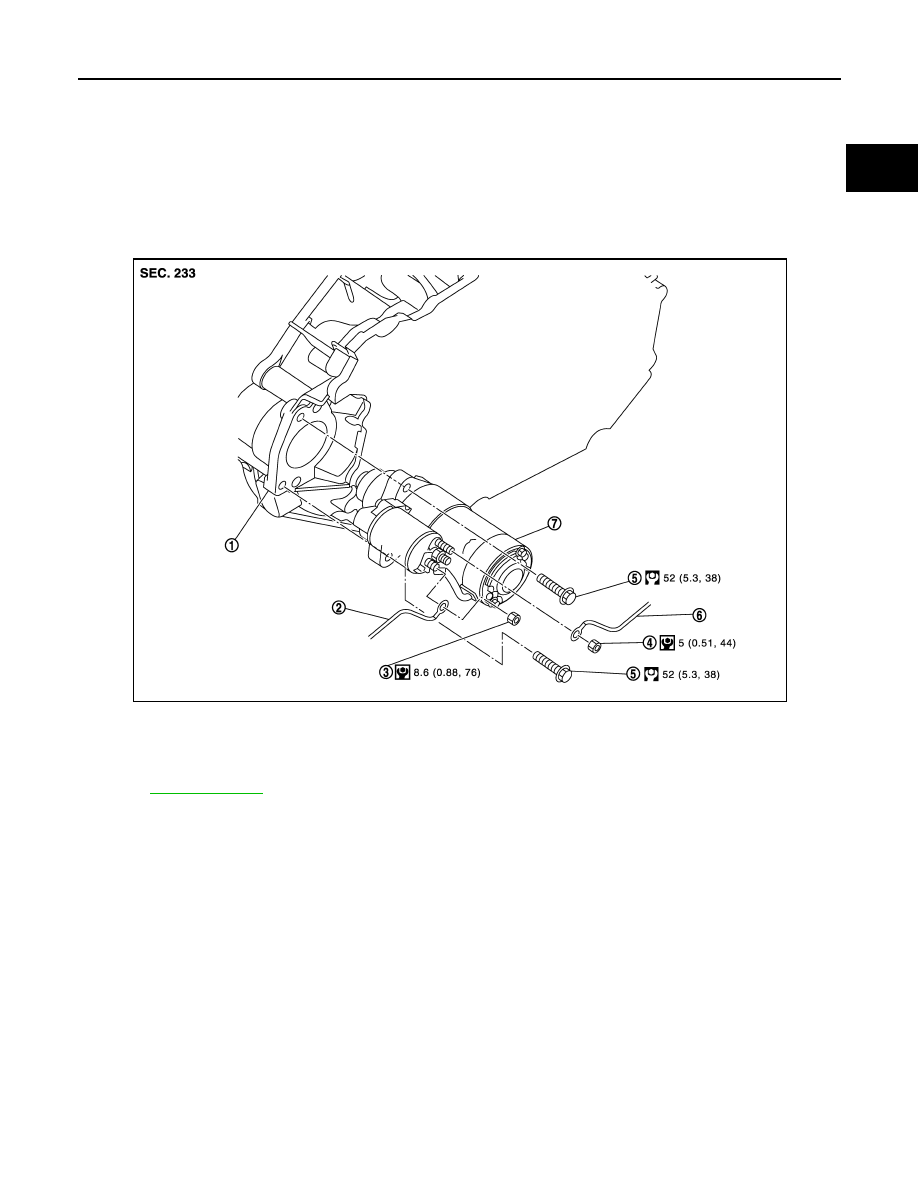

VQ25DE : Exploded View

INFOID:0000000003860436

REMOVAL

DISASSEMBLY

1.

Converter housing

2.

“B” terminal harness

3.

Starter motor “B” terminal nut

4.

Starter motor “S” terminal nut

5.

Starter motor mounting bolt

6.

“S” terminal harness

7.

Starter motor

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA2371GB

STR-16

< ON-VEHICLE REPAIR >

STARTER MOTOR

Type: S114-936

VQ25DE : Removal and Installation

INFOID:0000000003860437

REMOVAL

1.

Remove the battery. Refer to

PG-109, "Removal and Installation"

.

2.

Remove the air cleaner assembly and air ducts.

3.

Disconnect the following unit connectors:
• ECM
• IPDM  E/R

4.

Remove the battery tray.

5.

Remove the “B”terminal nut and “S” terminal nut.

6.

Remove the starter motor mounting bolts.

7.

Remove the starter motor upward from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

VQ25DE : Inspection

INFOID:0000000003860438

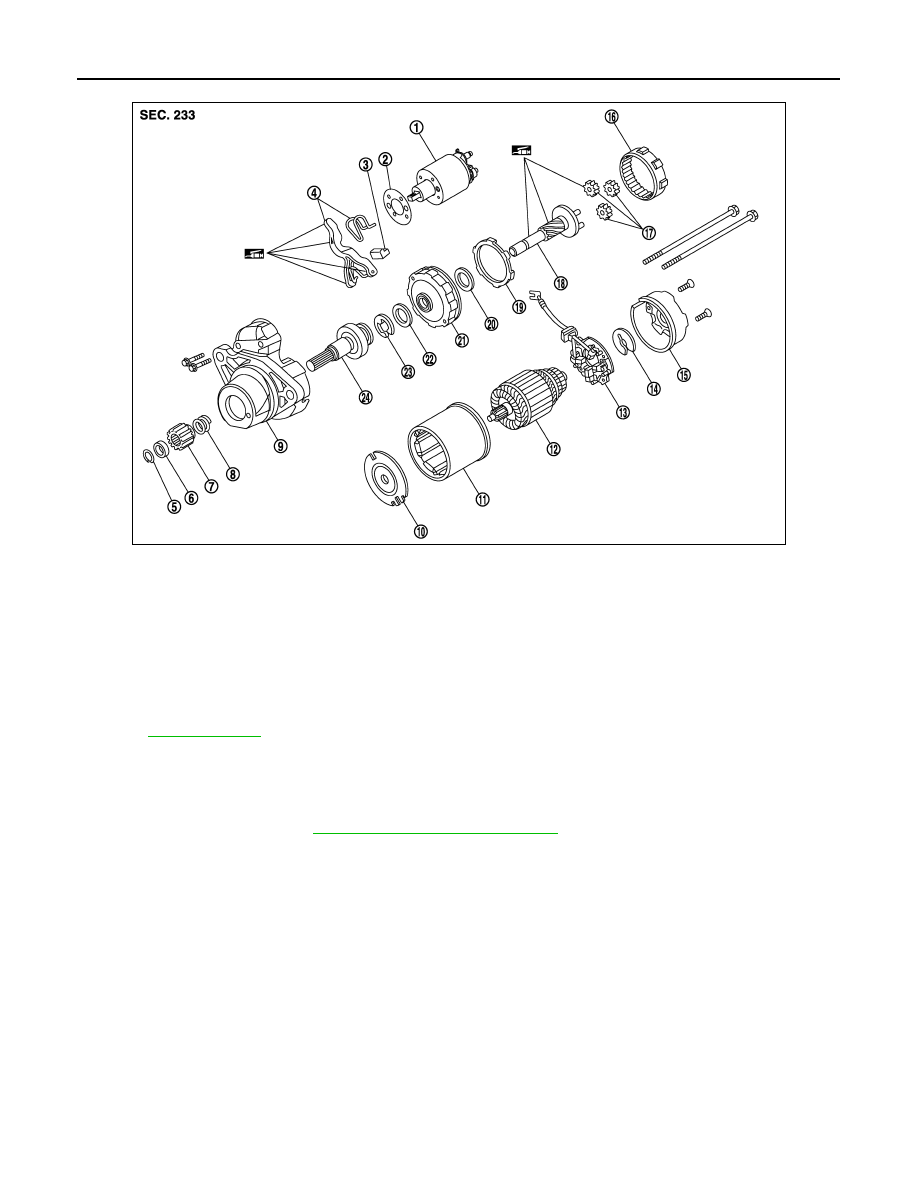

MAGNETIC SWITCH

• Before starting to check, disconnect the battery cable from the negative terminal.

JSAIA0936GB

1.

Magnetic switch assembly

2.

Adjusting plate

3.

Dust cover

4.

Shift lever set

5.

Pinion stopper clip

6.

Pinion stopper

7.

Pinion

8.

Pinion spring

9.

Gear case assembly

10. Center bracket (A)

11.

Yoke assembly

12. Armature assembly

13. Brush holder assembly

14. Thrust washer

15. Rear cover

16. Internal gear

17. Planetary gear

18. Pinion stopper

19. Packing

20. Thrust washer

21. Center bracket (P)

22. Thrust washer

23. E-ring

24. Clutch gear assembly

Refer to

GI-4, "Components"

 for symbols not described on the above.

STARTER MOTOR

STR-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

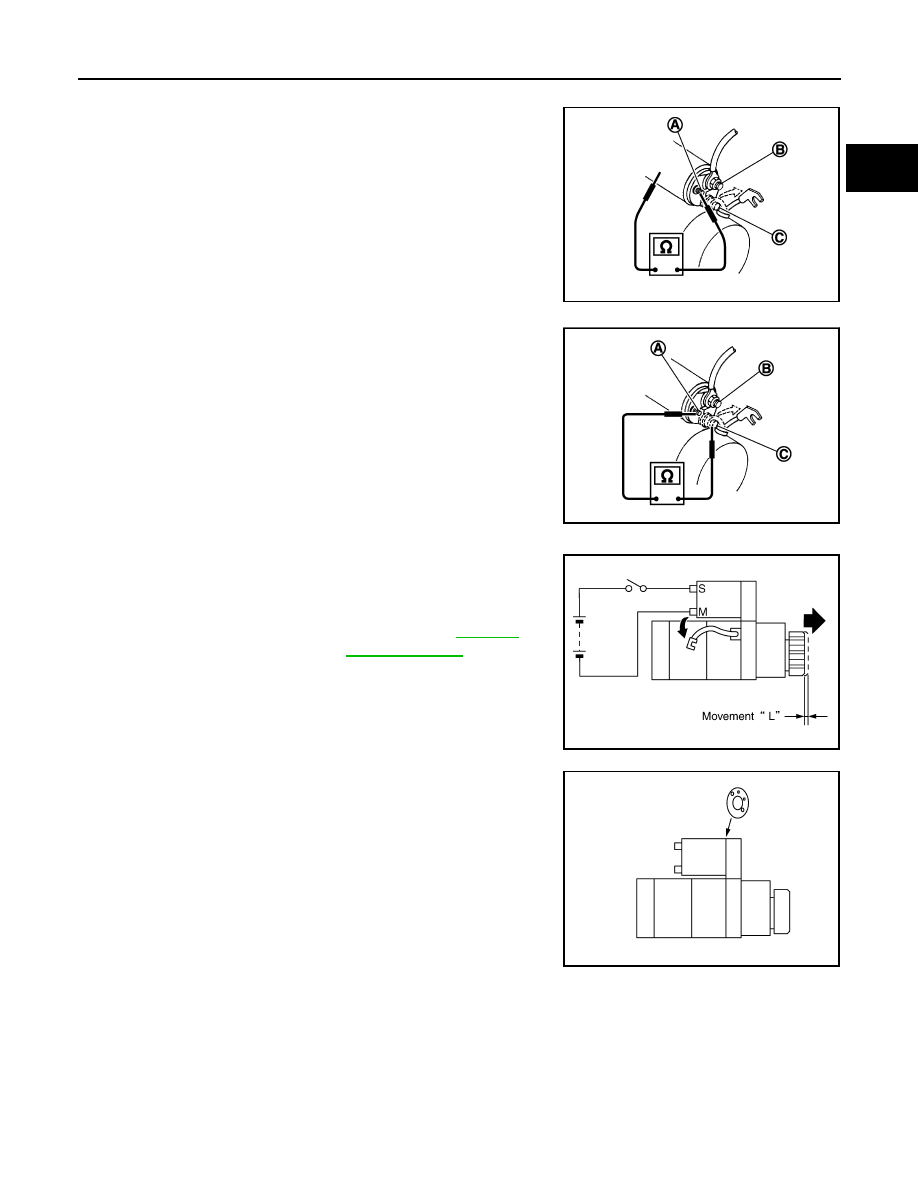

• Disconnect “M” terminal of starter motor.

1.

Continuity test (between “S” terminal and switch body)

• Replace magnetic switch if continuity does not exist.

2.

Continuity test (between “S” terminal and “M” terminal)

• Replace magnetic switch if continuity does not exist.

PINION PROTRUSION LENGTH

• Compare movement “L” in height of pinion when it is pushed out

with magnetic switch energized and when it is pulled out by hand
until it touches stopper.

• If the measurement value is not in the specified area, adjust with

the adjusting plate.

PINION ASSEMBLY

A

: “S” terminal

B

: “B” terminal

C

: “M” terminal

SKIB9002E

A

: “S” terminal

B

: “B” terminal

C

: “M” terminal

SKIB9003E

Movement “L”

: Refer to SDS

STR-26,

"Starter Motor"

.

SKIB0230E
