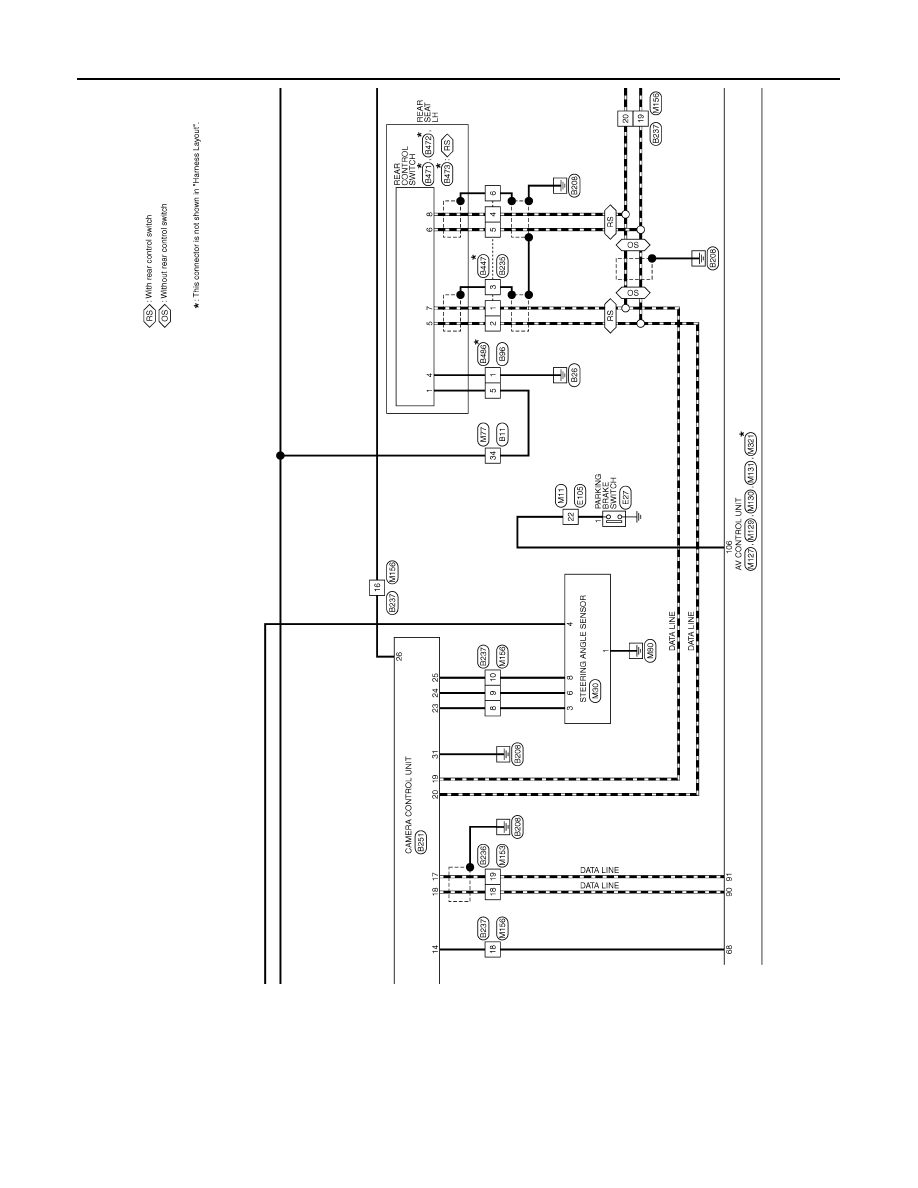

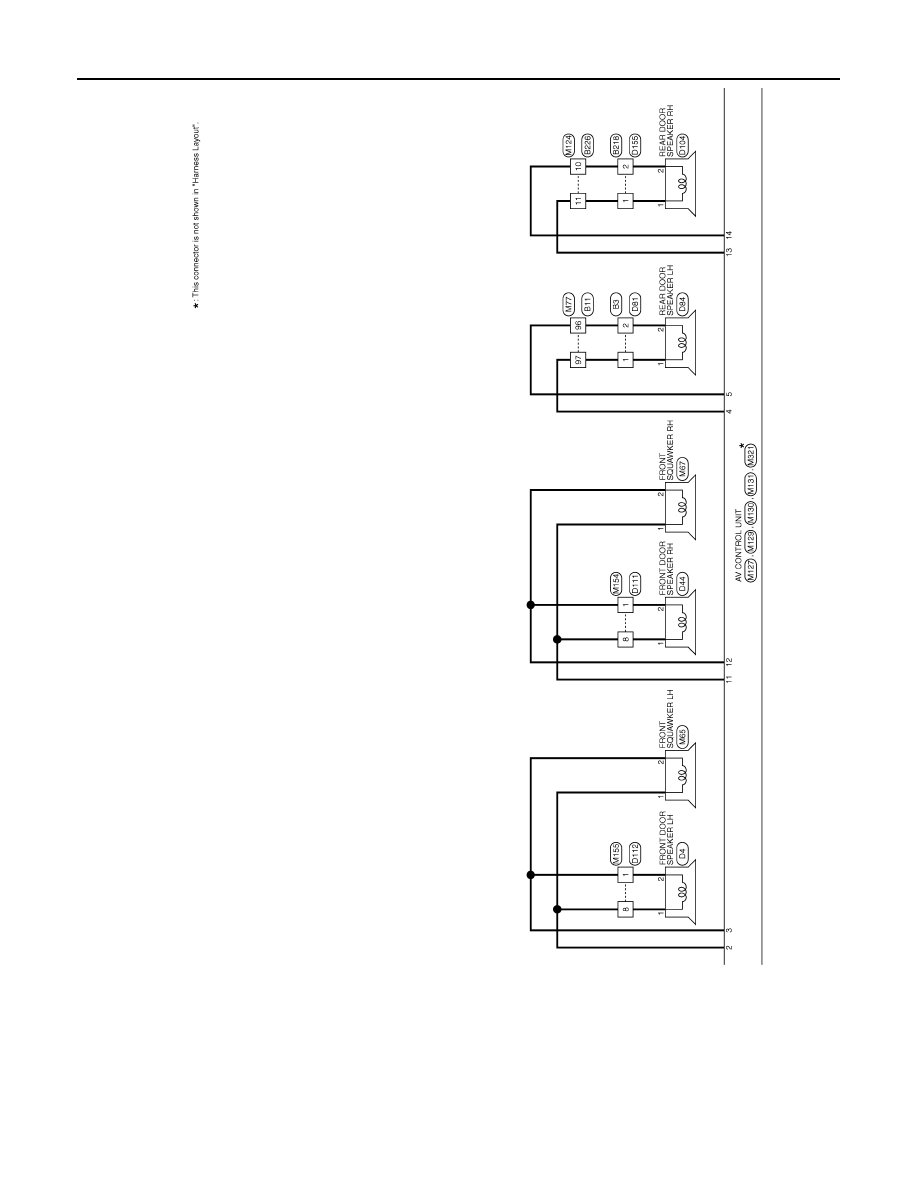

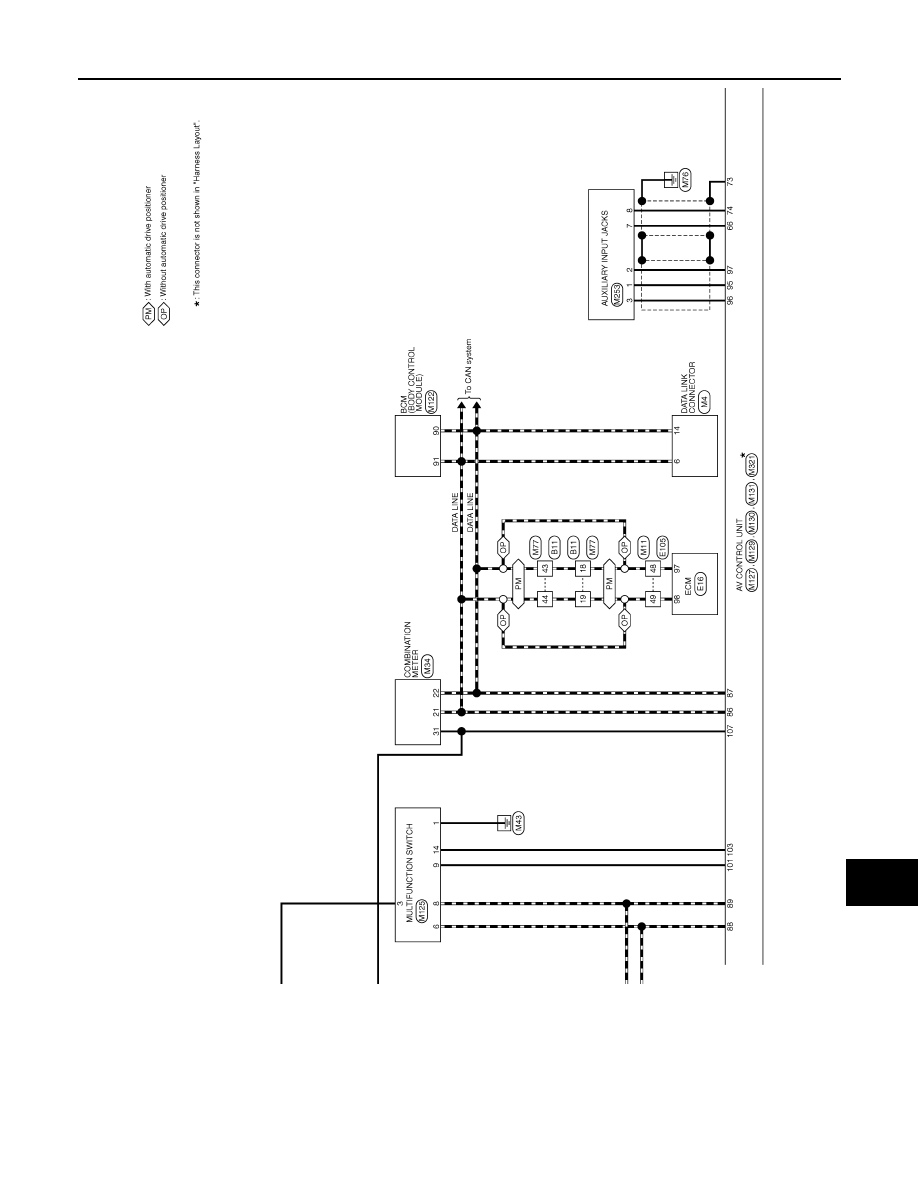

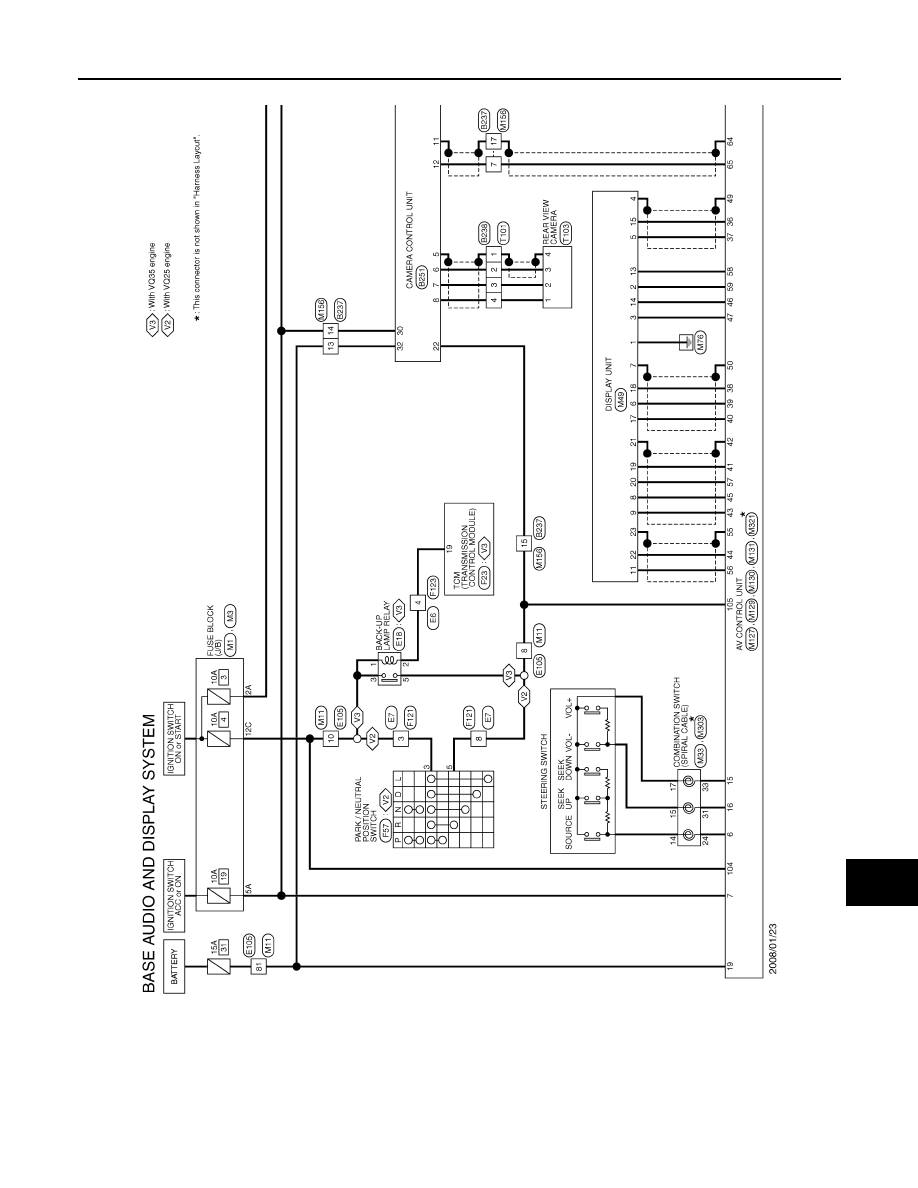

Wiring Diagram — BASE AUDIO AND DISPLAY SYSTEM —

INFOID:0000000003971682

JCNWM0882GB

AV-132

< ECU DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

DISPLAY UNIT

JCNWM0883GB

AV

DISPLAY UNIT

AV-133

< ECU DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWM0884GB

AV-134

< ECU DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

DISPLAY UNIT

JCNWM0885GB
