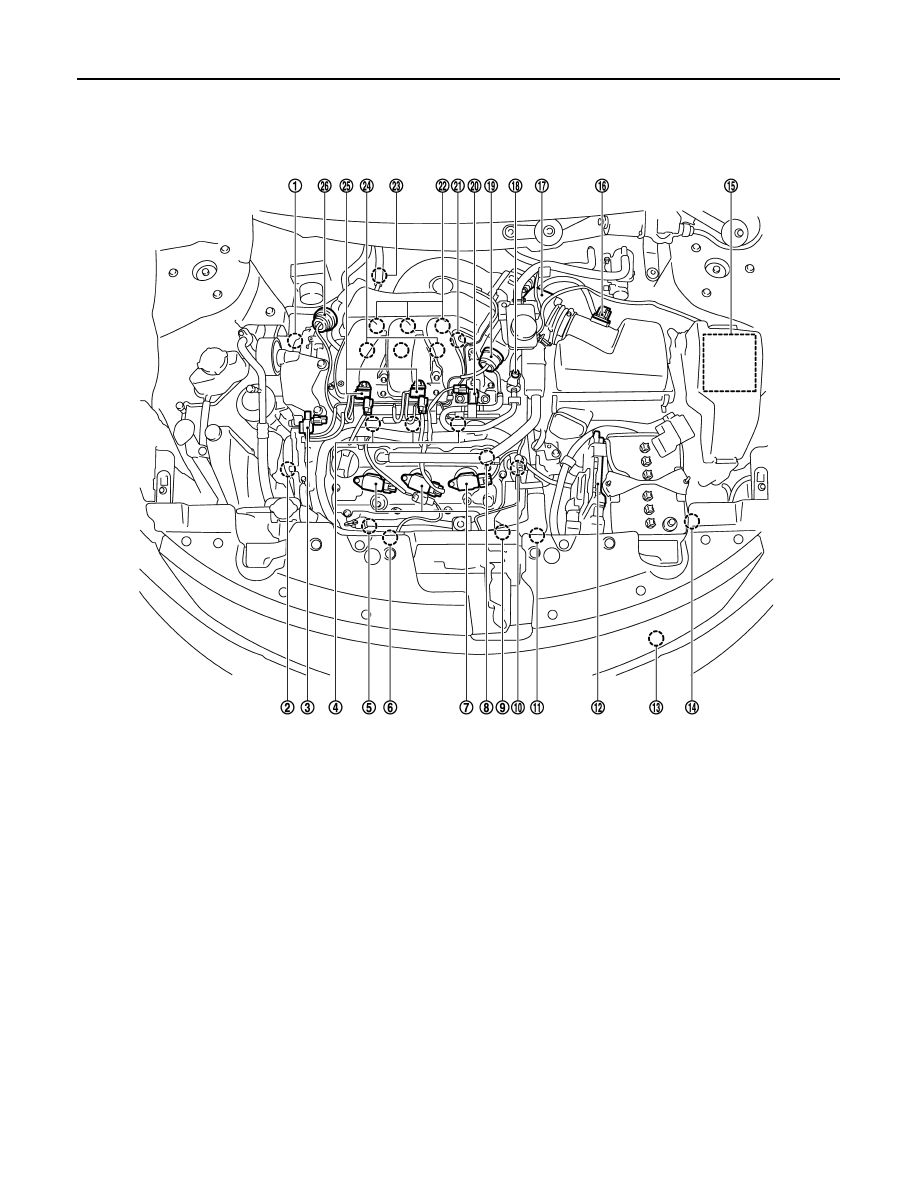

EC-96 < SYSTEM DESCRIPTION > [VQ35DE] VARIABLE INDUCTION AIR SYSTEM Component Parts Location INFOID:0000000005536524 1. Intake valve timing control solenoid 2. Intake valve timing control solenoid 3. Electronic controlled engine mount 4. Fuel injector (bank 2) 5. A/F sensor 1 (bank 2) 6. Cooling fan motor-2 7. Ignition coil (with power transistor) 8. Camshaft position sensor (PHASE) 9. Crankshaft position sensor (POS) 10. Engine coolant temperature sensor 11. Cooling fan motor-1 12. ECM 13. Refrigerant pressure sensor 14. Battery current sensor 15. IPDM E/R 16. Mass air flow sensor (with intake air temperature sensor) 17. Electric throttle control actuator 18. EVAP service port 19. Power valve actuator 2 20. EVAP canister purge volume control solenoid valve 21. Camshaft position sensor (PHASE) (bank 1) 22. Ignition coil (with power transistor) and spark plug (bank 1) 23. A/F sensor 1 (bank 1) 24. Fuel injector (bank 1) 25. VIAS control solenoid valve 1 and 2 26. Power valve actuator 1 JMBIA1108ZZ |
