DAS-130

< ECU DIAGNOSIS INFORMATION >

[BSW]

PUMP CONTROL UNIT

PUMP CONTROL UNIT

Reference Value

INFOID:0000000009723330

TERMINAL LAYOUT

PHYSICAL VALUES

JSOIA0648ZZ

Terminal

(Wire color)

Description

Condition

Standard value

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(W)

2

(B)

Air pump power sup-
ply

Output

Ignition

switch

ON

Air pump operated

9.5 - 16 V

12 V

Other than above

0 - 0.1 V

0 V

2

(B)

Ground

Air pump ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

3

(L)

5

(B)

Rear view camera
washer relay 2

Output

Ignition

switch

ON

Rear view camera washer
operated

0 - 0.1 V

0 V

Other than above

9.5 - 16 V

12 V

4

(R)

5

(B)

Rear view camera
washer relay 1

Output

Ignition

switch

ON

Rear view camera washer
operated

0 - 0.1 V

0 V

Other than above

9.5 - 16 V

0 V

5

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

6

(SB)

—

Communication line
ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

7

(V)

—

Communication line
(PUMP

→

 CAMERA)

Output

Ignition

switch

ON

—

Input the waveform synchronized with

the communication status.

PKIB5039J

DAS

PUMP CONTROL UNIT

DAS-131

< ECU DIAGNOSIS INFORMATION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

8

(W)

—

Communication line
(CAMERA

→

 PUMP)

Input

Ignition

switch

ON

—

Input the waveform synchronized with

the communication status.

9

(G)

5

(B)

Rear washer status

input

Ignition

switch

ON

Rear washer switch is ON.

0 - 0.1 V

0 V

Rear washer switch is OFF.

9.5 - 16 V

12 V

10

(BR)

5

(B)

Rear washer switch
input

Input

Ignition

switch

ON

Rear washer switch is ON.

9.5 - 16 V

12 V

Rear washer switch is OFF.

0 - 0.1 V

0 V

12

(Y)

5

(B)

Ignition power supply

Input

Ignition

switch

ON

—

9.5 - 16 V

12 V

Terminal

(Wire color)

Description

Condition

Standard value

Reference value

(Approx.)

+

–

Signal name

Input/

Output

PKIB5039J

DAS-132

< WIRING DIAGRAM >

[BSW]

DRIVER ASSISTANCE SYSTEMS

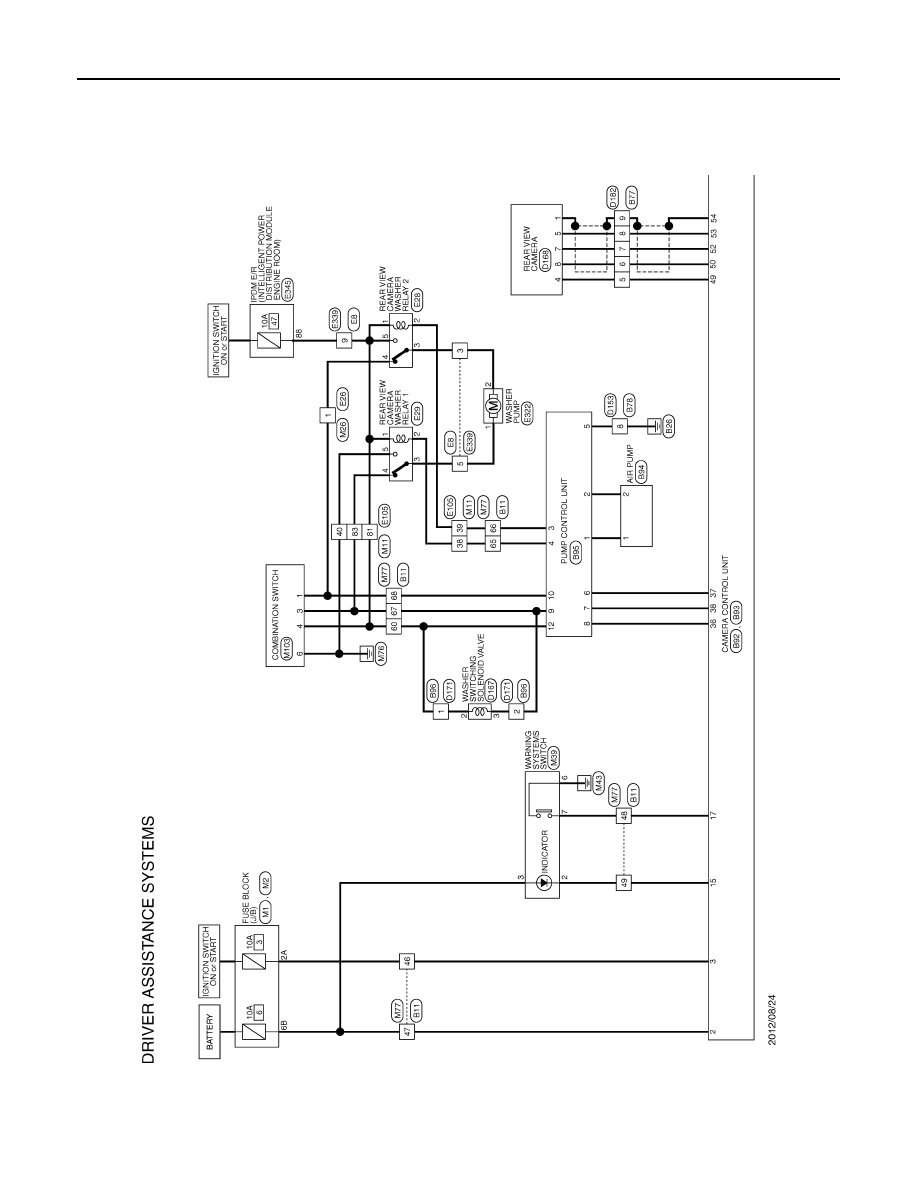

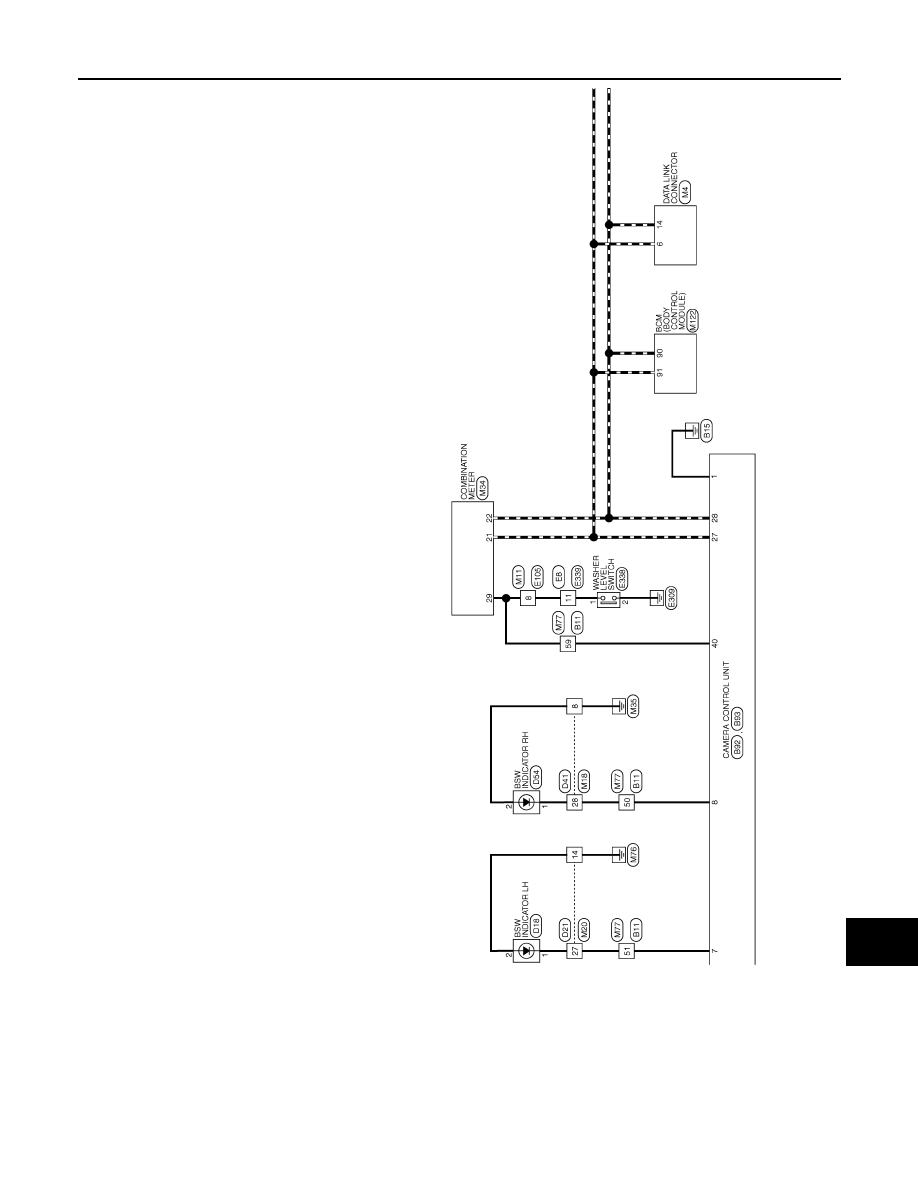

WIRING DIAGRAM

DRIVER ASSISTANCE SYSTEMS

Wiring Diagram

INFOID:0000000010089132

JROWC0298GB

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-133

< WIRING DIAGRAM >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC0299GB
