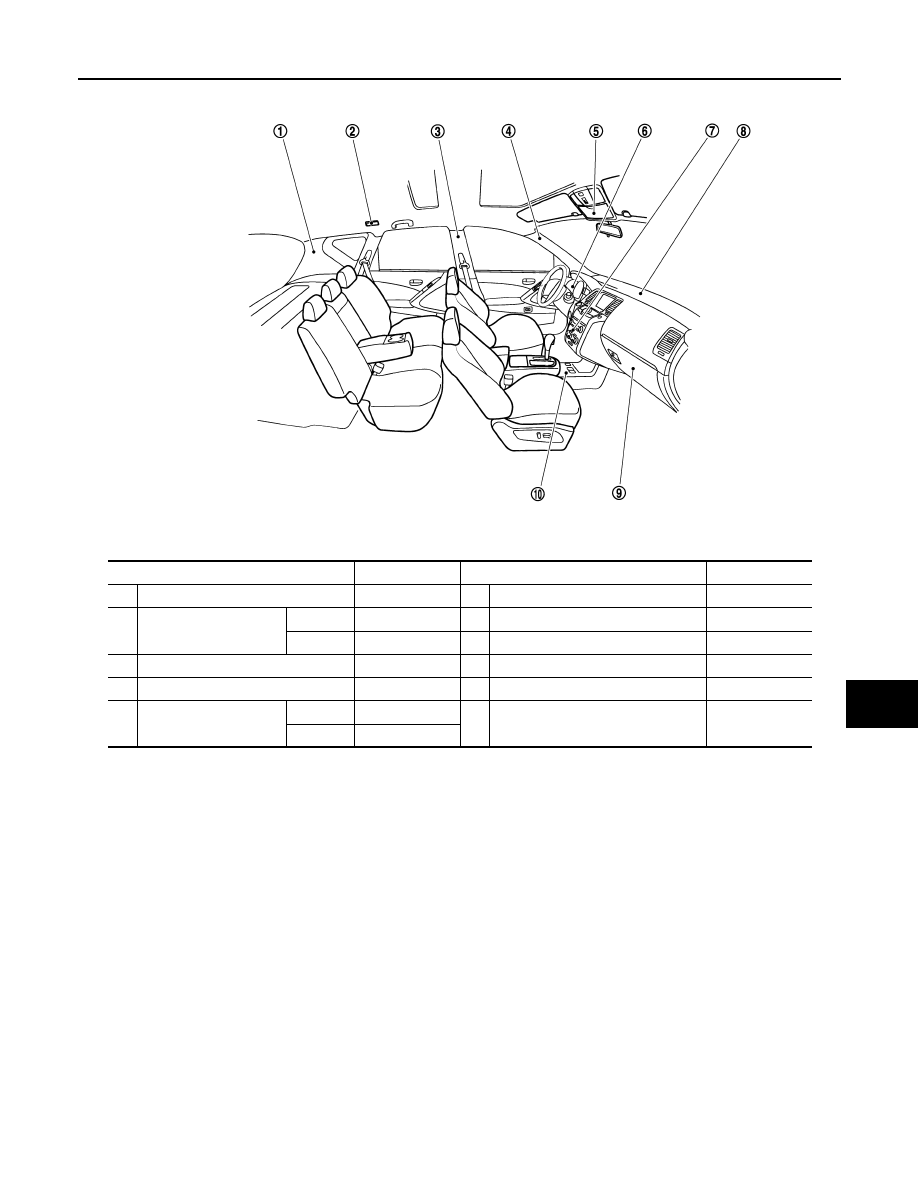

LOCATION OF PLASTIC PARTS

BRM-57

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Component

Material

Component

Material

1

Luggage side finisher

PP

6

Cluster lid A

ABS

2

Personal  lamp

Lens

PC

7

Cluster lid C

PC + ABS

Housing

PP

8

Instrument panel

PP

3

Center pillar garnish

PP

9

Glove box

PP

4

Front pillar garnish

PP

10

Center console

PP

5

Map  lamp

Lens

PC

Housing

PP

JSKIA0573ZZ

BRM-58

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR MEXICO]

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Description

INFOID:0000000009718065

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

Engine Compartment

INFOID:0000000009718066

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

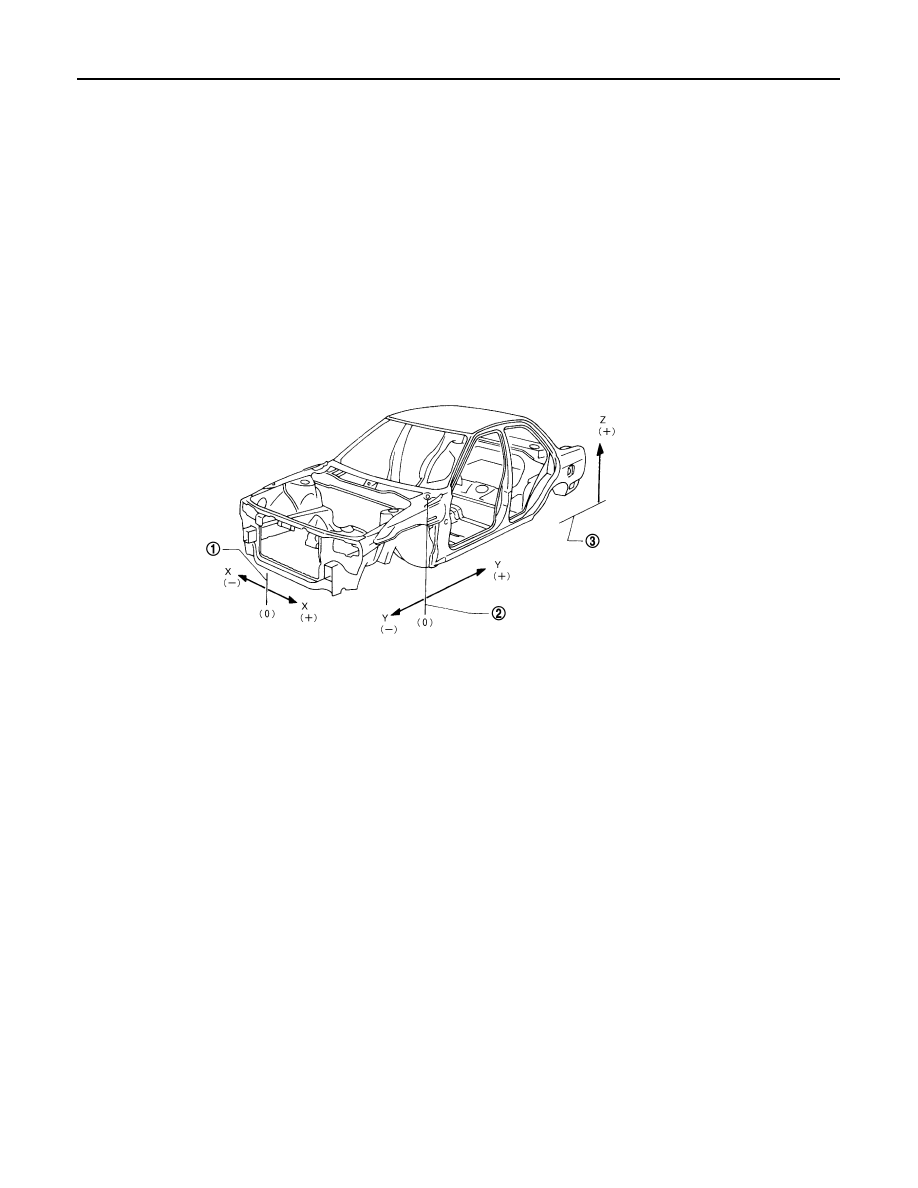

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BODY ALIGNMENT

BRM-59

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR MEXICO]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

«The others»

Unit: mm (in)

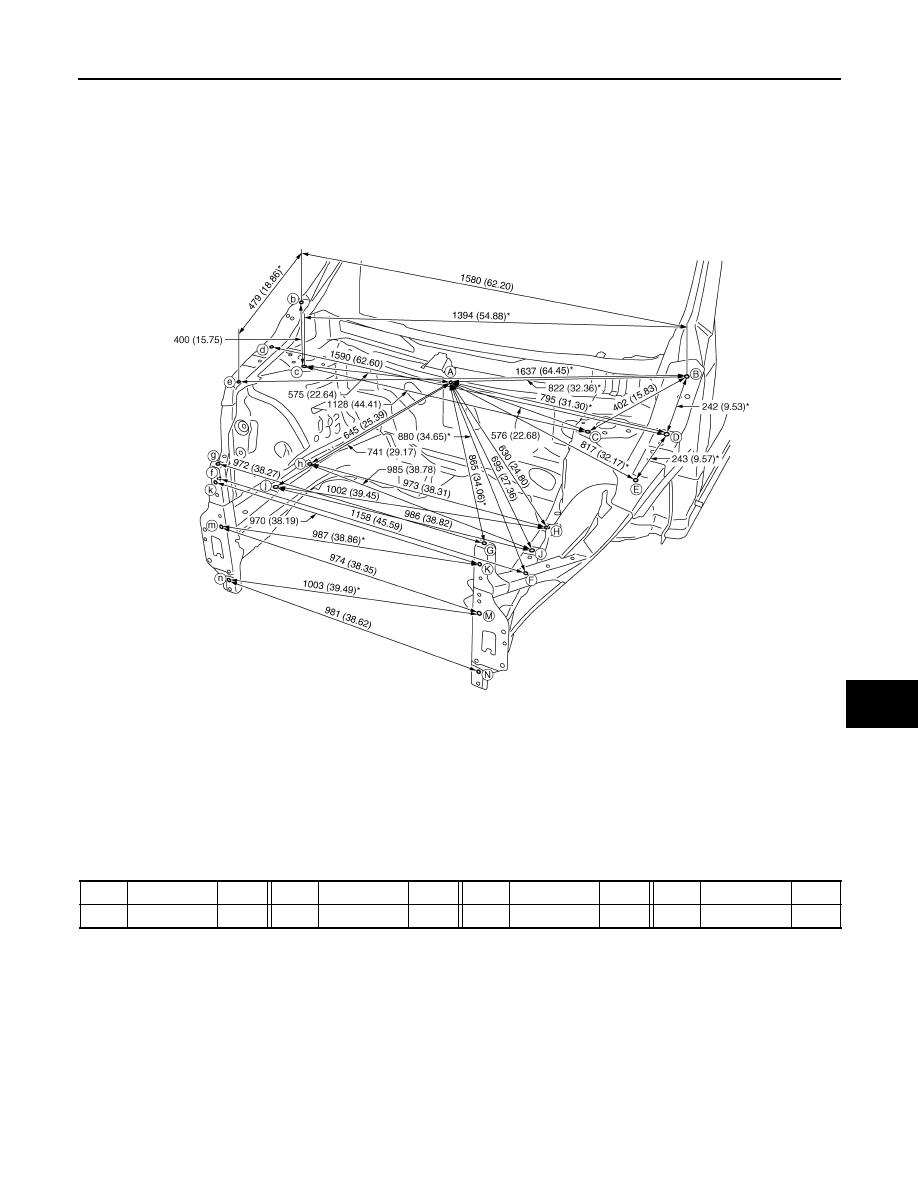

MEASUREMENT POINTS

Unit: mm (in)

JSKIA0544GB

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

B - c

1394 (54.88)*

E - e

1550 (61.02)

BRM-60

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR MEXICO]

BODY ALIGNMENT

Unit: mm (in)

Underbody

INFOID:0000000009718067

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

: Vehicle front

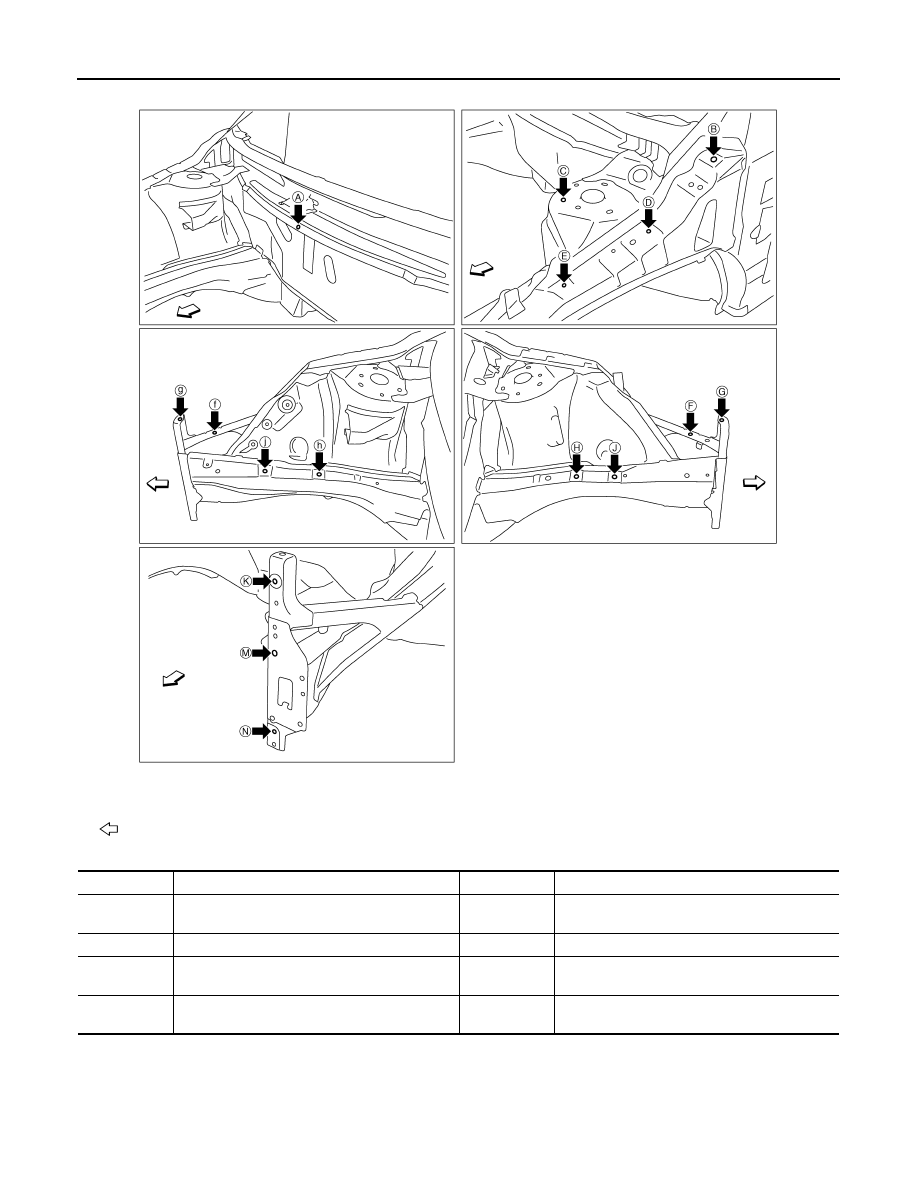

JSKIA0545ZZ

Point

Material

Point

Material

A

Cowl top extension installing hole center of cen-
ter positioning mark

φ

7 (0.28)

F, f

Upper radiator core support hole center

φ

12

(0.47)

B, b

Hood hinge installing hole center

φ

13 (0.51)

G, g, K, k, N, n

Front end module installing hole center

φ

9 (0.35)

C, c

Front strut installing hole center 16

×

10

(0.63

×

0.39)

H, h, J, j

Front side member hole center

φ

14 (0.55)

D, d, E, e

Upper front fender bracket installing hole center

φ

7 (0.28)

M, m

Bumper stay installing hole center

φ

12 (0.47)
