RAX-8

< REMOVAL AND INSTALLATION >

[2WD]

REAR WHEEL HUB AND HOUSING

CAUTION:

Temporarily tighten nuts to prevent damage to threads and to prevent the ball joint remover from
coming off.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform the final tightening of each of parts under unladen conditions, which were removed when removing

wheel hub and bearing assembly and steering knuckle.

• Never reuse cotter pin.

Inspection

INFOID:0000000009720602

INSPECTION AFTER REMOVAL

Wheel Hub and Bearing Assembly

Check the wheel hub and bearing assembly for wear, cracks, and damage. Replace if necessary.

Axle Housing

Check the axle housing for wear, cracks, and damage. Replace if necessary.

Ball Joint Inspection

Check for boot breakage, axial looseness, and torque of suspension arm ball joint. Refer to

RSU-16, "Inspec-

tion"

.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-124, "REAR WHEEL SENSOR :

Exploded View"

.

2.

Adjust parking brake operation (stroke). Refer to

PB-3, "Inspection and Adjustment"

.

3.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

4.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-9

< SERVICE DATA AND SPECIFICATIONS (SDS)

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000009720603

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

RAX-10

< SYMPTOM DIAGNOSIS >

[AWD]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009720604

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

—

RAX-22

—

RAX-13

—

NVH in DLN section

NVH in DLN section

NVH in RAX

 and RSU

sections

Refer to REAR AXLE i

n

 t

h

is chart

NVH in WT

section

NVH in WT

section

Ref

e

r t

o

 DRIVE

 SHAFT

 in this

chart

NVH in BR

section

Possible cause and SUSPECTED PARTS

Ex

ce

ss

iv

e j

oi

nt

 an

gl

e

Jo

in

t s

lid

in

g re

si

st

an

ce

Imb

al

anc

e

Im

p

rop

er i

n

s

ta

lla

tio

n

,

loo

s

en

es

s

P

a

rt

s interference

PR

OP

EL

LE

R

 S

H

A

F

T

DIFFERENTIAL

REA

R

 AXLE AND REAR S

U

SPENSION

REA

R

 AXLE

TI

RE

ROAD W

H

EEL

DRIV

E SHAFT

BR

AK

E

Symptom

DRIVE
SHAFT

Noise

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

REAR AXLE

Noise

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

Judder

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

PRECAUTIONS

RAX-11

< PRECAUTION >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PRECAUTION

PRECAUTIONS

Precautions for Drive Shaft

INFOID:0000000009720605

• Observe the following precautions when disassembling and assembling drive shaft.
• Never disassemble joint sub-assembly because it is non-overhaul parts.
• Perform work in a location which is as dust-free as possible.
• Clean the parts, before disassembling and assembling.
• Prevent the entry of foreign objects during disassembly of the service location.
• Reassemble disassembled parts carefully in the correct order. If work is interrupted, a clean cover must be

placed over parts.

• Use paper waste. Do not use fabric shop cloths because of the danger of lint adhering to parts.
• Clean disassembled parts (except for rubber parts) with kerosene which shall be removed by blowing with

air or wiping with paper waste.

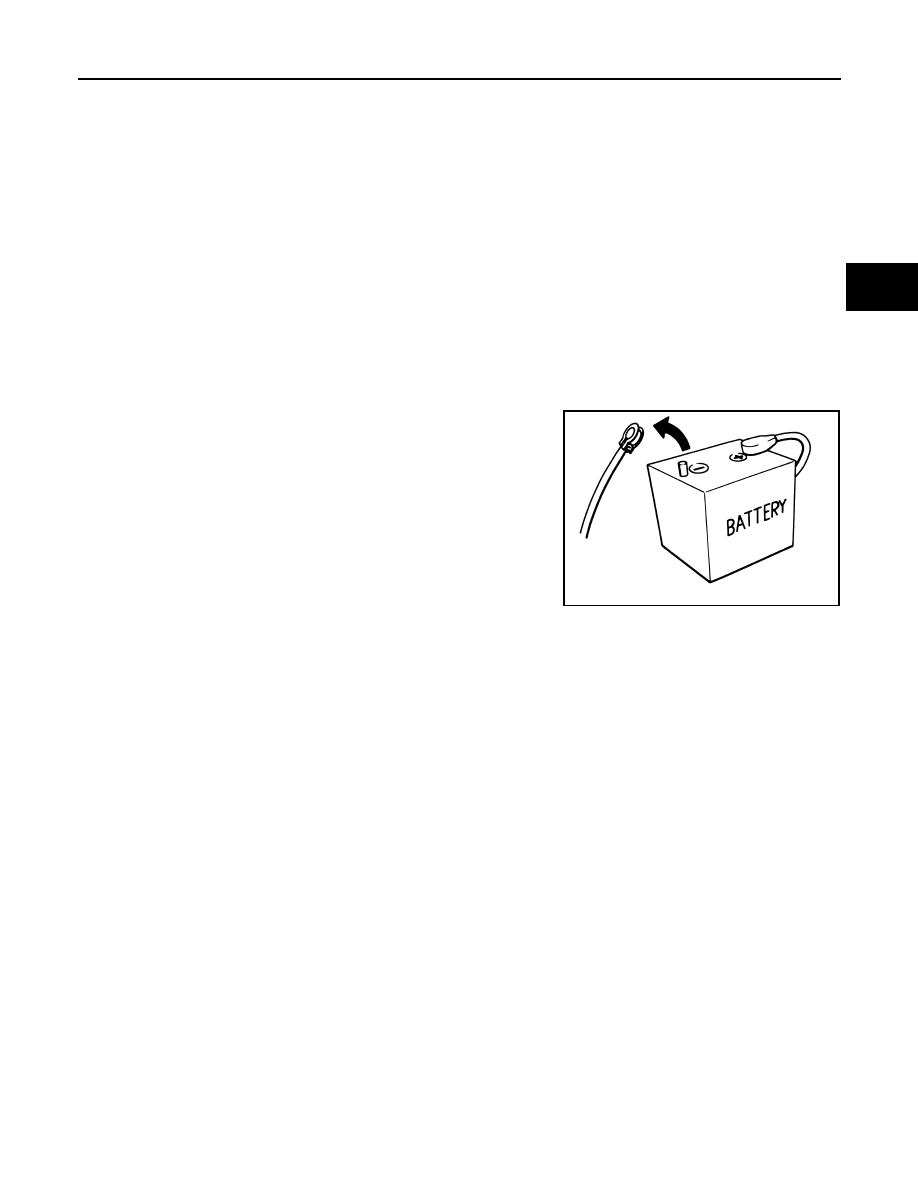

Precautions for Removing of Battery Terminal

INFOID:0000000009956970

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H
