Nissan Murano. Manual - part 1090





PCS-122

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE

SYMPTOM DIAGNOSIS

PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE

Description

INFOID:0000000009722687

Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check
each symptom.
NOTE:
The engine start function, door lock function, power distribution system, and NATS-IVIS/NVIS in the Intelligent
Key system are closely related to each other regarding control. The vehicle security function can operate only
when the door lock and power distribution system are operating normally.

Conditions of Vehicle (Operating Conditions)

• “ENGINE START BY I-KEY” in “WORK SUPPORT” is ON when setting on CONSULT.
• Intelligent Key is not inserted in key slot.
• One or more of Intelligent Keys with registered Intelligent Key ID is in the vehicle.

Diagnosis Procedure

INFOID:0000000009722688

1.

PERFORM WORK SUPPORT

Perform “INSIDE ANT DIAGNOSIS” on Work Support of “INTELLIGENT KEY”.
Refer to

DLK-57, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSTIC RESULT

Perform Self-Diagnostic Result of “BCM”.
Is DTC detected?

YES

>> Refer to

DLK-91, "DTC Logic"

 (console) or

DLK-93, "DTC Logic"

 (trunk room).

NO

>> GO TO 3.

3.

CHECK PUSH-BUTTON IGNITION SWITCH

Check push-button ignition switch.
Refer to

PCS-67, "Component Function Check"

.

Is the operation normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.

Is the inspection normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> GO TO 1.

PCS

PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR DOES NOT ILLUMI-

NATE

PCS-123

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR DOES NOT IL-
LUMINATE

Description

INFOID:0000000009722689

• Before performing the diagnosis in the following table, check “Work Flow”. Refer to

PCS-38, "Work Flow"

.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

Conditions of Vehicle (Operating Conditions)

• “ENGINE START BY I-KEY” in “WORK SUPPORT” is ON when setting on CONSULT.
• One or more of Intelligent Keys with registered Intelligent Key ID is in the vehicle.

Diagnosis Procedure

INFOID:0000000009722690

1.

CHECK PUSH-BUTTON IGNITION SWITCH INDICATOR

Check push-button ignition switch indicator.
Refer to

PCS-69, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> GO TO 1.

PCS-124

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH

REMOVAL AND INSTALLATION

PUSH-BUTTON IGNITION SWITCH

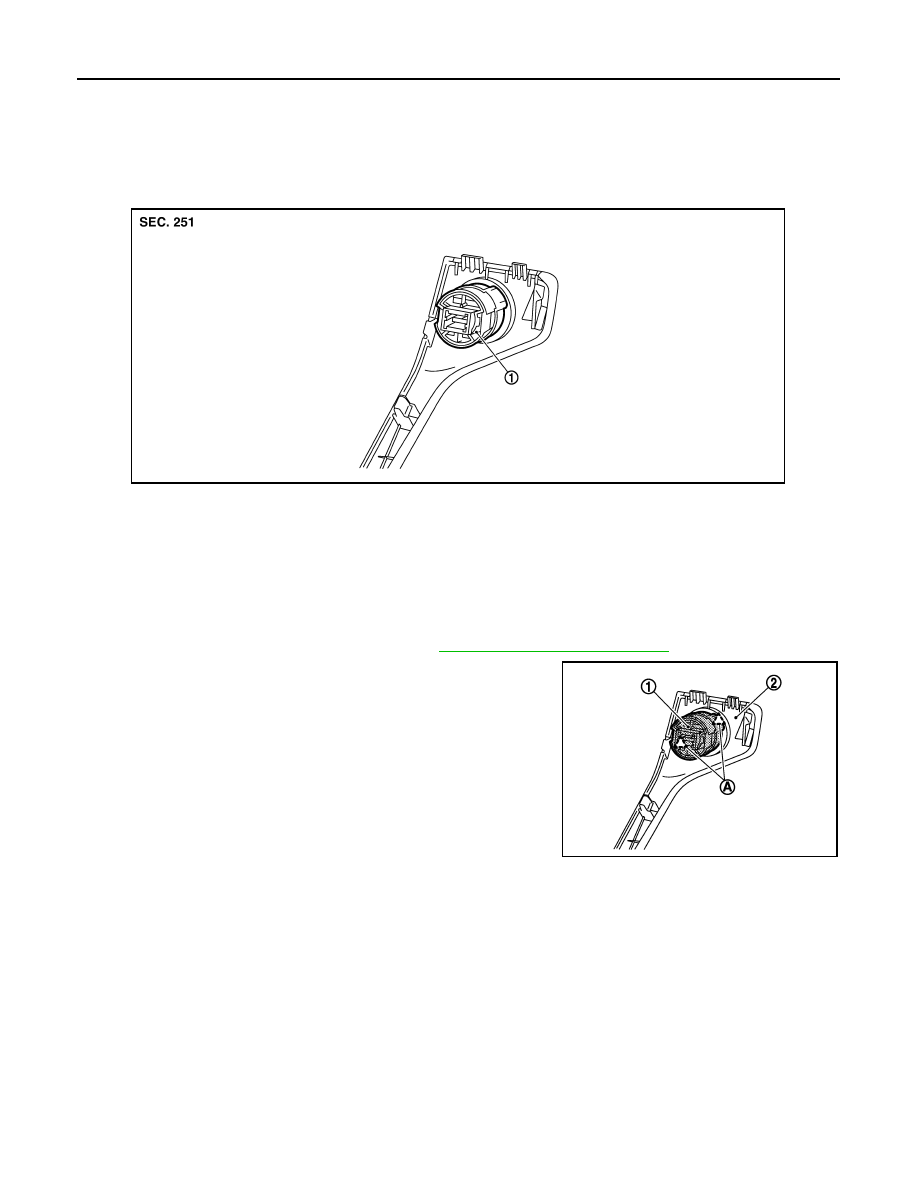

Exploded View

INFOID:0000000009722691

Removal and Installation

INFOID:0000000009722692

REMOVAL

1.

Remove the instrument stay cover LH. Refer to

IP-15, "Removal and Installation"

.

2.

Remove the push-button ignition switch (1) from instrument stay
cover LH, after removing pawl (A). Press push-button ignition
switch (1) back to disengage from instrument stay cover LH (2).

INSTALLATION

Install in the reverse order of removal.

1.

Push-button ignition switch

JMKIA1812ZZ

JMKIA1813ZZ

PG

PG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PG

A

O

P

N

CONTENTS

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

POWER SUPPLY&GROUND CIRCUIT

BASIC INSPECTION  ....................................

3

BATTERY ............................................................

3

How to Handle Battery  ..............................................

3

Work Flow  .................................................................

3

DTC/CIRCUIT DIAGNOSIS  ..........................

6

POWER SUPPLY ROUTING CIRCUIT  ...............

6

Wiring Diagram - BATTERY POWER SUPPLY - ......

6

Wiring Diagram - BATTERY POWER SUPPLY
FUSIBLE LINK No. L -  ............................................

32

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 6 - ...........................................................

33

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 9 - ...........................................................

34

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 11 - .........................................................

35

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 35 - .........................................................

36

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 50 - .........................................................

37

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 52 - .........................................................

38

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 53 - .........................................................

39

Wiring Diagram - ACCESSORY POWER SUP-
PLY -  .......................................................................

41

Wiring Diagram - ACCESSORY POWER SUP-
PLY FUSE No. 19 -  .................................................

46

Wiring Diagram - IGNITION POWER SUPPLY - ....

47

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 3 - ...........................................................

63

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 4 - ...........................................................

64

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 44 - .........................................................

65

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 47 - .........................................................

66

Fuse .........................................................................

67

Fusible Link  .............................................................

70

Circuit Breaker .........................................................

70

OPTION HARNESS  ..........................................

71

Wiring Diagram - OPTION HARNESS -  ..................

71

HARNESS LAYOUT  .........................................

73

Outline .....................................................................

73

Engine Room Harness  ............................................

74

Engine Control Harness  ..........................................

76

Main Harness  ..........................................................

77

Body Harness  ..........................................................

78

Door Harness  ..........................................................

80

Room Lamp Harness ...............................................

85

HARNESS CONNECTOR  .................................

86

Description ...............................................................

86

STANDARDIZED RELAY  .................................

89

Description ...............................................................

89

FUSE BLOCK - JUNCTION BOX (J/B)  ............

91

Fuse, Connector and Terminal Arrangement  ..........

91

FUSE, FUSIBLE LINK AND RELAY BOX ........

92

Fuse and Fusible Link Arrangement ........................

92

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

93

Fuse, Connector and Terminal Arrangement  ..........

93

PRECAUTION ..............................................

94

PRECAUTIONS .................................................

94

FOR USA AND CANADA  ..........................................

94

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ............................

94

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal ......................................

94
