< PREPARATION >

[R9M]

PREPARATION

PREPARATION

PREPARATION

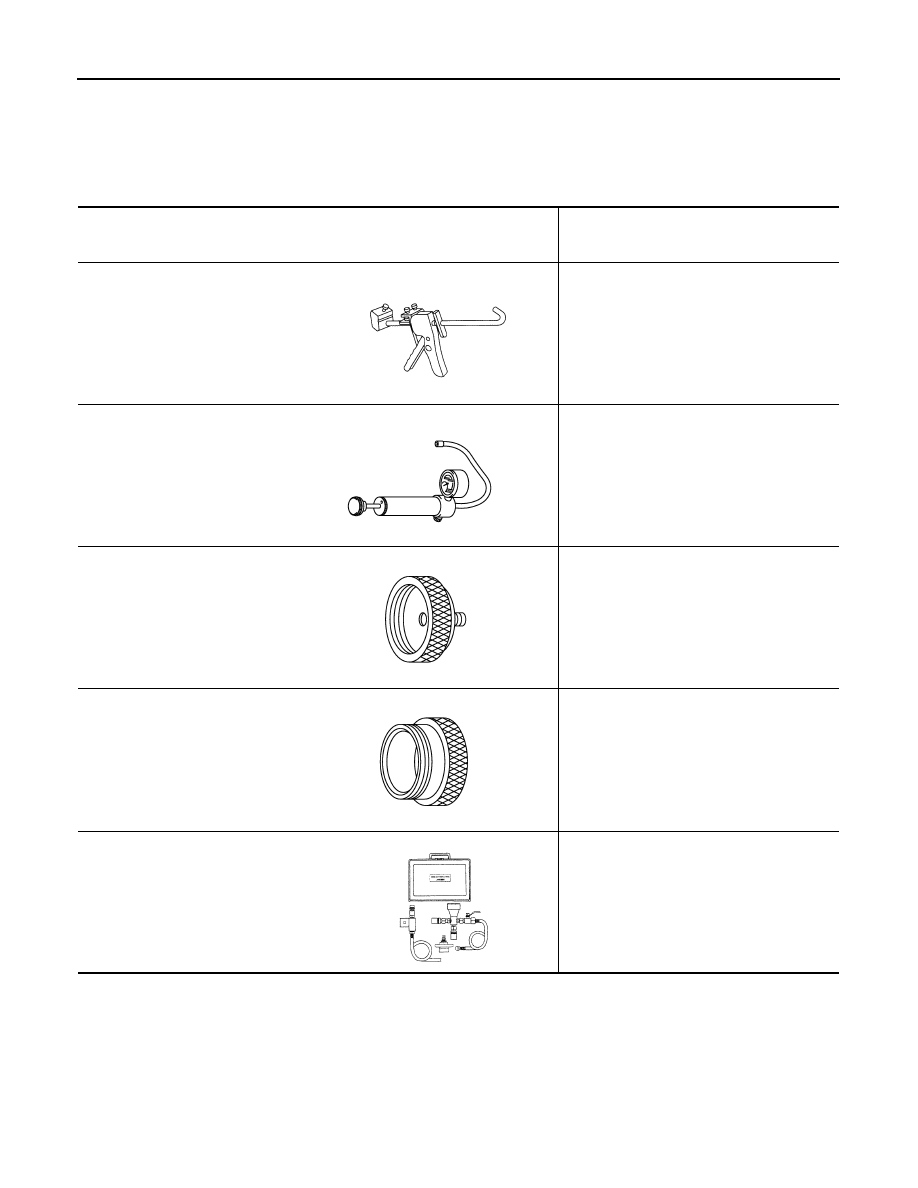

Special Service Tool

INFOID:0000000010969419

NISSAN tool number
(RENAULT too number)
Tool name

Description

WS39930000
(        —       )
Tube pressure

Pressing the tube of liquid gasket

 —
(M.S. 554-07)
Tester

Leak checking
Checking reservoir tank cap

 —
(M.S. 554-01)
Reservoir tank cap tester adapter A

Adapting tester to reservoir tank

 —
(M.S. 554-06)
Reservoir tank cap tester adapter B

Adapting tester to reservoir tank cap

NI. 205
 —
Coolant refill tool

Refilling engine cooling system

S-NT052

MLIA0012E

MLIA0013E

MLIA0014E

LMA053

DESCRIPTION

CO-59

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SYSTEM DESCRIPTION

DESCRIPTION

Engine Cooling System

INFOID:0000000010782988

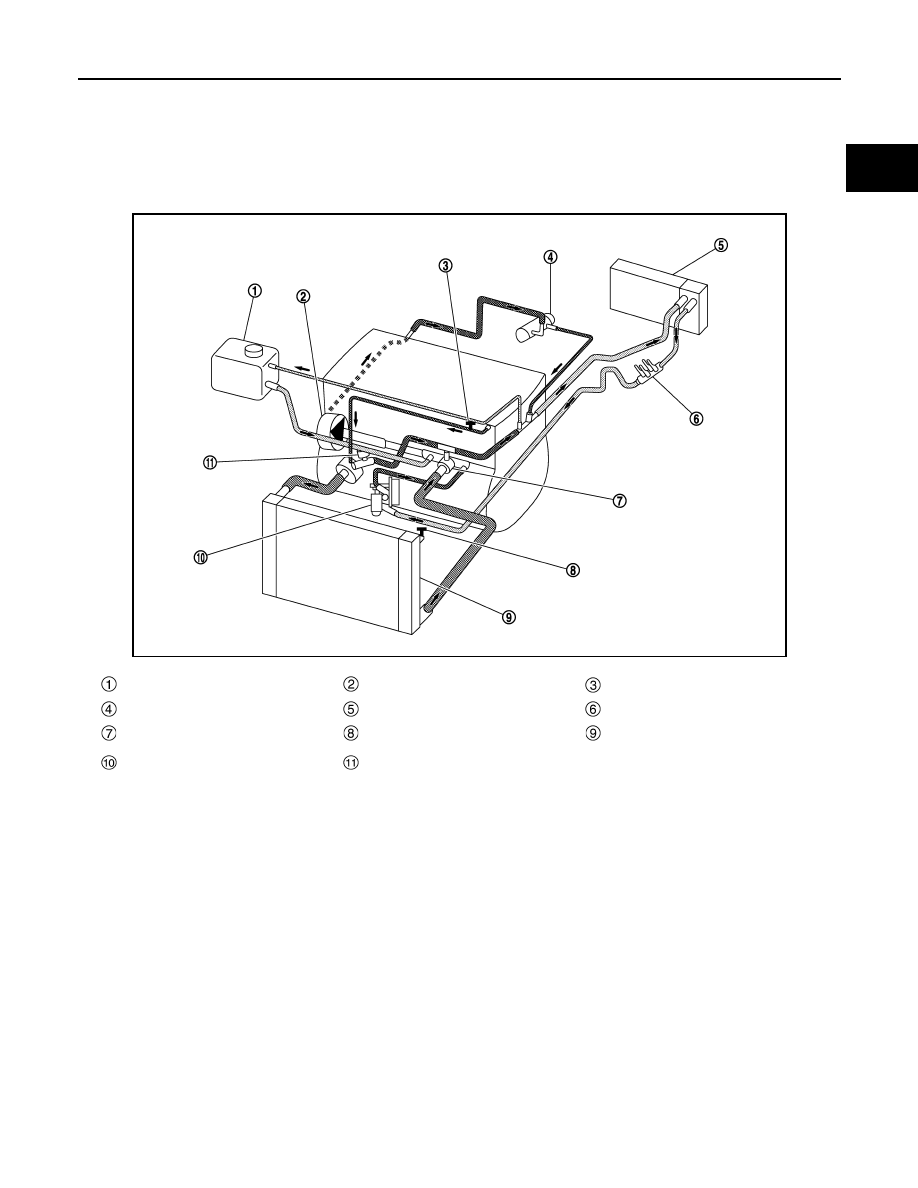

M/T models

E1BIA1150ZZ

Reservoir tank

Water pump

Air relief plug

EGR cooler

Heater

Thermoplunger

Water inlet (Thermostat housing)

Air relief plug

Radiator

Oil cooler

Water outlet (With engine coolant by-
pass valve)

CO-60

< SYSTEM DESCRIPTION >

[R9M]

DESCRIPTION

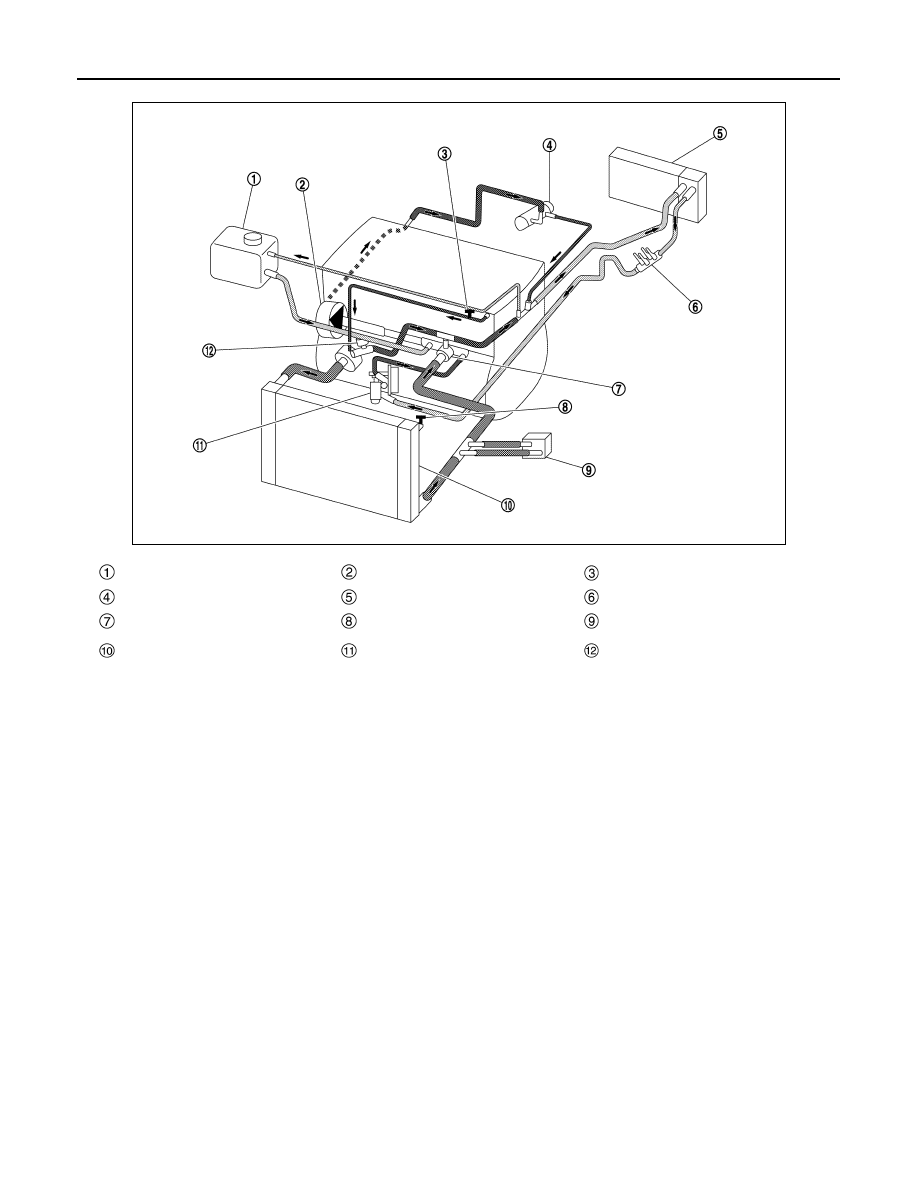

CVT models

JPBIA6987ZZ

Reservoir tank

Water pump

Air relief plug

EGR cooler

Heater

Thermoplunger

Water inlet (Thermostat housing)

Air relief plug

CVT oil warmer

Radiator

Oil cooler

Water outlet (With engine coolant by-
pass valve)

DESCRIPTION

CO-61

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

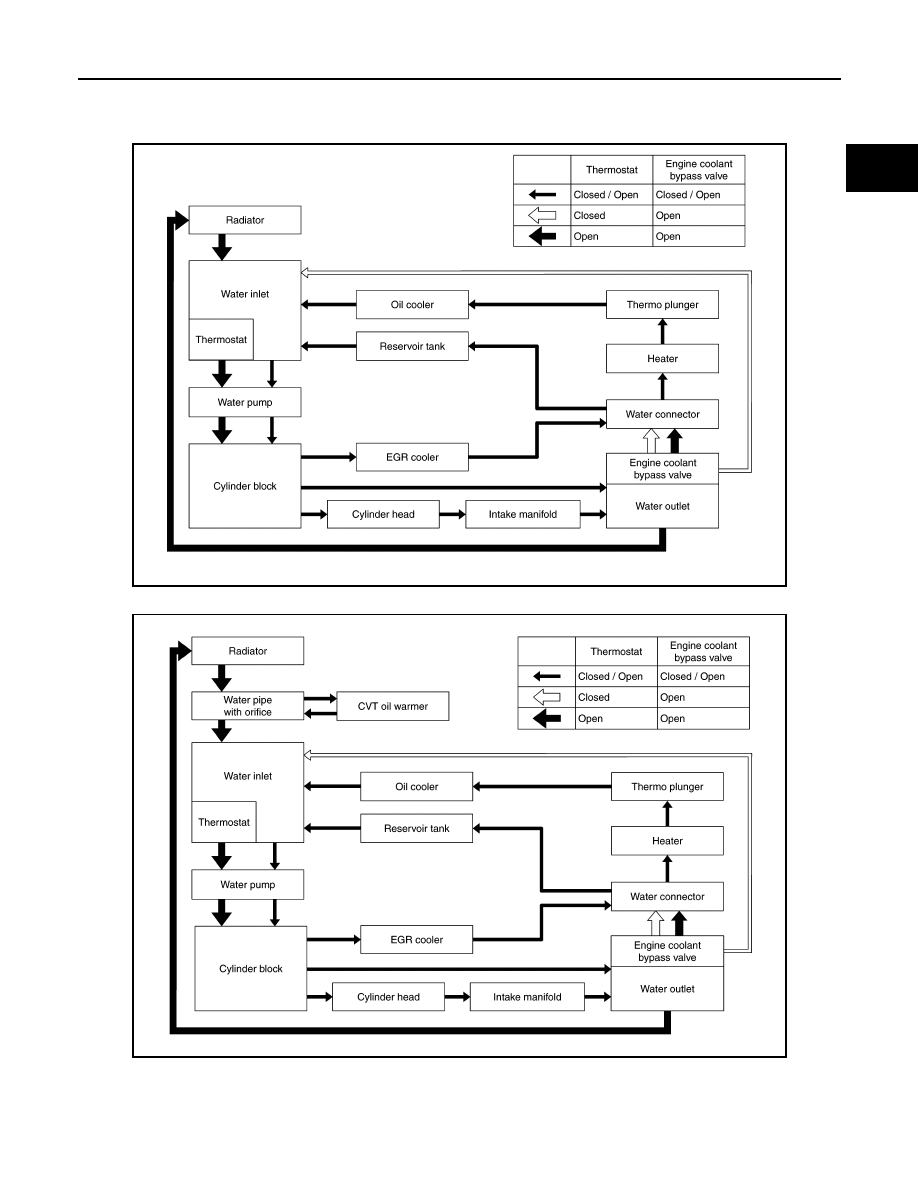

Engine Cooling System Schematic

INFOID:0000000010782989

M/T models

CVT models

JPBIA6917GB

JPBIA6918GB
