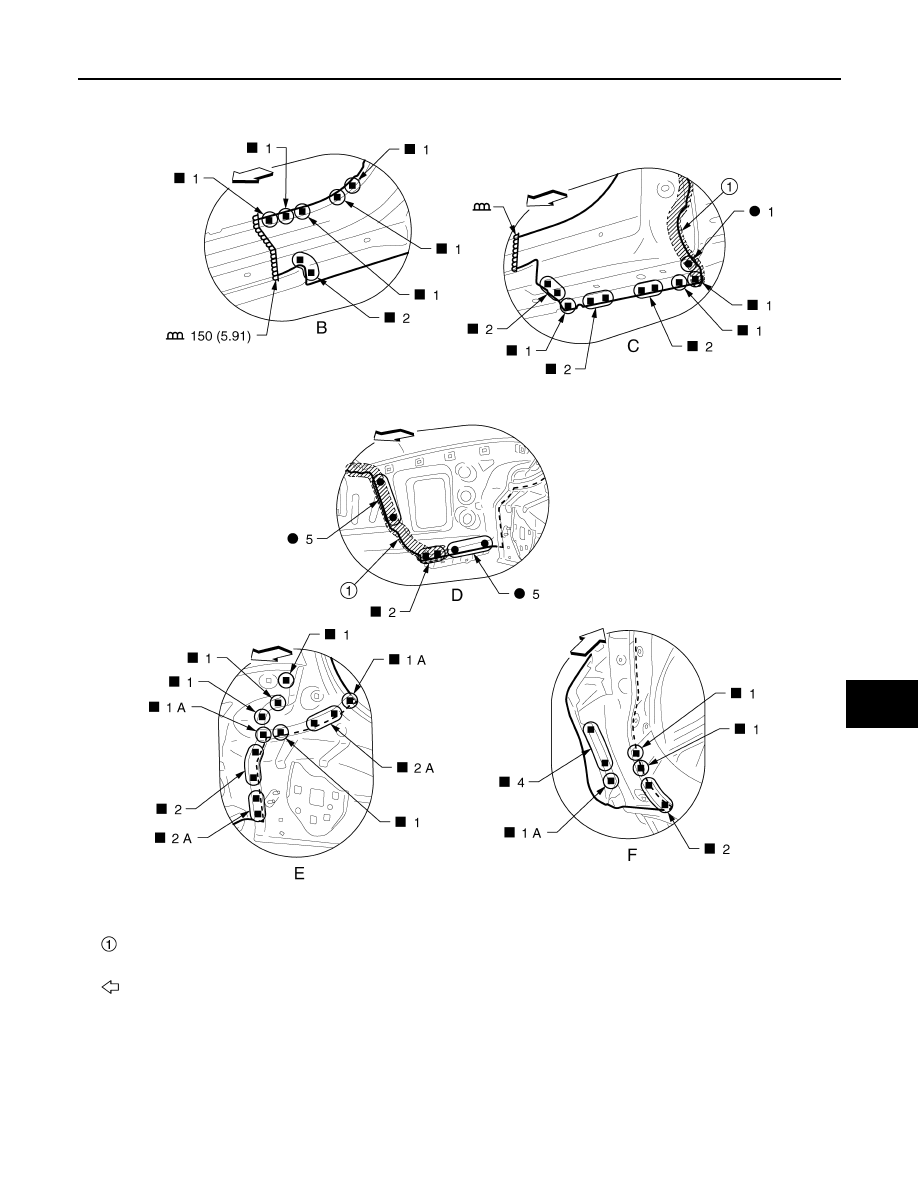

Body sealing

Unit: mm (in)

: Vehicle front

JSKIA4613GB

BRM-134

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

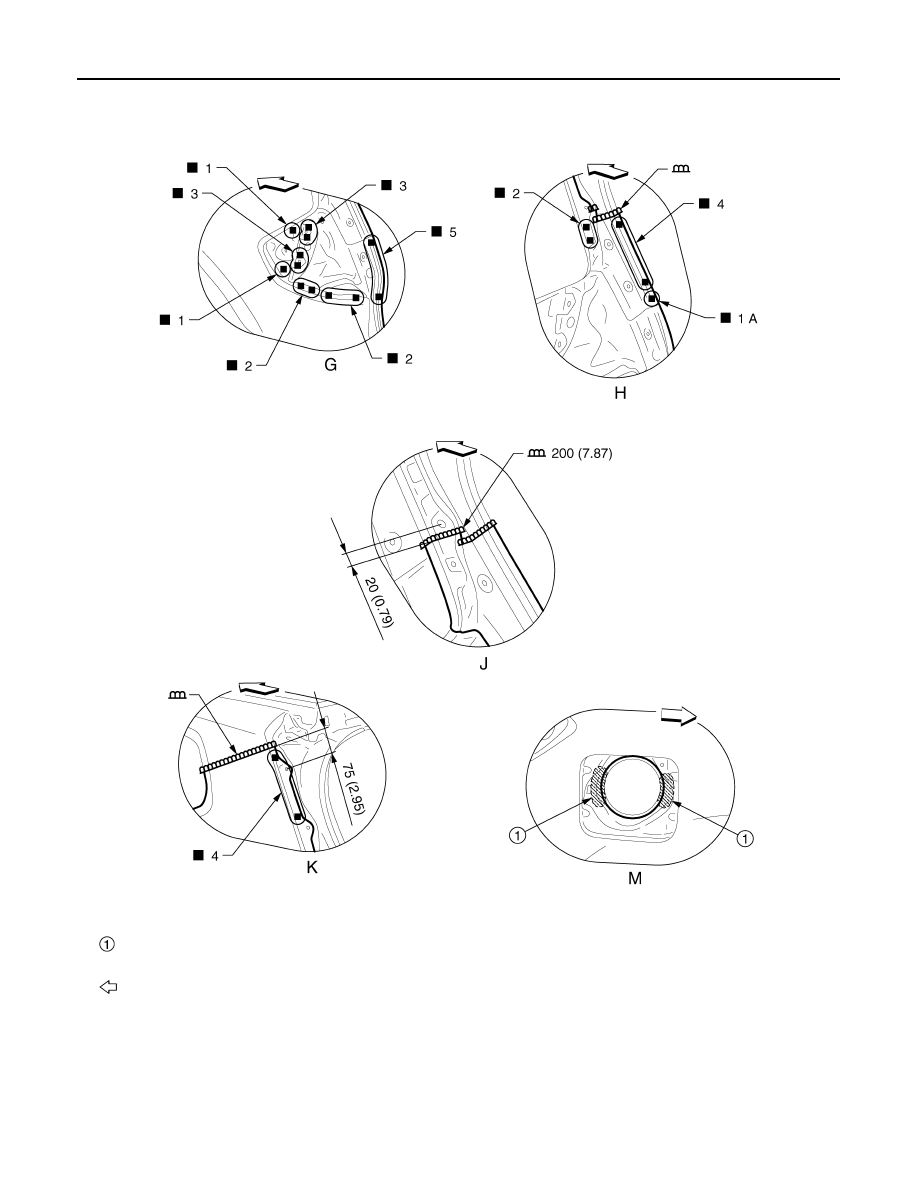

View J: Before installing rear fender
View M: Right side rear fender

Adhesive

Unit: mm (in)

: Vehicle front

JSKIA3865GB

REPLACEMENT OPERATIONS

BRM-135

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Fender Extension

INFOID:0000000011005437

Outer Rear Wheelhouse

INFOID:0000000011005438

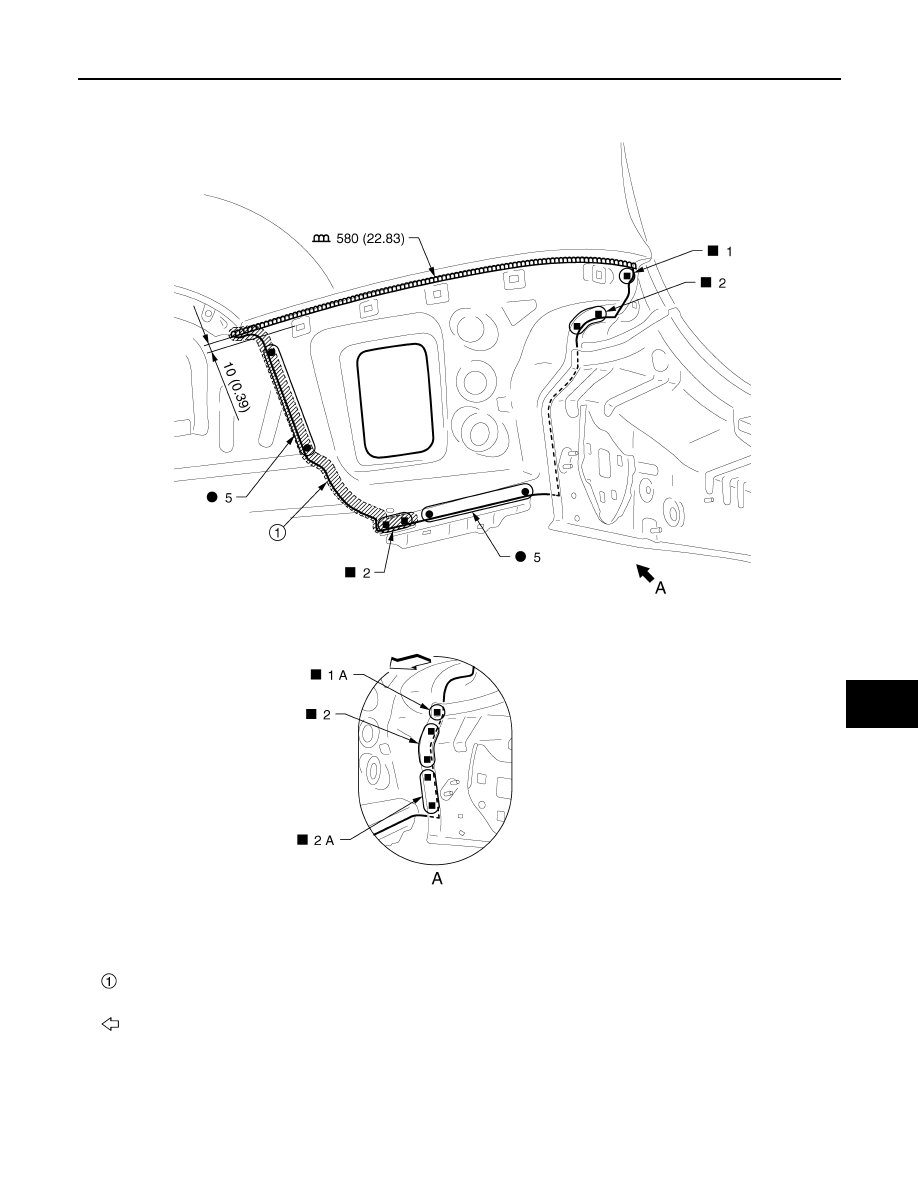

Work after rear fender is removed.

Body sealing

Unit: mm (in)

: Vehicle front

Replacement part

z

Rear fender extension

JSKIA4930GB

BRM-136

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

Inner Rear Wheelhouse

INFOID:0000000011005439

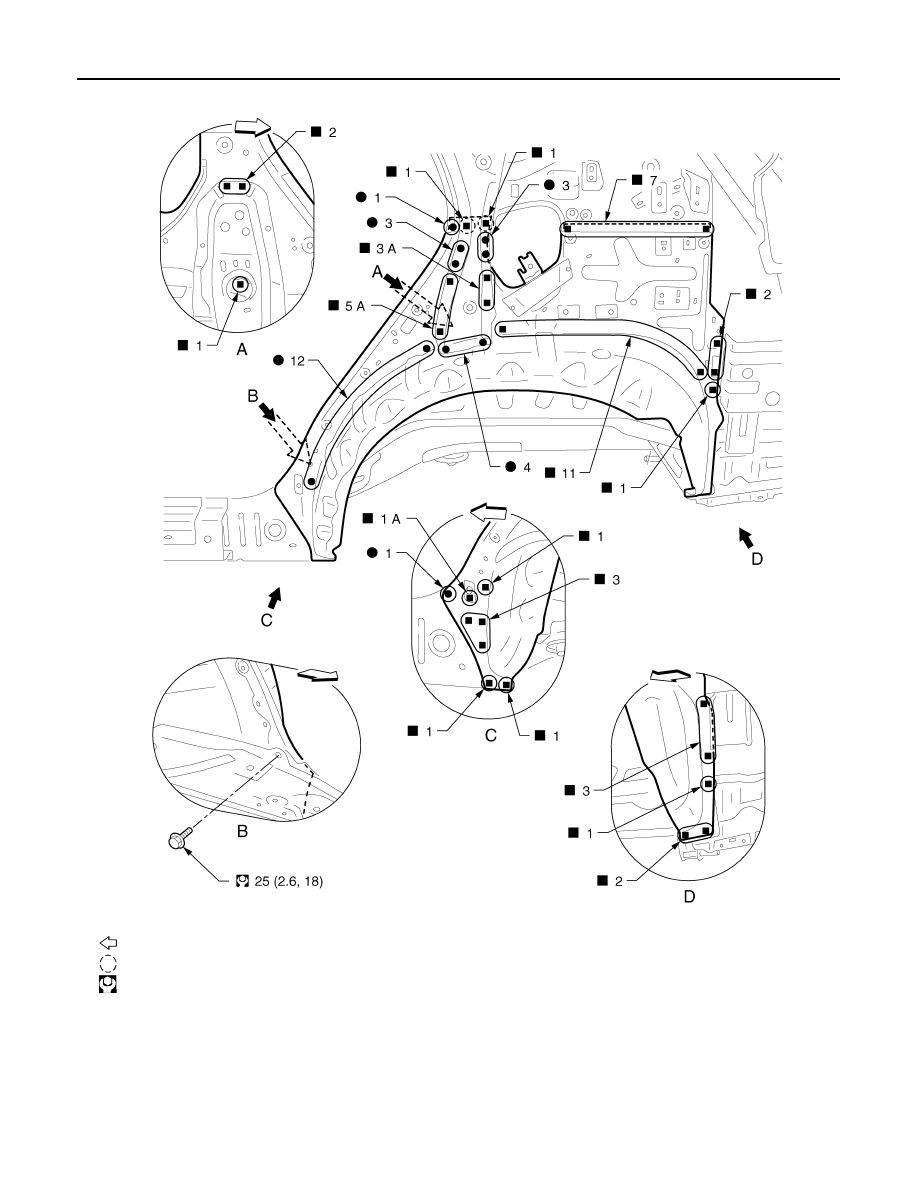

Work after rear fender and outer rear wheelhouse are removed.

: Vehicle front

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

Replacement part

z

Outer rear wheelhouse

JSKIA4931GB
