BRC-254

< WIRING DIAGRAM >

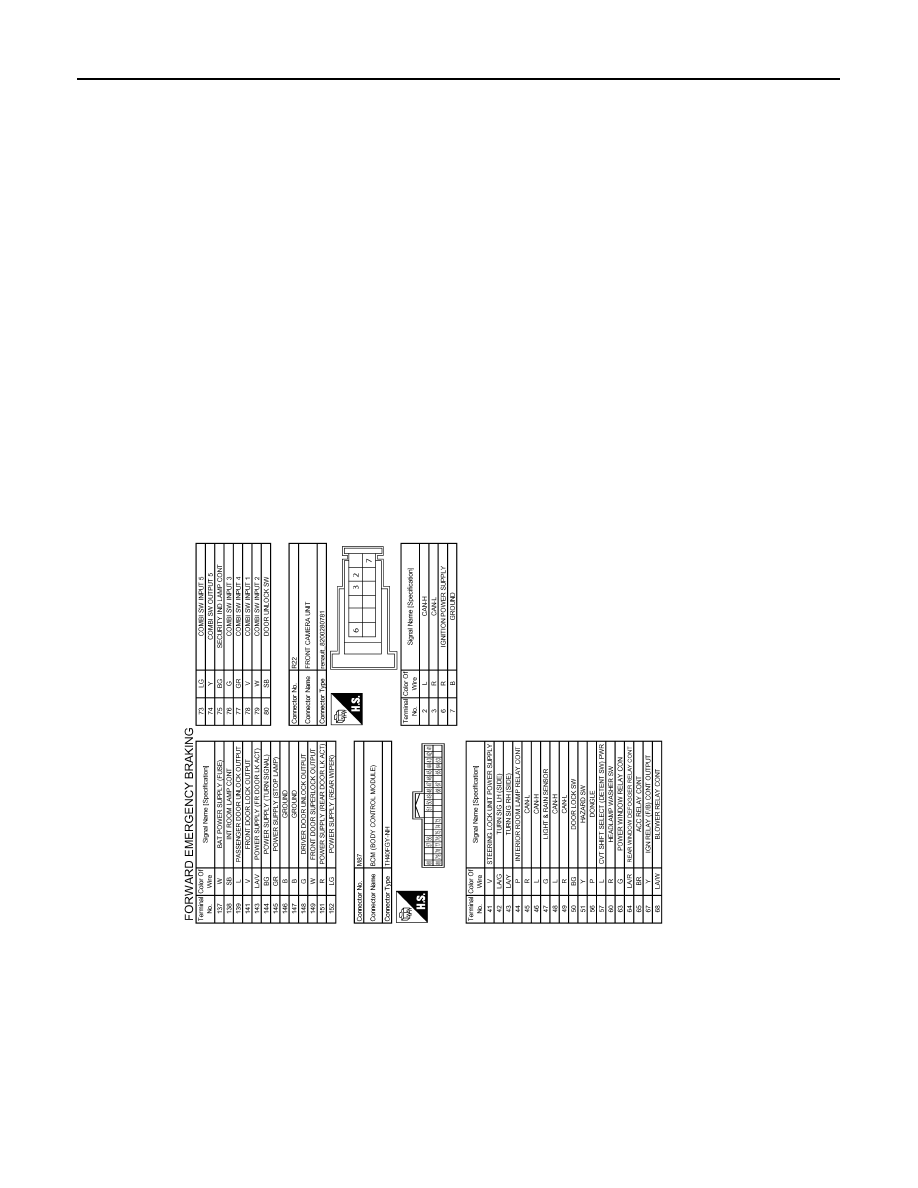

[FORWARD EMERGENCY BRAKING]

FORWARD EMERGENCY BRAKING

JRFWC1761GB

FORWARD EMERGENCY BRAKING

BRC-255

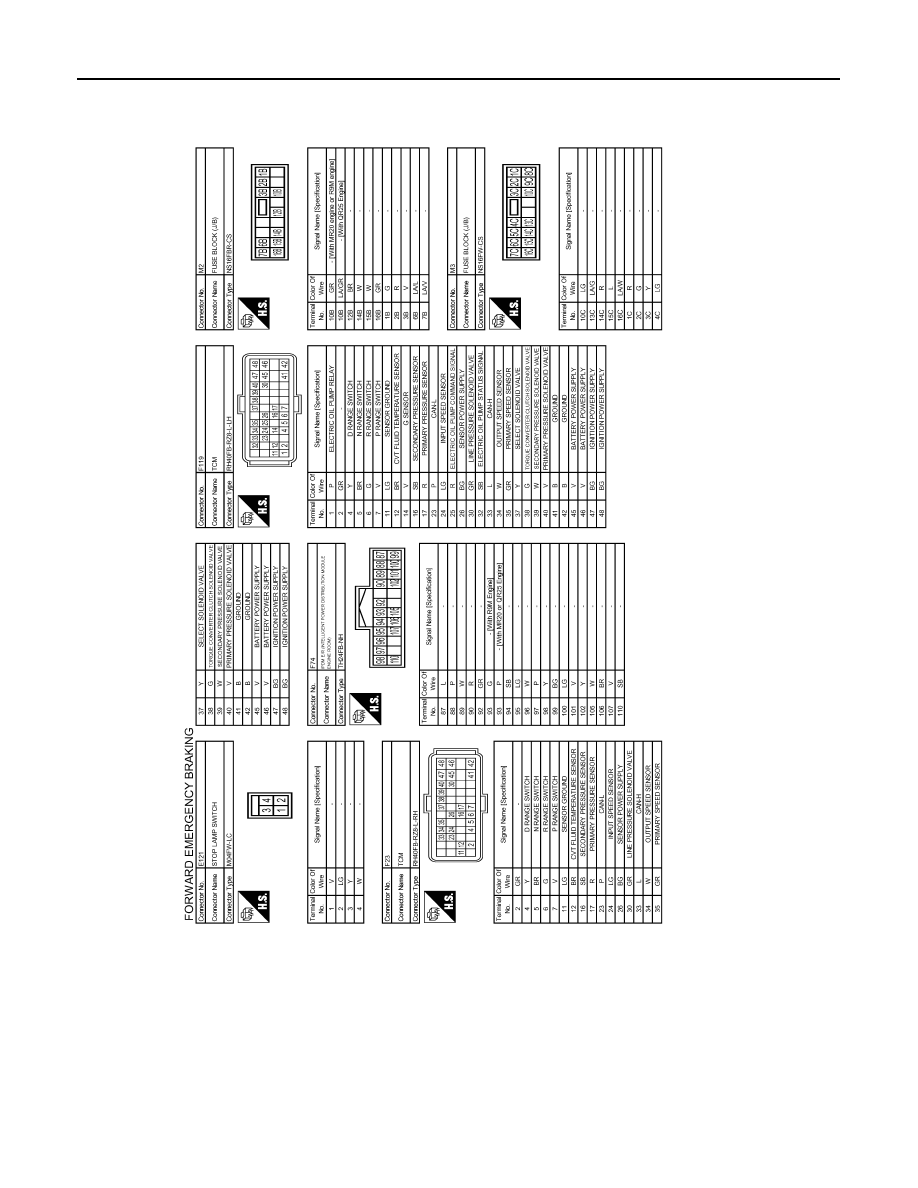

< WIRING DIAGRAM >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

JRFWC1762GB

BRC-256

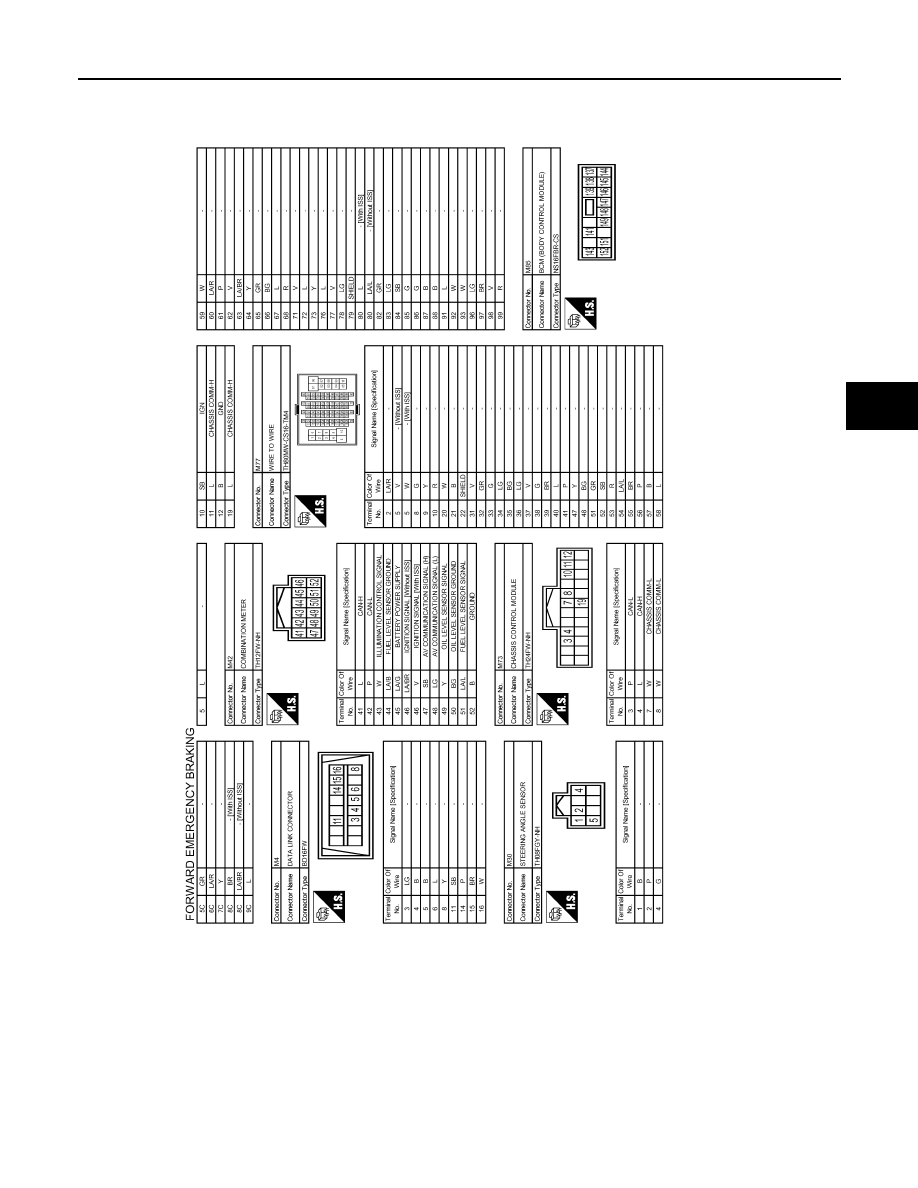

< WIRING DIAGRAM >

[FORWARD EMERGENCY BRAKING]

FORWARD EMERGENCY BRAKING

JRFWC1763GB

DIAGNOSIS AND REPAIR WORK FLOW

BRC-257

< BASIC INSPECTION >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

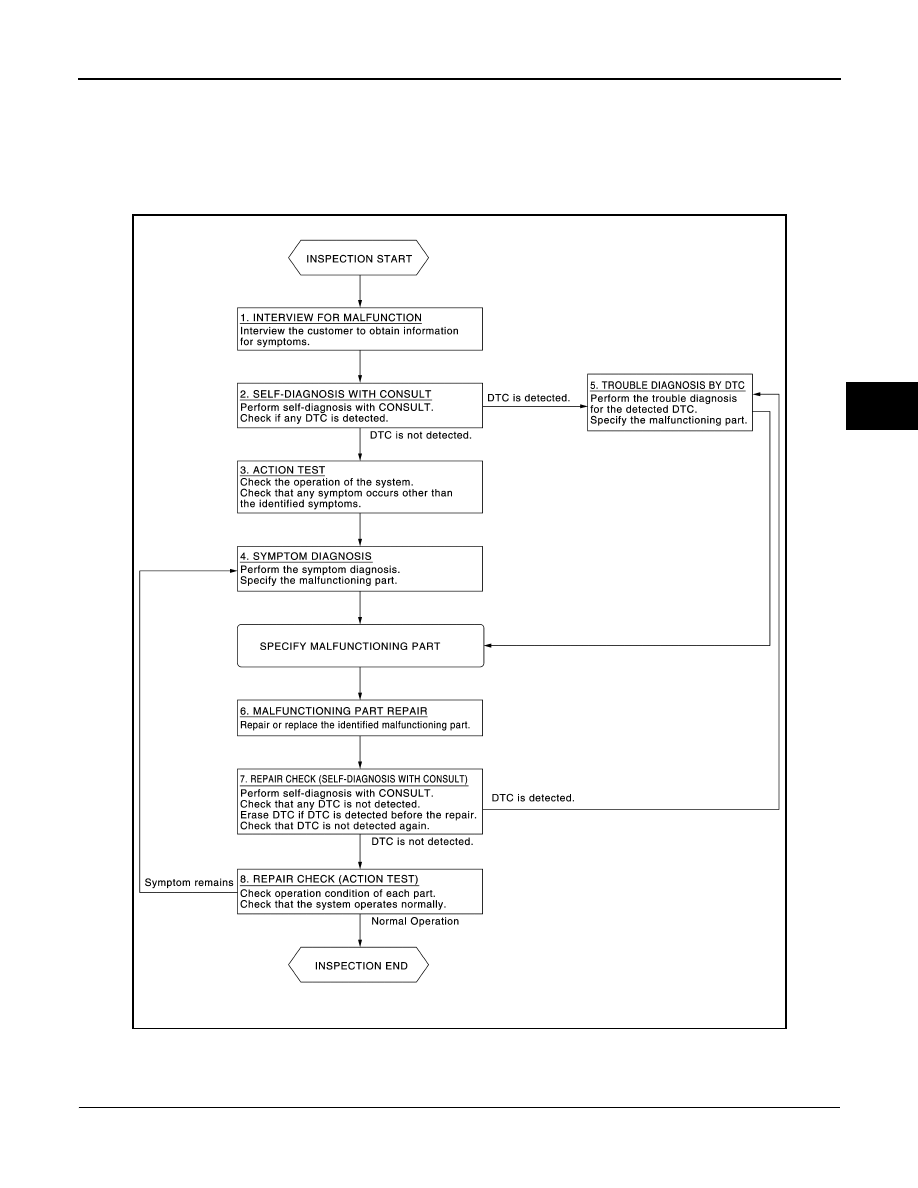

Work Flow

INFOID:0000000010721828

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

It is also important to clarify the customer concerns before starting the inspection. Interview the customer
about the concerns carefully and understand the symptoms fully.

JSOIA0485GB
