Nissan X-Trail 32. Manual - part 1548

LU-28

< PERIODIC MAINTENANCE >

[QR25DE]

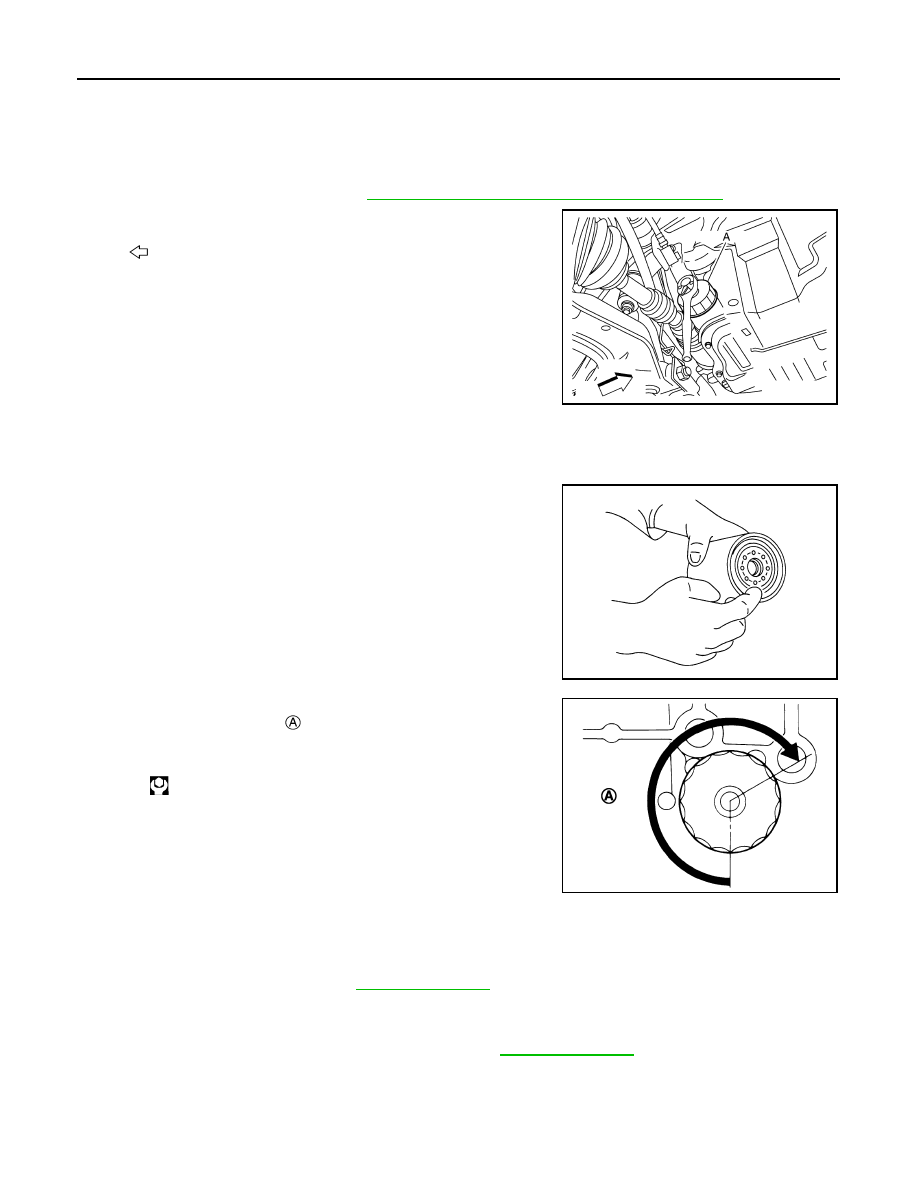

OIL FILTER

OIL FILTER

Removal and Installation

INFOID:0000000010783310

REMOVAL

1.

Remove splash guard (RH). Refer to

EXT-35, "FENDER PROTECTOR : Exploded View"

.

2.

Using oil filter wrench [SST: KV10115801] (A), remove oil filter.

CAUTION:

• Oil filter is provided with relief valve. Use genuine NISSAN

oil filter or equivalent.

• Be careful not to get burned when engine and engine oil

may be hot.

• When removing, prepare a shop cloth to absorb any

engine oil leakage or spillage.

• Completely wipe off any engine oil that adheres to engine

and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter installation surface.

2.

Apply new engine oil to the oil seal contact surface of new oil fil-
ter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn

. Or tighten to specification.

Inspection

INFOID:0000000010783311

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-25, "Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-25, "Inspection"

.

: Vehicle front

JSBIA3423ZZ

SMA010

Oil filter:

: 18.0 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ

OIL COOLER

LU-29

< REMOVAL AND INSTALLATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

REMOVAL AND INSTALLATION

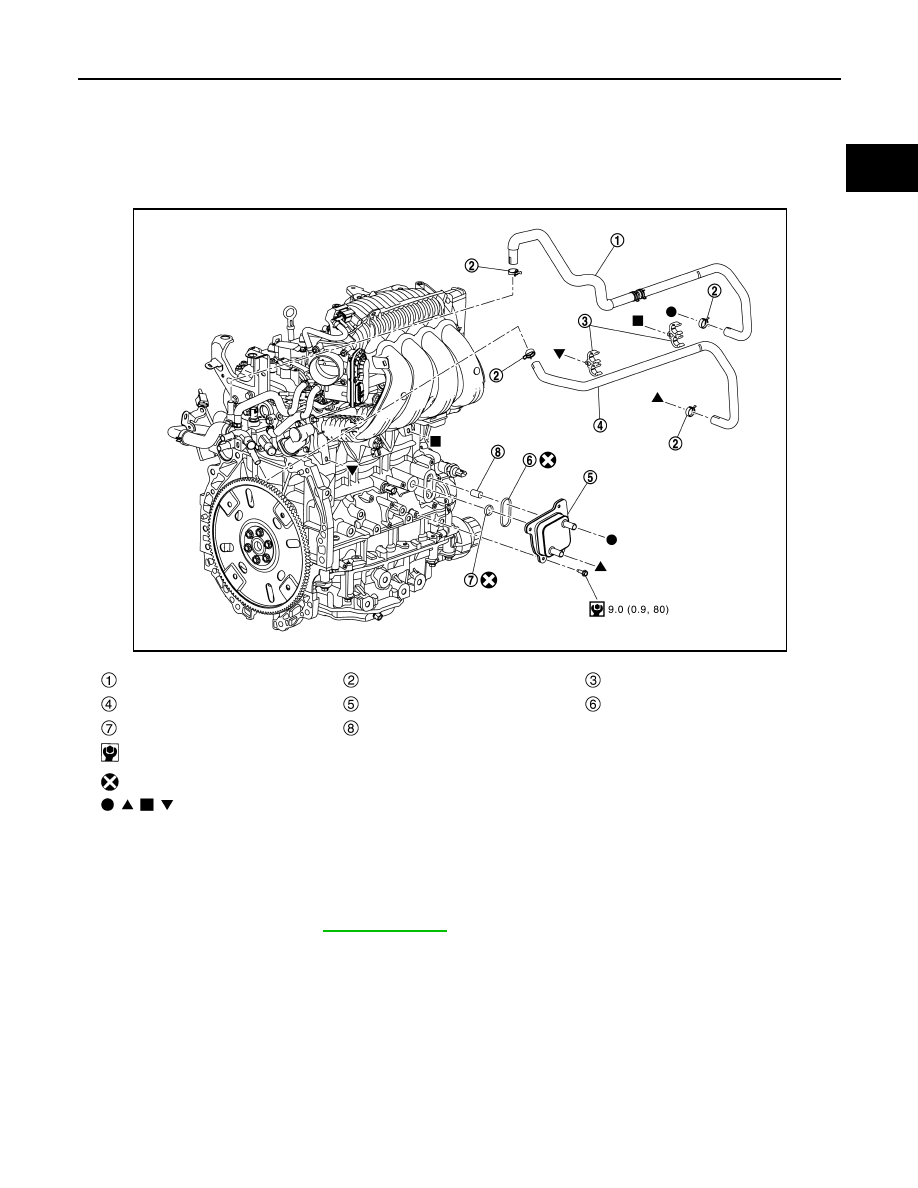

OIL COOLER

Exploded View

INFOID:0000000010783312

Removal and Installation

INFOID:0000000010783313

REMOVAL

1.

Remove engine under cover.

2.

Drain engine coolant. Refer to

CO-39, "Draining"

.

CAUTION:

Perform this step when engine is cold.

3.

Remove water hose.

4.

Remove oil cooler.

CAUTION:

• Be careful not to get burned when engine and engine oil may be hot.
• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Completely wipe off any engine oil that adheres to engine and vehicle.

INSTALLATION

Installation is in reverse order of removal.

CAUTION:

Water hose

Clamp

Clamp

Water hose

Oil cooler

O-ring

O-ring

Relief valve

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

,

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSBIA4480GB

LU-30

< REMOVAL AND INSTALLATION >

[QR25DE]

OIL COOLER

Do not reuse O-rings.

1.

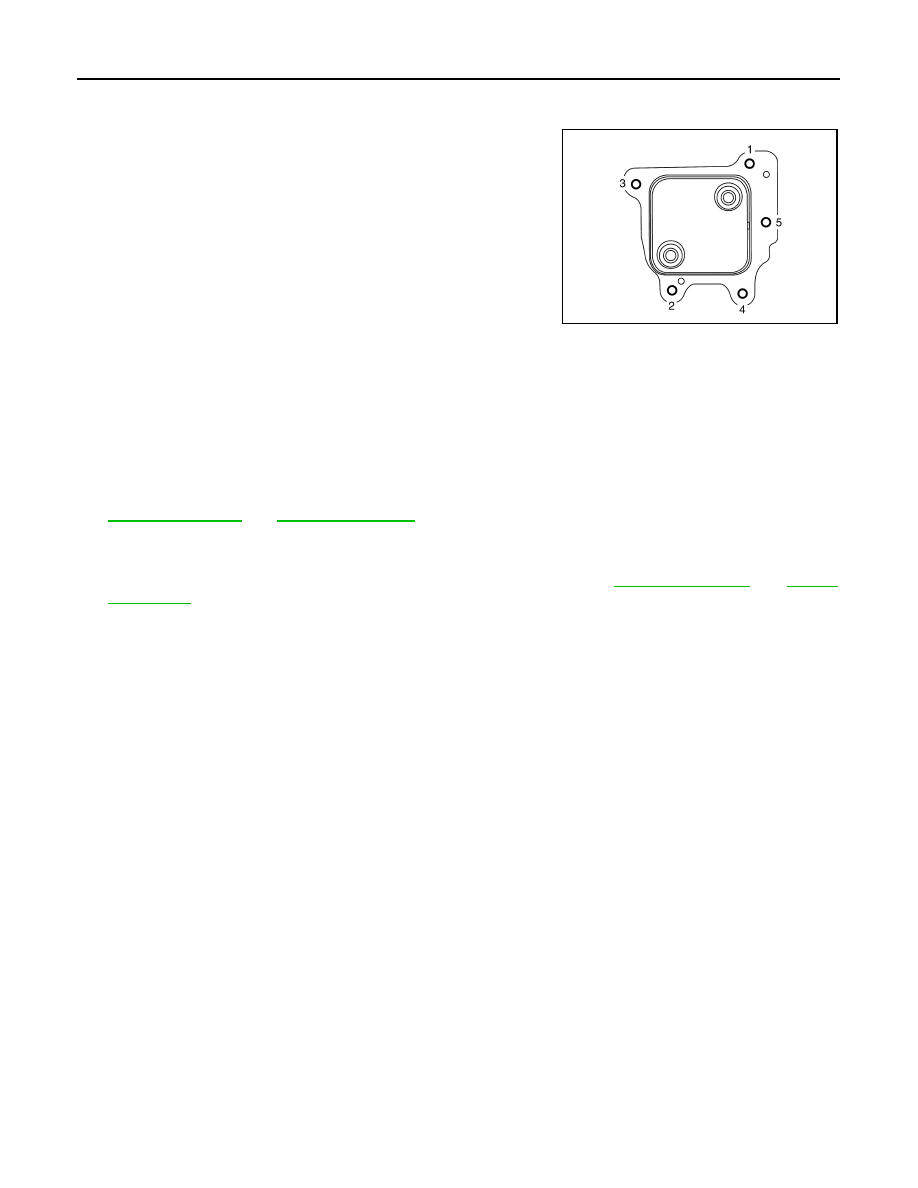

Install oil cooler with the following procedure:

a.

Tighten mounting bolts in numerical order as shown in the fig-
ure.

Inspection

INFOID:0000000010783314

INSPECTION AFTER REMOVAL

Oil Cooler

Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler assembly.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to

LU-25, "Inspection"

 and

CO-39, "Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil or engine coolant.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and the engine coolant level again. Refer to

LU-25, "Inspection"

 and

CO-39,

"Inspection"

.

JSBIA3421ZZ

OIL PUMP

LU-31

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

UNIT DISASSEMBLY AND ASSEMBLY

OIL PUMP

Exploded View

INFOID:0000000010783315

Oil pump is integrated in the oil pump and front cover assembly. Refer to

EM-210, "Exploded View"

.
