Nissan X-Trail 32. Manual - part 1111





FUEL PUMP

EM-341

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

FUEL PUMP

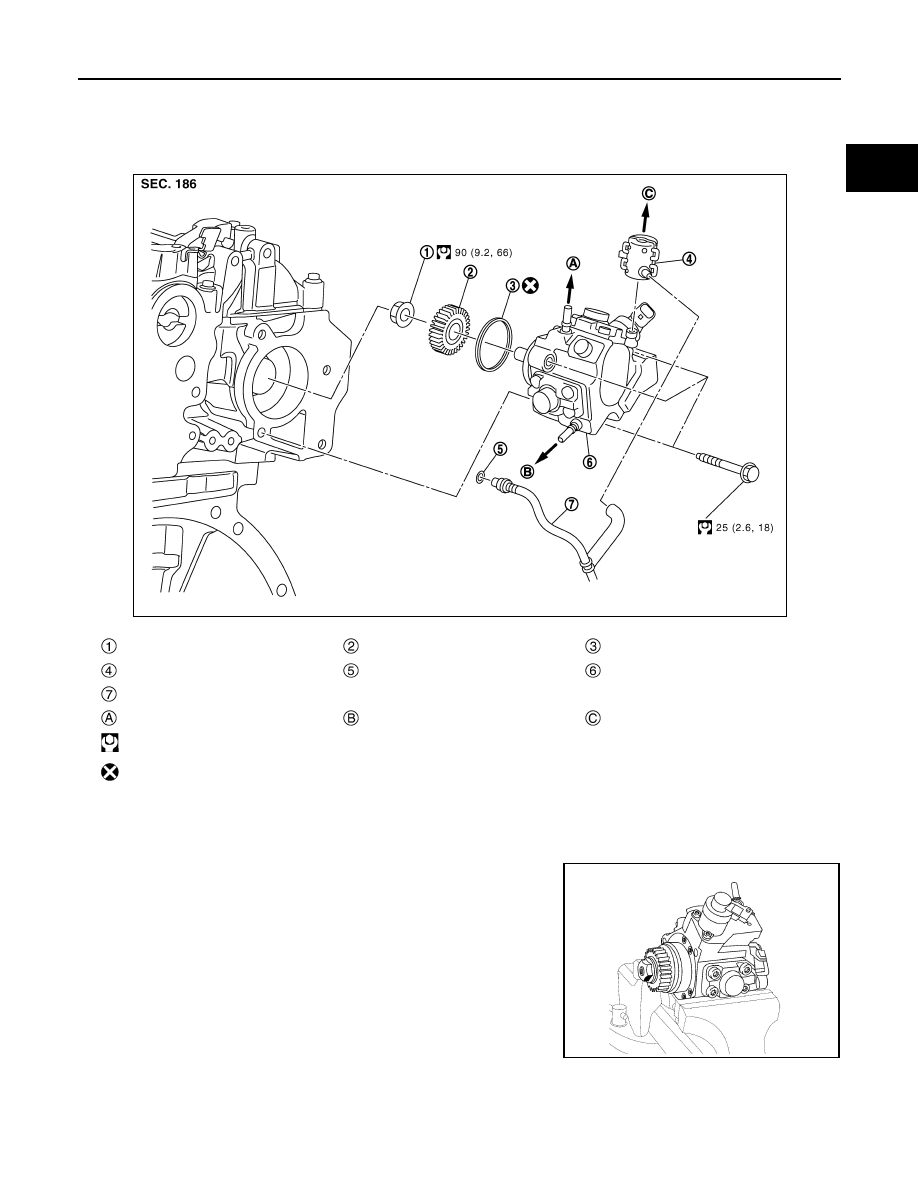

Exploded View

INFOID:0000000010784340

Removal and Installation

INFOID:0000000010784341

REMOVAL

CAUTION:

• Be sure to read “Precautions for Diesel Equipment”. Refer to

EM-289, "Precaution for Diesel Equip-

ment"

.

• Wait until the fuel temperature drops before carrying out any work.
• Order the special high pressure injection circuit plug kit.
• Never disassemble or adjust the fuel pump body.

1.

Remove the battery. Refer to

PG-138, "R9M : Exploded View"

.

2.

Remove engine cover. Refer to

EM-306, "Exploded View"

.

3.

Remove air inlet tube. Refer to

EM-310, "Exploded View"

.

4.

Remove drain hose.

5.

Remove fuel collector.

6.

Disconnect fuel hoses from fuel pump. Refer to

EM-338, "Exploded View"

.

7.

Remove the injection tube (center). Refer to

EM-338, "Exploded View"

.

8.

Plug all the holes of the injection circuit. Refer to

EM-289, "Precaution for Diesel Equipment"

.

Nut

Fuel pump gear

Fuel pump gasket

Fuel collector

Gasket

Fuel pump

Drain hose

To fuel tank

To fuel filter

To injection tube (center)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

E1BIA0445GB

EM-342

< REMOVAL AND INSTALLATION >

[R9M]

FUEL PUMP

9.

Remove the fuel pump.

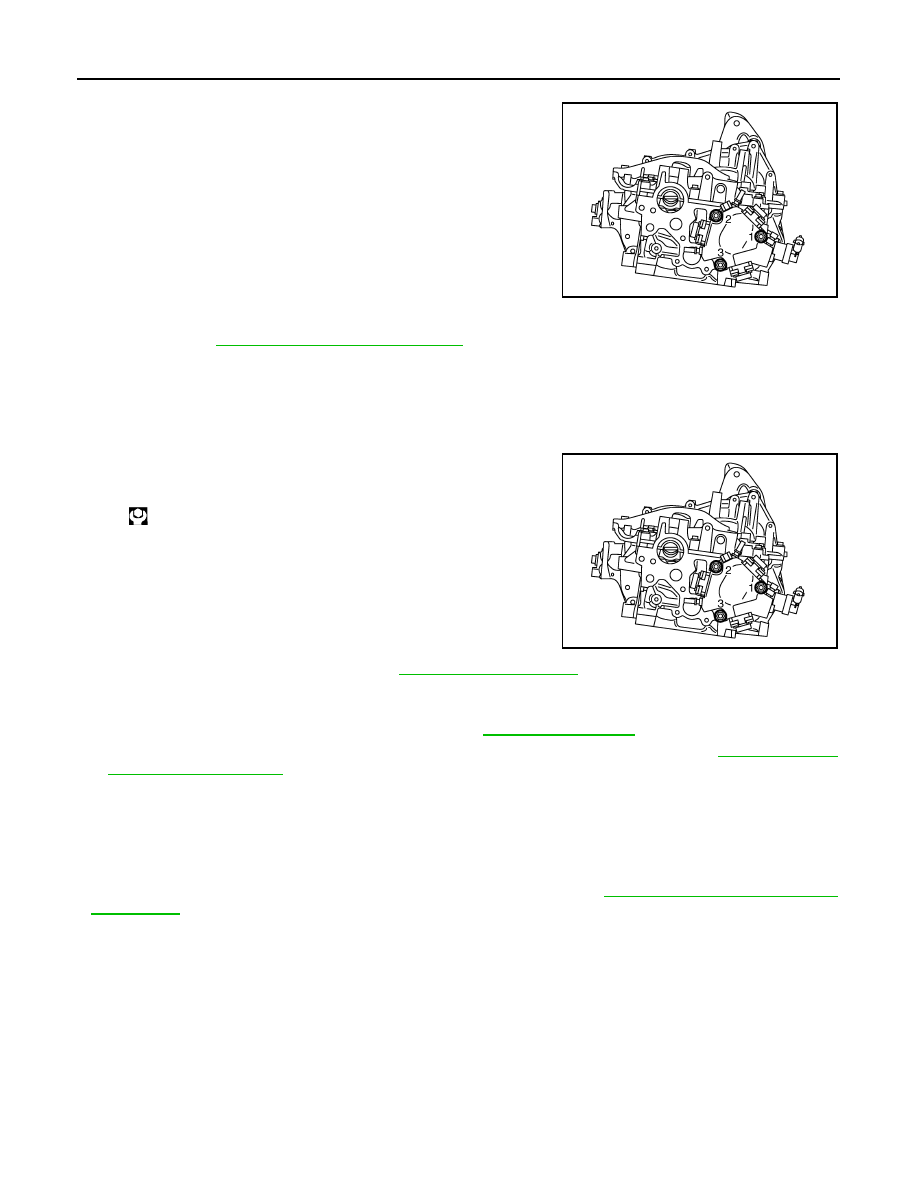

• Loosen mounting bolts in the reverse order as shown in the

figure.

10. In case of replacement of the fuel pump you need to install the old fuel pump sprocket on the new fuel

pump. Refer to

EM-343, "Removal and Installation"

.

INSTALLATION

1.

Install fuel pump.

CAUTION:

Be sure to check that the fuel pump is in contact with the cylinder head before tightening the
mounting bolts.
• Tighten mounting bolts in two steps separately in numerical

order as shown in the figure.

2.

Install the injection tube (center). Refer to

EM-338, "Exploded View"

.

• Finger tighten until contact the injection tube nuts.

3.

Install in the reverse order of removal, for the rest of parts.

4.

Perform “Fuel pump learning value clearing”. Refer to

EC-958, "Description"

. when replacing fuel pump.

5.

When replacing or removing fuel pump, this procedure must be performed. Refer to

EC-943, "Special

Repair Requirement List"

.

Inspection

INFOID:0000000010784342

INSPECTION AFTER INSTALLATION

• Start the engine and check for fuel leak for one minute after starting.

CAUTION:

After any operation, check that there are no diesel leaks. Refer to

EM-289, "Precaution for Diesel

Equipment"

.

E1BIA0609ZZ

: 25.0 N·m (2.6 kg-m, 18 ft-lb)

E1BIA0609ZZ

FUEL PUMP SPROCKET

EM-343

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

FUEL PUMP SPROCKET

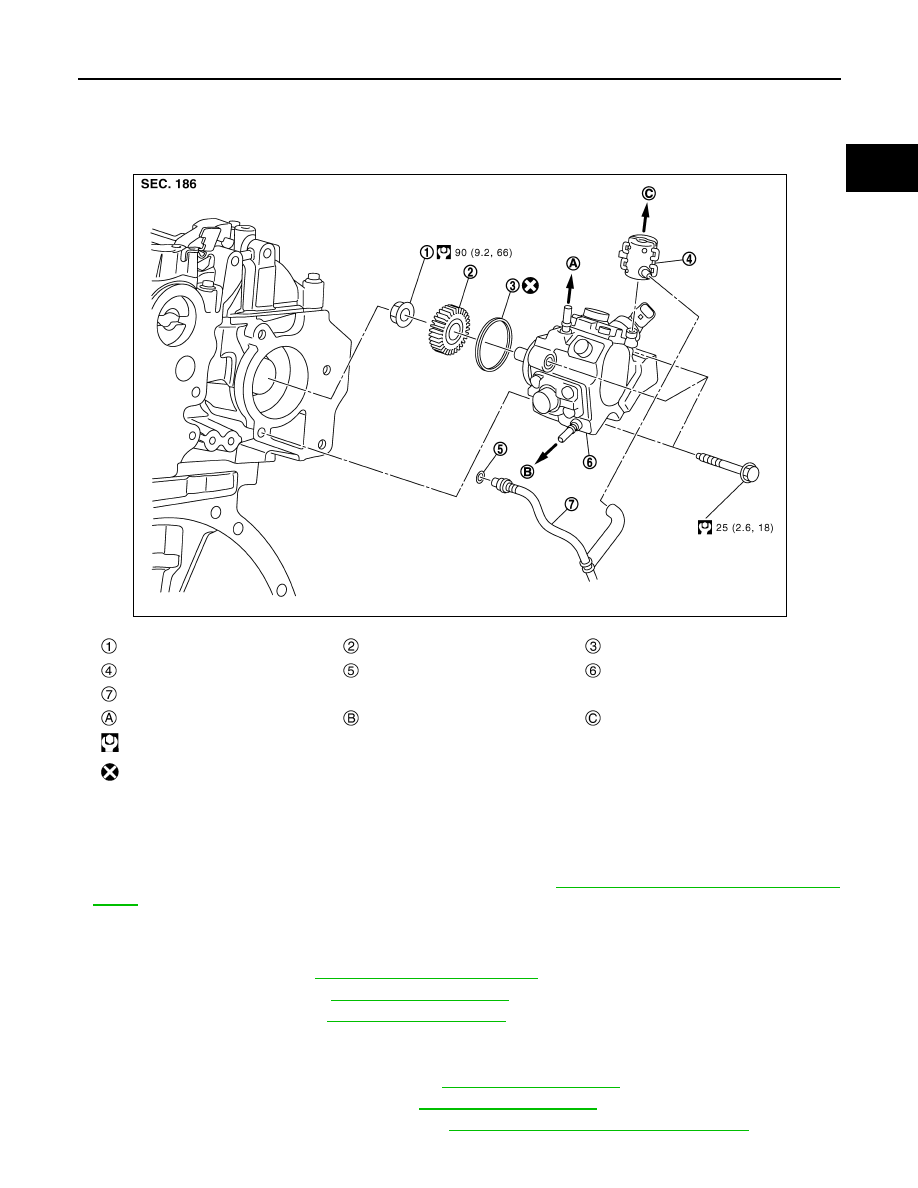

Exploded View

INFOID:0000000011006149

Removal and Installation

INFOID:0000000010784343

REMOVAL

1.

Lock the fuel pump on the work-bench in a vice with protective
jaws.

Nut

Fuel pump gear

Fuel pump gasket

Fuel collector

Gasket

Fuel pump

Drain hose

To fuel tank

To fuel filter

To injection tube (center)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

E1BIA0445GB

E1BIA0606ZZ

EM-344

< REMOVAL AND INSTALLATION >

[R9M]

FUEL PUMP SPROCKET

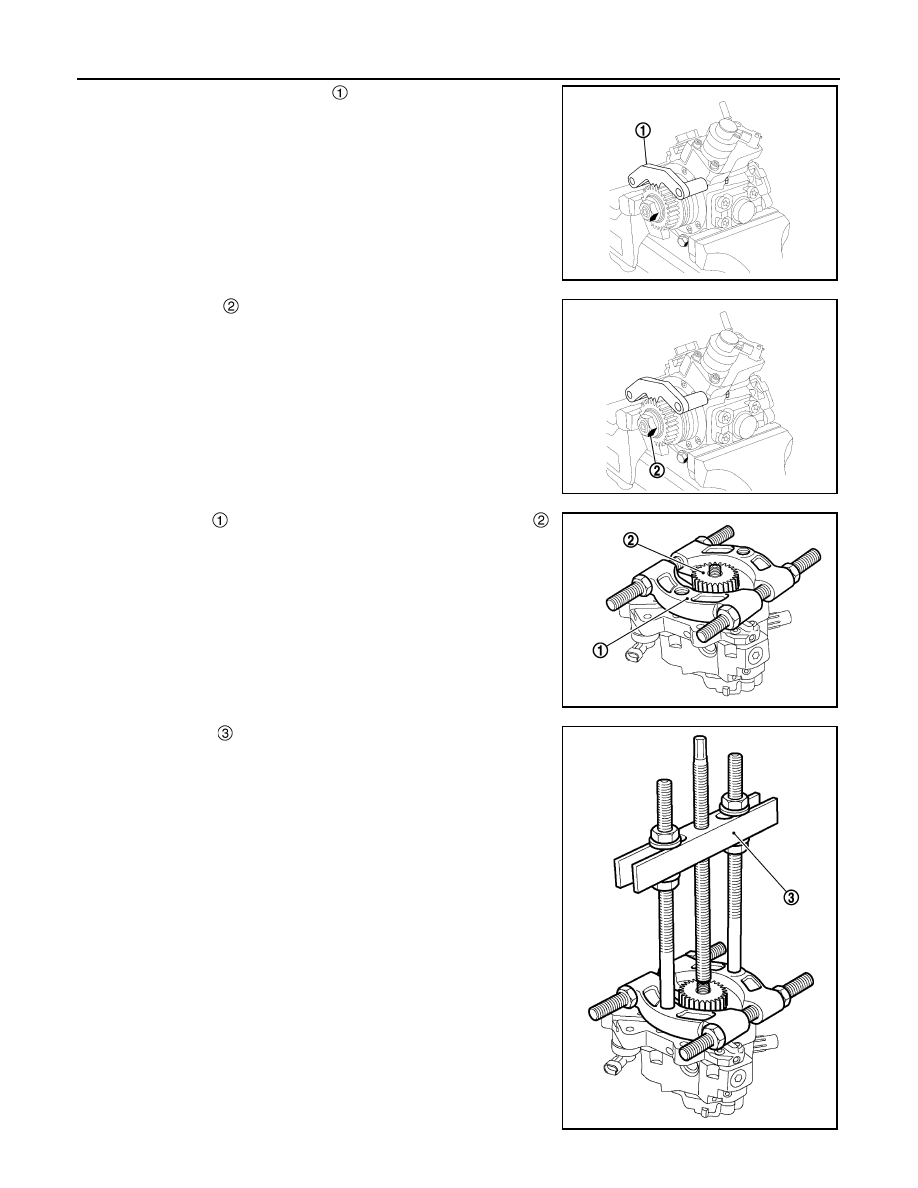

2.

Using the tool [SST (Mot.1906)]

, lock the fuel pump gear.

3.

Remove the nut

.

4.

Fit a separator

 from the puller kit under the fuel pump gear

.

5.

Put the bracket

 on the separator.

E1BIA0607ZZ

E1BIA0608ZZ

E1BIA0220ZZ

E1BIA0221ZZ
