Nissan X-Trail 32. Manual - part 18

AV-64

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000010714788

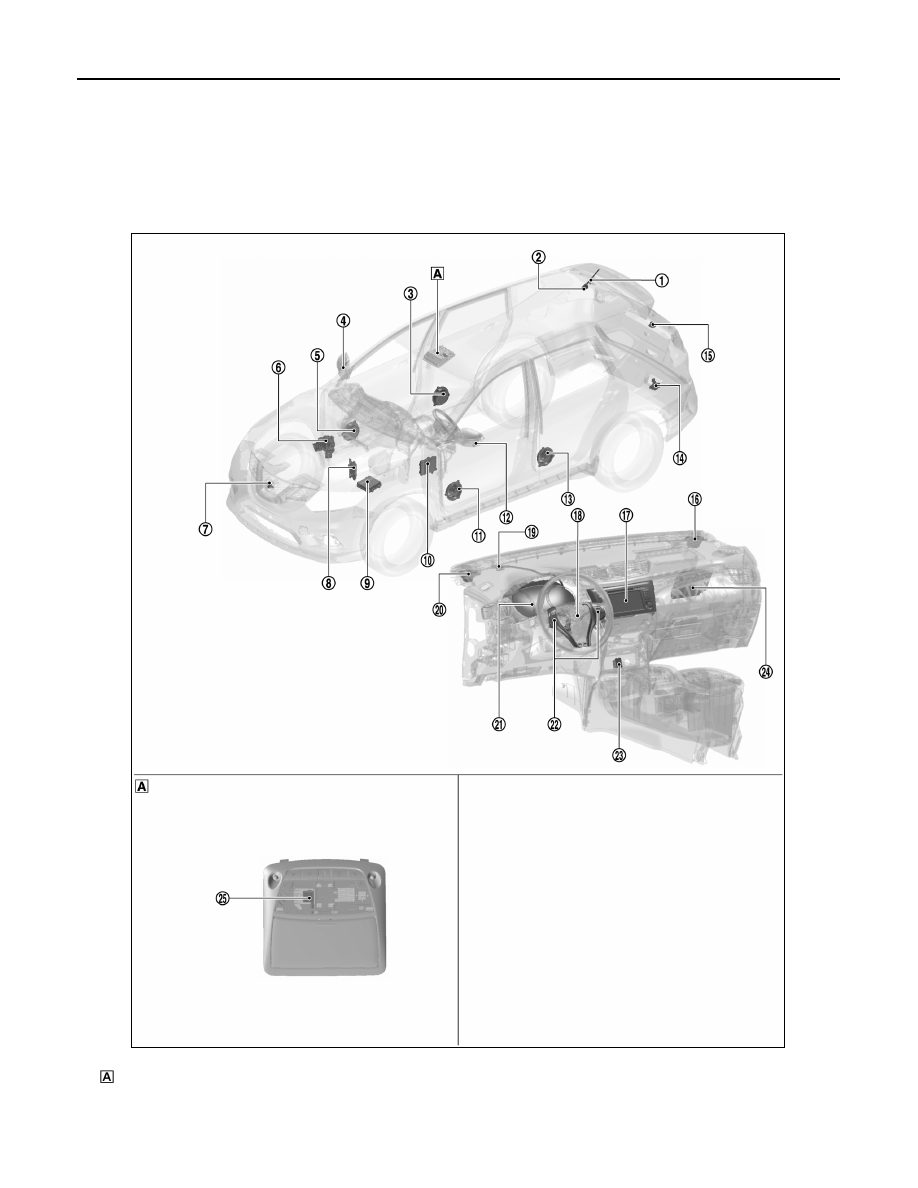

LHD MODELS

Map lamp

JSNIA7355ZZ

AV

COMPONENT PARTS

AV-65

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

No.

Component

Function

Antenna rod

AV-71, "Antenna and Antenna Feeder"

Antenna base

Rear door speaker RH

Refer to

AV-69, "Speaker"

.

Side camera RH

Refer to

AV-77, "Side Camera"

.

Front door speaker RH

Refer to

AV-69, "Speaker"

.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the around view monitor control unit via CAN com-
munication.
Refer to

BRC-25, "ABS Actuator and Electric Unit (Control Unit)"

, for detailed installation

location.

Front camera

Refer to

AV-76, "Front Camera"

.

TCM (CVT models)

Transmits the shift position signal to the around view monitor control unit via CAN commu-
nication.
Refer to the following for detailed installation location.
• RE0F10D:

TM-235, "CVT CONTROL SYSTEM : Component Parts Location"

• RE0F10G:

TM-466, "CVT CONTROL SYSTEM : Component Parts Location"

IPDM E/R (M/T models)

Transmits the gear position signal to the around view monitor control unit via CAN commu-
nication.
Refer to

PCS-5, "Component Parts Location"

, for detailed installation location.

BCM

• Transmits the door switch signal to the around view monitor control unit via CAN com-

munication.

• Transmits the following signals to the NAVI control unit.
- Reverse signal
- Dimmer signal
- Auto acc input signal
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

, for detailed in-

stallation location.

Front door speaker LH

Refer to

AV-69, "Speaker"

.

Side camera LH

Refer to

AV-77, "Side Camera"

.

Rear door speaker LH

Refer to

AV-69, "Speaker"

.

Sonar control unit

Transmits the sonar indicator signal to the around view monitor control unit via CAN com-
munication.
Refer to following for detailed installation location.
• Without park assist:

SN-8, "Component Parts Location"

• With park assist:

SN-119, "Component Parts Location"

Rear camera

Refer to

AV-77, "Rear Camera"

.

Front squawker RH

Refer to

AV-69, "Speaker"

.

NAVI control unit

Refer to

AV-68, "NAVI Control Unit"

.

Steering angle sensor

Refer to

AV-76, "Steering Angle Sensor"

.

GPS antenna

Refer to

AV-71, "Antenna and Antenna Feeder"

.

Front squawker LH

Refer to

AV-69, "Speaker"

.

Combination meter

• Transmits the steering switch signal to the NAVI control unit via AV communication.
• Transmits the vehicle speed signal to the NAVI control unit.
• Receives the meter display signal from the NAVI control unit via AV communication.
• Receives the buzzer output signal from the around view monitor control unit via CAN

communication.

Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

, for detailed installation

location.

Steering switch

Refer to

AV-71, "Steering Switch"

.

USB connector and AUX jack

Refer to

AV-76, "USB Connector and AUX Jack"

.

AV-66

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

COMPONENT PARTS

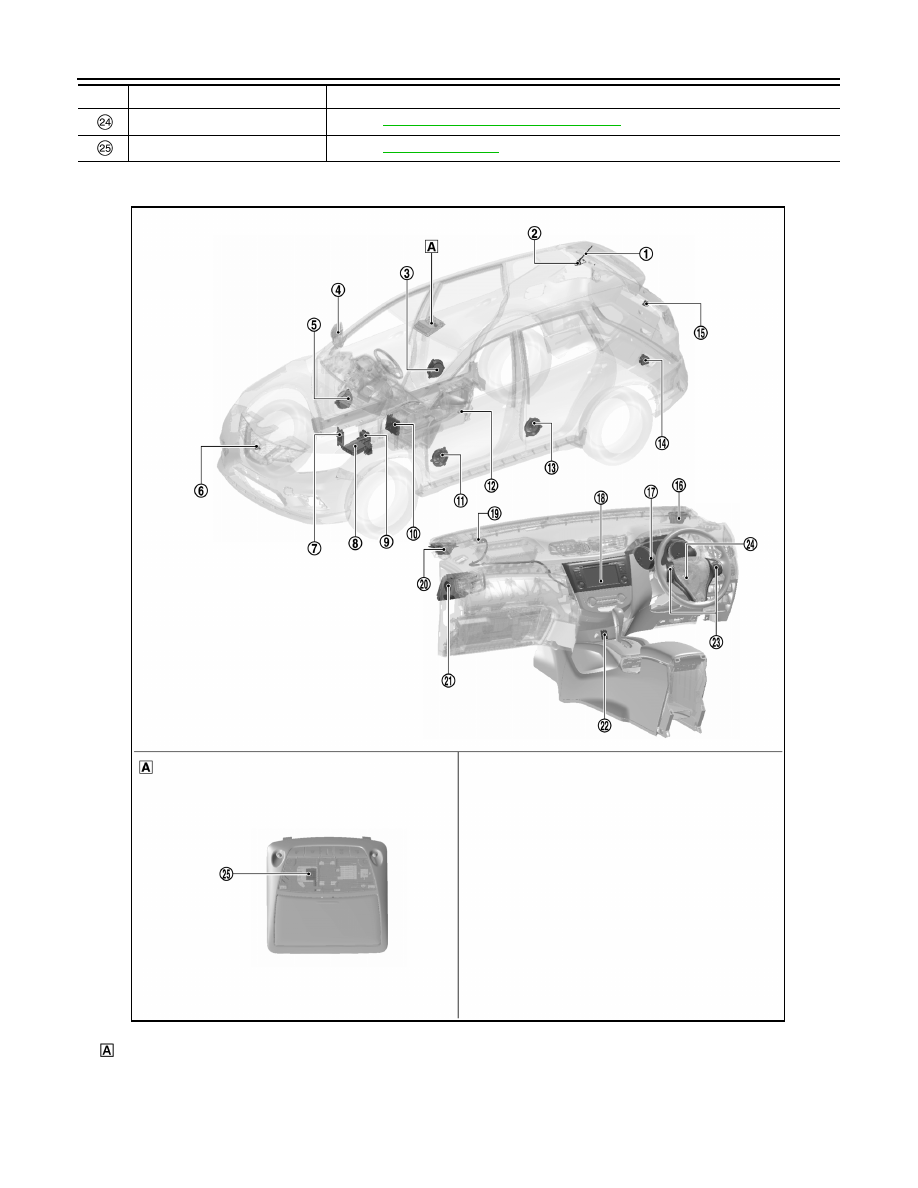

RHD MODELS

Around view monitor control unit

Refer to

AV-76, "Around View Monitor Control Unit"

.

Microphone

Refer to

AV-70, "Microphone"

.

No.

Component

Function

Map lamp

JSNIA7356ZZ

AV

COMPONENT PARTS

AV-67

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

No.

Component

Function

Antenna rod

AV-71, "Antenna and Antenna Feeder"

Antenna base

Rear door speaker RH

Refer to

AV-69, "Speaker"

.

Side camera RH

Refer to

AV-77, "Side Camera"

.

Front door speaker RH

Refer to

AV-69, "Speaker"

.

Front camera

Refer to

AV-76, "Front Camera"

.

TCM (CVT models)

Transmits the shift position signal to the around view monitor control unit via CAN commu-
nication.
Refer to the following for detailed installation location.
• RE0F10D:

TM-235, "CVT CONTROL SYSTEM : Component Parts Location"

• RE0F10G:

TM-466, "CVT CONTROL SYSTEM : Component Parts Location"

IPDM E/R (M/T models)

Transmits the gear position signal to the around view monitor control unit via CAN commu-
nication.
Refer to

PCS-5, "Component Parts Location"

, for detailed installation location.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the around view monitor control unit via CAN com-
munication.
Refer to

BRC-25, "ABS Actuator and Electric Unit (Control Unit)"

, for detailed installation

location.

BCM

• Transmits the door switch signal to the around view monitor control unit via CAN com-

munication.

• Transmits the following signals to the NAVI control unit.
- Reverse signal
- Dimmer signal
- Auto acc input signal
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

, for detailed in-

stallation location.

Front door speaker LH

Refer to

AV-69, "Speaker"

.

Side camera LH

Refer to

AV-77, "Side Camera"

.

Rear door speaker LH

Refer to

AV-69, "Speaker"

.

Sonar control unit

Transmits the sonar indicator signal to the NAVI control unit and the around view monitor
control unit via CAN communication.
Refer to following for detailed installation location.
• Without park assist:

SN-8, "Component Parts Location"

• With park assist:

SN-119, "Component Parts Location"

Rear camera

Refer to

AV-77, "Rear Camera"

.

Front squawker RH

Refer to

AV-69, "Speaker"

.

Combination meter

• Transmits the steering switch signal to the NAVI control unit via AV communication.
• Transmits the vehicle speed signal to the NAVI control unit.
• Receives the meter display signal from the NAVI control unit via AV communication.
• Receives the buzzer output signal from the around view monitor control unit via CAN

communication.

Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

, for detailed installation

location.

NAVI control unit

Refer to

AV-68, "NAVI Control Unit"

.

GPS antenna

Refer to

AV-71, "Antenna and Antenna Feeder"

.

Front squawker LH

Refer to

AV-69, "Speaker"

.

Around view monitor control unit

Refer to

AV-76, "Around View Monitor Control Unit"

.

USB connector and AUX jack

Refer to

AV-76, "USB Connector and AUX Jack"

.

Steering switch

Refer to

AV-71, "Steering Switch"

.
