MT-14

[RS6F93R]

TRANSAXLE ASSEMBLY

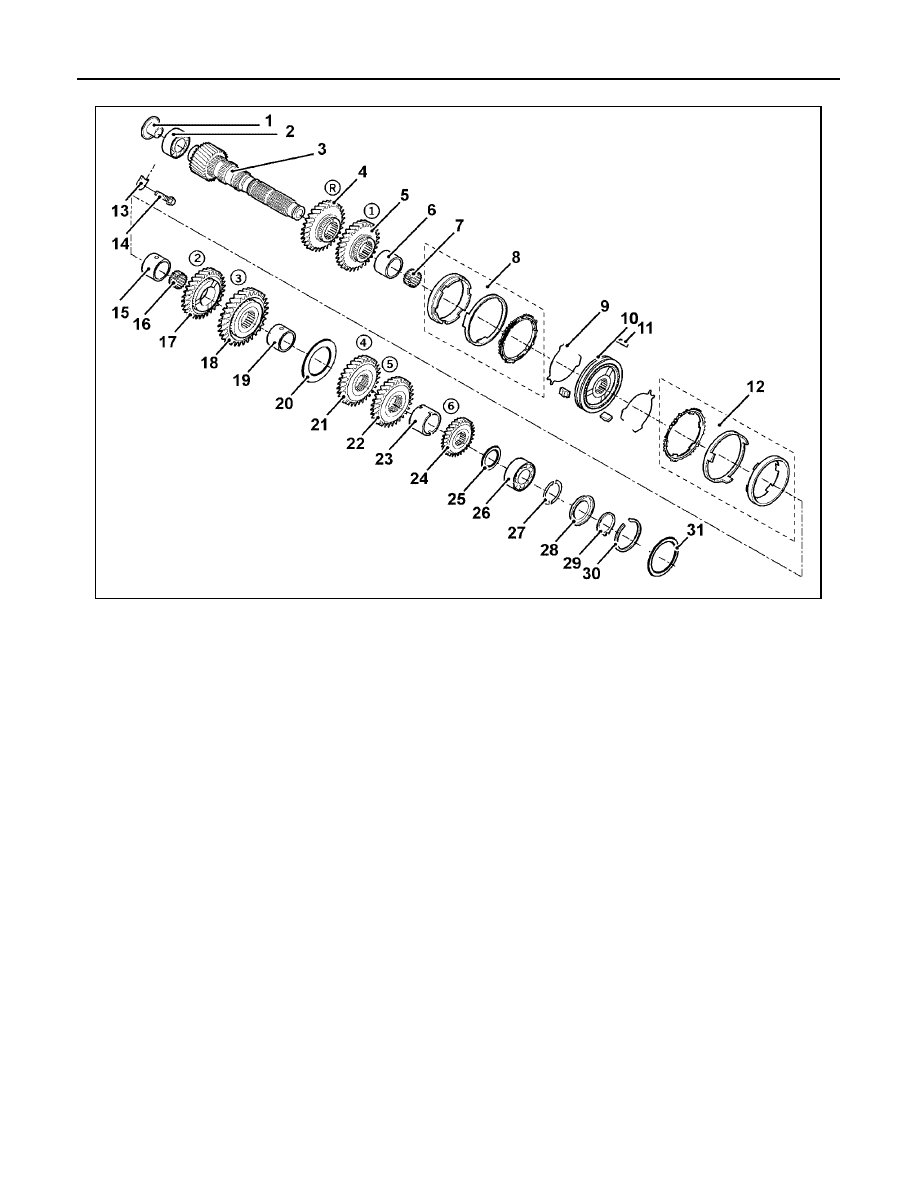

Output Shaft

1.

Oil deflector

2.

Bearing

3.

Output shaft

4.

Reverse gear shaft

5.

First-gear pinion

6.

Sprocket bush

7.

Needle bearing

8.

Synchronisation ring

9.

Synchronisation spring

10. First-second sliding gear hub

11.

Stress

12. Synchronisation ring

13. Retaining block

14. Bolt [8 N·m (0.8 kg-m, 71 in-lb)]

15. Sprocket bush

16. Needle bearing

17. Second-gear pinion

18. Third-gear pinion

19. Spacer

20. Adjustment shim

21. Fourth-gear pinion

22. Fifth-gear pinion

23. Spacer

24. Sixth-gear pinion

25. Adjustment shim

26. Bearing

27. Half-shims

28. Closing washer

29. Clips

30. Bearing clips

31. Adjustment shim

YMT042

TRANSAXLE ASSEMBLY

MT-15

[RS6F93R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

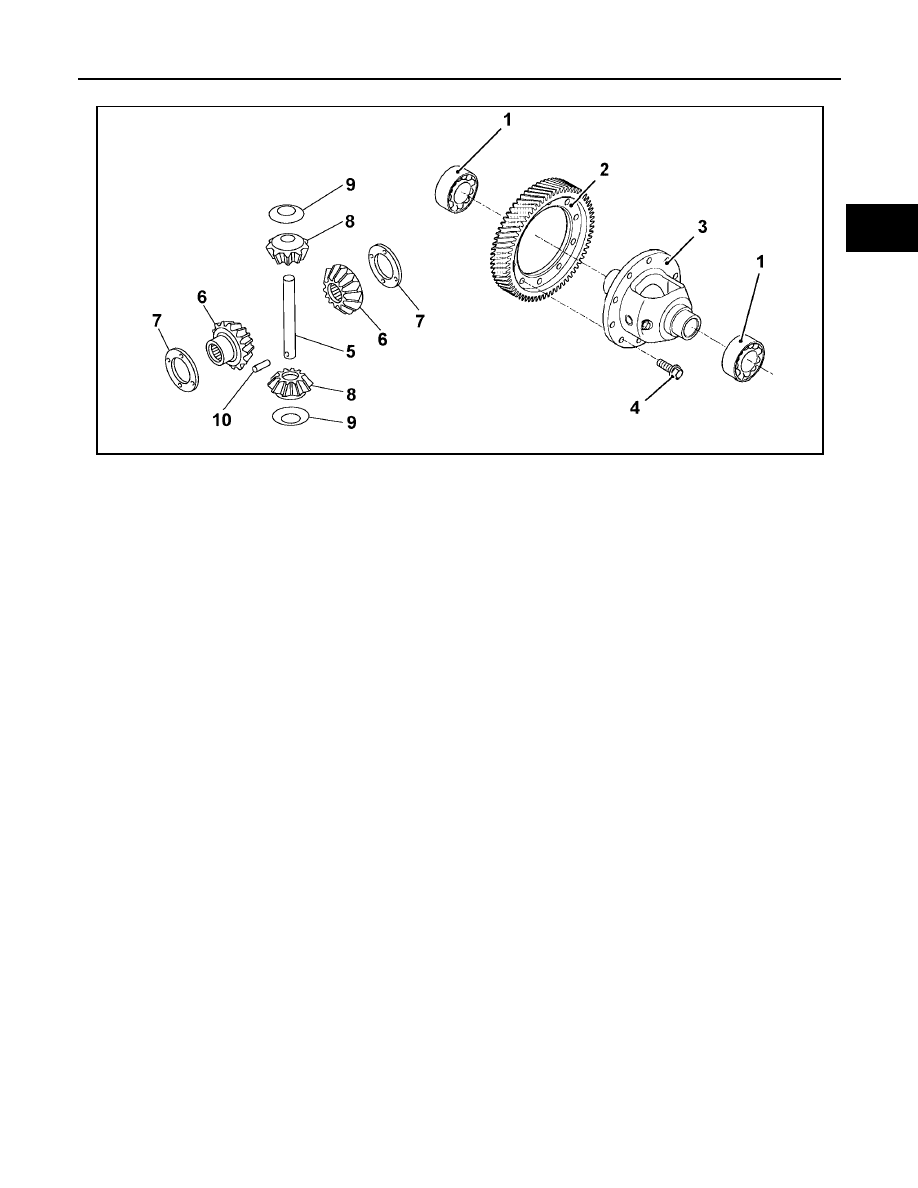

DIFFERENTIAL GEAR

1.

Differential side bearing

2.

Final gear

3.

Differential case

4.

Bolt

5.

Pinion mate shaft

6.

Side gear

7.

Side gear thrust washer

8.

Pinion mate gear

9.

Pinion mate gear washer

10. Retaining pin

YMT044

MT-16

[RS6F93R]

TRANSAXLE ASSEMBLY

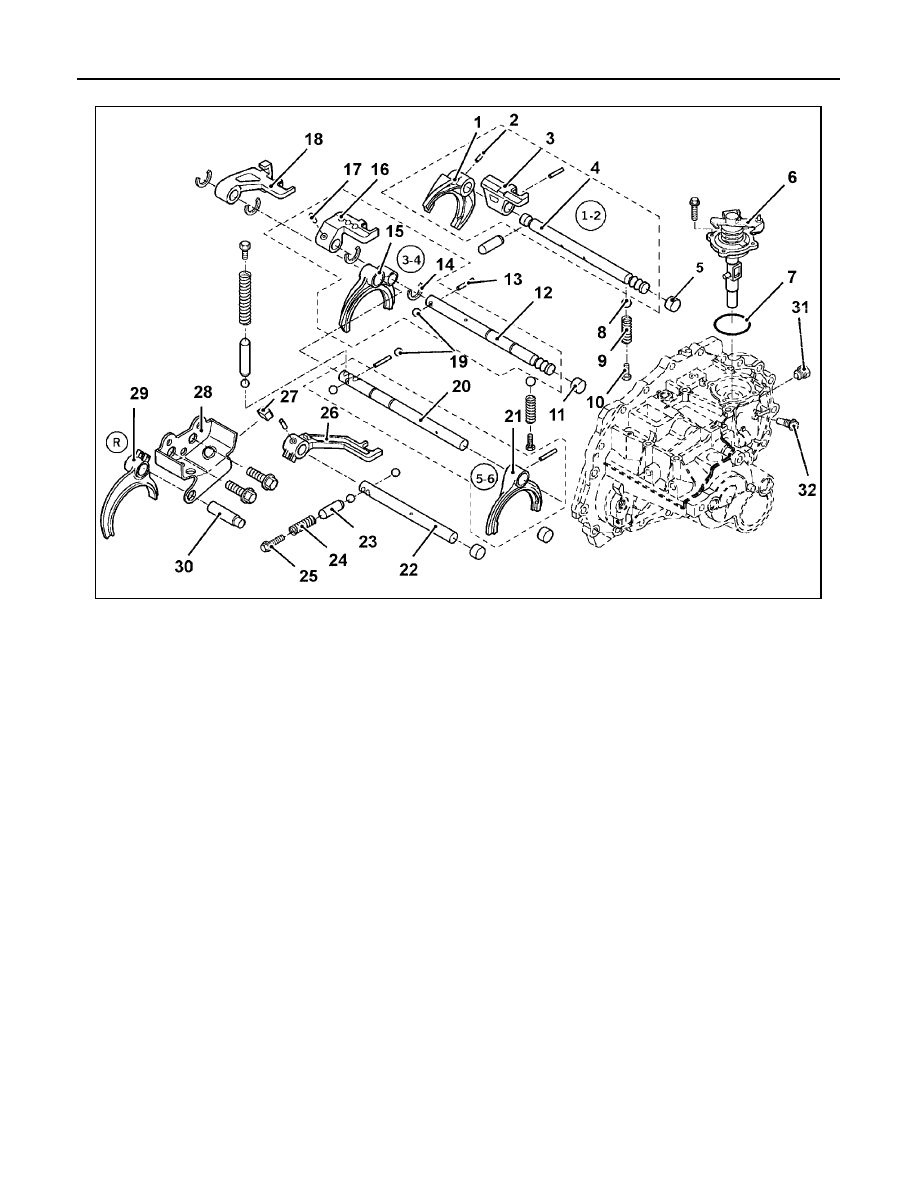

SHIFT CONTROL COMPONENTS

1.

First-second fork

2.

Pin

3.

First-second striker rod

4.

First-second selector fork shaft

5.

Shaft collar

6.

External control [8 N·m (0.8 kg-m,
71 in-lb)]

7.

O-ring

8.

Ball bearing

9.

Spring

10. Bolt [25 N·m (2.6 kg-m, 18 ft-lb)]

11.

Shaft collar

12. Third-fourth selector fork shaft

13. Internal lock shaft

14. Retaining clip

15. Third-fourth fork

16. Third-fourth striker rod

17. Pin

18. Fifth-sixth striker rod

19. Lock ball

20. Fifth-sixth selector fork shaft

21. Fifth-sixth fork

22. Reverse gear selector fork shaft

23. Lock shaft

24. Spring

25. Bolt [25 N·m (2.6 kg-m, 18 ft-lb)]

26. Reverse gear striker rod

27. Bearing shell

28. Switch mounting [15 N·m (1.5 kg-m,

11 ft-lb)]

29. Reverse gear fork

30. Reverse gear selector fork shaft

31. Selection balls [15 N·m (1.5 kg-m,

11 ft-lb)]

32. Check rod [30 N·m (3.1 kg-m, 22 ft-

lb)]

YMT043

TRANSAXLE ASSEMBLY

MT-17

[RS6F93R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

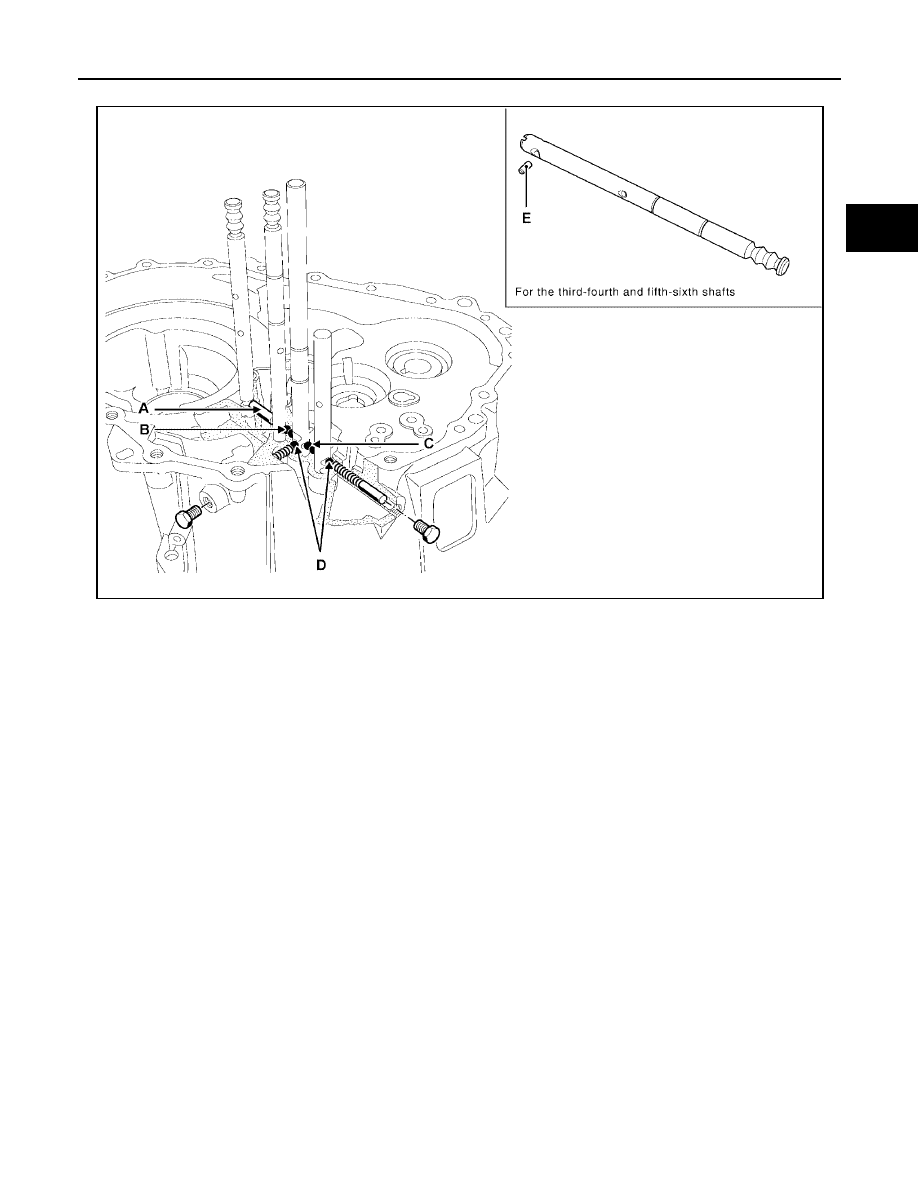

BALLS

A

Lock shaft

B

Lock ball

C

Lock balls or shaft depending on
type of gearbox

D

Ball bearings

E

Internal tappet

YMT051
