DTC P0606 ECM

EC-541

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0606 ECM

PFP:23710

Description

EBS0158V

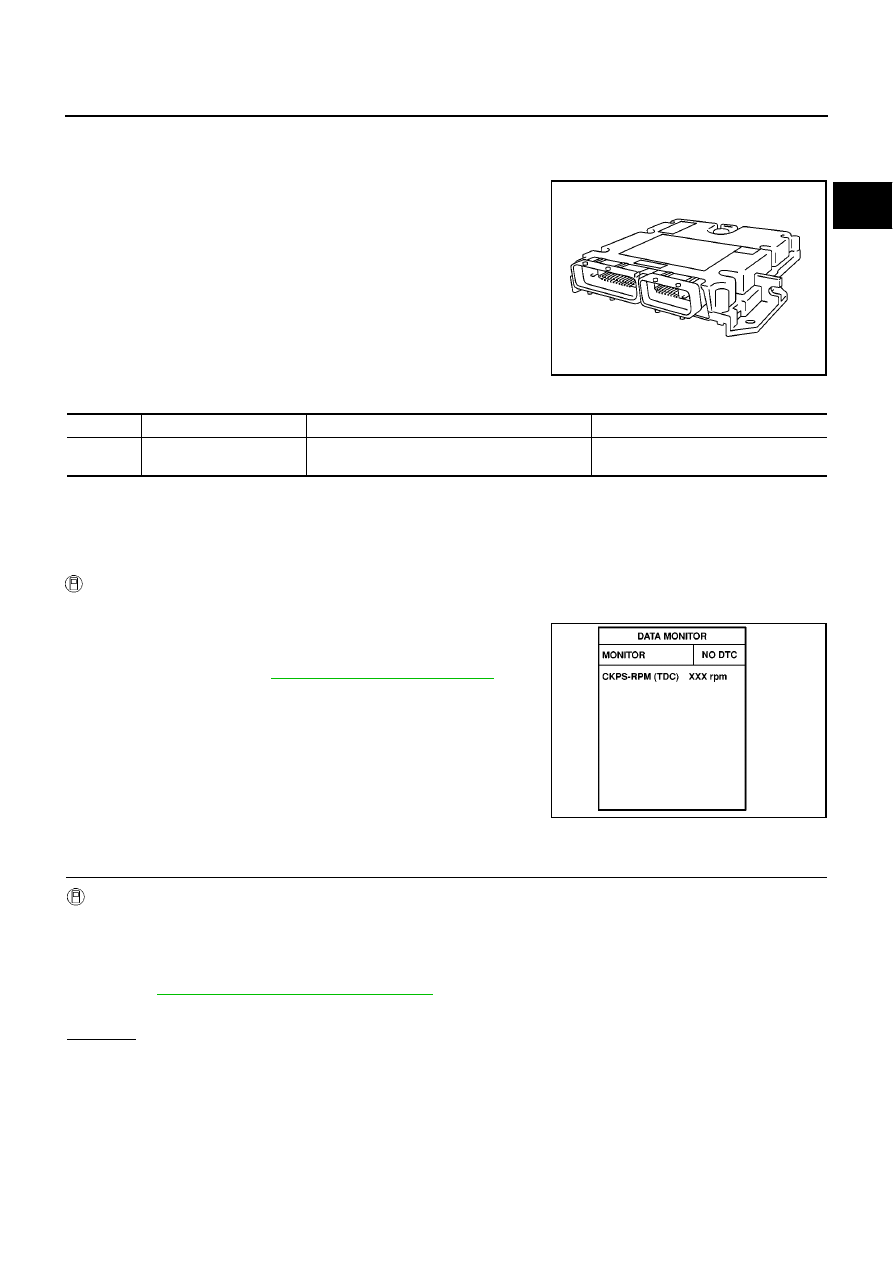

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.

On Board Diagnosis Logic

EBS0158W

DTC Confirmation Procedure

EBS0158X

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If DTC is detected, go to

EC-541, "Diagnostic Procedure"

.

Diagnostic Procedure

EBS0158Y

1.

INSPECTION START

With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “SELF DIAG RESULTS” mode with CONSULT-II.

3.

Touch “ERASE”.

4.

Perform

EC-541, "DTC Confirmation Procedure"

, again.

5.

Is DTC P0606 displayed again?

Yes or No

Yes

>> GO TO 2.

No

>> INSPECTION END

MBIB0625E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0606

Engine control module
(Processor)

ECM calculation function is malfunctioning.

ECM

SEF817Y

EC-542

[YD (WITHOUT EURO-OBD)]

DTC P0606 ECM

2.

REPLACE ECM

1.

Replace ECM.

2.

Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to

EC-371,

"NATS (Nissan Anti-theft System)"

.

3.

Perform “Fuel Pump Learning Value Clearing”. Refer to

EC-368, "Fuel Pump Learning Value Clearing"

.

>> INSPECTION END

DTC P0628, P0629 FUEL PUMP

EC-543

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0628, P0629 FUEL PUMP

PFP:16700

Description

EBS0158Z

To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel increases, the fuel pump raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to the fuel
pump to raise the injection pressure.

CONSULT-II Reference Value in Data Monitor Mode

EBS01590

Specification data are reference values.

ECM Terminals and Reference Value

EBS01591

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

MONITOR ITEM

CONDITION

SPECIFICATION

PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-load

Idle

1,700 - 1,900 mA

2,000 rpm

1,600 - 1,800 mA

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

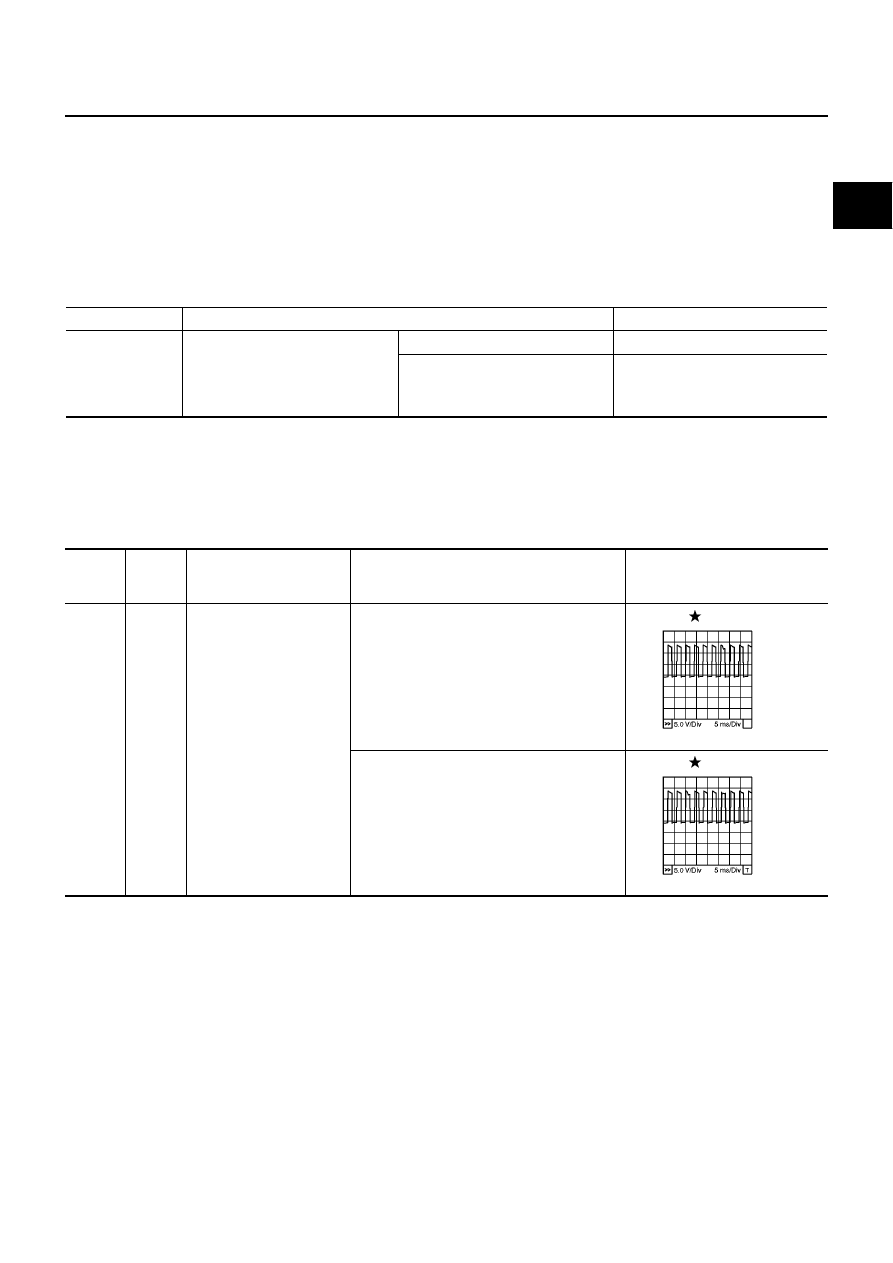

(DC Voltage and Pulse Signal)

10

Y/L

Fuel pump power supply

[Engine is running]

Warm-up condition

Idle speed

0 - 12.5V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0 - 12.5V

MBIB0885E

MBIB0886E

EC-544

[YD (WITHOUT EURO-OBD)]

DTC P0628, P0629 FUEL PUMP

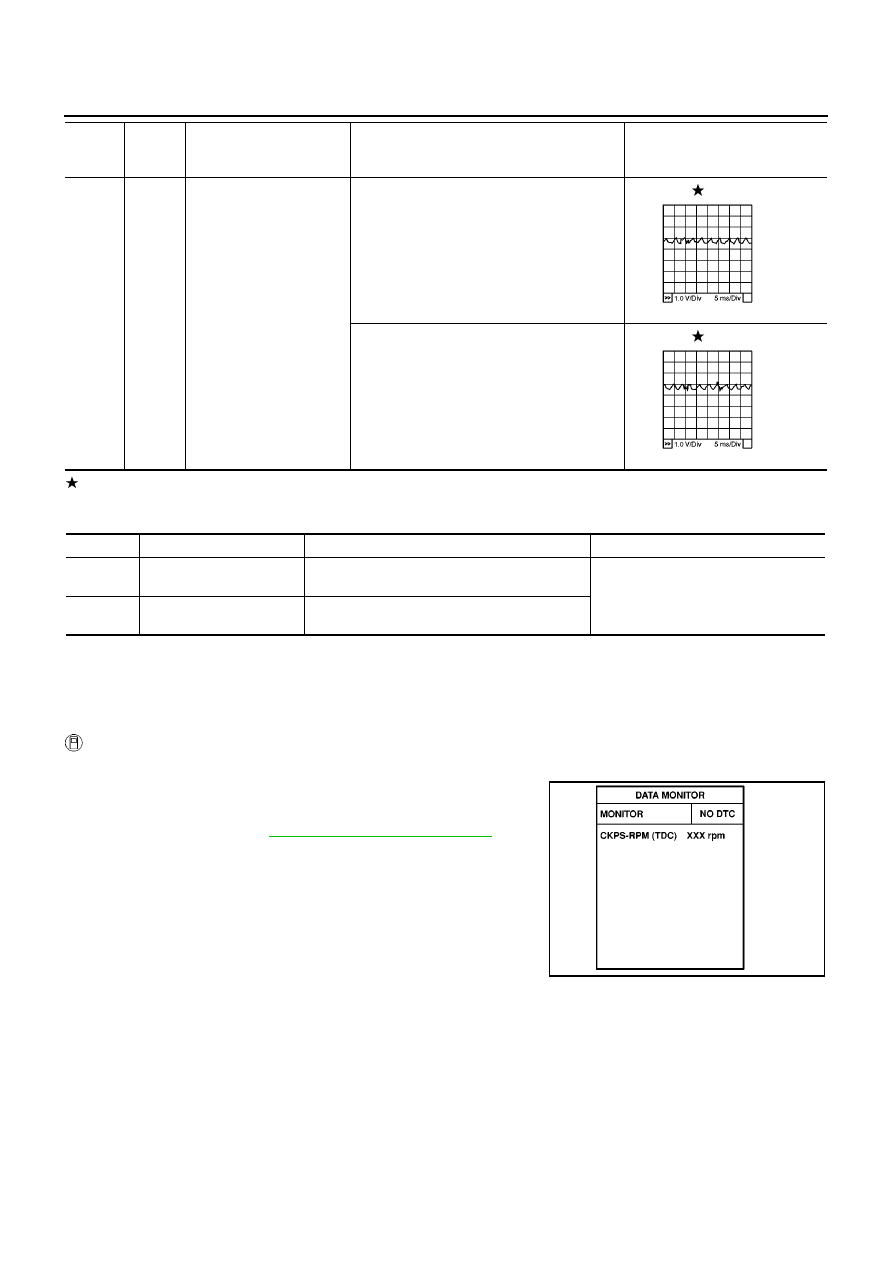

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

On Board Diagnosis Logic

EBS01592

DTC Confirmation Procedure

EBS01593

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Let engine idle for at least 5 seconds.

4.

If DTC is detected, go to

EC-546, "Diagnostic Procedure"

.

29

L

Fuel pump

[Engine is running]

Warm-up condition

Idle speed

0.5 - 1.0V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0.5 - 1.0V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

MBIB0887E

MBIB0888E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0628

Fuel pump control circuit
low input

ECM detects a control circuit for the fuel pump is
open or short to ground.

Harness or connectors
(The fuel pump circuit is open or
shorted.)

Fuel pump

P0629

Fuel pump control circuit
high output

ECM detects a control circuit for the fuel pump is
short to power.

SEF817Y
