LCD DISPLAY

DI-57

C

D

E

F

G

H

I

J

L

M

A

B

DI

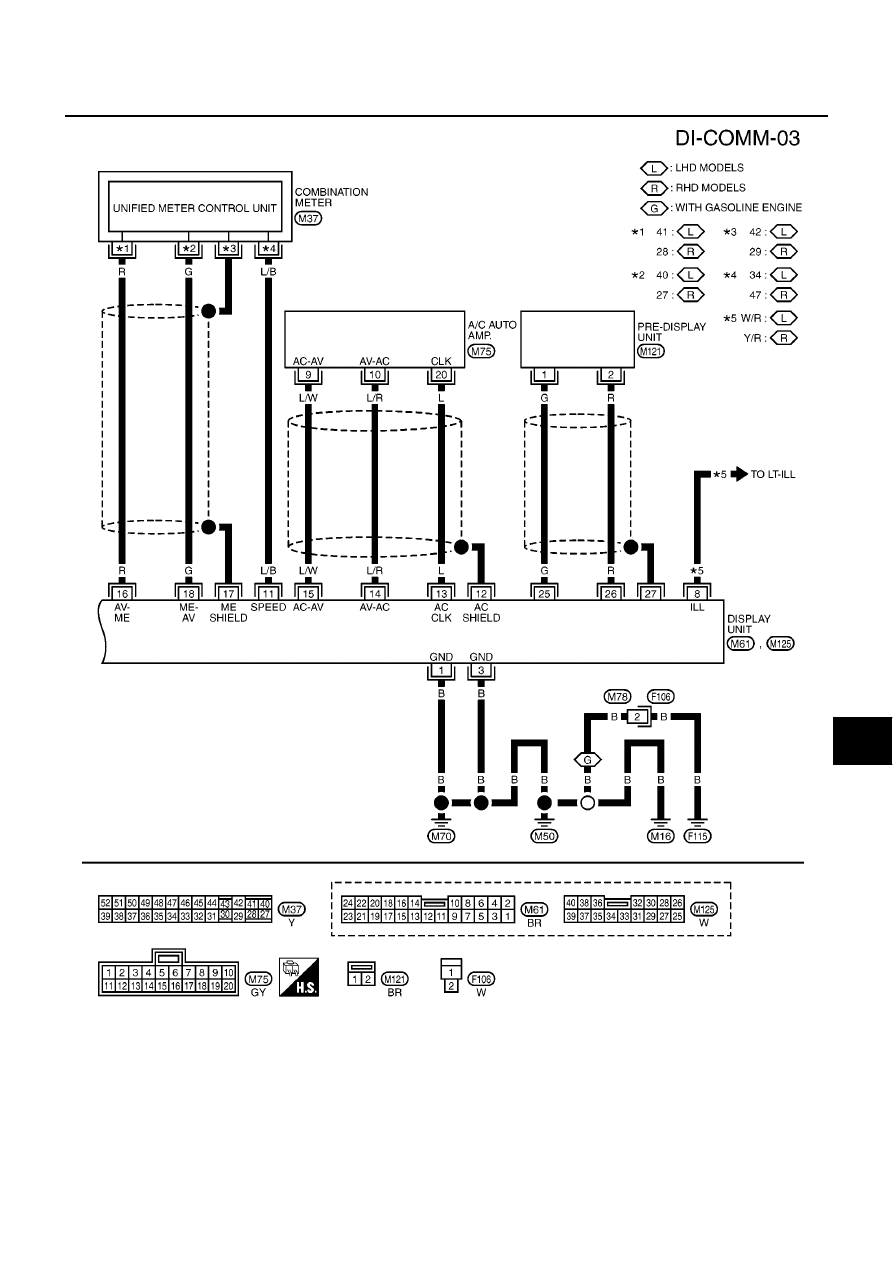

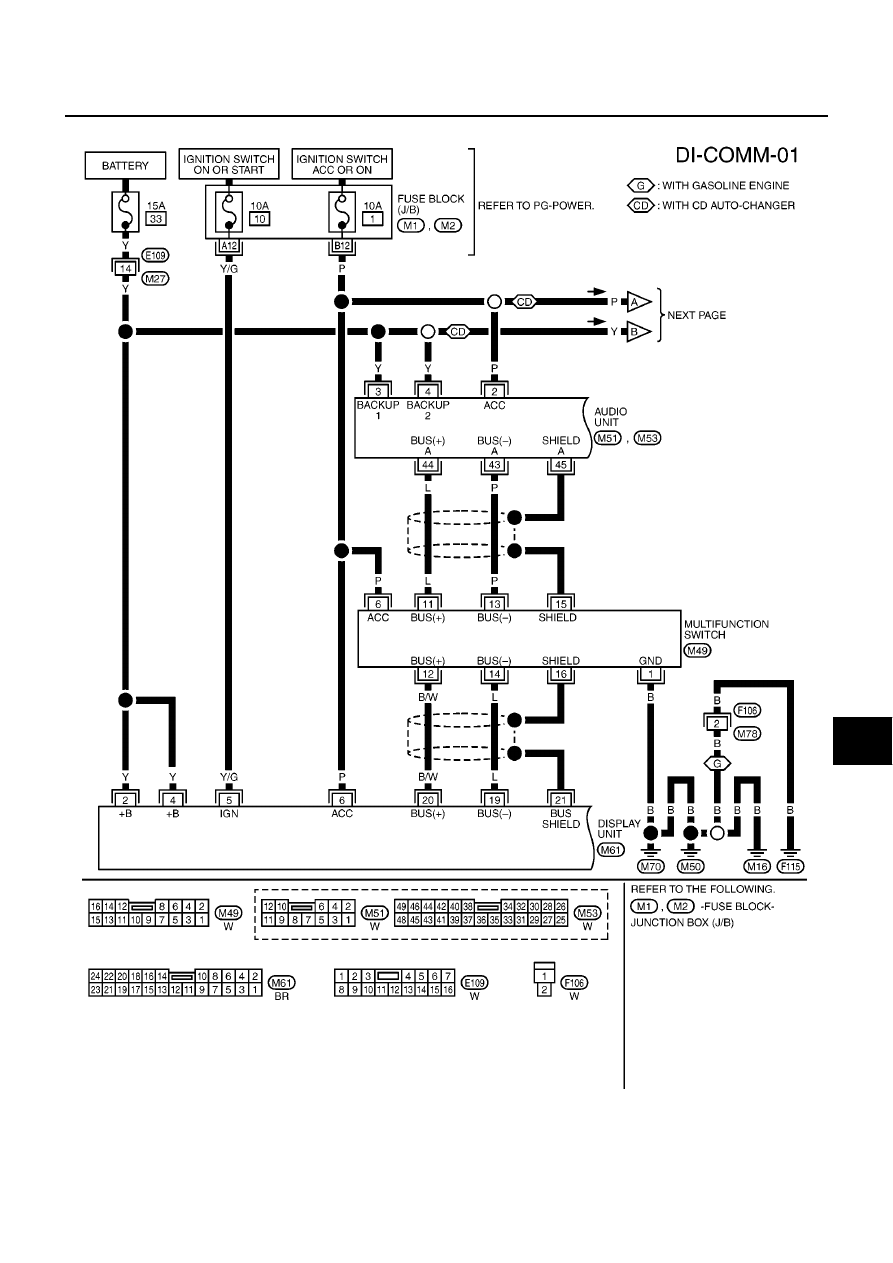

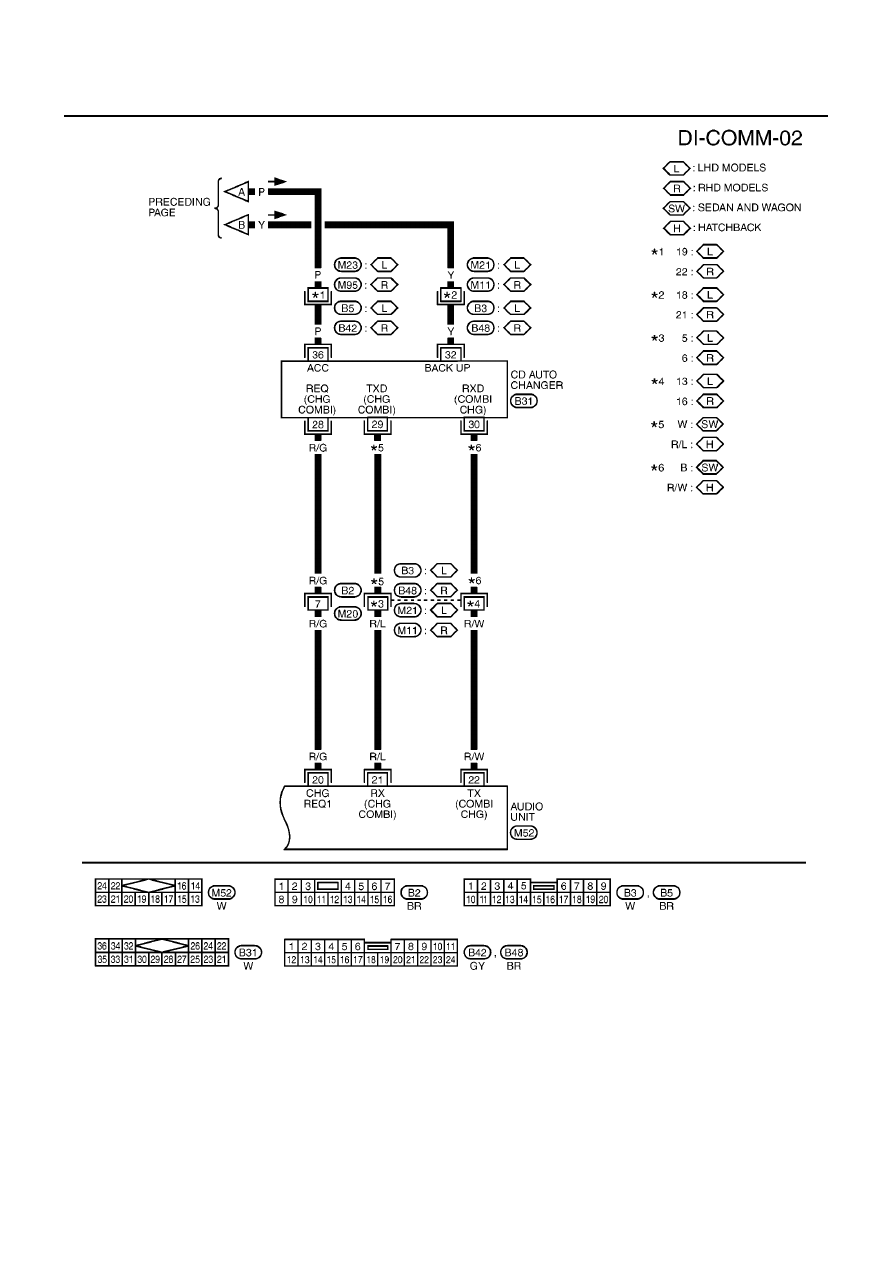

Wiring Diagram — COMM —

EKS009BX

MKWA1022E

DI-58

LCD DISPLAY

MKWA1023E

LCD DISPLAY

DI-59

C

D

E

F

G

H

I

J

L

M

A

B

DI

Terminals and Reference Value for Display Unit

EKS009BY

MKWA1024E

DI-60

LCD DISPLAY

TERMINALS

SIGNAL

CONDITION

VOLTAGE

(+)

(–)

TER-

MINAL

WIRE

COLOR

IGNI-
TION

SWITCH

OPERATION

1

B

Ground

—

—

—

—

2

Y

Ground

Battery
power

OFF

—

Battery voltage

3

B

Ground

—

—

—

—

4

Y

Ground

Battery
power

OFF

—

Battery voltage

5

Y/G

Ground

Ignition sig-
nal

ON

—

—

6

P

Ground

ACC signal

ACC

—

—

8

LHD:

W/R

RHD:

Y/R

Ground

Illumination
control signal

ON

Lighting switch
position

1st or 2nd

Battery voltage

OFF

0V

11

L/B

Ground

Vehicle
speed signal
(2-pulse)

ON

When vehicle speed is approx. 20 km/
h (12 MPH)

12

—

—

Shield
ground

—

—

—

13

L

Ground

A/C clock
signal

ON

—

14

L/R

Ground

A/C commu-
nication sig-
nal (AV-AC)

ON

—

15

L/W

Ground

A/C commu-
nication sig-
nal (AV-AC)

ON

—

ELF1080D

SKIA0174E

SKIA0172E

SKIA0173E
