Nissan Primera P12. Manual - part 63





NAVIGATION SYSTEM

AV-95

C

D

E

F

G

H

I

J

L

M

A

B

AV

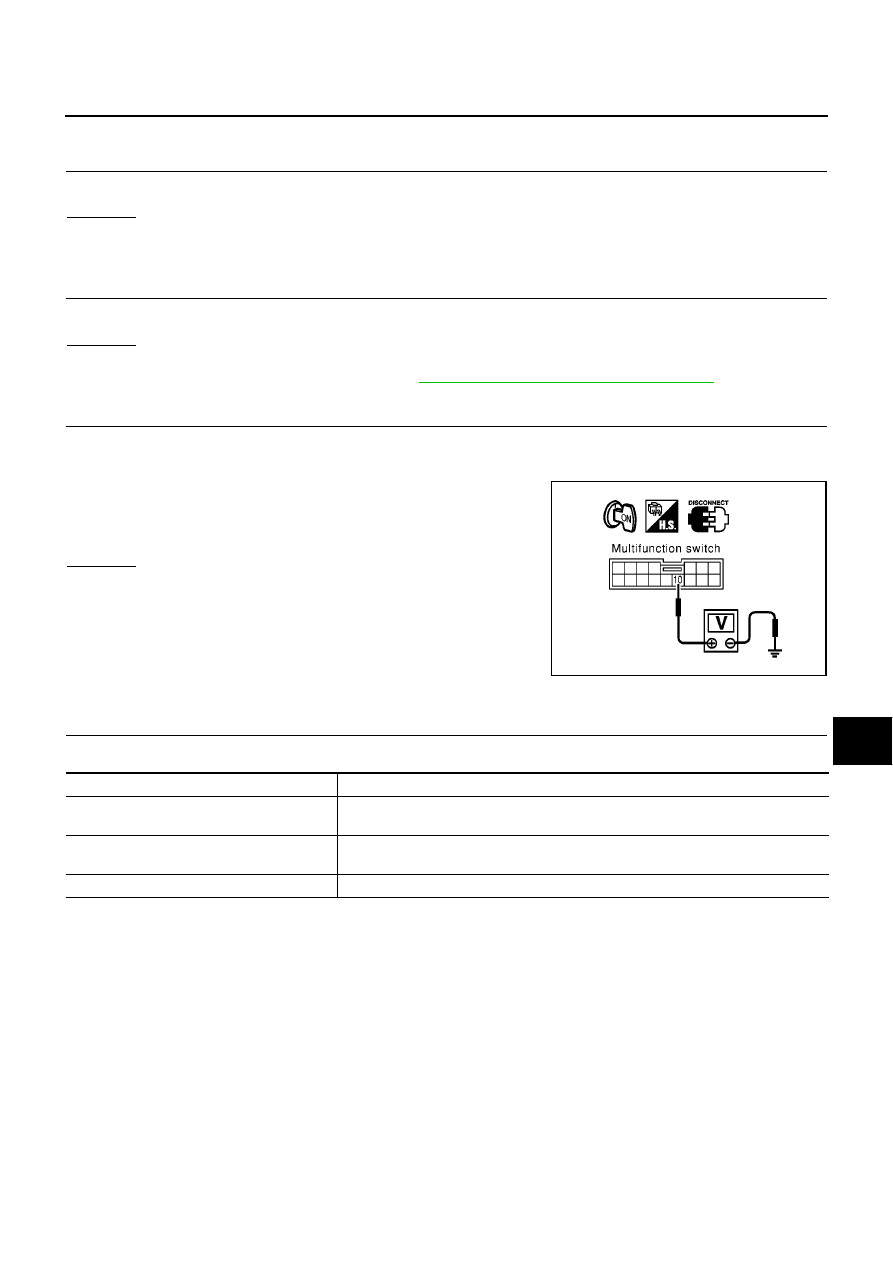

Rear Defogger Indicator Lamp Does Not Illuminate

EKS009KA

1.

CHECK POSITION OF IGNITION SWITCH

Is ignition switch ON?
OK or NG

OK

>> GO TO 2.

NG

>> Rear defogger does not operate if ignition switch is not ON.

2.

CHECK OPERATION OF REAR DEFOGGER

Does rear defogger operate when rear defogger switch is turned ON? (Does fogging disappear?)

Yes or No

Yes

>> GO TO 3.

No

>> Check rear defogger system. Refer to

AV-94, "Rear Defogger Does Not Operate"

.

3.

CHECK REAR DEFOGGER INDICATOR LAMP SIGNALS

1.

Turn ignition switch OFF.

2.

Disconnect multifunction switch connector.

3.

Check voltage between multifunction switch connector M49 ter-
minal 10 (L/R) and ground.

OK or NG

OK

>> Replace multifunction switch.

NG

>> Check harness for open or short between multifunction

switch and rear defogger relay.

No Fuel Information Is Displayed/No Warning Message Is Displayed

EKS009KB

1.

CHECK DISPLAY CONDITIONS

Check display conditions for all warning screens.

>> GO TO 2.

Battery voltage should exist.

SKIA1433E

Display Items

Display condition

Parking brake drag, door ajar

PKB switch or any door switch is ON and vehicle speed is approximately 5 km/h
(3MPH) or higher.

Remaining fuel

After driving approximately 20 km (13MPH) beyond the point where gauge warning
lamp illuminates.

Other than above

Gauge warning lamp illuminated.

AV-96

NAVIGATION SYSTEM

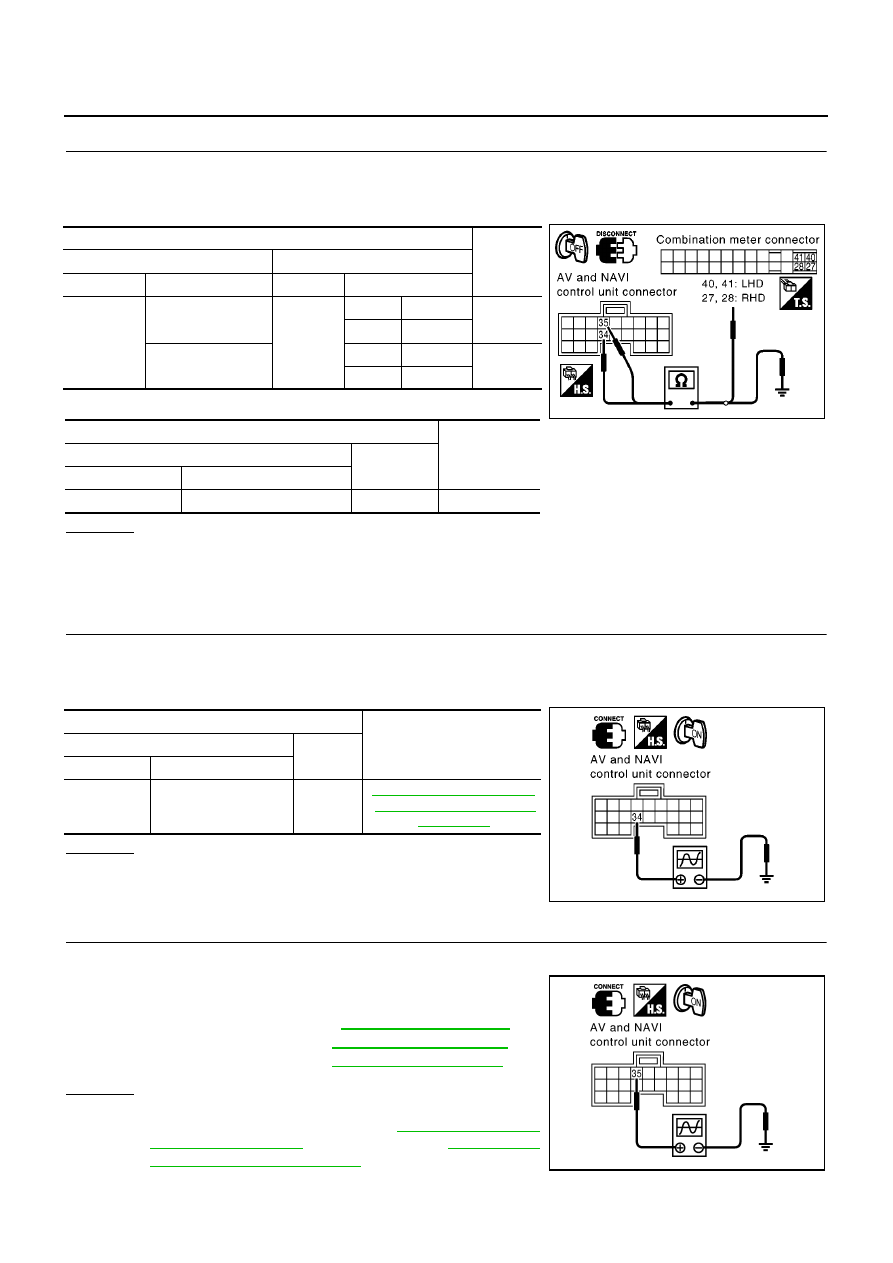

2.

HARNESS CHECK

1.

Turn the ignition switch OFF.

2.

Disconnect connectors of combination meter and AV and NAVI control unit.

3.

Check continuity between AV and NAVI control unit and combination meter.

4.

Check continuity between AV and NAVI control unit and ground.

OK or NG

OK

>> GO TO 3.

NG

>>

Repair harness.

Check connector housings for disconnected or loose terminals.

3.

COMMUNICATION SIGNAL (AV–ME) CHECK

1.

Connect connectors of combination meter and AV and NAVI control unit.

2.

Turn the ignition switch ON.

3.

Check voltage signal between AV and NAVI control unit terminal 34 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Replace AV and NAVI control unit.

4.

COMMUNICATION SIGNAL (ME–AV) CHECK

1.

Turn ignition switch to ON and display “VEHICLE ELECTRONIC SYSTEMS” screen.

2.

Check voltage signal between AV and NAVI control unit harness
connector M55 terminal 35 (G) and ground.

OK or NG

OK

>> Replace AV and NAVI control unit.

NG

>> Check combination meter system.

DI-14, "Combination

Meter Self-Diagnosis"

for LHD models or

DI-37, "Com-

bination Meter Self-Diagnosis"

for RHD models.

Terminals

Continuity

(+)

(-)

Connector

Terminal (wire color)

Connector

Terminal (wire color)

M55

34 (R)

M37

LHD

41 (R)

Yes

RHD

28(R)

35 (G)

LHD

40 (G)

Yes

RHD

27(G)

Terminals

Continuity

(+)

(-)

Connector

Terminal (wire color)

M55

34 (R), 35 (G)

Ground

No

MKIB0654E

Terminals

Voltage (V)

(+)

(-)

Connector

Terminal (wire color)

M55

34 (R)

Ground

AV-65, "Terminals and Refer-

ence Value for AV and NAVI

Control Unit"

MKIB0655E

35 (G)- ground

:

AV-65, "Terminals and

Reference Value for AV
and NAVI Control Unit"

MKIB0656E

NAVIGATION SYSTEM

AV-97

C

D

E

F

G

H

I

J

L

M

A

B

AV

Previous Conditions Are Not Stored

EKS009KC

1.

BATTERY POWER CHECK

Check AV and NAVI control unit battery power.
Refer to

AV-80, "Power Supply and Ground Circuit Check"

.

OK or NG

OK

>> Replace AV and NAVI control unit.

NG

>> Check AV and NAVI control unit battery power system harness.

The Position of The Current-Location Mark Is Not Correct

EKS009KD

1.

SELF-DIAGNOSIS

“Self-diagnosis mode” of the self-diagnosis function

AV-71, "Self-Diagnosis Mode"

.

OK or NG

OK

>> GO TO 2.

NG

>> Check the applicable parts.

2.

HISTORY OF ERRORS DIAGNOSIS

Was any error stored in

AV-77, "HISTORY OF ERRORS"

of the CONFIRMATION/ADJUSTMENT mode?

Yes or No

Yes

>>

AV-77, "DIAGNOSIS BY HISTORY OF ERRORS"

.

No

>>

AV-100, "Driving Test"

.

Radio Wave From The GPS Satellite Is Not Received

EKS009KE

1.

ENVIRONMENT CHECK

Check if any metal object that intercepts radio waves or an object that emits radio waves (such as a porta-
ble phone) is located near the GPS antenna. Check if the vehicle is shielded by a building.

OK or NG

OK

>>

System is normal.
The GPS antenna may not be able to receive radio waves from the GPS satellite if it is shielded
by metal object or an object emitting radio waves is placed near it.

NG

>> GO TO 2.

2.

SELF-DIAGNOSIS

Refer to

AV-71, "Self-Diagnosis Mode"

.

OK or NG

OK

>> Replace GPS antenna.

NG

>> Check the applicable parts.

Display Does Not Change When Screen Adjustment Is Performed

EKS009KF

1.

CHECK SYMPTOM

Do other systems operate properly?

Do operate.>>Replace the display.
Do not operate.>>Check the problem again.

AV-98

NAVIGATION SYSTEM

Day/Night Display Switching Is Not Done. Night Illumination for AV and NAVI
Control Unit Does Not Illuminate

EKS009KG

1.

VEHICLE SIGNAL CHECK

1.

Start the engine.

2.

Diagnose the following items with

AV-75, "VEHICLE SIGNALS"

in CONFIRMATION/ADJUSTMENT

mode.

OK or NG

OK

>> Replace AV and NAVI control unit.

NG

>>

AV-83, "Illumination Control Signal Check"

.

On Multifunction Switch, a Specific Switch Does Not Operate in All Conditions

EKS009KH

Replace multifunction switch.

Driving Information Is Inaccurate. Maintenance Information Is Inaccurate

EKS009KI

1.

VEHICLE SPEED SIGNAL INSPECTION

Check vehicle speed signal.

AV-82, "Vehicle Speed Signal Check"

.

OK or NG

OK

>> Replace AV and NAVI control unit.

NG

>> Check combination meter system.

DI-14, "Combination Meter Self-Diagnosis"

for LHD models or

DI-37, "Combination Meter Self-Diagnosis"

for RHD models.

System Does Not Start

EKS009KJ

1.

INSPECT POWER SYSTEM

Inspect power system of AV and NAVI control unit.

AV-80, "Power Supply and Ground Circuit Check"

.

OK or NG

OK

>> Replace AV and NAVI control unit.

NG

>> Malfunction in power system of AV and NAVI control unit

The Current Position Mark Is in the Wrong Place

EKS009KK

1.

CHECK SYMPTOM

AV-101, "Example of Symptoms Judged Not Abnormal"

?”

Yes or No

Yes

>> The limit of the navigation location detection capability has been reached.

No

>> GO TO 2.

2.

SELF-DIAGNOSIS

Perform

AV-71, "Self-Diagnosis Mode"

.

OK or NG

OK

>> GO TO 3.

NG

>> Check the applicable parts.

<Lamp signals>

Lighting switch position 1

: ON

Lighting switch OFF

: OFF
