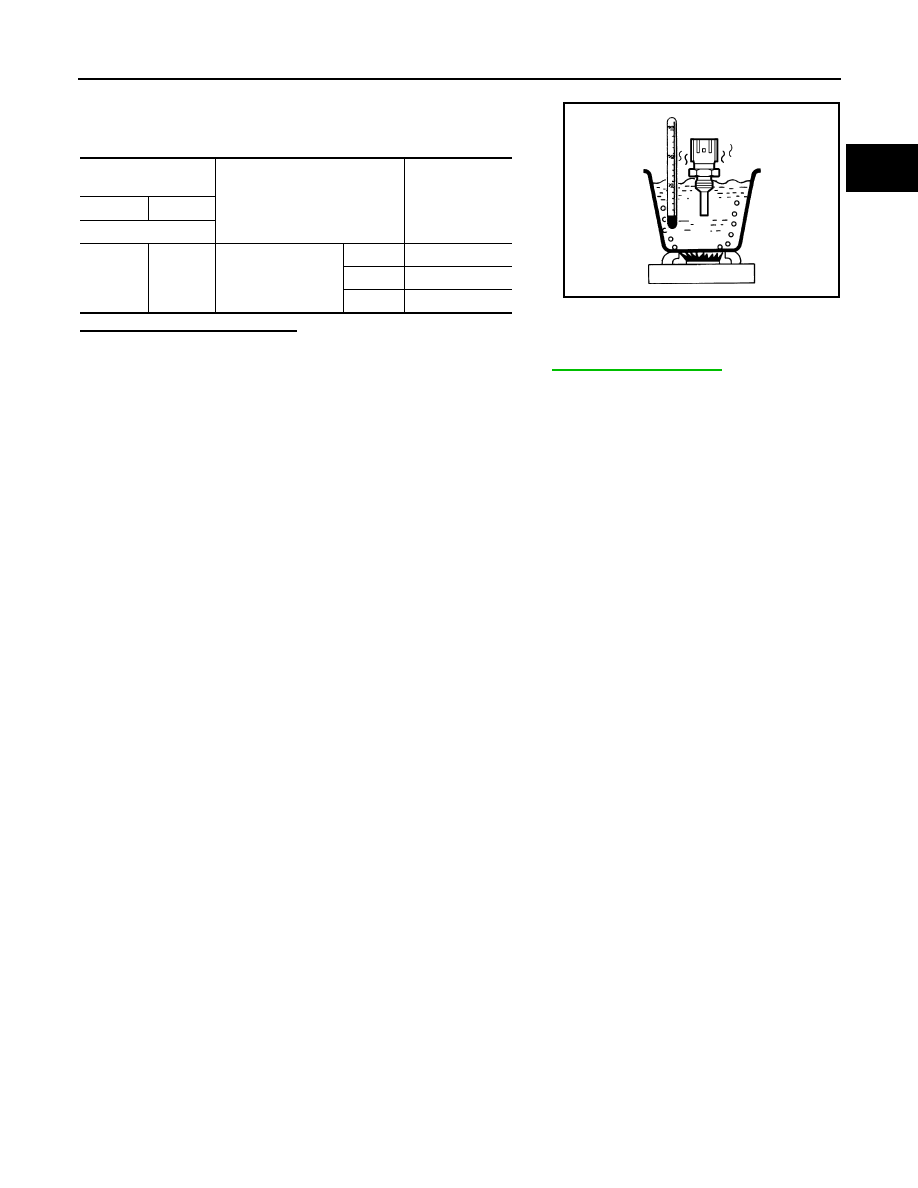

3. Remove engine coolant temperature sensor.

4. Check resistance between engine coolant temperature sensor

terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine coolant temperature sensor 1. Refer to

CO-54, "Exploded View"

.

Engine coolant tem-

perature sensor

Condition

Resistance (k

Ω)

+

−

Terminal

1

2

Temperature [

°C

(

°F)]

20 (68)

2.37 - 2.63

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

JMBIA0080ZZ

EC-1190

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

BATTERY CURRENT SENSOR

BATTERY CURRENT SENSOR

Component Function Check

INFOID:0000000012198717

1.

CHECK BATTERY CURRENT SENSOR

1. Start engine and warm it up to normal operating temperature.

2. Check the voltage between ECM harness connector terminals.

*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-97, "How to Handle Battery"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-1190, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198718

1.

CHECK BATTERY CURRENT SENSOR POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect battery current sensor harness connector.

3. Turn ignition switch ON.

4. Check the voltage between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK SENSOR POWER SUPPLY 2 CIRCUIT

Perform

EC-1240, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

3.

CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between battery current sensor harness connector and ECM harness connector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

ECM

Voltage

(Approx.)

Connector

+

-

Terminal

F23

38

43

2.6 - 3.5 V

*

+

-

Voltage

(Approx.)

Battery current sensor

Connector

Terminal

F52

1

Ground

5 V

+

−

Continuity

Battery current sensor

ECM

Connector

Terminal

Connector

Terminal

F52

3

F23

43

Existed

BATTERY CURRENT SENSOR

EC-1191

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT

1. Check the continuity between battery current sensor harness connector and ECM harness connector.

2. Also check harness for short to ground and to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts

5.

CHECK BATTERY CURRENT SENSOR

Check the battery current sensor. Refer to

EC-1092, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace battery negative cable assembly.

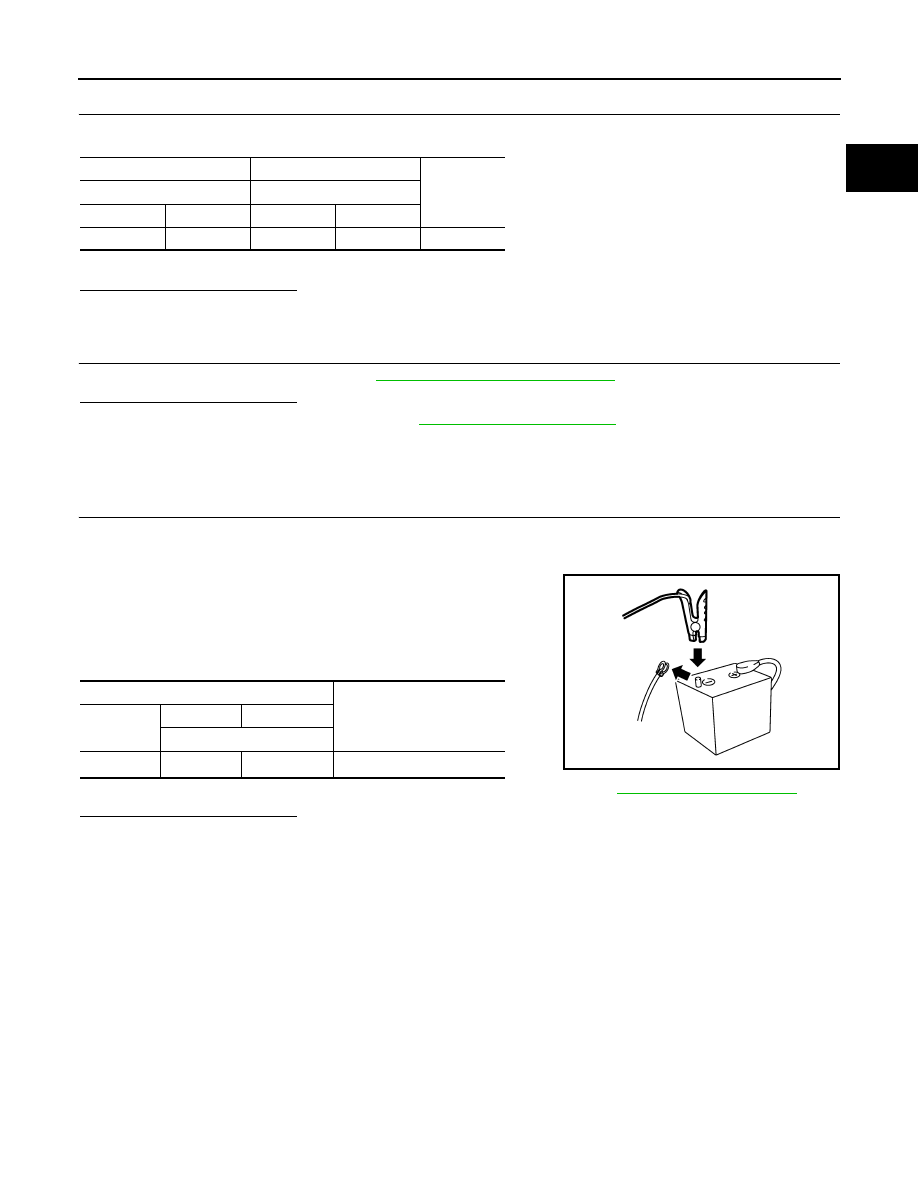

Component Inspection

INFOID:0000000012198719

1.

CHECK BATTERY CURRENT SENSOR

1. Turn ignition switch OFF.

2. Reconnect harness connectors disconnected.

3. Disconnect battery negative cable.

4. Install jumper cable between battery negative terminal and body

ground.

5. Turn ignition switch ON.

6. Check the voltage between ECM harness connector and

ground.

*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-97, "How to Handle Battery"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace battery negative cable assembly.

+

−

Continuity

Battery current sensor

ECM

Connector

Terminal

Connector

Terminal

F52

4

F23

38

Existed

ECM

Voltage

(Approx.)

Connector

+

-

Terminal

F23

38

43

2.5 V

*

JPBIA3286ZZ

EC-1192

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

BRAKE PEDAL POSITION SWITCH

BRAKE PEDAL POSITION SWITCH

Component Function Check

INFOID:0000000012198720

1.

CHECK BRAKE PEDAL POSITION SWITCH FUNCTION

With CONSULT

1. Turn ignition switch ON.

2. Select “BRAKE SW1” in “DATA MONITOR” mode of “ENGINE” using CONSULT.

3. Check “BRAKE SW1” indication as per the following conditions.

Without CONSULT

1. Turn ignition switch ON.

2. Check the voltage between ECM harness connector terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-1192, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198721

1.

CHECK BRAKE PEDAL POSITION SWITCH POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect brake pedal position switch harness connector.

3. Turn ignition switch ON.

4. Check the voltage between brake pedal position switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Perform the trouble diagnosis for power supply circuit.

2.

CHECK BRAKE PEDAL POSITION SWITCH INPUT SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between brake pedal position switch harness connector and ECM harness connec-

tor.

Monitor item

Condition

Indication

BRAKE SW1

Brake pedal

Slightly depressed

OFF

Fully released

ON

ECM

Condition

Voltage

(Approx.)

Connector

+

–

Terminal

E19

140

152

Brake pedal

Slightly depressed

0 V

Fully released

Battery voltage

+

−

Voltage

Brake pedal position switch

Connector

Terminal

E112

1

Ground

Battery voltage

+

−

Continuity

Brake pedal position switch

ECM

Connector

Terminal

Connector

Terminal

E112

2

E19

140

Existed
