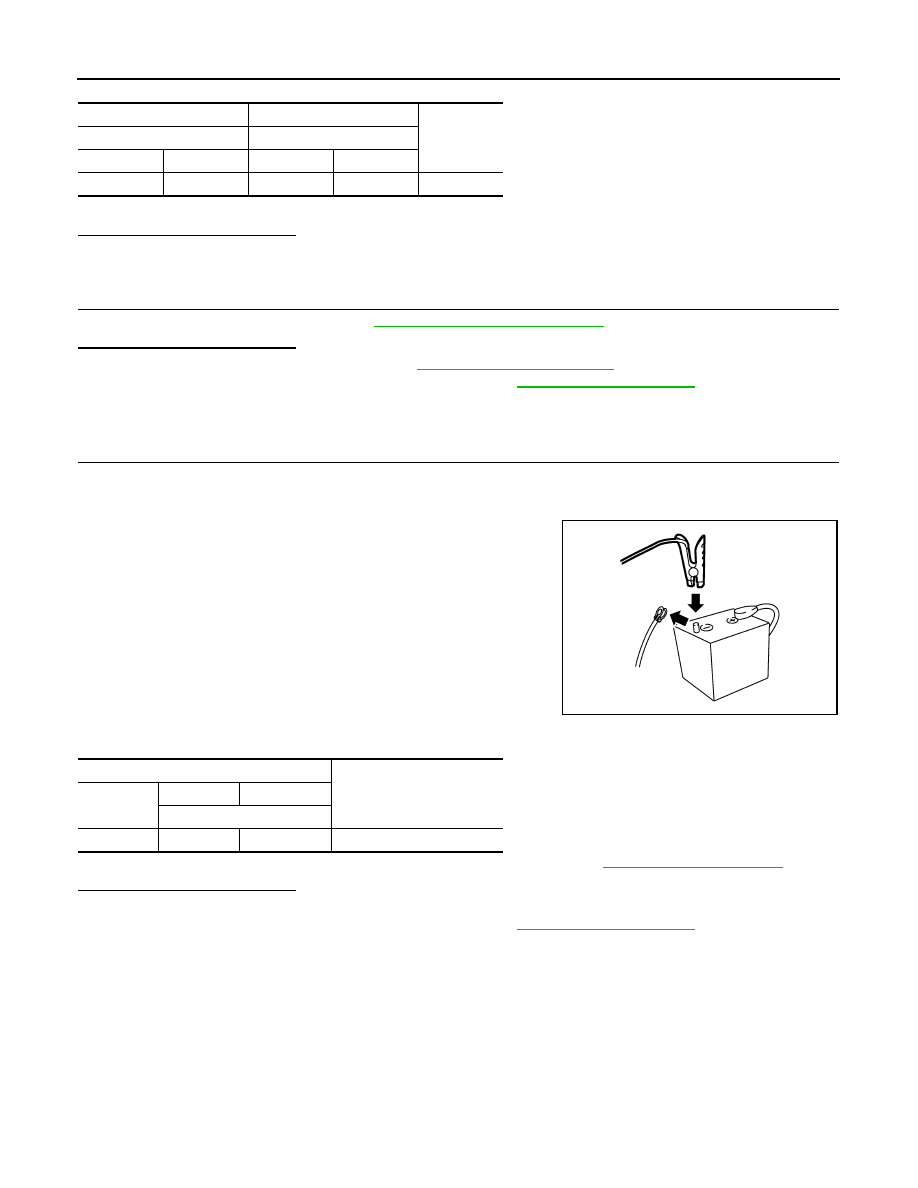

P1551, P1552 BATTERY CURRENT SENSOR EC-461 < DTC/CIRCUIT DIAGNOSIS > [MR FOR NISMO RS MODELS] C D E F G H I J K L M A EC N P O Diagnosis Procedure INFOID:0000000012198013 1. CHECK BATTERY CURRENT SENSOR POWER SUPPLY 1. Turn ignition switch OFF. 2. Disconnect battery current sensor harness connector. 3. Turn ignition switch ON. 4. Check the voltage between battery current sensor harness connector and ground. Is the inspection result normal? YES >> GO TO 3. NO >> GO TO 2. 2. CHECK SENSOR POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check harness connector for short to power and short to ground, between the following terminals. Is the inspection result normal? YES >> Perform the trouble diagnosis for power supply circuit. NO >> Repair or replace error-detected parts. 3. CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check the continuity between battery current sensor harness connector and ECM harness connector. 4. Also check harness for short to power. YES >> GO TO 4. NO >> Repair or replace error-detected parts. 4. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT 1. Check the continuity between battery current sensor harness connector and ECM harness connector. + - Voltage (Approx.) Battery current sensor Connector Terminal F52 1 Ground 5 V ECM Sensor Connector Terminal Name Connector Terminal F25 39 FRP sensor F5 1 EOP sensor F43 3 Turbocharger boost sensor F75 1 F26 68 Battery current sensor F52 1 G sensor B32 3 72 CMP sensor F109 1 EVT control position sensor F110 1 E18 118 APP sensor 2 E101 5 + − Continuity Battery current sensor ECM Connector Terminal Connector Terminal F52 3 F26 87 Existed |
