COMPONENT PARTS

EC-29

< SYSTEM DESCRIPTION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

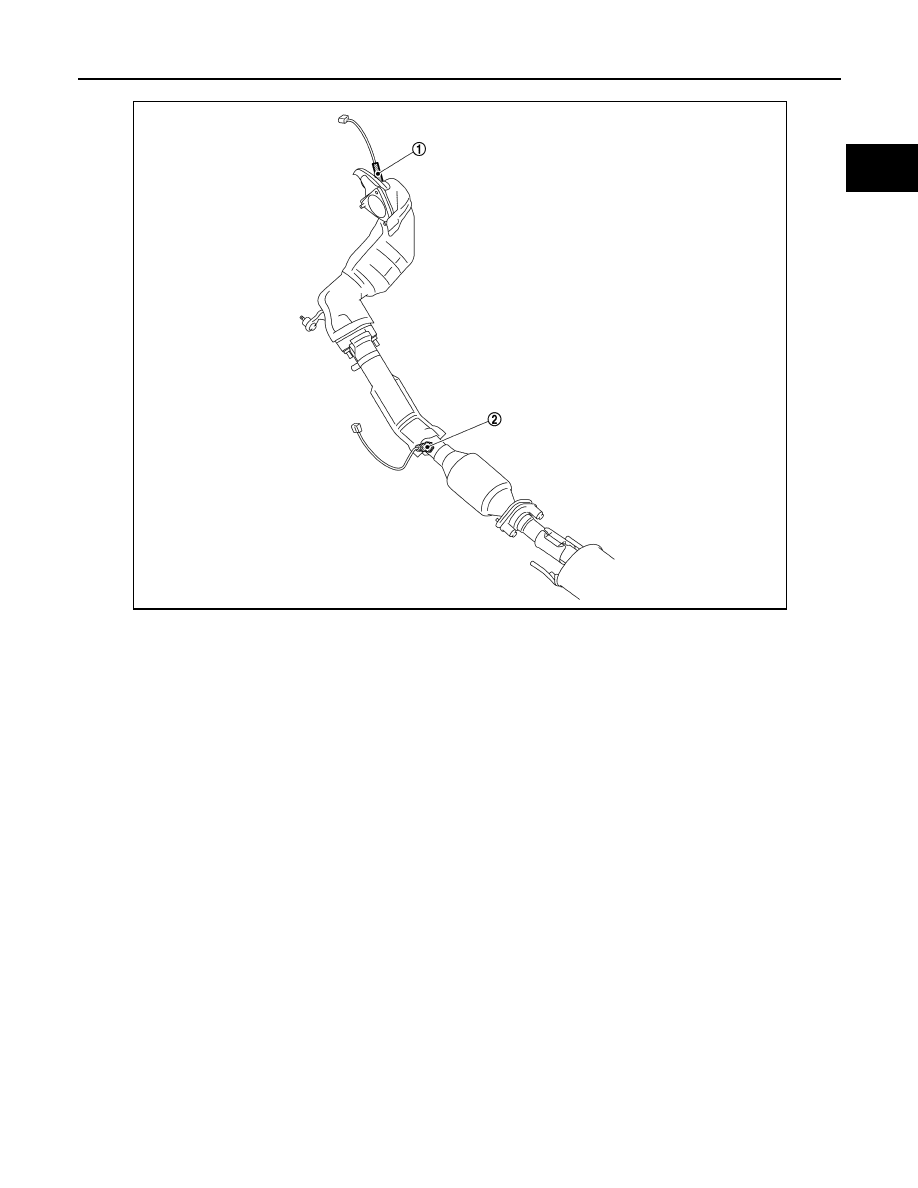

AWD

1.

A/F sensor 1

2.

Heated oxygen sensor 2

JPBIA4609ZZ

EC-30

< SYSTEM DESCRIPTION >

[MR FOR NISMO RS MODELS]

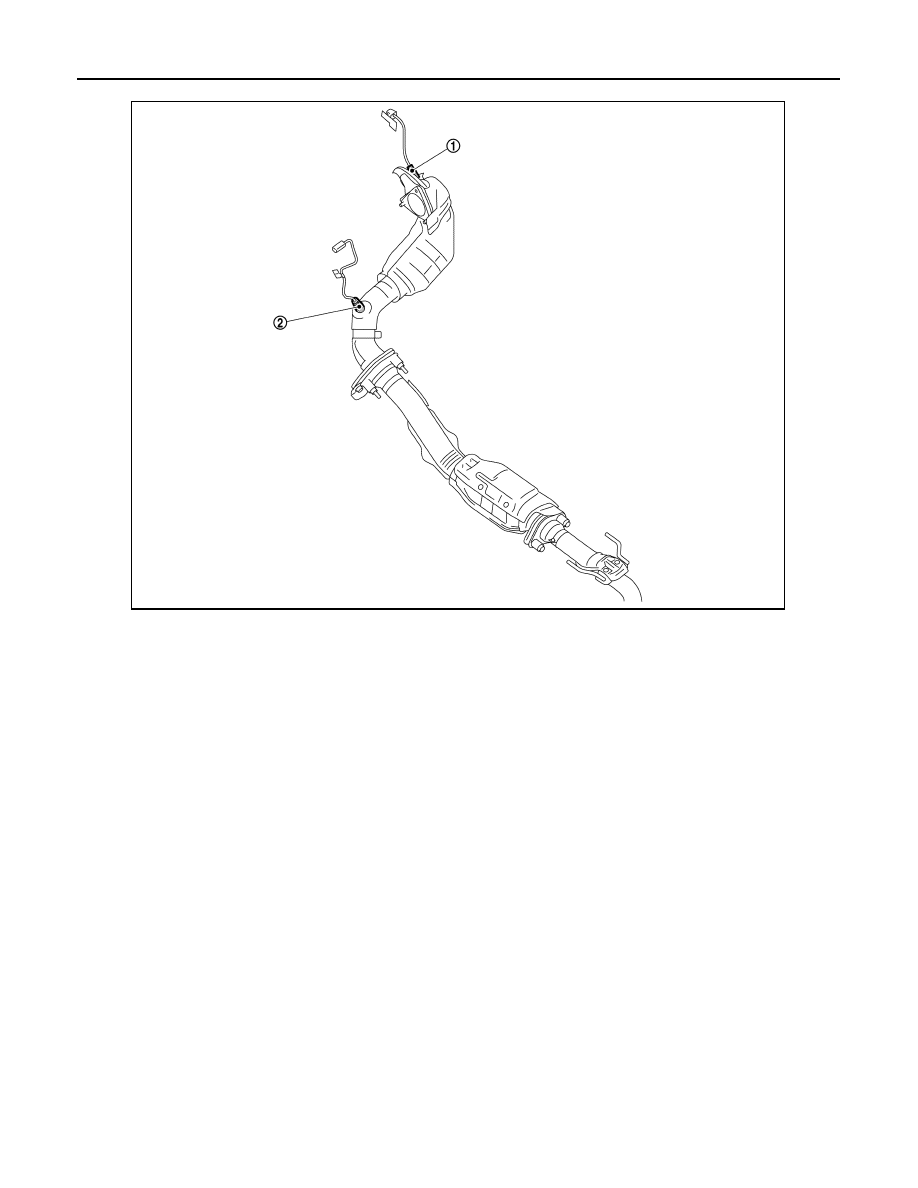

COMPONENT PARTS

BODY COMPARTMENT

1.

A/F sensor 1

2.

Heated oxygen sensor 2

JPBIA4610ZZ

COMPONENT PARTS

EC-31

< SYSTEM DESCRIPTION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

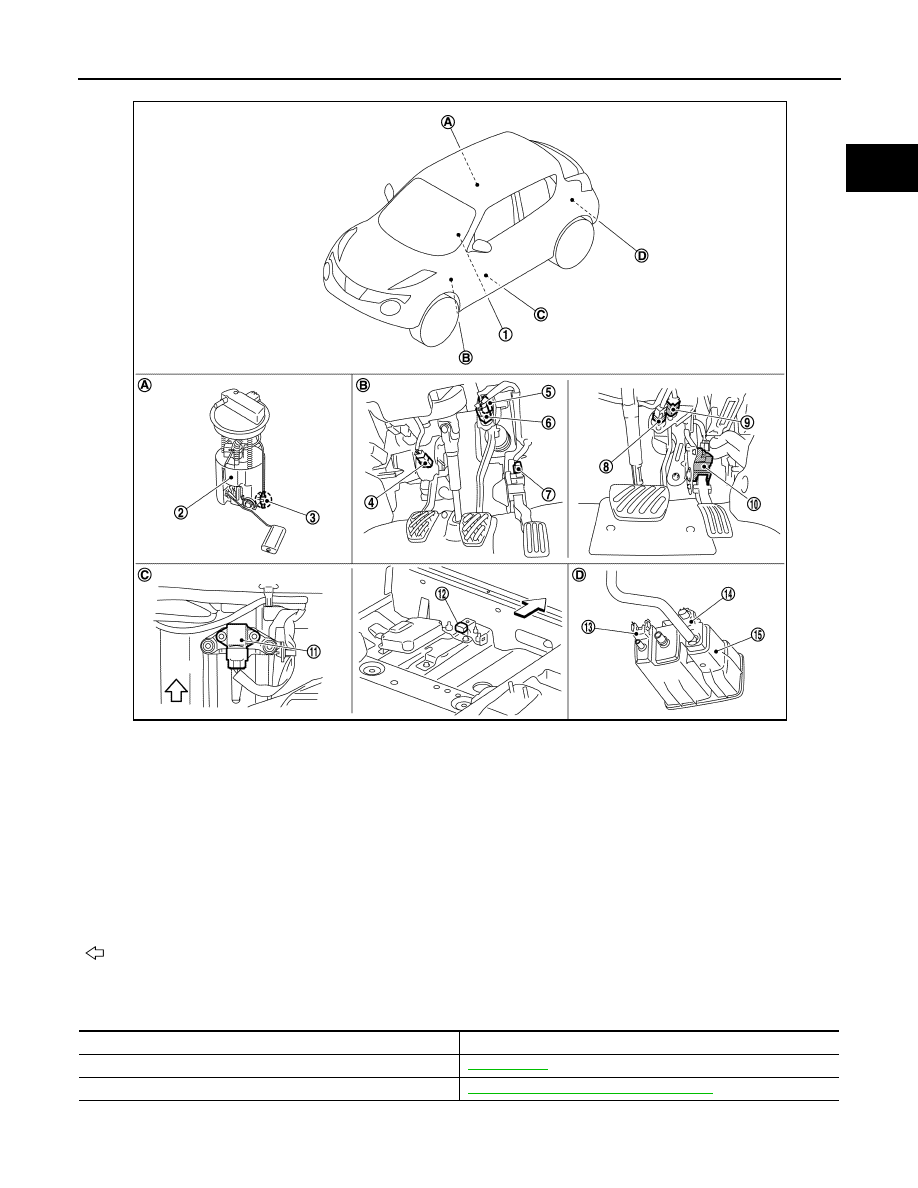

ENGINE CONTROL SYSTEM : Component Description

INFOID:0000000012197625

1.

ASCD steering switch

2.

Fuel level sensor unit, fuel filter and
fuel pump assembly

3.

Fuel tank temperature sensor

4.

Clutch pedal position switch
(with M/T models)

5.

Brake pedal position switch
(with M/T models)

6.

Stop lamp switch
(with M/T models)

7.

Accelerator pedal position sensor
(with M/T models)

8.

Brake pedal position switch
(with CVT models)

9.

Stop lamp switch
(with CVT models)

10. Accelerator pedal position sensor

(with CVT models)

11. G sensor

(with 2WD models)

12. G sensor

(with AWD models)

13. EVAP control system pressure sensor 14. EVAP canister vent control valve

15. EVAP canister

A.

Under of right side second seat

B.

Periphery of pedals

C.

Under of left side front seat

D.

Fuel tank rear
: Vehicle front

JPBIA4893ZZ

Component

Reference

ECM

EC-33, "ECM"

Accelerator pedal position sensor

EC-33, "Accelerator Pedal Position Sensor"

EC-32

< SYSTEM DESCRIPTION >

[MR FOR NISMO RS MODELS]

COMPONENT PARTS

Electric throttle control actuator

EC-33, "Electric Throttle Control Actuator"

Throttle control motor

Throttle position sensor

Ignition coil with power transistor

EC-34, "Ignition Coil With Power Transistor"

Fuel injector

EC-35, "Fuel Injector"

High pressure fuel pump

EC-35, "High Pressure Fuel Pump"

Fuel rail pressure sensor

EC-36, "Fuel Rail Pressure Sensor"

Low pressure fuel pump

EC-36, "Low Pressure Fuel Pump"

Fuel tank temperature sensor

EC-36, "Fuel Tank Temperature Sensor"

Fuel level sensor

EC-36, "Fuel Level Sensor"

Mass air flow sensor

EC-37, "Mass Air Flow Sensor (With Intake Air Temperature Sen-
sor 1)"

Intake air temperature sensor 1

Turbocharger

EC-37, "Turbocharger"

Boost control actuator

Turbocharger boost control solenoid valve

Turbocharger boost sensor

EC-38, "Turbocharger Boost Sensor (With Intake Air Temperature
Sensor 2)"

Intake air temperature sensor 2

Engine coolant temperature sensor

EC-39, "Engine Coolant Temperature Sensor"

Crankshaft position sensor

EC-39, "Crankshaft Position Sensor (POS)"

Camshaft position sensor

EC-40, "Camshaft Position Sensor (PHASE)"

Intake valve timing control solenoid valve

EC-40, "Intake Valve Timing Control Solenoid Valve"

Exhaust valve timing control position sensor

EC-40, "Exhaust Valve Timing Control Position Sensor"

Exhaust valve timing control solenoid valve

EC-41, "Exhaust Valve Timing Control Solenoid Valve"

Air fuel ratio (A/F) sensor 1

EC-41, "Air Fuel Ratio (A/F) Sensor 1"

Heated oxygen sensor 2

EC-41, "Heated Oxygen Sensor 2"

Knock sensor

EC-42, "Knock Sensor"

Engine oil pressure sensor

EC-42, "Engine Oil Pressure Sensor"

Engine oil temperature sensor

EC-43, "Engine Oil Temperature Sensor"

Cooling fan

EC-43, "Cooling Fan"

EVAP canister purge volume control solenoid valve

EC-43, "EVAP Canister Purge Volume Control Solenoid Valve"

EVAP canister vent control valve

EC-44, "EVAP Canister Vent Control Valve"

EVAP control system pressure sensor

EC-44, "EVAP Control System Pressure Sensor"

Battery current sensor

EC-44, "Battery Current Sensor (With Battery Temperature Sen-
sor)"

Battery temperature sensor

Malfunction indicator lamp (MIL)

EC-45, "Malfunction Indicator lamp (MIL)"

Oil pressure warning lamp

EC-45, "Oil Pressure Warning Lamp"

Refrigerant pressure sensor

EC-45, "Refrigerant Pressure Sensor"

Stop lamp switch

EC-45, "Stop Lamp Switch & Brake Pedal Position Switch"

Brake pedal position switch

Clutch pedal position switch

EC-46, "Clutch Pedal Position Switch"

ASCD steering switch

EC-46, "ASCD Steering Switch"

Information display

EC-46, "Information Display"

Component

Reference
