REMOVAL AND INSTALLATION

WHEEL SENSOR

FRONT WHEEL SENSOR
FRONT WHEEL SENSOR : Exploded View

INFOID:0000000012199753

NOTE:

Front RH wheel sensor is symmetrically opposite of LH.

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000012199754

REMOVAL

1. Remove tires.
2. Remove the fender protector (front). Refer to

EXT-31, "Removal and Installation"

.

3. Remove front wheel sensor from steering knuckle.

CAUTION:

Never rotate and never pull front wheel sensor as much as possible, when pulling out.

4. Remove front wheel sensor harness from the vehicle.

CAUTION:

Never twist or pull front wheel sensor harness, when removing.

INSTALLATION

Note the following, and install in the reverse order of the removal.

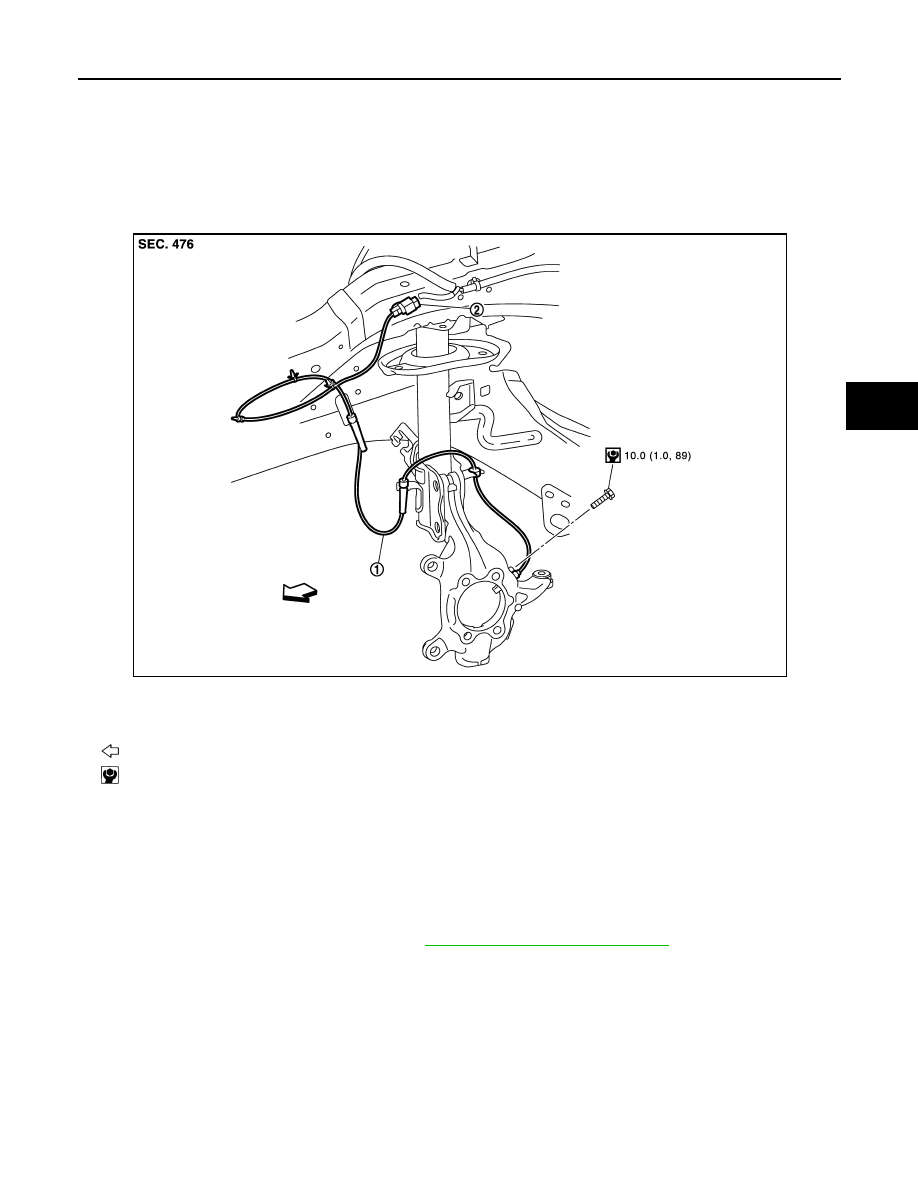

1.

Front LH wheel sensor

2.

Front LH wheel sensor harness con-
nector

: Vehicle front

: N·m (kg-m, in-lb)

JPFIC0191GB

BRC-148

< REMOVAL AND INSTALLATION >

[WITH VDC]

WHEEL SENSOR

• Check that there is no foreign material like iron powder or damage on inner surface of front wheel sensor

mounting hole of steering knuckle and sensor rotor. Install after cleaning when there are foreign material like

iron powder, or replace when there is a malfunction.

• Never twist front wheel sensor harness when installing front wheel

sensor. Check that grommet (2) is fully inserted to bracket (1).

Check that front wheel sensor harness is not twisted after installa-

tion.

REAR WHEEL SENSOR
REAR WHEEL SENSOR : Exploded View

INFOID:0000000012199755

2WD

Left side

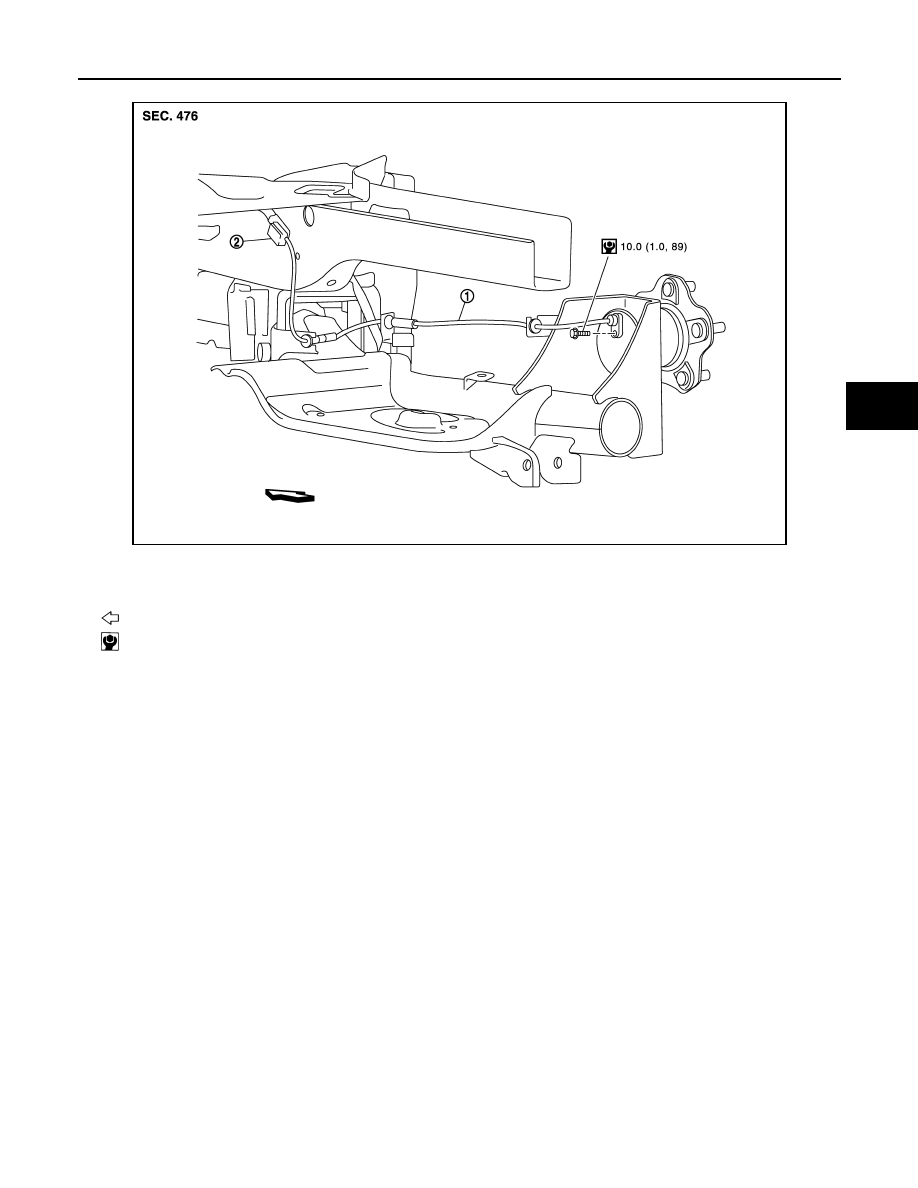

JPFIC0209ZZ

JPFIC0192GB

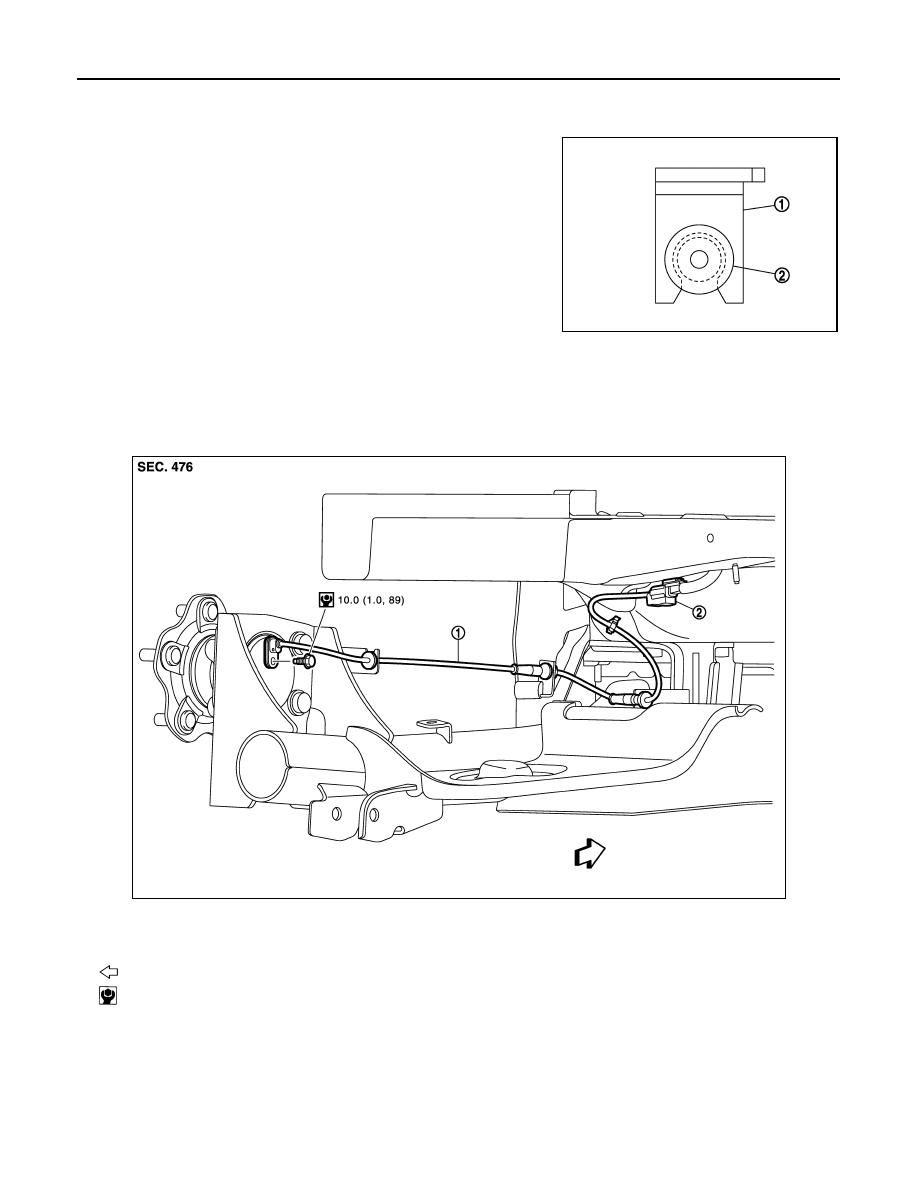

1.

Rear LH wheel sensor

2.

Rear LH wheel sensor harness con-
nector

: Vehicle front

: N·m (kg-m, in-lb)

WHEEL SENSOR

BRC-149

< REMOVAL AND INSTALLATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Right side

AWD

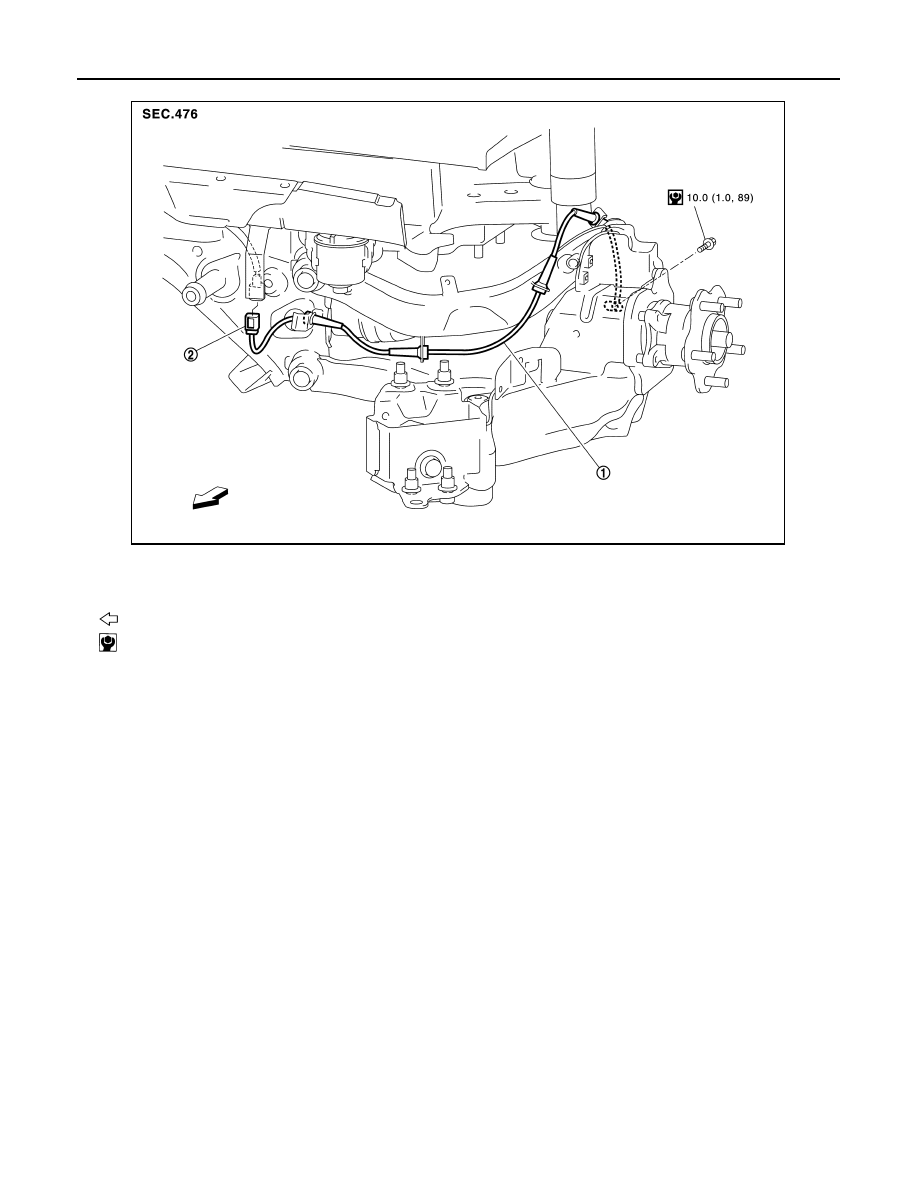

JPFIC0218GB

1.

Rear RH wheel sensor

2.

Rear RH wheel sensor harness con-
nector

: Vehicle front

: N·m (kg-m, in-lb)

BRC-150

< REMOVAL AND INSTALLATION >

[WITH VDC]

WHEEL SENSOR

NOTE:

Rear RH wheel sensor is symmetrically opposite of LH.

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000012199756

REMOVAL

1. Remove rear wheel sensor from wheel hub and bearing assembly (2WD).

CAUTION:

Never rotate or pull rear wheel sensor as much as possible, when pulling out.

2. Remove rear wheel sensor from axle housing (AWD).

CAUTION:

Never rotate or pull rear wheel sensor as much as possible, when pulling out.

3. Remove rear wheel sensor harness from the vehicle.

CAUTION:

Never twist and never pull rear wheel sensor harness, when removing.

INSTALLATION

Note the following, and install in the reverse order of the removal.

• Check that there is no foreign material like iron powder or damage on inner surface of rear wheel sensor

mounting hole of wheel hub and bearing assembly and sensor rotor. Install after cleaning when there are for-

eign material like iron powder, or replace when there is a malfunction.

1.

Rear LH wheel sensor

2.

Rear LH wheel sensor harness con-
nector

: Vehicle front

: N·m (kg-m, in-lb)

JSFIA0525GB
