SB-6

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000012200320

REMOVAL

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or

more.

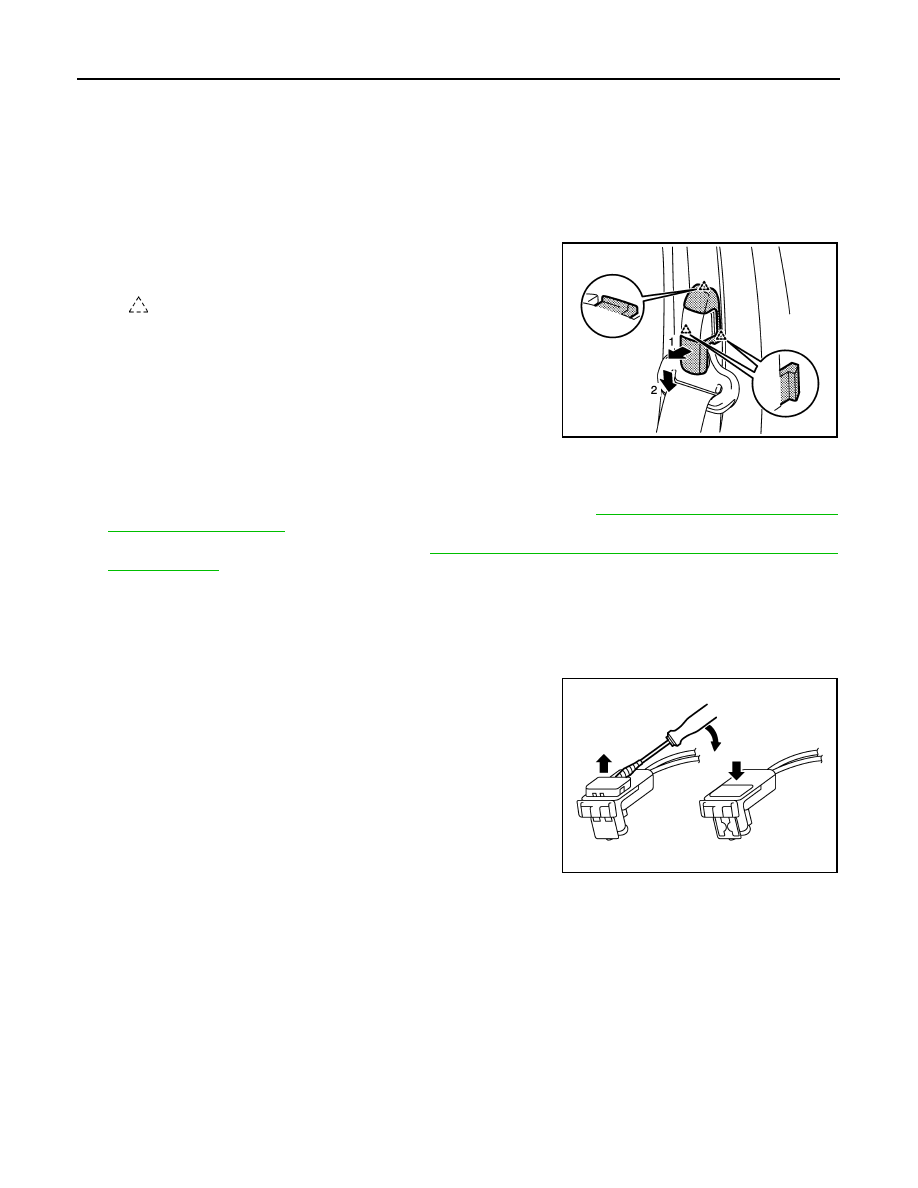

1. Remove shoulder anchor.

1. Slide driver seat to the frontmost position.

2. Pull adjuster cover in direction indicated by arrows as

shown in the figure. Remove adjuster cover.

3. Remove shoulder anchor mounting anchor bolt.

2. Remove outer anchor mounting anchor bolt, and then remove outer anchor.
3. Remove front kicking plate inner and rear kicking plate inner. Refer to

INT-19, "KICKING PLATE INNER :

Removal and Installation"

.

4. Remove center pillar lower garnish. Refer to

INT-22, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

5. Remove seat belt pre-tensioner retractor.

Driver side

1. Remove seat belt pre-tensioner retractor mounting anchor bolt and screw.

2. Disconnect seat belt pre-tensioner harness connector.

CAUTION:

• For installing/removing seat belt pre-tensioner con-

nector, insert thin screwdriver wrapped in tape into

notch, lift lock and remove connector.

• Install connector with lock raised, and push lock into

connector.

• After installing the connector, check that the lock is

pushed securely into it.

• Never place pre-tensioner seat belt in an area where the temperature reaches 80

°C or more.

Passenger side

1. Disconnect seat belt pre-tensioner harness connector.

CAUTION:

: Pawl

JMHIA1630ZZ

PHIA0953J

FRONT SEAT BELT

SB-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

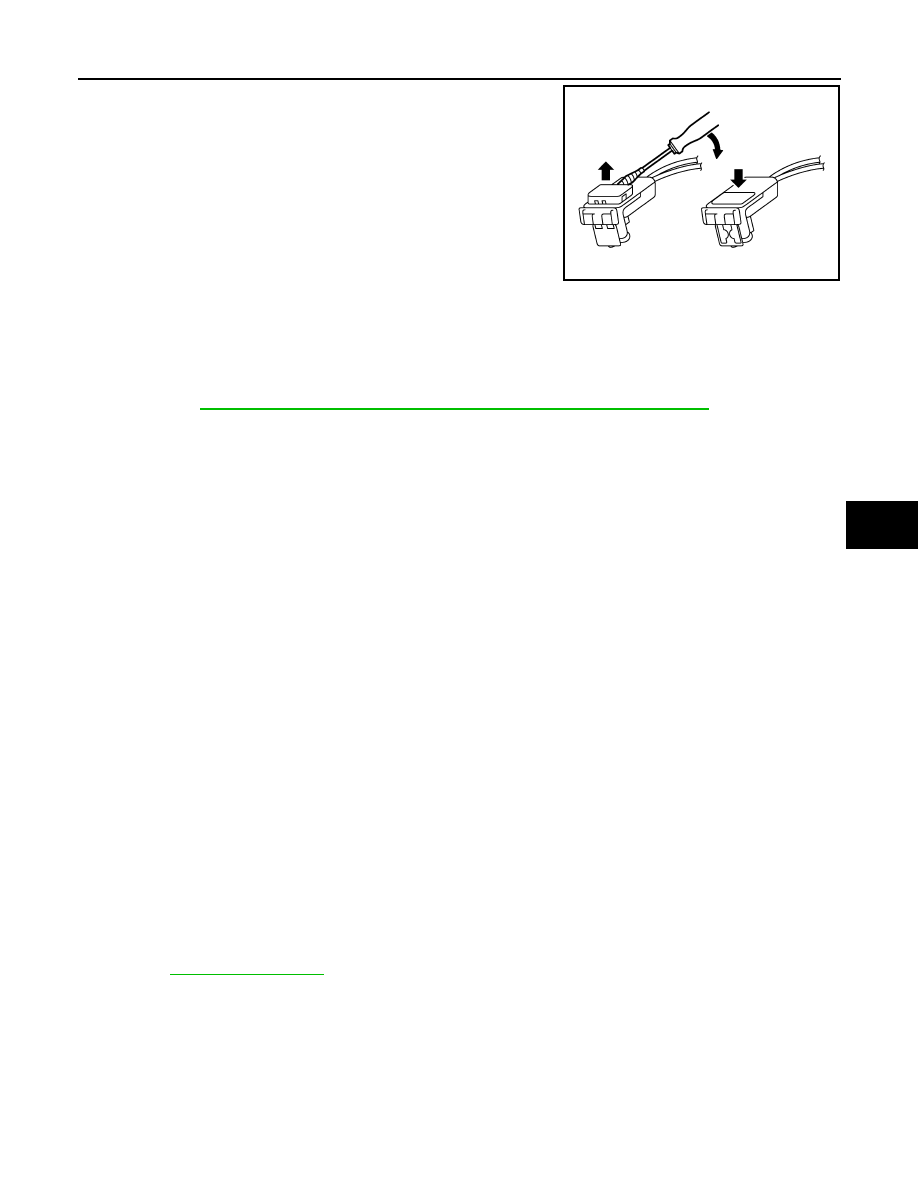

• For installing/removing seat belt pre-tensioner con-

nector, insert thin screwdriver wrapped in tape into

notch, lift lock and remove connector.

• Install connector with lock raised, and push lock into

connector.

• After installing the connector, check that the lock is

pushed securely into it.

2. Remove seat belt pre-tensioner retractor mounting anchor bolt and screw.

CAUTION:

Never place pre-tensioner seat belt in an area where the temperature reaches 80

°C or more.

6. Remove seat belt adjuster.

1. Remove center pillar upper garnish.

Refer to

INT-22, "CENTER PILLAR UPPER GARNISH : Removal and Installation"

.

2. Remove seat belt adjuster mounting anchor bolts.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT RETRACTOR : Inspection

INFOID:0000000012200321

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.

NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced

unless the collision was minor and the belts show no damage and continue to operate properly. Fail-

ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-

ing a collision should also be replaced if either damage or improper operation was noted. Seat belt

pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in

which the air bags were deployed.

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt pre-tensioners must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1. Check the seat belt warning lamp for proper operation as per the following:
a. Turn ignition switch ON. The seat belt warning lamp should illuminate.
b. Fasten driver seat belt. The seat belt warning lamp should turn OFF.
2. If the air bag warning lamp is blinking, perform self-diagnosis with CONSULT and air bag warning lamp.

Refer to

SRC-10, "Description"

.

3. Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.
4. Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Check that guide

swivels freely and that webbing lays flat and does not bind in guide. Check that height adjuster operates

properly and holds securely.

5. Check retractor operation:
a. Fully extend the seat belt webbing and check for twists, tears or other damage.

PHIA0953J

SB-8

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

b. Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the

seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the

loops of the upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing

does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE

SET” and perform the following steps.

Inspect the front seat belt through-anchor

1. Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2. Fix the seat belt at the center pillar webbing opening with a clip or other device.

3. Pass a thin wire through the through-anchor webbing opening. Hold both ends of the wire and pull it

tightly while moving it up and down several times along the webbing opening surface to remove dirt

stuck there.

4. Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean

cloth.

5. Apply tape at the point where the webbing contacts the through-anchor webbing opening.

NOTE:

Apply the tape so that there is no slack or wrinkling.

6. Remove the clip fixing the seat belt and check that the webbing returns smoothly.

6. Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:

All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the

retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors

except the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also

called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt

is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt

in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat

belt to fully wind back into the retractor.

Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-

erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from

extending further.

ALR Function Stationary Check

1. Pull out the entire length of seat belt from retractor until a click is heard.
2. Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the

retractor is in the Automatic Locking Retractors (ALR) mode.

3. Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it

does not operate normally, replace the retractor assembly.

4. Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a

large, empty parking lot). Road surface must be paved and dry. Never perform the following test on

wet or gravel roads or on public streets and highways. This could result in an accident and serious

personal injury. The driver and passenger must be prepared to brace themselves in the event that the

retractor does not lock.
1. Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.
2. Proceed to the designated safe area.
3. Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop

and the driver and passenger must be prepared to brace themselves in the event that the retractor does

not lock. Apply brakes firmly and make a very hard stop.

FRONT SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,

perform the retractor off-vehicle check.

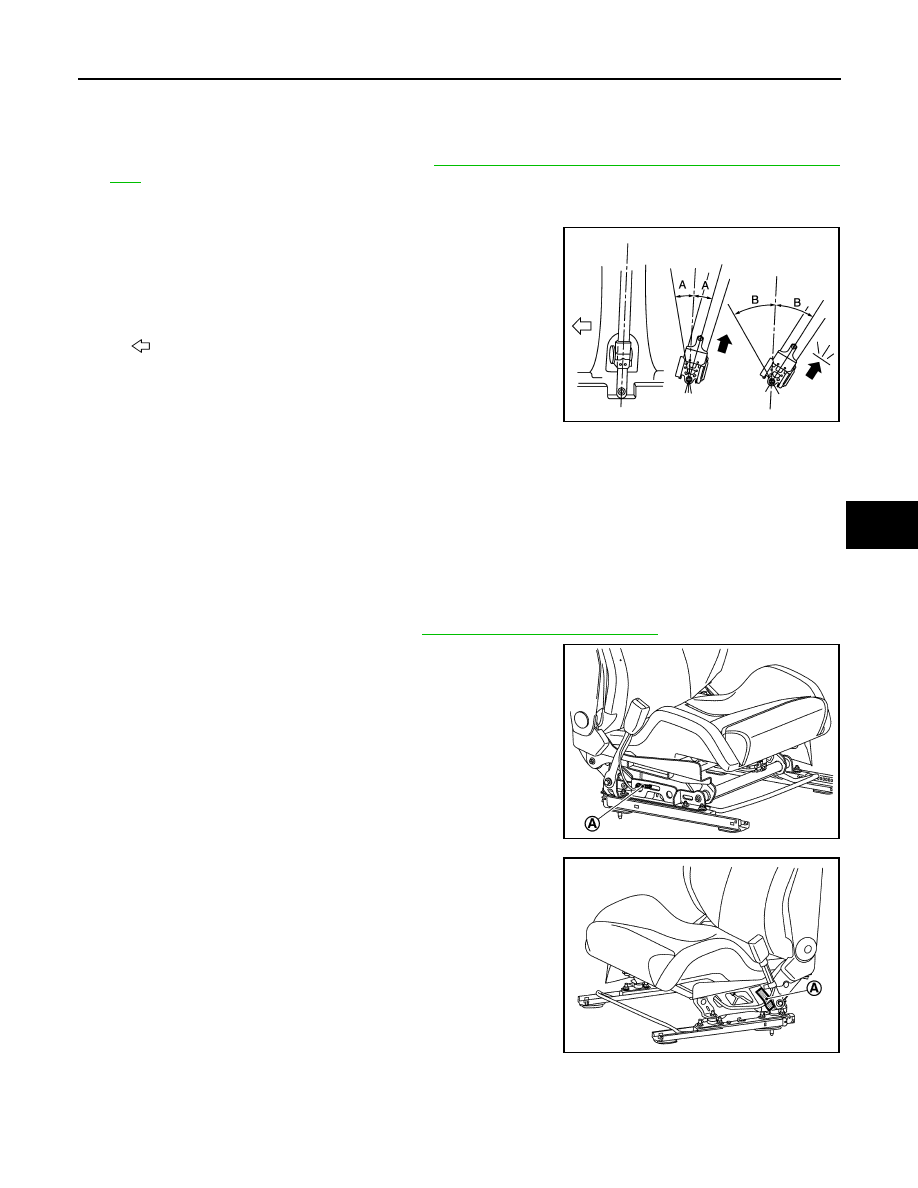

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1. Remove the front seat belt retractor. Refer to

SB-6, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2. Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without

twisting the retractor assembly as shown in the figure.

• The webbing can be pulled out when the angle (A) is 12

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 13

degrees or more.

3. Replace the seat belt assembly if it does not operate normally.

SEAT BELT BUCKLE
SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000012200322

REMOVAL

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or

more.
1. Remove front seat from the vehicle. Refer to

SE-21, "Removal and Installation"

.

2. Cut cable tie (A). (only Driver side RECARO seat.)

3. Peel harness tape (A). (only passenger side RECARO seat.)

4. Remove harness fixing clamps of seat belt buckle and connector fixing clip that are installed on seat.
5. Remove seat belt buckle mounting anchor bolt, and then remove seat belt buckle from seat.

INSTALLATION

A and B

: Tilting angles

: Vehicle front

JMHIA1056ZZ

JMJIB0219ZZ

JMJIB0220ZZ
