Nissan Tiida C11. Manual - part 933

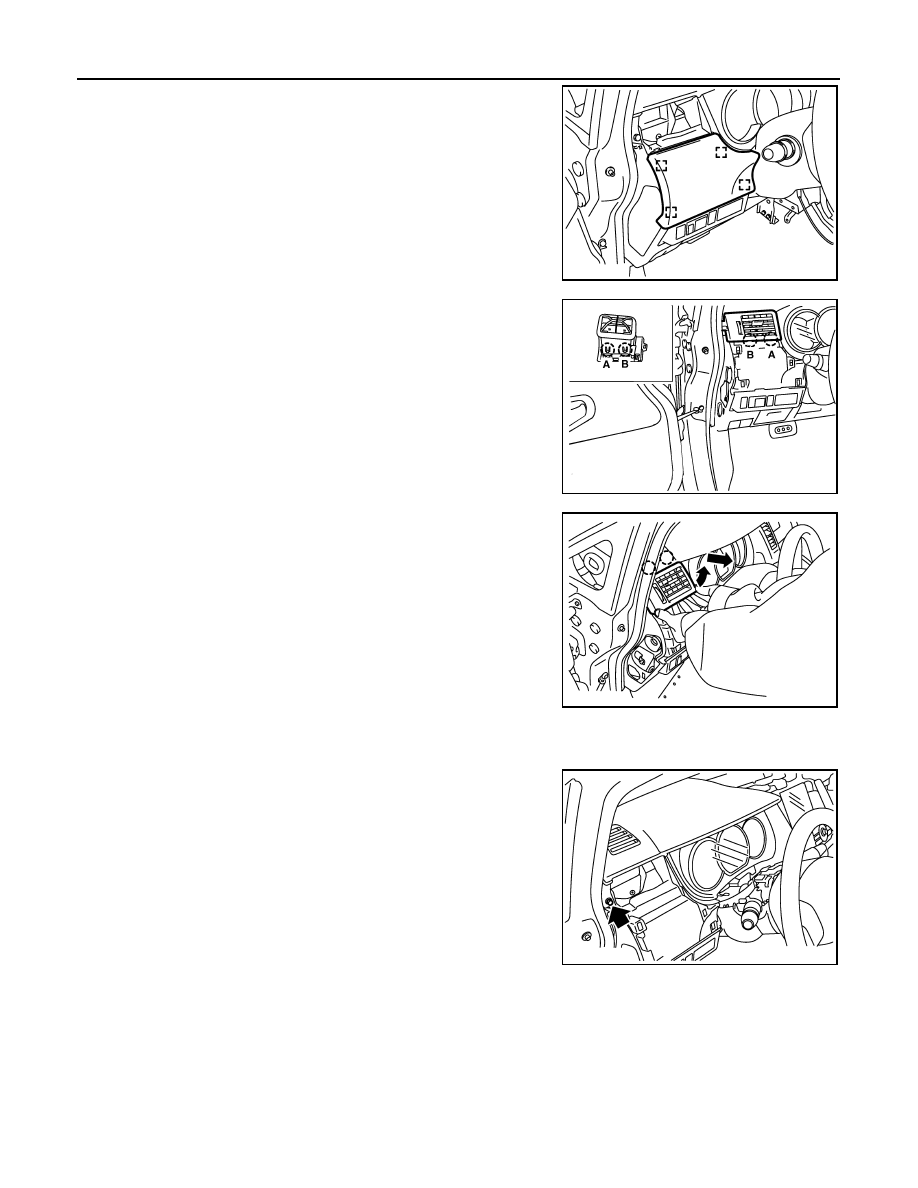

IP-14

< SERVICE INFORMATION >

INSTRUMENT PANEL ASSEMBLY

8.

Remove instrument side finisher.

a.

Insert a suitable tool into space of instrument side finisher.

b.

Disengage instrument side finisher metal clips, and then remove
instrument side finisher.

9.

Remove side ventilator assembly (LH).

a.

Insert a suitable tool into the bottom gap of side ventilator
assembly after removing the instrument side mask and push
against A and B as shown to disengage the pawls.

b.

Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly upper pawls, and then
remove the side ventilator.

10. Remove steering lock escutcheon.

11. Remove screws, and disengage pawls then remove the steering column cover.
12. Remove cluster lid A.

a.

Remove screws from instrument upper panel right side.

PIIB2440E

WIIA1226E

PIIB3976E

PIIB3969E

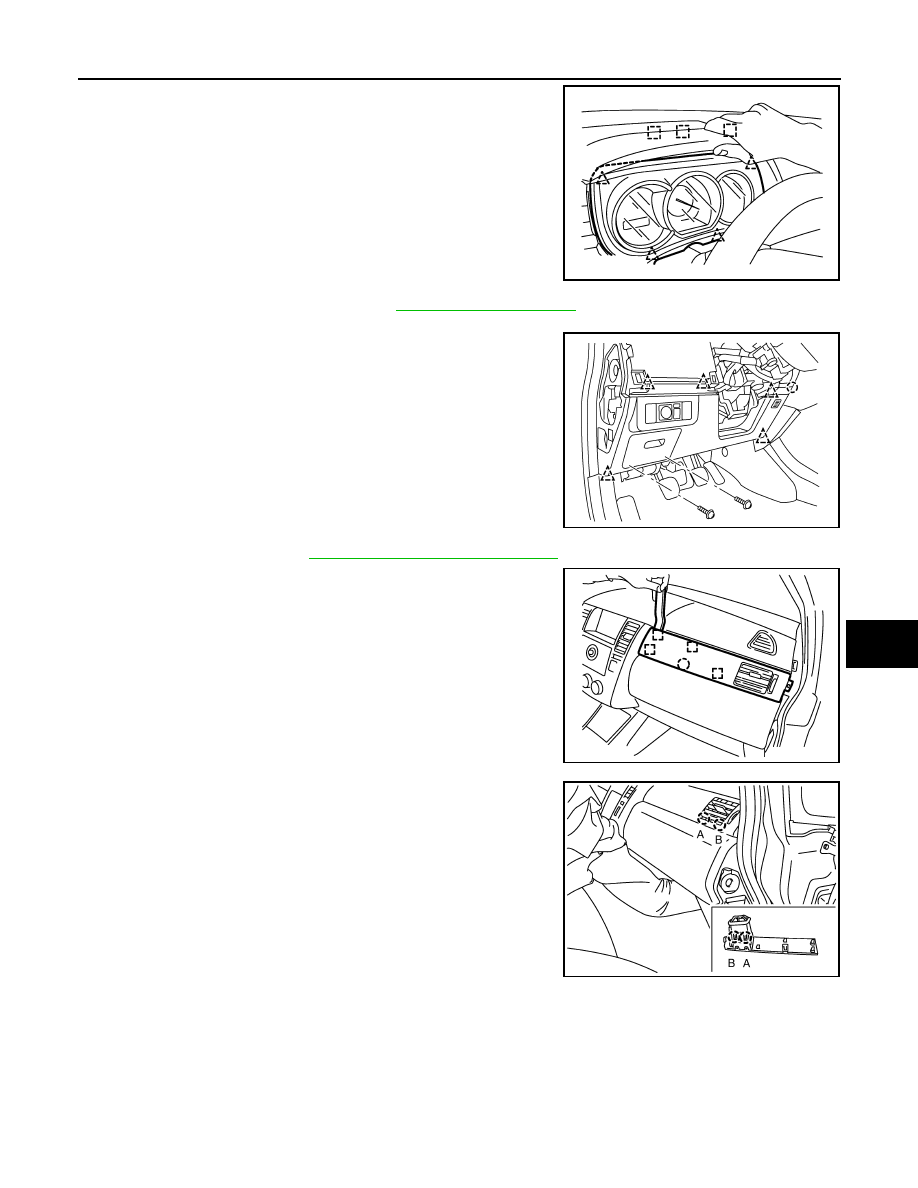

INSTRUMENT PANEL ASSEMBLY

IP-15

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

b.

Lift the instrument upper panel up, disengage metal clips.

c.

Pull backward and disengage clips.

d.

Remove cluster lid A.

13. Remove the combination meter. Refer to

IP-10, "Component Parts"

.

14. Remove the instrument lower finisher.
a.

Disengage pawls and remove fuse block lid.

b.

Remove the screws.

c.

Pull backward while disengaging the instrument lower finisher
clip and pawls.

d.

Disconnect the harness connectors, and then remove instru-
ment lower finisher.

15. Remove glove box. Refer to

IP-23, "Disassembly and Assembly"

.

16. Remove side ventilator assembly.

a.

Insert a suitable tool into the side ventilator assembly from cen-
ter console side, disengage the clips and pawl of instrument
panel pad.

b.

Reach through the glove box compartment by hand to the back-
side of the side ventilator and push against A as shown to
engage the pawl.

c.

Insert a suitable tool into the bottom gap of side ventilator
assembly after removing the instrument side mask and push
against B as shown to disengage the pawl.

PIIB2880E

ALJIA0096ZZ

PIIB3977E

PIIB6385E

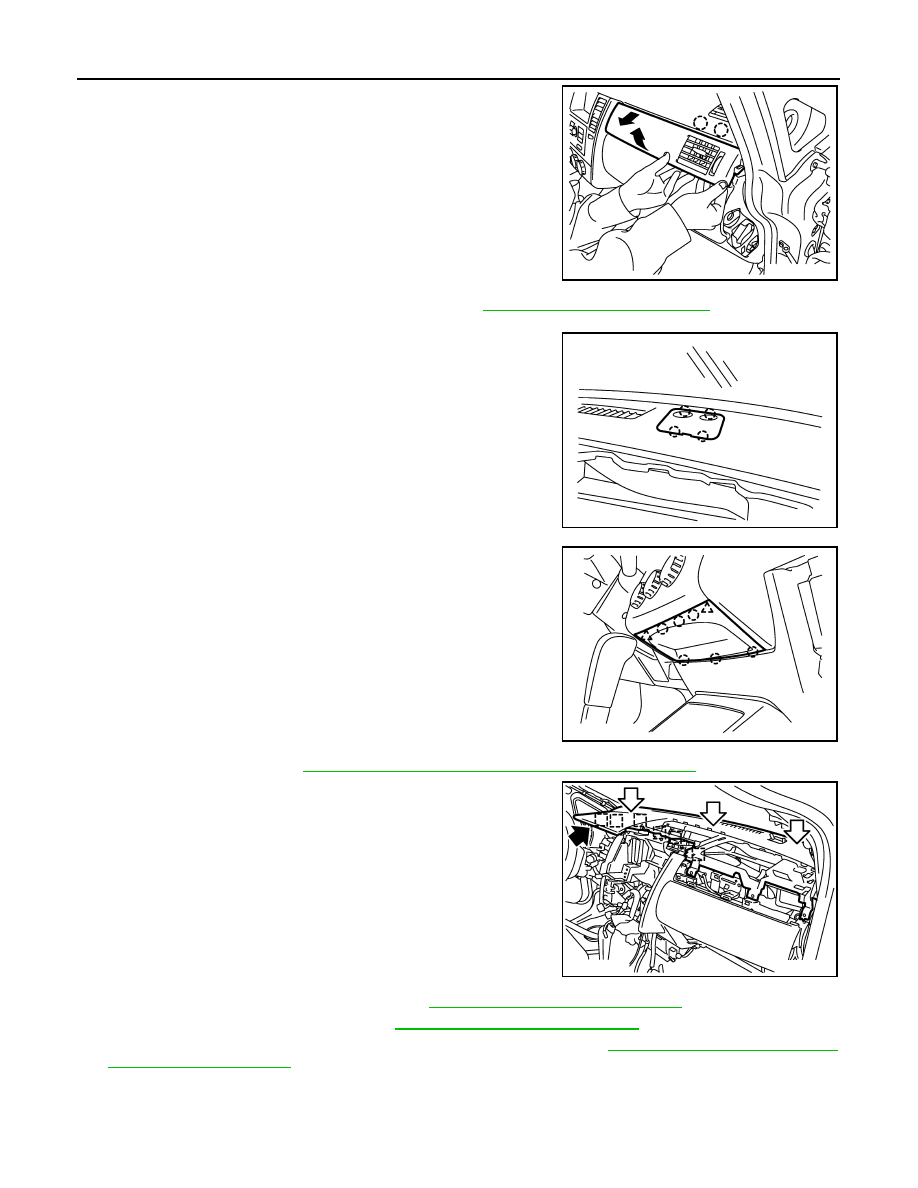

IP-16

< SERVICE INFORMATION >

INSTRUMENT PANEL ASSEMBLY

d.

Lift the side ventilator assembly up from the bottom, pull back-
ward while disengaging the side ventilator assembly upper
pawls, and then remove the side ventilator assembly.

17. Remove the front passenger air bag module. Refer to

SR-9, "Removal and Installation"

.

18. Remove instrument upper mask.
a.

Insert a remover into backside space of instrument upper mask.

b.

Disconnect harness connector, and then remove instrument
upper mask.

19. Remove instrument finisher D.

a.

Insert a remover into upper space of instrument finisher D.

b.

Disengage clips and pawls, then remove instrument finisher D.

20. Remove controller. Refer to

TM-203, "Selector Lever Knob Removal and Installation"

.

21. Remove instrument upper panel assembly.
a.

Remove bolts and screws.

b.

Pull backward and remove instrument upper panel assembly.

22. Remove lighting & turn signal switch. Refer to

EXL-101, "Removal and Installation"

.

23. Remove wiper & washer switch. Refer to

WW-76, "Removal and Installation"

.

24. Remove hood opener handle and fuel filler lid opener handle. Refer to

DLK-215, "Removal and Installa-

tion of Hood Lock Control"

.

25. Remove screws, and then remove instrument panel & pad from passenger door opening portion.

Installation

Installation is in the reverse order of removal.

PIIB3979E

PIIB2445E

PIIB2446E

PIIB2881E

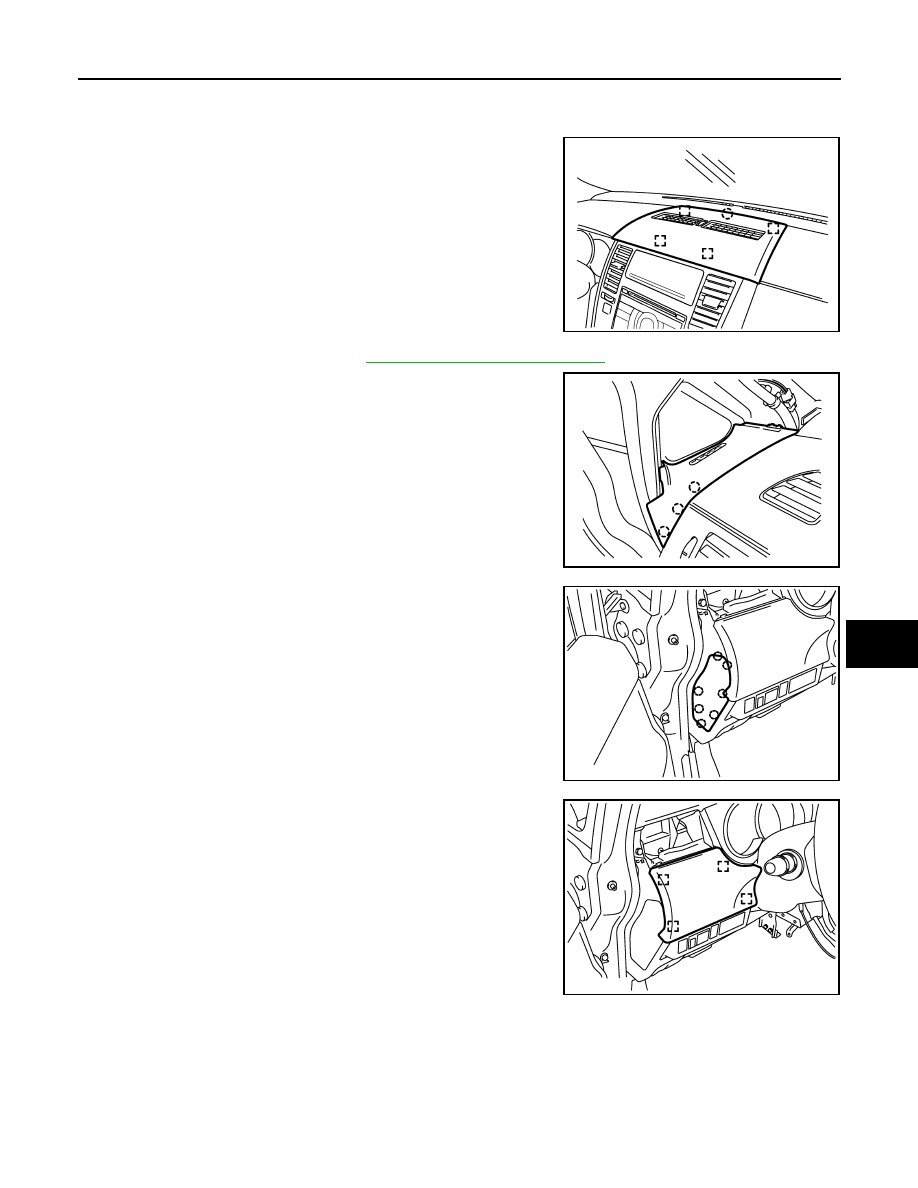

INSTRUMENT PANEL ASSEMBLY

IP-17

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID A

Removal

1.

Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.

2.

Remove front pillar garnish. Refer to

INT-20, "Removal and Installation"

.

3.

Pull up instrument side panel and disengage pawls.

4.

Remove instrument side panel.

5.

Remove LH instrument panel side cover.

a.

Using a suitable tool insert into upper space of instrument panel
side cover.

b.

Disengage pawls, and then remove instrument panel side cover.

6.

Insert a remover into space of instrument side finisher.

7.

Disengage metal clips, and then remove instrument side fin-
isher.

WIIA1224E

PIIB2439J

PIIB2448E

PIIB2440E
